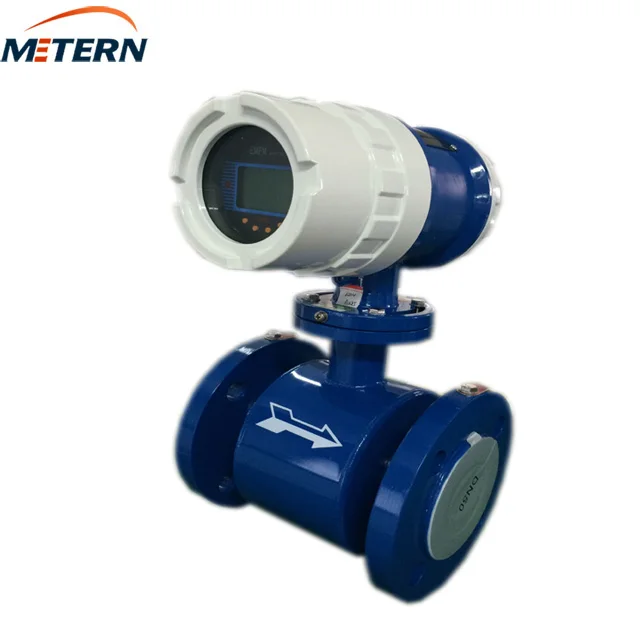

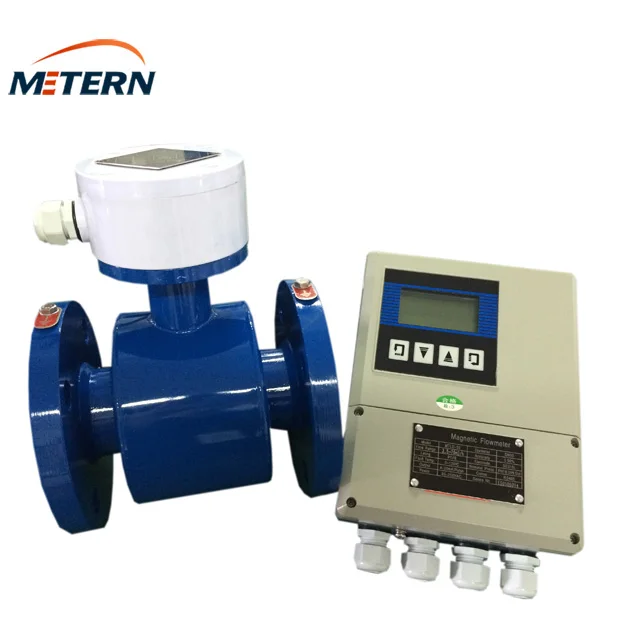

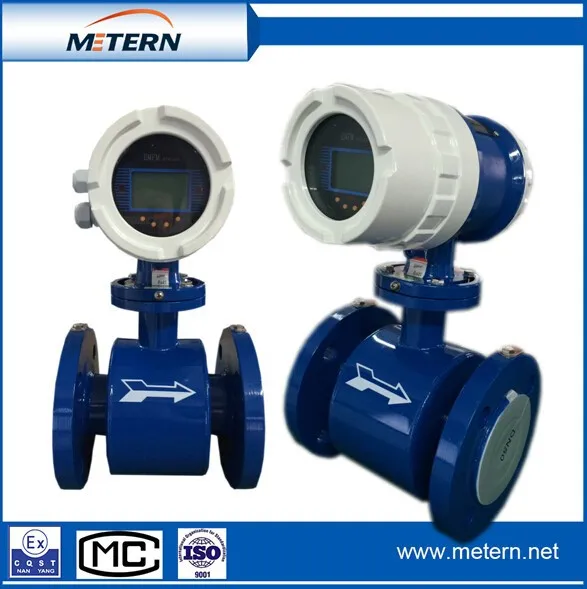

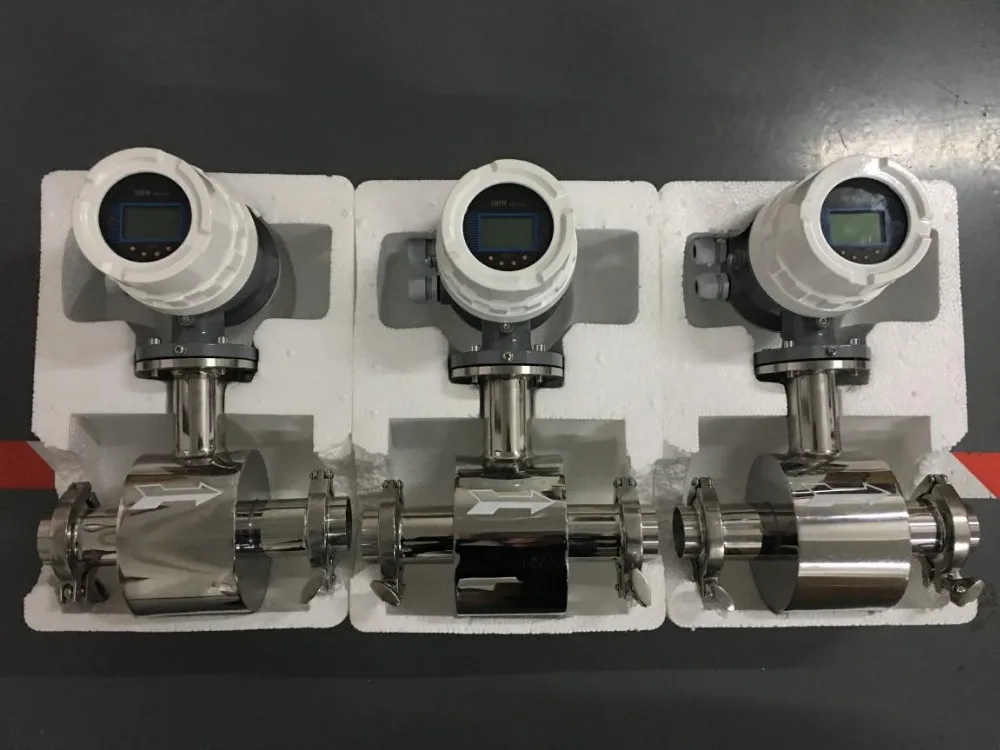

ANSI flange clamp magnetic flow meter China low price various output modes electromagnetic flowmeter

Product Overview

Description

 Features

    No moving parts; Virtually no pressure drop;
    Minimal maintenance
    Wide range of nominal diameters;
    Broad selection of lining and electrode materials



Specifications

Power Supply	110-240Vac (Optional: 24 Vdc)
Power Consumption	10W
Accuracy	± 0.5% accuracy of rate from 0.3-10 m/s ± 1.0% accuracy of rate from 0.1-0.3 m/s
Repeatability	0.2%
Minimum Fluid Conductivity	5.0 micromhos/cm
Flow Direction	Unidirectional or bidirectional, 2 separate totalizers (programmable)
Analog Output	4-20mA, 750ohms Max Load
Output Frequency	Scaled Pulse output, (open collector) Max 5Khz
Noise Damping	Programmable
Pulse Width	Programmable up to 500ms
Zero-point Stability	Automatic correction
Ambient Temperature	-4 to 140° F (-20 to 60° C)
Electrode Materials	SS316L; Optional: Titanium; Hastelloy Alloy C; Tantalum
Liner Material	PTFE, FEP, Hard Rubber
Fluid Temperature	PTFE: 120°C Standard (Customized: 180°C) Rubber: 60°C
Pressure Limits	1.0 Mpa; Optional 1.6; 2.5; 4.0 Mpa
Coil Power	Pulsed DC
Pipe Spool Material	SS316
Meter Housing Material	Carbon Steel welded or SS304 (Sanitary Connection)
Flange	Carbon Steel - Standard (ISO 7005-1) ANSI, DIN and JIS Flange Connections Optional Stainless Steel Grounding Rings
