Wireless Sensor Outdoor Parking Guidance System

Product Overview

Description

Wireless Sensor Outdoor Parking Guidance System



• Advanced identification algorithm and anti-jamming design, detection accuracy up to 98%;


• Directly buried in the parking space, eliminating wiring troubles and low construction difficulty;


• Small size to reduce damage to the ground and installation cost;


• High-strength housing design, with anti-pressure, anti-corrosion properties, long service life;


• IP68, it can effectively cope with the various harsh environments of outdoor parking spaces.

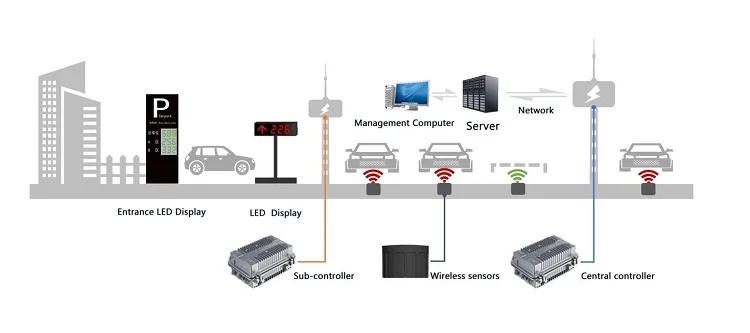

IWS-200 Outdoor Parking Guidance System Product &Features

Wireless Vehicle Sensor

Wireless vehicle sensor is an important part of outdoor parking guidance systems. Based on geomagnetic sensing technology, the detection accuracy is as high as 98%. The protection level is up to IP68. It can effectively deal with the outdoor environment and can be used normally in all kinds of weather conditions.

• Advanced identification algorithm and anti-jamming design, detection accuracy up to 98%;


• Directly buried in the parking space, eliminating wiring troubles and low construction difficulty;


• Small size to reduce damage to the ground and installation cost;


• High-strength housing design, with anti-pressure, anti-corrosion properties, long service life;


• IP68, it can effectively cope with the various harsh environments of outdoor parking spaces.

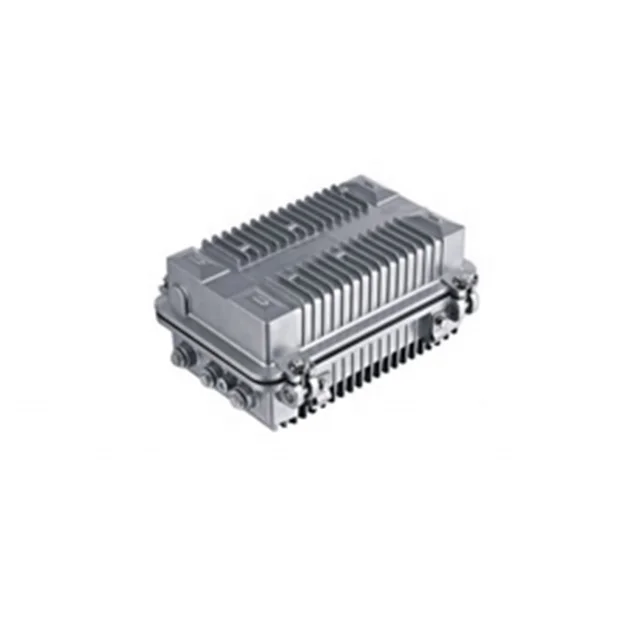

Sub-Controller

Outdoor sub-controller is used to connect with the central controller, wireless vehicle sensors and LED display. The outdoor sub-controller collects the status information of all sensors in its area in real time through RF470 MHz wireless communication and uploads all parking state information to the central controller. It has IP65 protection and can be used in all weather conditions.



• With IP65 design, meet the needs of outdoor harsh environments;


• Wirelessly communicate with sensors to reduce construction wiring and post-maintenance costs;


• Multi-level routing with outdoor wireless central controllers, with strong networking capabilities


• Adopt international advanced 32-bit ARM processor, industrial grade design to ensure the stability and reliability of the product;

Central Controller

The outdoor central controller is the core of the system, it collects and processes parking space status information in real time. Through the update of the real-time data of the parking guide display, to realize the guidance function. The central controller has IP65 protection and can be used in all weather conditions.

• Adopt international advanced 32-bit ARM processor


• The device has short-circuit, overvoltage and overload protection functions to prevent electrical damage to related equipment due to wiring errors during construction.


• The overall use of industrial design, after strict electrostatic, lightning and surge, group pulse and other tests to effectively ensure the reliable use of equipment;


• The area information is not affected by the physical position of the detector and the display screen and any detector and display underneath it can be associated;

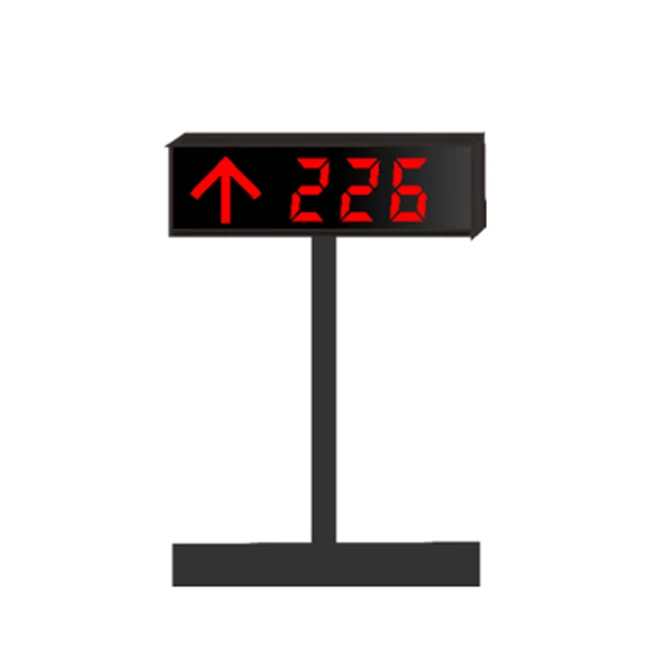

Guide LED Display

The guide screen consists of high-brightness P10 modules, drive units, and brackets. It receives the output information of the outdoor centralized controller displays the number of empty spaces in the area in the form of numbers, arrows, etc. One-way, two-way, three-way outdoor guide screens can be customized according to requirements.

• Adopts tempered glass panel + painted cold steel, appearance is simple and atmospheric;


• The shell adopts waterproof and dustproof design, and use anti-ultraviolet paint, color hard to fade;


• With short circuit, over voltage, over current, overload protection;


• Highlight red and green led beads, visible distance, and wide viewing angle.

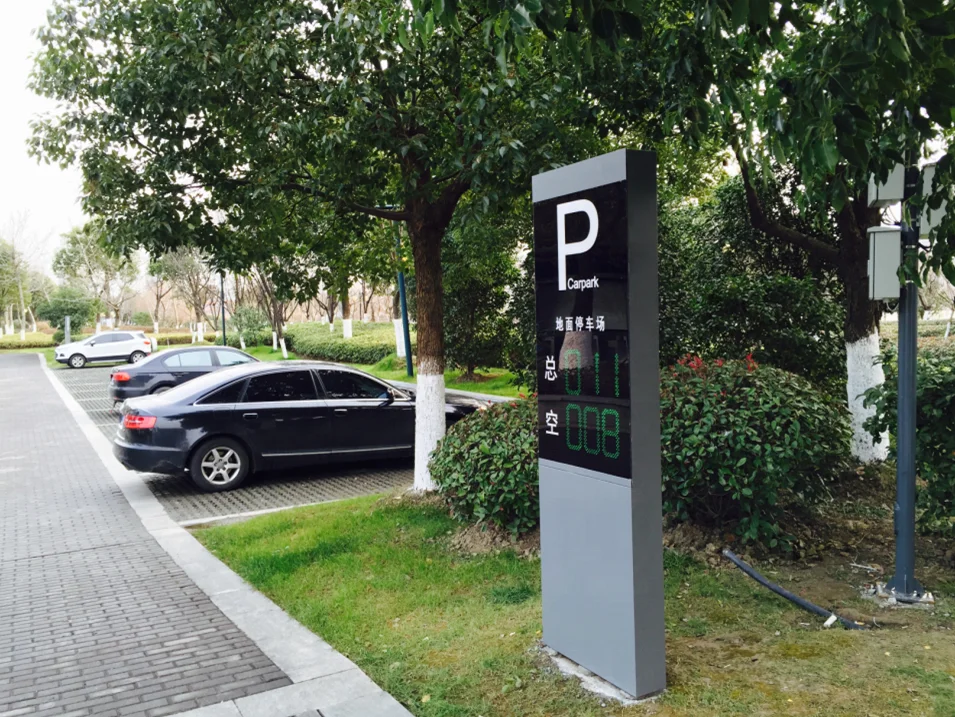

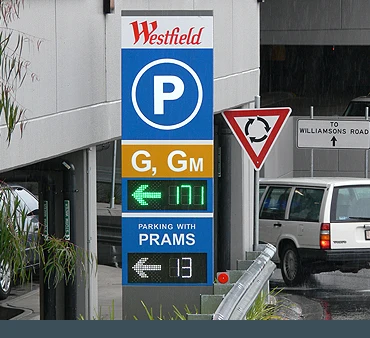

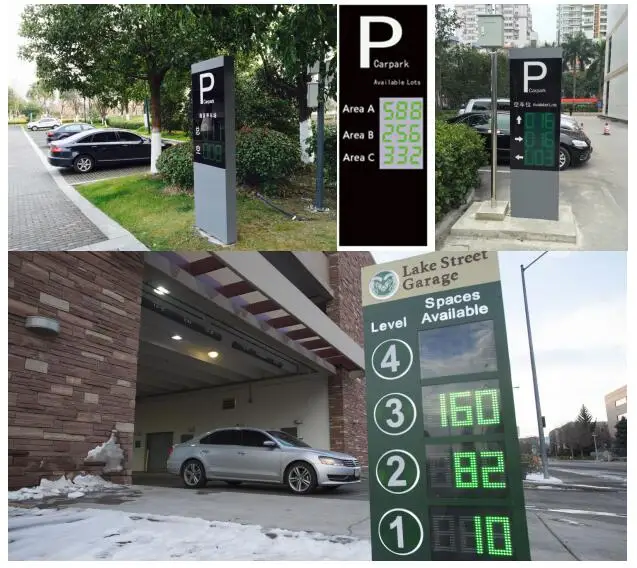

Entrance LED Display

The entrance LED display consists of high-brightness LED modules, driving circuits, and brackets. It is installed at each entrance of the parking lot and is used to display information on the available parking spaces in the parking lot. The number of empty parking spaces in the current parking lot is displayed in real time, reminding the driver in advance.

• Adopts tempered glass panel + painted cold steel, appearance is simple and atmospheric;


• The shell adopts waterproof and dustproof design, and use anti-ultraviolet paint, color hard to fade;


• With short circuit, over voltage, over current, overload protection;


• Highlight red and green led beads, visible distance, and wide viewing angle.

Application



Outdoor parking lot

parking space on public road or driveway



Technical Parameter



Model	IWS-200	Voltage	2.5~3.6V (battery inside)
Dimension	Φ98×65.4mm	Battery capacity	19000mAh
Weight	260g	Average current	<50uA
Material	PC+ABS+PA65	Battery life	5 years
Anti pressure	20tons	Protection Grade	IP68
Detect accuracy	≥98%	Communication	RF470MHz @ 10kbps
Installation	Buried	Communicationdistance	≤100m
Wireless update	support	NFC	support
Working temperature	-40℃~+85℃	Environment humidity	≤90%RH(No condensation)
