Connector FGG 0B 2 3 4 5 6 7 9 Pin Male Connector FGG Male Plug for Sound Devices Zaxcom Denecke Timecode
Connector FGG 0B 2 3 4 5 6 7 9 Pin Male Connector FGG Male Plug for Sound Devices Zaxcom Denecke Timecode
Connector FGG 0B 2 3 4 5 6 7 9 Pin Male Connector FGG Male Plug for Sound Devices Zaxcom Denecke Timecode
Connector FGG 0B 2 3 4 5 6 7 9 Pin Male Connector FGG Male Plug for Sound Devices Zaxcom Denecke Timecode
Connector FGG 0B 2 3 4 5 6 7 9 Pin Male Connector FGG Male Plug for Sound Devices Zaxcom Denecke Timecode

Connector FGG 0B 2 3 4 5 6 7 9 Pin Male Connector FGG Male Plug for Sound Devices Zaxcom Denecke Timecode

Share on (60793355527):


Price:

Quantity:


Product Overview

Description


Product Description

Connector FGG 0B 2 3 4 5 6 7 9 Pin Male Connector FGG Male Plug for Sound Devices Zaxcom Denecke Timecode

\t

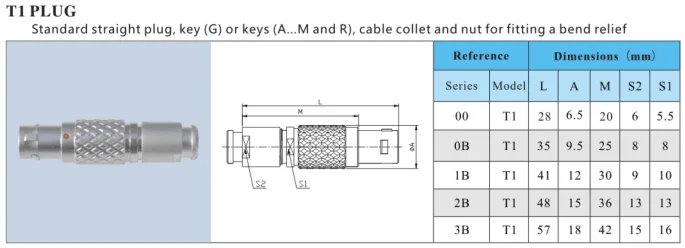

Male Plug
\t
Part Number:
\t
0BT1G02CLA(FGG 0B 302)
\t
Series:
\t
B
\t
Insert Configuration:
\t
2 pin low voltage
\t
Size:
\t
0B
\t
Insulator:
\t
 PPS
\t
R (max):
\t
6.0 mohm
\t
Max. Matings:
\t
5000
\t
Contact Dia:
\t
0.9mm
\t
Bucket Dia:
\t
0.8 mm
\t
Vtest (contact-shell):
\t
1050 V
\t
Vtest (contact-contact):
\t
1300 V
\t
Rated Current:
\t
10A (AC/DC)
\t
Housing material:
\t
chrome plated brass
\t
Contact Type:
\t
Solder
\t
Temp(min)
\t
- 40 deg
\t
Temp(max)
\t
200 deg C
Products Show

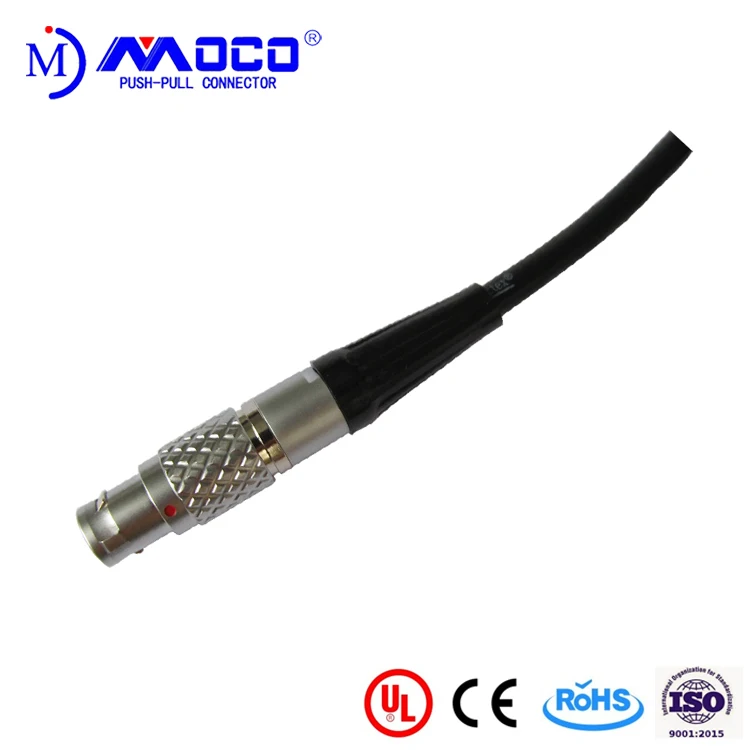

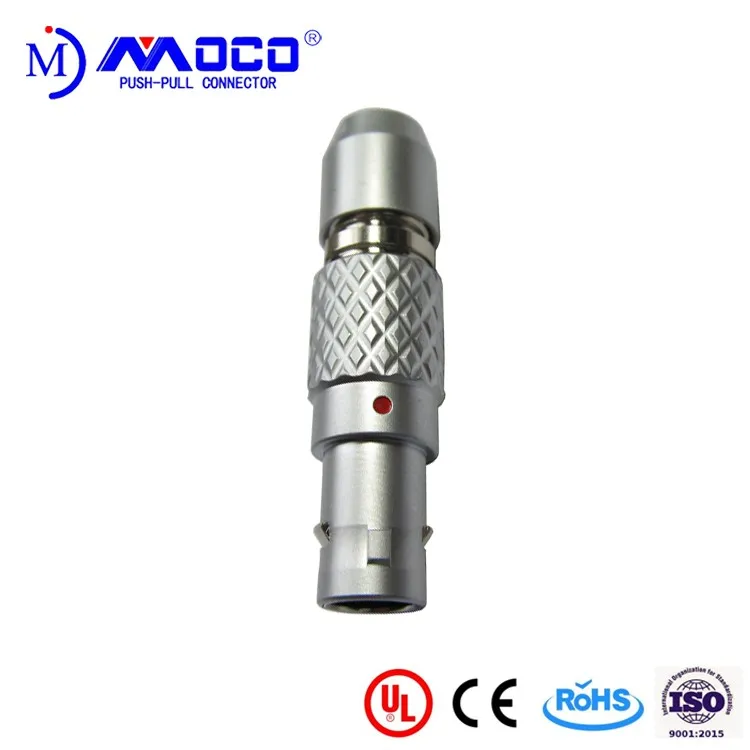

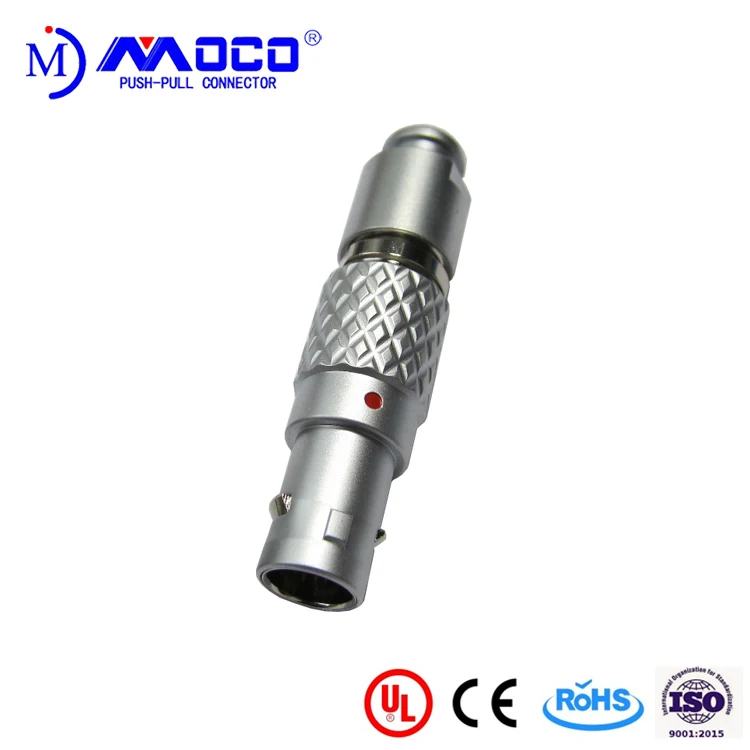

" With bend relief "                                                                     " Without bend relief "


 Production Process:


Product Use:

Moco connectors are of stable performance and attractive appearance which are interchangeable with international brands, widely used in the fields of measurement, medical, audio-video, military, navigation, security, aviation, industrial control, automotive and power etc.
Our Company

       MOCO is a leading high-tech manufacturer specializes in development, design, manufacturing and service of unipole and multipole circular push-pull connectors and cable assemblies. Established by several experienced engineers of connectors and relative fields, MOCO is to serve both old and new, domestic and overseas customers in a better way.
      Our products are of high quality and stable performance which are interchangeable with international counterparts, widely used in the fields of measurement, telecommunication, medical, industrial control, audio-video, military, automotive and power etc. Meanwhile, we design new products according to customers' special requirements, and always do our best!

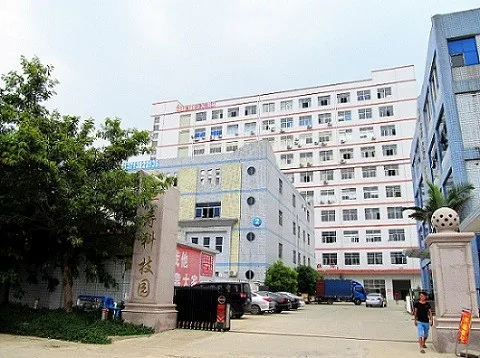

Factory

Our Factory

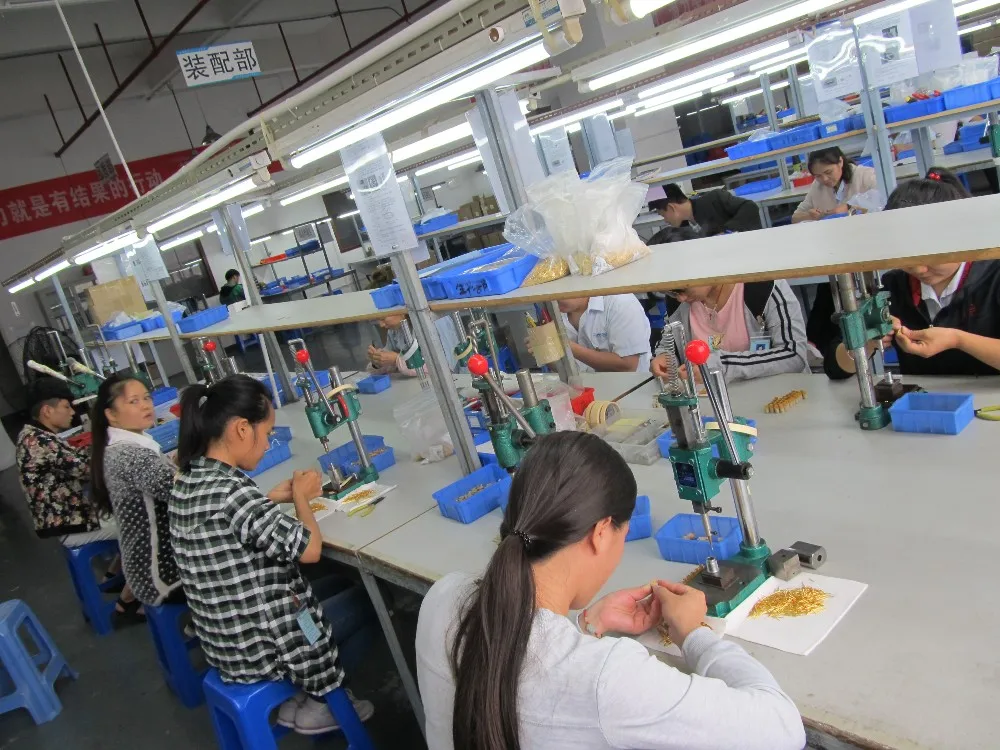

Workshop

Our Workshop

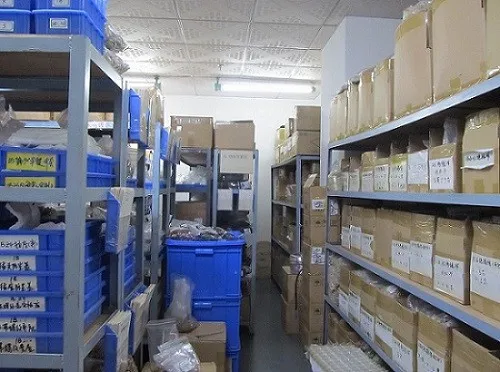

Warehouse

Our Warehouse

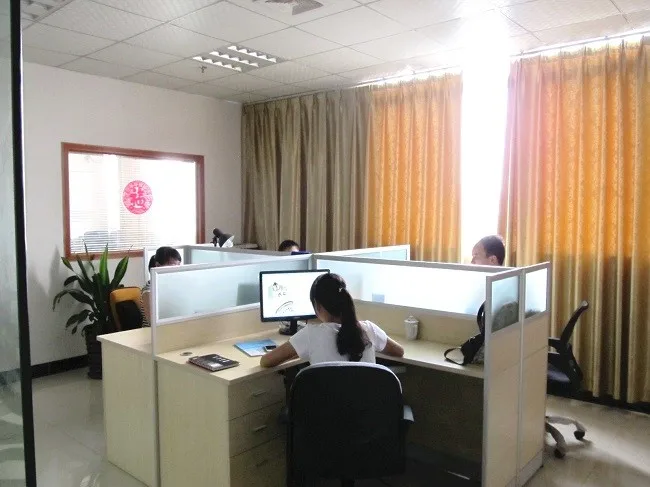

Office

Our office

Teams                                                                                      Customers

Our teams                                                                                              Our customers


Company History:
Our Certifications

       UL Approved                                                        ROHS Approved                                  CE Rpproved

Packing & Delivery

Packing:

We can pack the goods according to customer's requirement,the following is conventional packing without special requirement-
Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)

Delivery:
*Loading Port: Shenzhen, China
*Delivery time: 4~7 working days after payment
Our Services

1.We can do the designs according to the customers' requirement

2.We can open customers'own mould as per their requirement
3.We can offer you the high quality & reasonable price
4.Promptly delivery and small order is welcome.
5.We can offer you a good after-sell service
6. We will reply you for your inquiry in 24 hours.
7. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

FAQ

Q:What about MOCO connectors' compatibility?
A:It's perfectly all right.According to various user' feedback, Our products can be compatible with other products very well.

Q:Do you provide any samples for testing?
A: Yes, Free samples will be provided according to your practical requirement!

Q:What about your after-sales service?
A:Just like our products, our after-sales service is first class, All the products sold out enjoy one year warranty,you can contact our customer services if you have any questions when you using the product.


Contact Us:

Do not hesitate to contact us anytime before and after your purchase,Just contact us freely if you have some questions on your purchase.
We will reply your mail within 24 hours normally.sometimes there is a little delay due to the weekends or holidays.(we work from Monday to Saturday (8:30-18:00 GTM+8)
If you can't get our mail after 48 hours, please double check your spam.
