iron 150cc cargo tricycle sale in philippines

Product Overview

Description

Introduction of iron 150cc cargo tricycle sale in philippines



The engineering tricycle is mainly used for the slag discharge in the diversion tunnel. It is small size and large shipment volume. Suitable for use in mining buildings. The engineering tricycle is beautiful in appearance, exquisite in design, excellent in performance and comfortable in driving. It is widely used for brick kiln factory, refractory factory, flour mill, concentrating plant, chemical plant, furnace plant, construction site and other transportation loading and unloading bulk materials; community, street, sanitation, ramp Transportation of waste, earthwork, construction equipment, etc.; red brick factory, block brick factory used to transport coal, coal slag, slag, clear kiln slag, clearing road is also an ideal and energy-saving transportation tool for transporting feed and clearing waste garbage.

Parameter of iron 150cc cargo tricycle sale in philippines



Vehicle size	3600m*1250m*1400m
Wheel distance	1050mm-1400mm
Tires	4.50-14/5.00-14 6.50-16/7.00-16
Power (kw)	8.8-36
Turning radius	400mm
Ground clearance	240mm
Climbing ability	25°
Cold braking distance	≤4.5m
Maximum speed	≤40km/h
Steering wheel free travel	≤30°
Steering wheel operating force	≤200N
Maximum noise	<50 dB
Steering system	hand-held, single-stage rack and pinion steering system, automatic clearance compensation
Brake system	rear wheel adjustment mechanical hub brake
Suspension system	Multi-piece leaf spring, hydraulic damping system
Gearbox type	4th / 7th / 8th / 10th
Rear axle	semi-floating / full float
Braking method	hydraulic / mechanical
Leaf spring	thickness 8mm* width 63mm*15 pieces
Frame	double-beam structure, using high-strength engineering materials for "pp" cars
Upper beam	50mm*120mm*2.75mm
lower beam	50mm*150mm*2.75mm
Rated load	2000kg
Weight	980kg





Feature of iron 150cc cargo tricycle sale in philippines



The cargo adopt 3mm international sheet, which can meet complex conditions in the mining area .

The hydraulic fuel tank and the fuel tank are combined into one, which completely solves the problem that the hydraulic system and the fuel tank are prone to oil leakage.

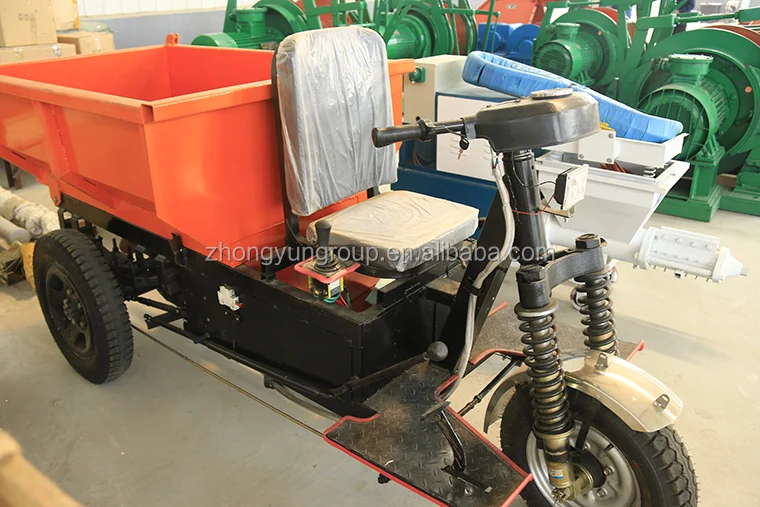

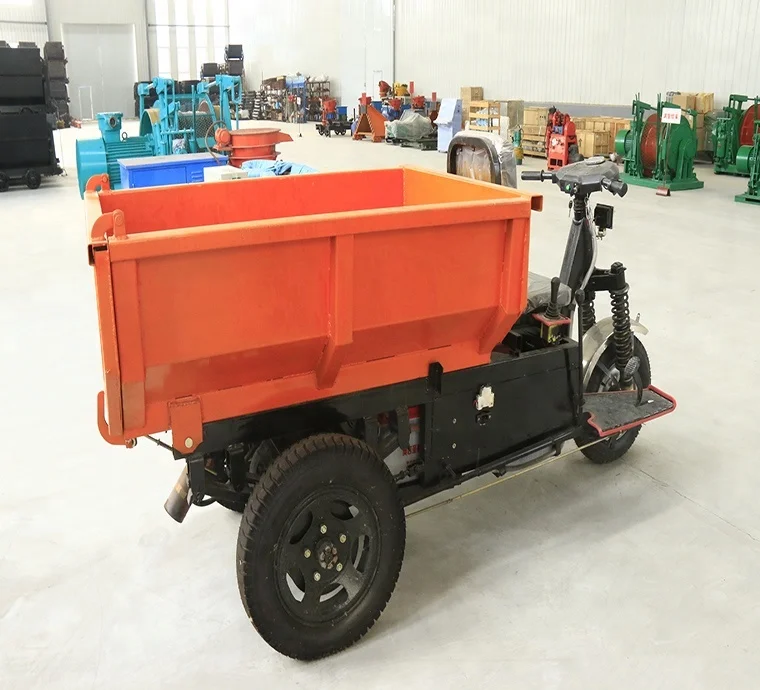

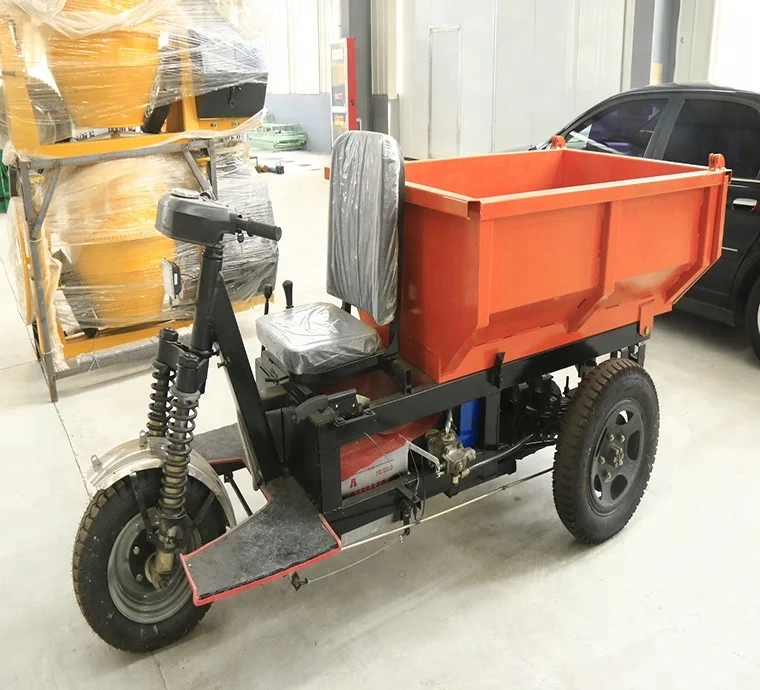

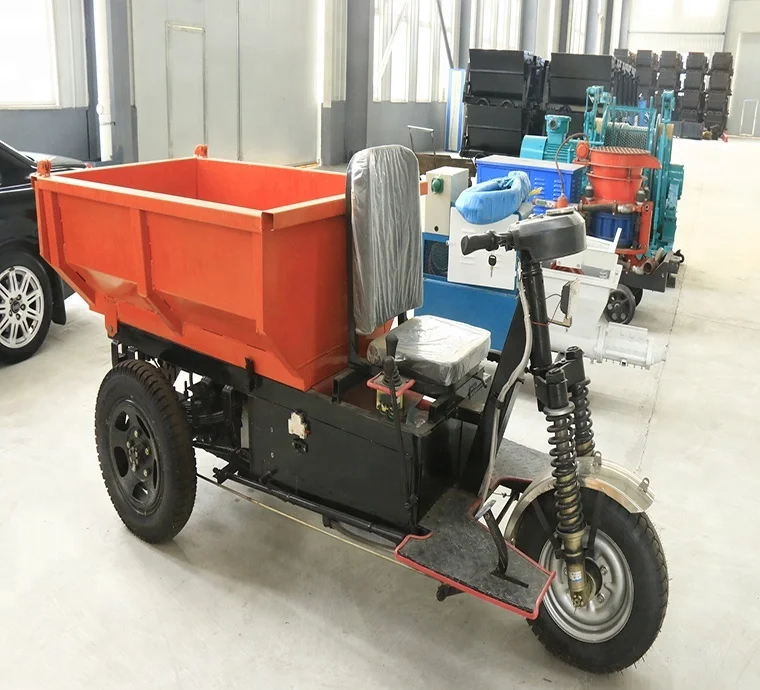

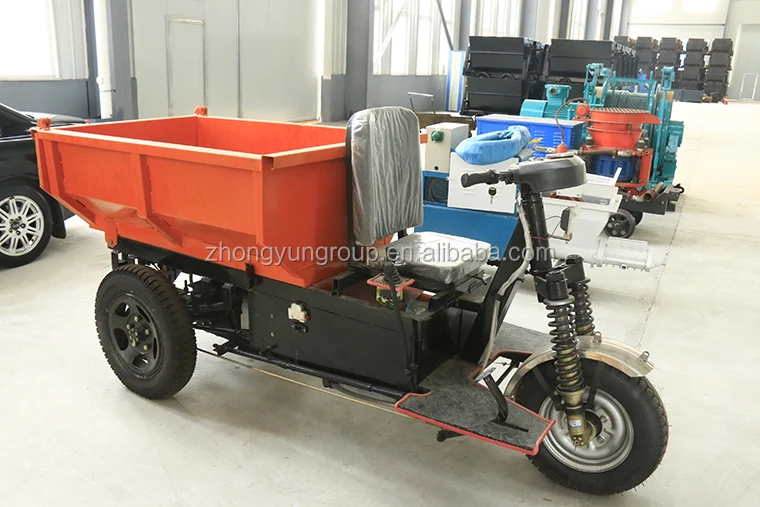

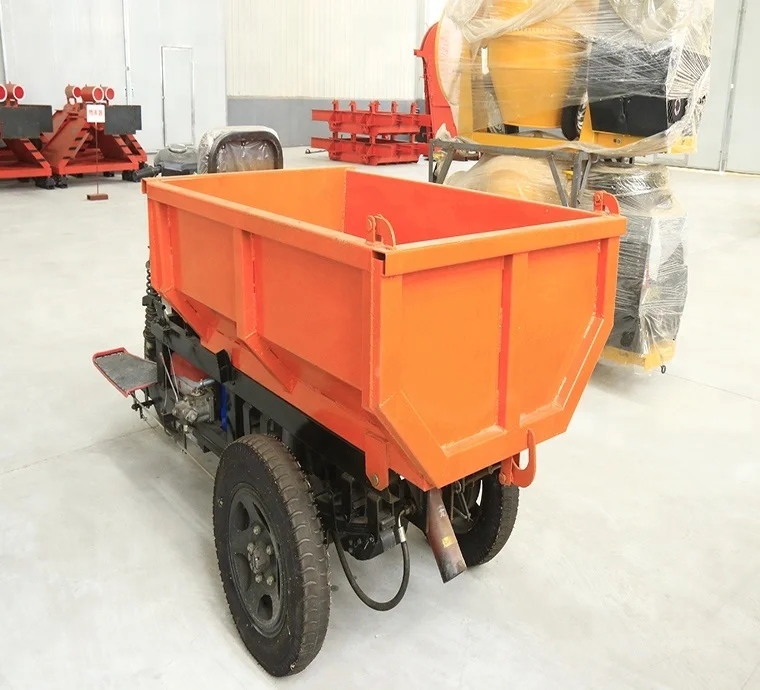

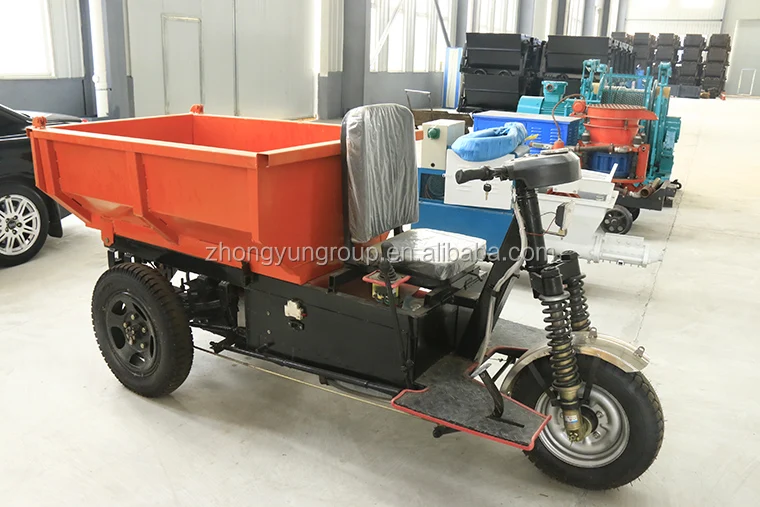

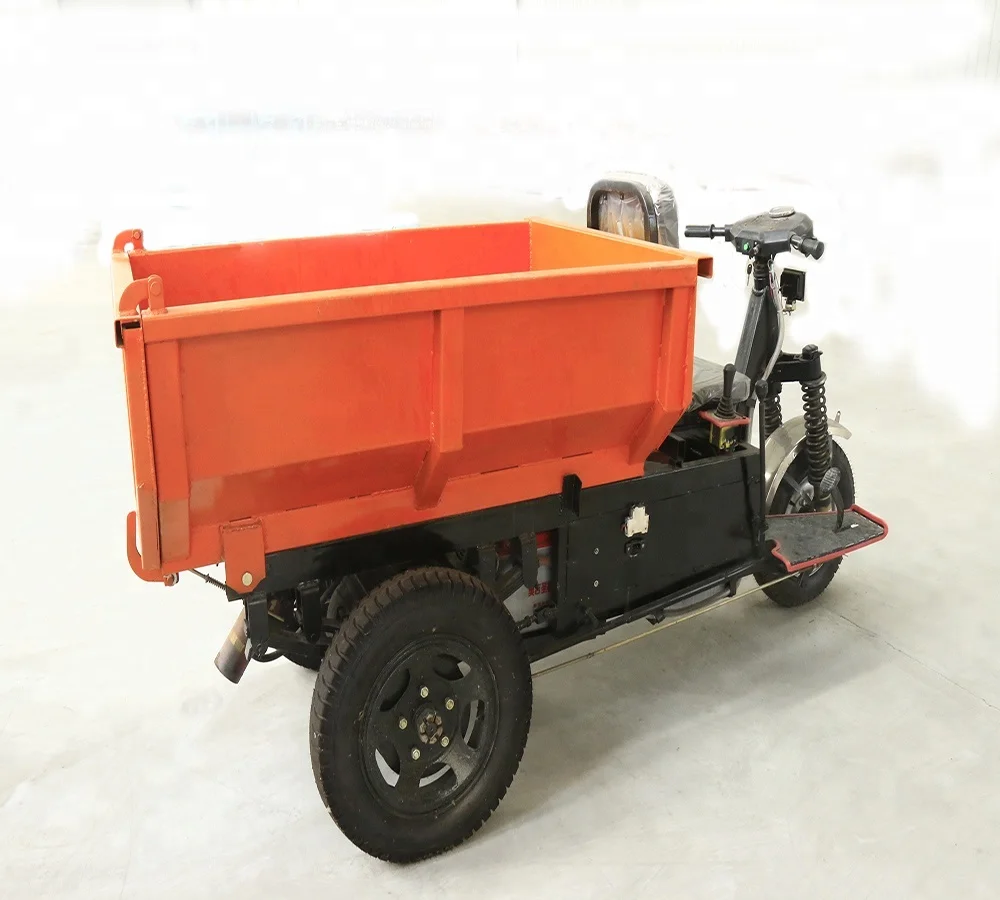

Photo of iron 150cc cargo tricycle sale in philippines
