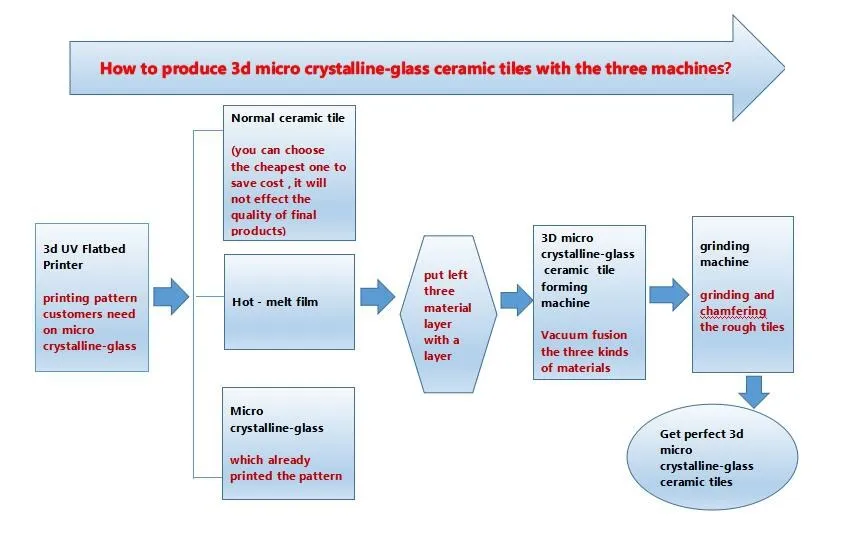

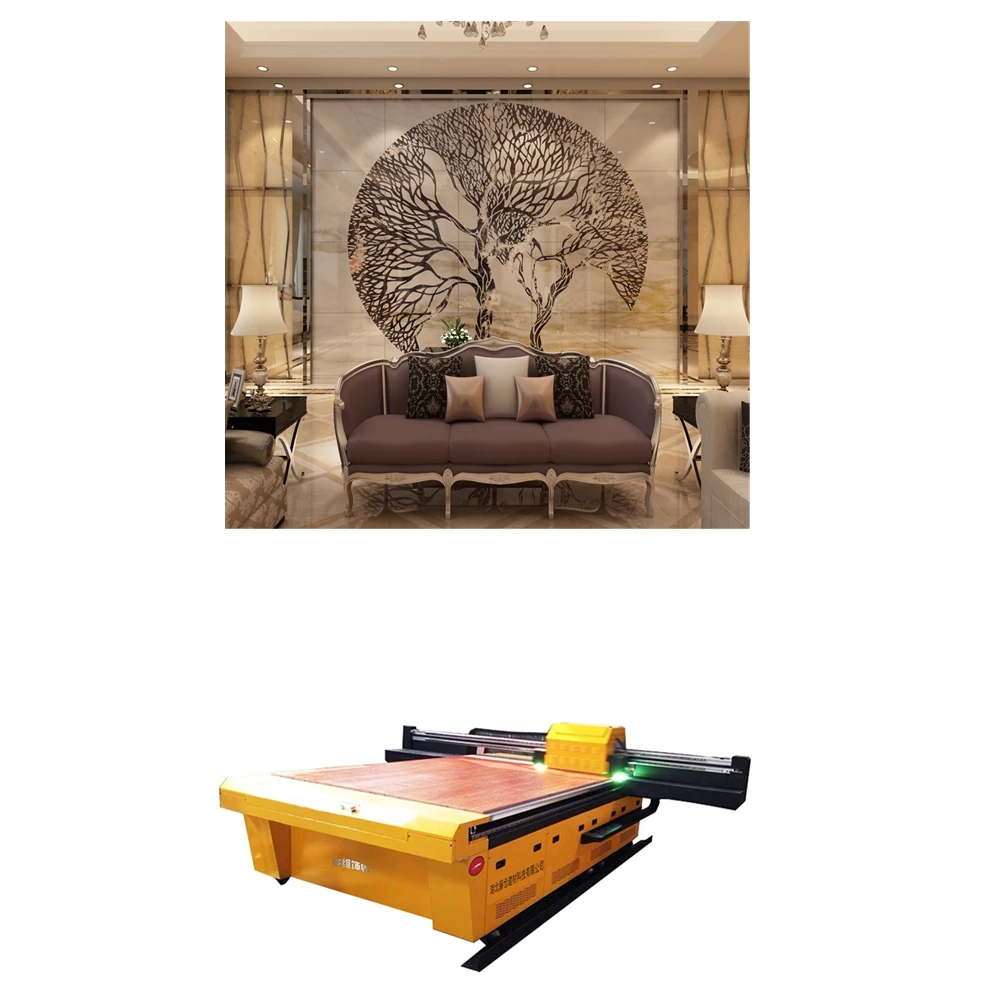

Machine 1     3D Microcrystalline-Glass Ceramic Tile Printing Machine

   Machine performance   (Special for printing on ceramic tile and glass )

1. Automatic lifting platform, easy to operate, reduce the alignment error

2. Mist spray or line spray printing method can be choose, line spray speed up, mist spray exquisite and lifelike

    to eliminate drawing dice

3. Three-stage scraping and peristaltic pump device to prevent nozzle clogging, extended nozzle life

4. Automatic cleaning and nozzle moisturizing device to ensure the fluency of the ink and prevent nozzle clogging

5. Any location can be set as the print origin, operation is simple and easy to learn

6. Silent linear guide, stable performance, high precision , pass the European CE certification, quality is guaranteed

7. Equipment printing platform has a scale to facilitate the visual measurement and display of the printed materials

8. Using imported LED-UV lamp, cold light source, no radiation, ultra-low power consumption, environment-friendly

    and energy-saving

9. Double servo motor, control the performance is more stable

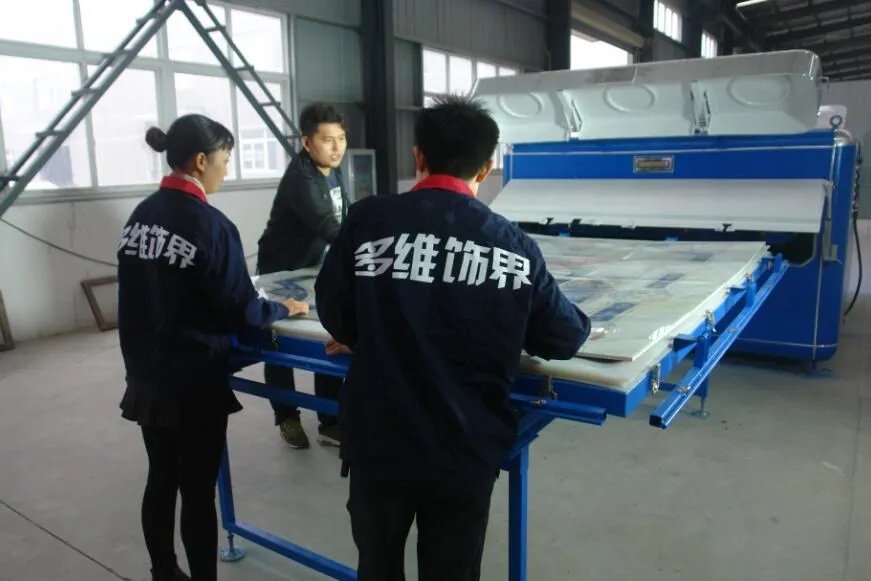

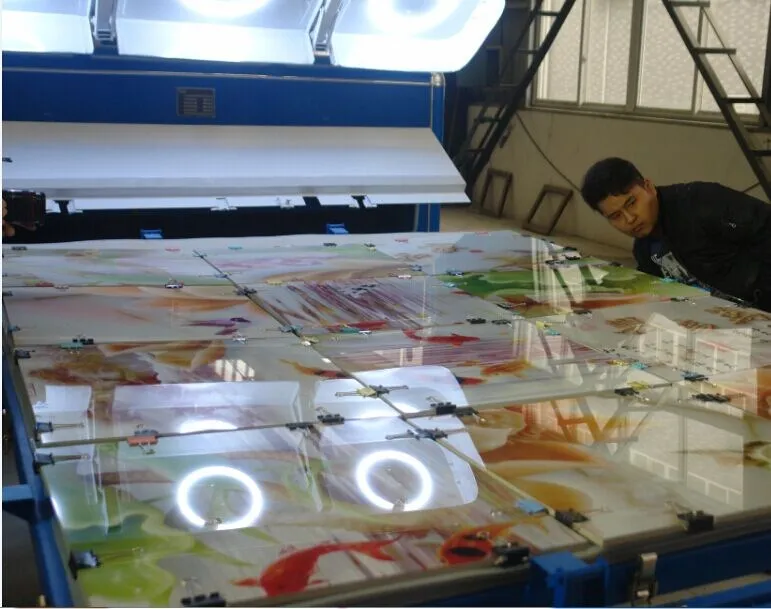

    Machine 2      3D Microcrystalline-Glass Ceramic Tile Forming Machine

Machine performance
1. The furnace body uses the steel structure, the furnace inside uses the high-grade heat preservation

     material combinationto become the double protection.
2. The control system is an intelligent temperature controller, can be programmed to complete the whole

     process automatically and manually.
3.  Use direct-connected vacuum pump, tear-resistant silicone plate that is durable in use, good air tightness,

     and can automatically keep the vacuum after power down.
4  The machine use finned heating pipe,cooling uniformity, long life, using brand circulation fan to circulate air

    heating , heating speed , temperature equalizing, high output; the entire heat cycles in the box,There are air

    vents and suction vents in the equipment so that each vacuum bag on the upper and lower surface heat evenly,

    there is no dead heat, high yield.
5. Use Programmable intelligent control device, plc touch-screen control system, automatic start and stop,

    no staff is required to watch, and it will automatically prompt when break down.
6. Double working positions from left to right recycle, simple operation.
7. When the device is powered off ,the machine can automatically keep the vacuum, no need staff to watch,

    and can continue operating when power on.

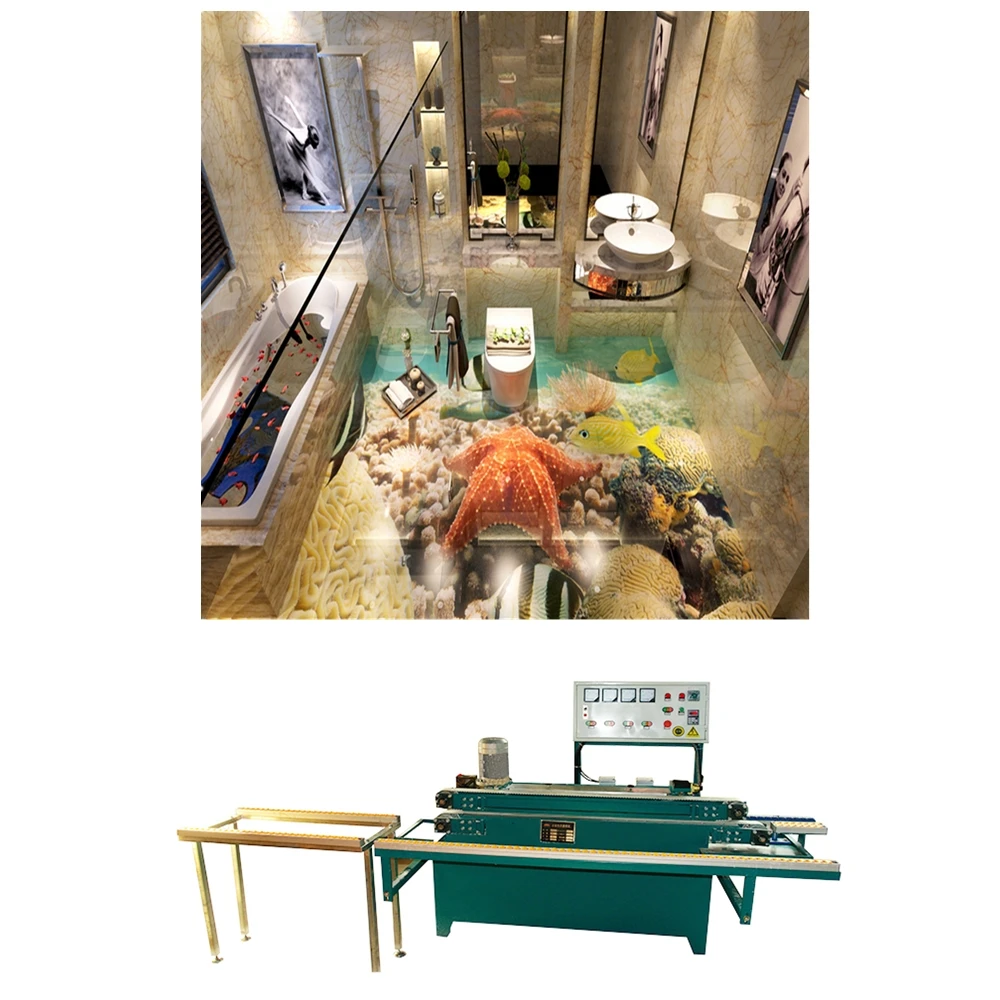

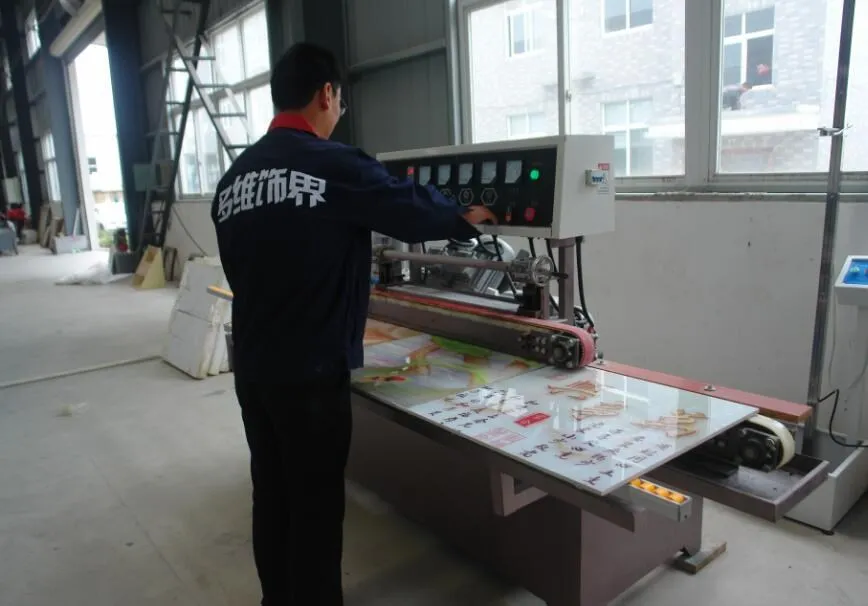

    Machine 3     3D Microcrystalline-Glass Ceramic Tile Grinding Machine

Machine performance

1. The key parts of the machine adopts cast iron material, and is formed by natural effects processing

     which has the advantages of smooth, beautiful appearance, deformation and so on.

2. Method of clamping part imported from Italy PUPL synchronization with horizontal transfer, which greatly

     improve the precision of grinding, grinding parts adopt high-precision grinding head motor.

3. The configuration of the machine is chamfer with two wheels and flat two grinding wheels. It can realized

     the purpose of chamfer edge polishing and flat,edges and chamfers fine grinding.

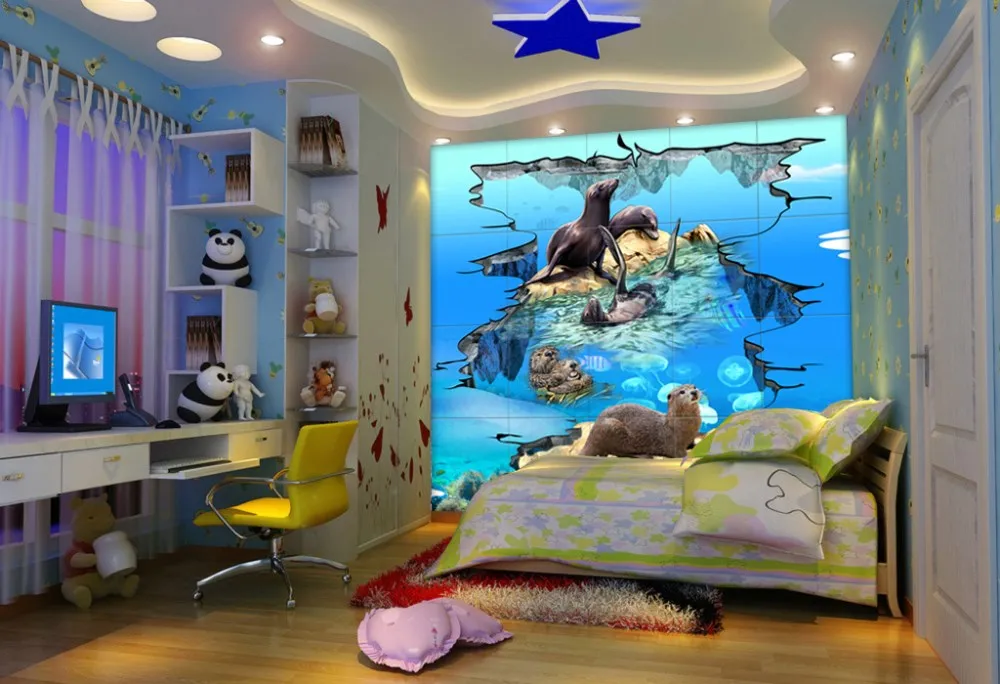

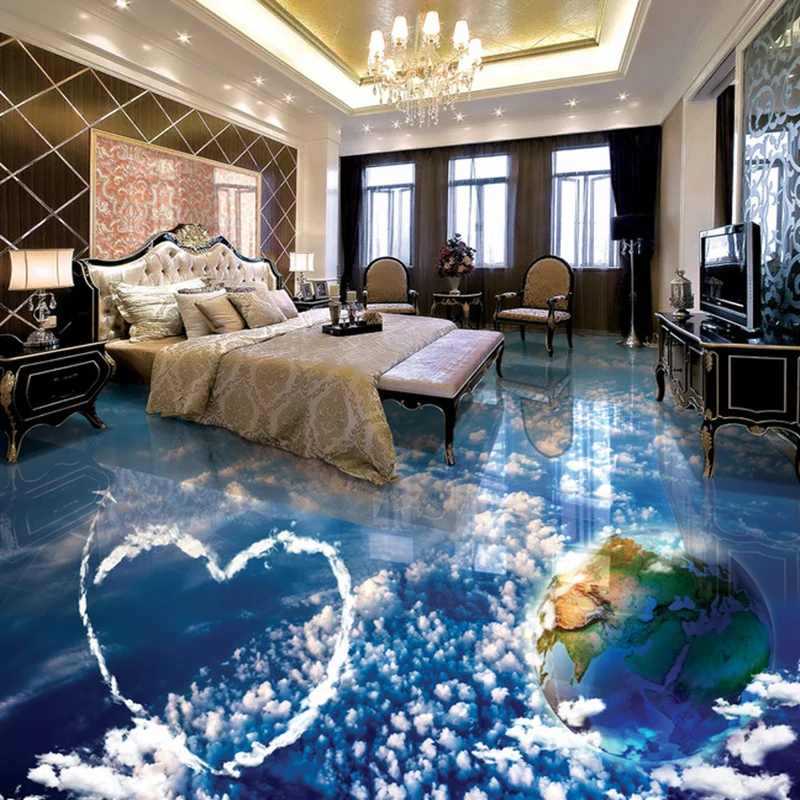

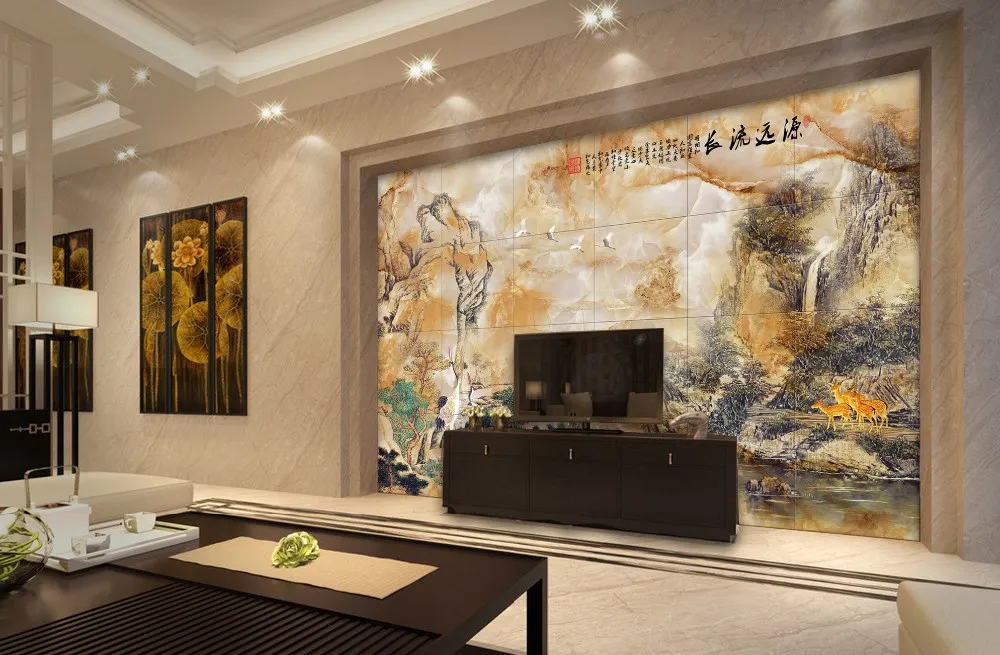

a) For Home Decorations: TV background wall , sofa background wall, bedroom decoration,

    kitchen decoration, bathroom decoration, setting wall of hallway, children's room,

    study room,the wall decorations of dining-room etc.

b) For Places of Business: companies, corporate image walls, storefront decorations, hotels,

    KTV, clubs, teahouses etc.

c) Public Space: setting walls of stations, wharfs, airport lounges, sports stadiums, theater,

    photographic studios, the booths, television studios, halls and meeting room's ceilings

    etc.

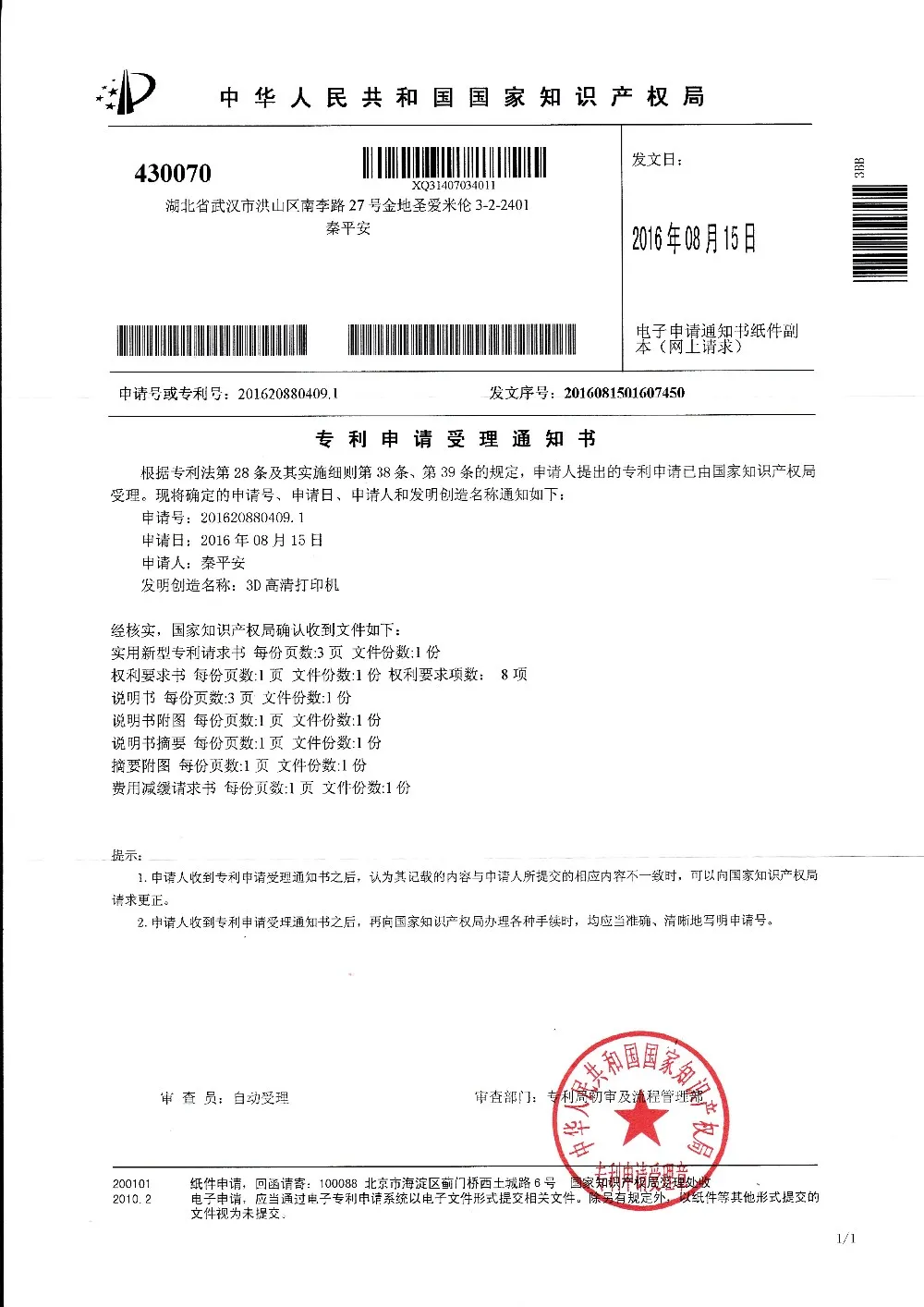

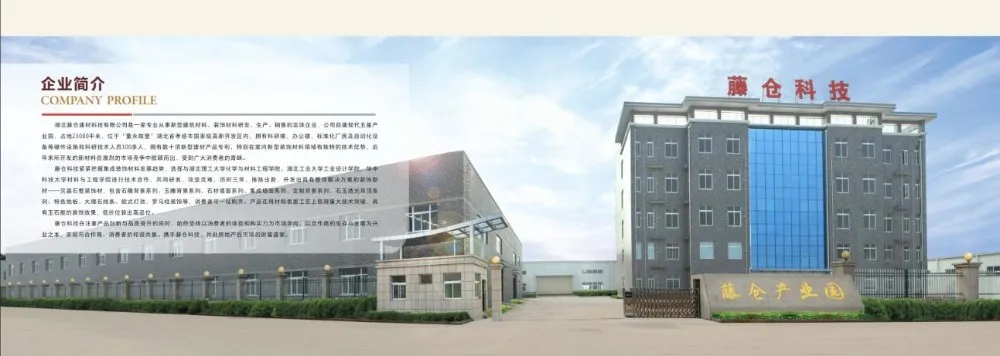

A:   We are factory and manufacture, we have patent for this machine line

Q2: How long is your delivery time?

A:   Generally it is 15-20 working days

Q3: Do you provide raw materials?
A:   We can provide the raw material , and we also can introduce raw material supplier to you

Q4: What's the advantages of your machine?

A:  1. do not need to be placed in the kiln firing with high temperature, just need 3 machines just

         with 40-50sqm production site and 100-200 sqm warehouse can start, low investment

      2. small quantity of one design can be produced, if use traditional making method, put in kiln

          burning, one design need large quantity then can be produced

      3. can do any pattern customers need, when buying machine, one memory card with thousands

          of HD pictures for your choose.

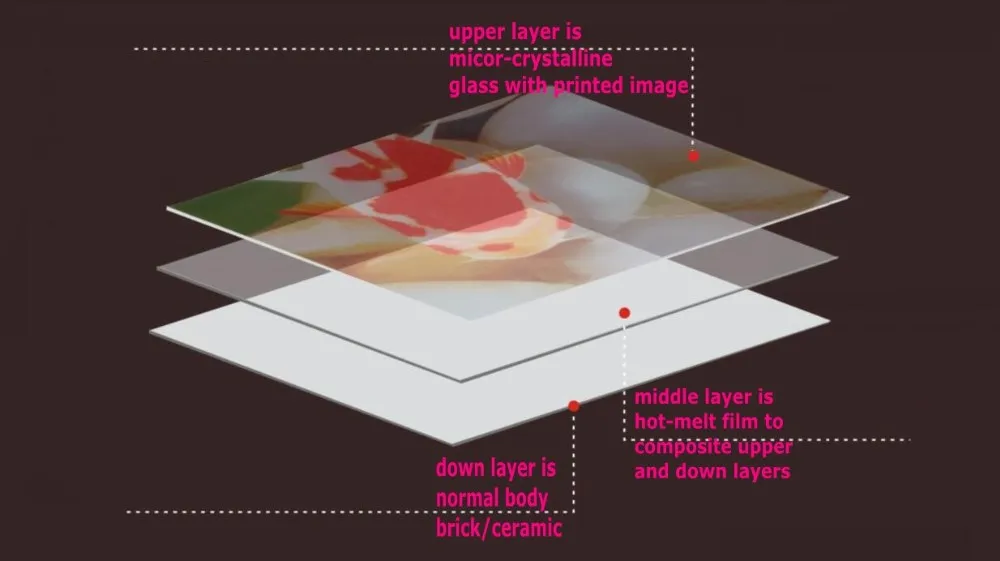

      4. print pattern on micro-crystalline glass, never fading, high strength, stronger 3d visual effect.

            Also can use normal glass to replace micro-crystalline glass to reduce cost

Q 5: Can we buy raw materials from our local market?

A:   Yes, the raw material is easy to get, and if you still worry, we also can provide as Q4 say

Q6: How many sqm can produce one day?

A:  According to work 8 hours a day count, one day can make 69 sqm, the machine can 24-hour

     continuous operation
Q6: What is your terms of payment ?
A:  T/T ,L/C,D/P,D/A or Western Union
