High Quality capacitive touchscreen 21 21.5 inch lcd panel for commercial display
- Category: >>>
- Supplier: Shenzhen Xianheng Technology Co. Ltd.
Share on (60793383033):
Product Overview
Description
Product Description

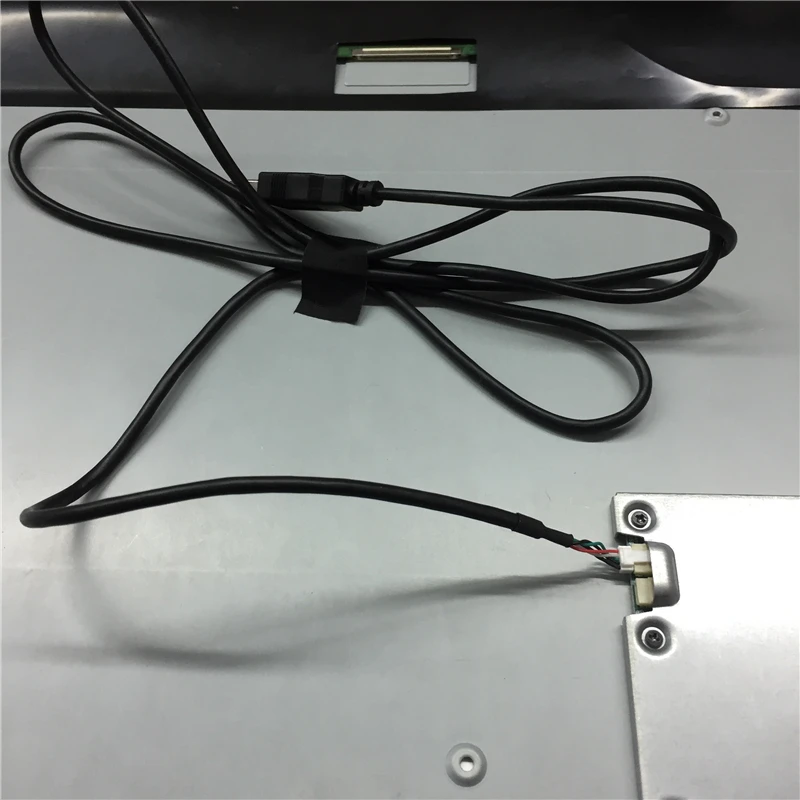

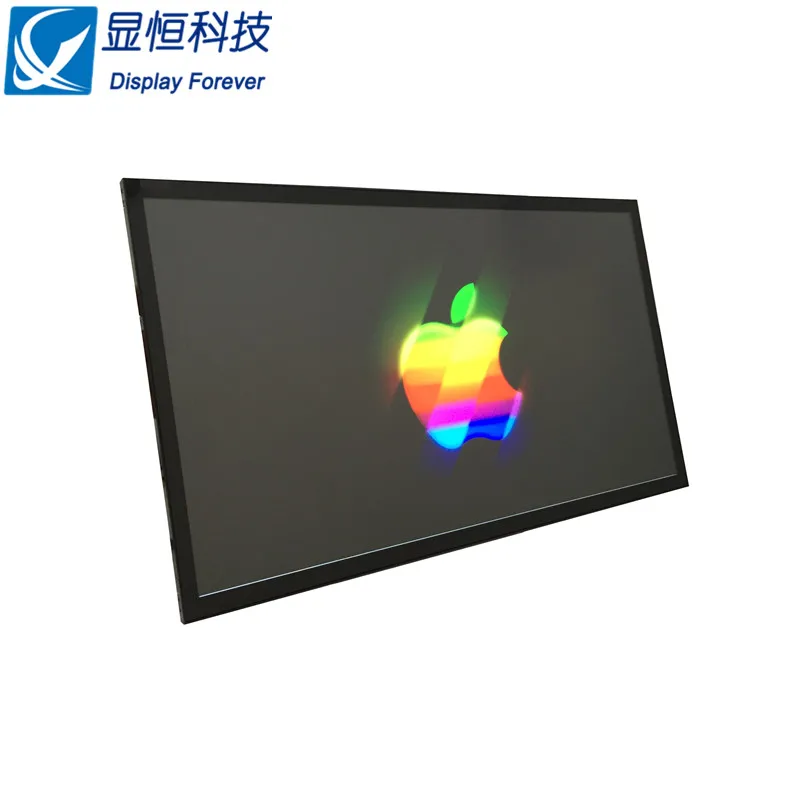

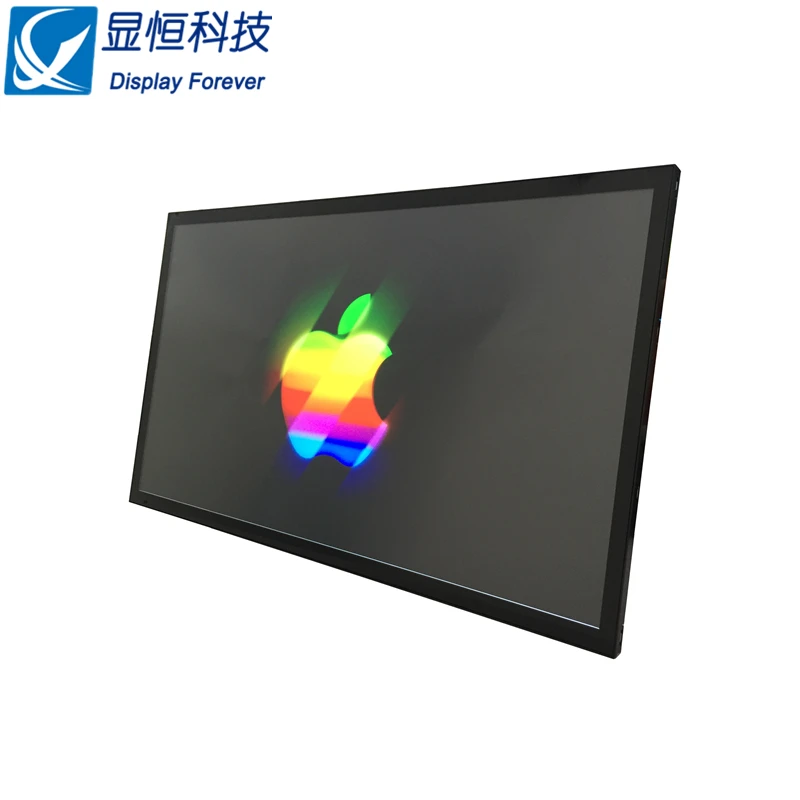

High Quality capative touchscreen 21 21.5 inch lcd panel for commercial display

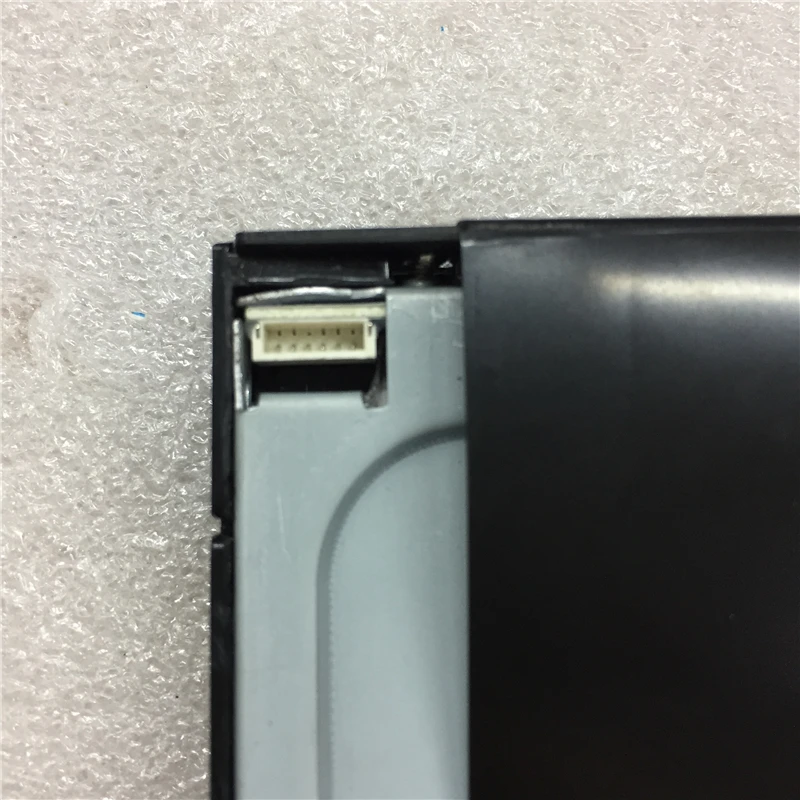

The XH215HJK- L3B is a 21.5” TFT Liquid Crystal Display cell with driver ICs and a 3 -pins-2ch LVDS circuit board. The product supports 1920 x 1080 Full HD mode and can display up to 16.7M colors. The backlight unit is not built in.
| Model Name | XH215HJK- L3B | Luminance | 250 cd/m² (Typ.) |
| Screen Size | 21.5 inch | Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Screen Type | LCM, a-Si TFT-LCD | Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Pixel Number | 1920(RGB)×1080 (FHD) | Response | 20/5 (Typ.)(Tr/Td) ms |
| Arrangement | RGB Vertical Stripe | Good View at | Symmetry |
| Active Area(mm) | 476.064 × 267.768 (H×V) | Work Mode | MVA, Normally Black, Transmissive |
| Outline(mm) | 499.48 × 291.24 (H×V×D | Color Depth | 16.7M 72% (CIE1931) |
| Bezel Area(mm) | - | Backlight | WLED , 40K hours , No Driver |
| Treatment | Hard coating (6H) | Mass | 2.55±0.12Kgs |
| Refresh Rate | 60Hz | Used for | |
| Touchscreen | Embeded (Projected Capacitive Touch) | Voltage Supply | 5.0V (Typ.) |
| Signal Type | LVDS (2 ch, 8-bit) , Connector , 30 pins | ||
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||
Hotsale lcd displays
Certifications
Packaging & Shipping
About XIANHENG
About us
SZ Xianheng Technology Co., Ltd.
is a high-tech enterprise professional in R & D and LCD electronic display production, sales and service as a whole, is the series of indoor and outdoor LCD screen manufacturer. We mainly agent LCD screen distribution AUO, MITSUBISHI, BOE, INNOLUX and other brands and so on. According to customer needs to provide a variety of LCD products including supporting LCD, LCD driver board, resistance and capacitance touch screen, LCD dedicated wire, the production of small and medium-size industrial monitors, touch screen, etc.
Why choose us
WHY CHOOSE US
Efficient collaboration, fast service and customer first.
Provide professional customized solutions.
Quality certification,
long life.
Located in industrial parks that gather many industrial factories.
If the quantity of order is not very big,we could send them to you by express delivery,such as TNT,DHL,UPS OR EMS etc.
If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available.
