High Quality PC PE PP Hollow Grid Plate corrugated sheet Extrusion line with best price
- Category: >>>
- Supplier: Qingdao Tongsan Plastic Machinery Co. Ltd.
Share on (60793421682):
Product Overview
Description
Market Prospects of PC/PE/PP Hollow Grid Plate
PC/PE/PP hollow grid plate is applicable to construction decoration,advertisement collocation,and noise insulation of highway as well as packaging.It is characterized by light weight,high intensity,damp-proof and anti-corrosion.The width of the products is 1220mm-2400mm,and the thickness is 2mm-12mm.
pk

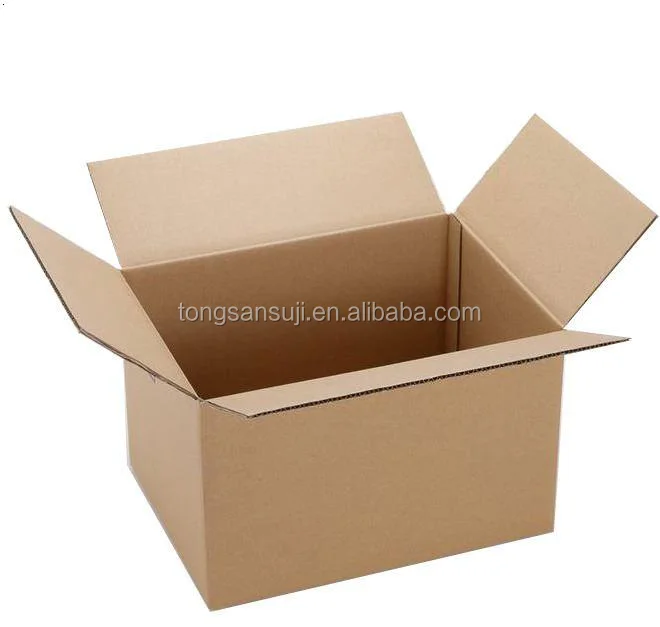

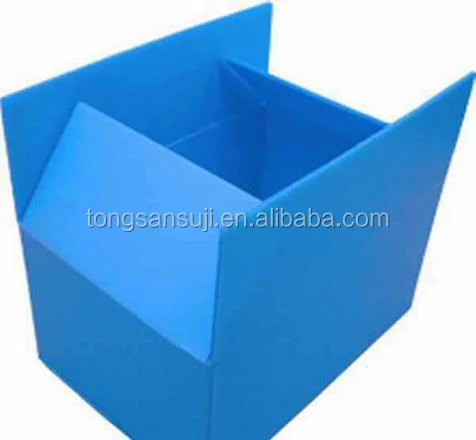

corrugated board box: hollow panel box
non-watertight,non-moistureproof damp-proof,anti-corrosion
putrescibility long life span,low cost
poor anti-shock recovery and reuse
single use,high cost environmental
The PP/PE/PC hollow board mainly replaces corrugated board, wood board, metal plate, etc., is the ideal environmental protection material.PP hollow board is a new kind of environmental packaging material. Pp hollow board has long service life, which is 4-10 times longer than corrugated board life. Due to its light weight, good toughness, flexible dimension, low relative cost, and recyclable, PP hollow plate turnover box with various parts is gradually replacing the injection molding box.

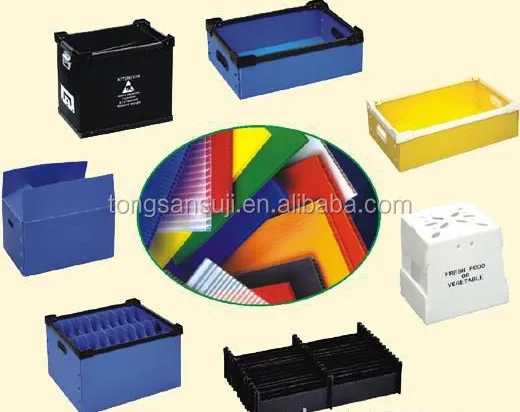

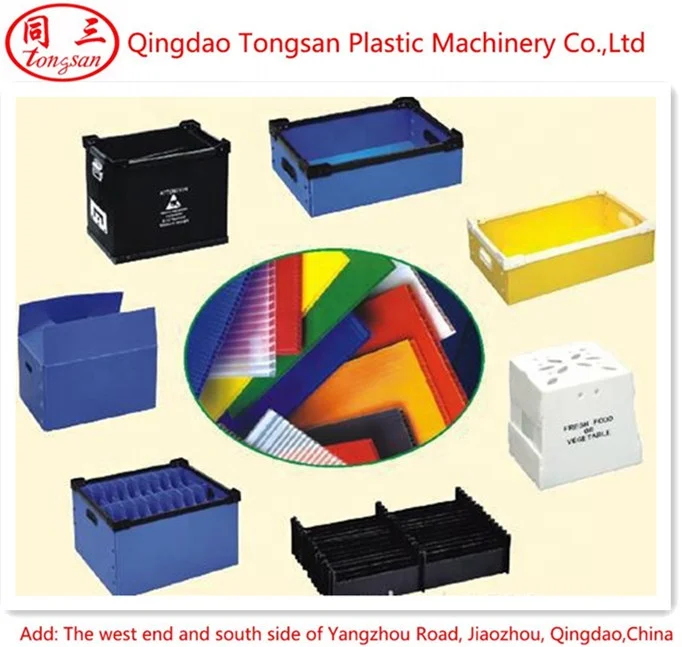

Other hollow plate products.

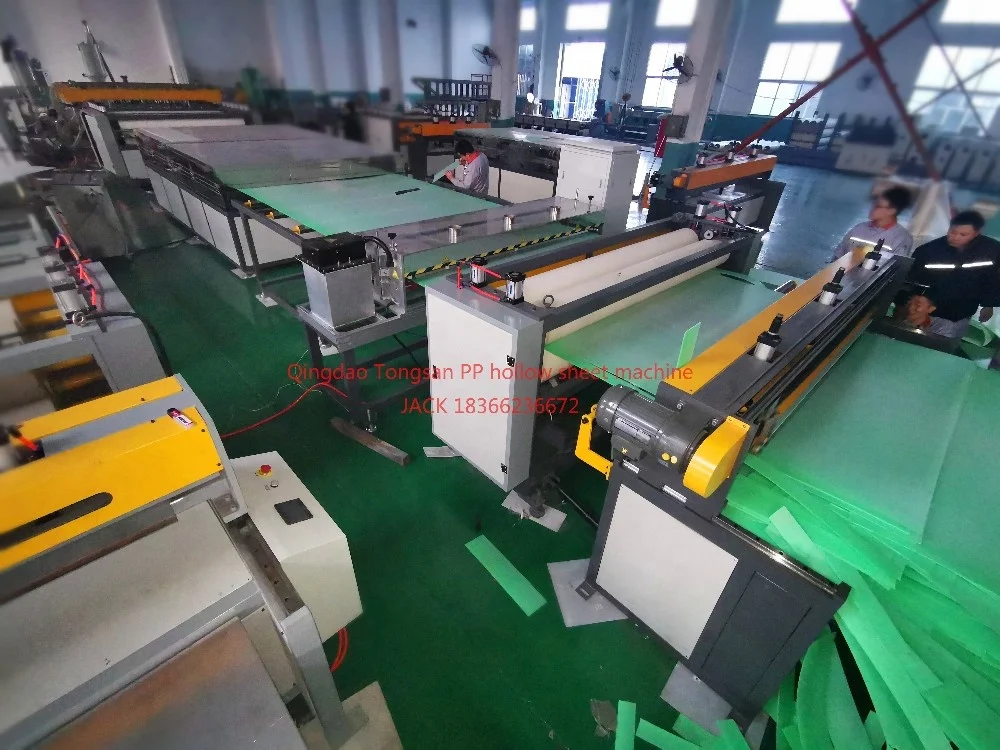

PC/PE/PP hollow grid plate extursion line introduction:

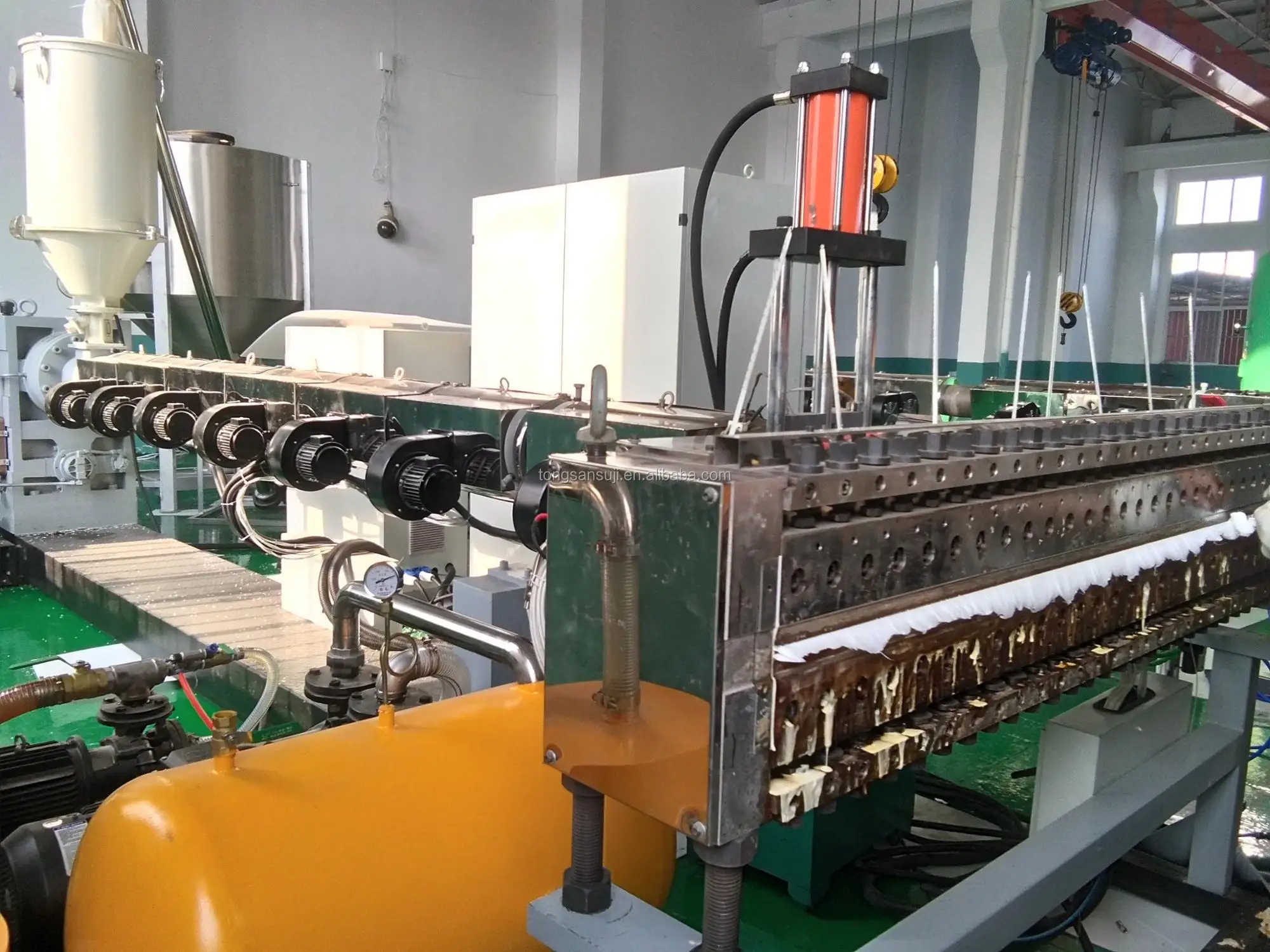

PC/PE/PP hollow grid plate extursion line introduction is one plastic sheet extrusion machine, it use single screw extruder and flat T-Die extrusion, by Calibration table and downstream machines, it can produce high quality PC/PE/PP hollow grid plate.
High Quality PC/PE/PP Hollow Grid Plate(2-12mm) Extrusion line
Replace the cartons of high quality hollow boards extrusion line
Quality trust manufacturer's hollow plate extrusion line.
PC/PE/PP hollow grid plate extursion line technical data:
Model | TS1400 | TS1800 | TS2300 | TS2700 |
Extruder | SJ90x33 | SJ120x33 | SJ120x33 | SJ150x33 |
Max Sheet Width | 1250mm | 1650mm | 2150mm | 2550mm |
Sheet Thickness | 2-6,6-10,12-16 | 2-6,6-10,12-16 | 2-6,6-10 | 2-6,6-10 |
Max Output(kg/h) | 180-260 | 220-350 | 320-450 | 360-500 |
Motor Power(KW) | 55-90 | 75-110 | 90-132 | 110-160 |
PP/PE/PC hollow plate extruder components.
PP hollow sheet machine extruder :
The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
No-stop Screen changer:
Quick screen changer of hydraulic system ensures the short course of screen changing. Double-position combined with special sealing structure guarantee stable operation of screen changer.

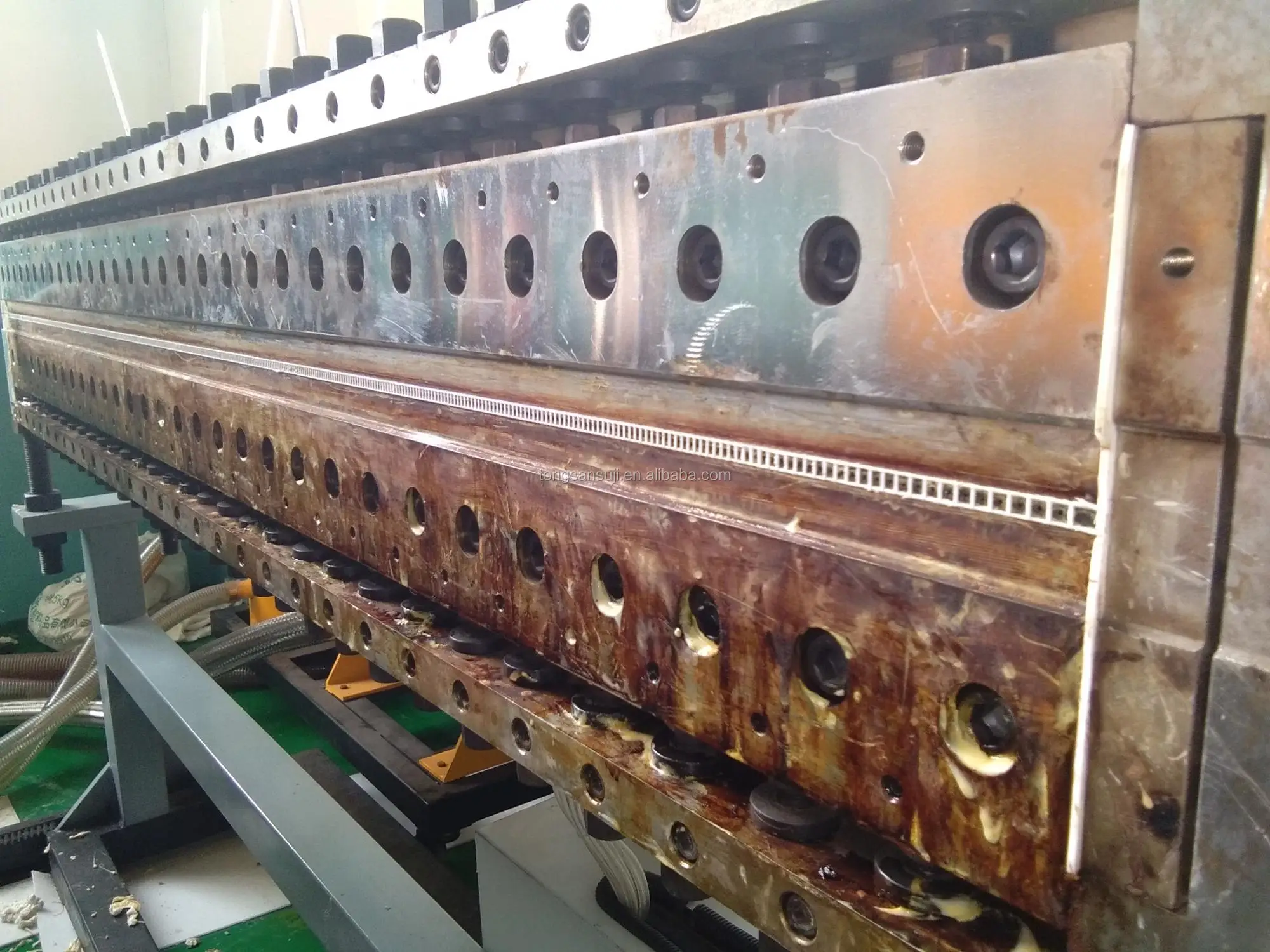

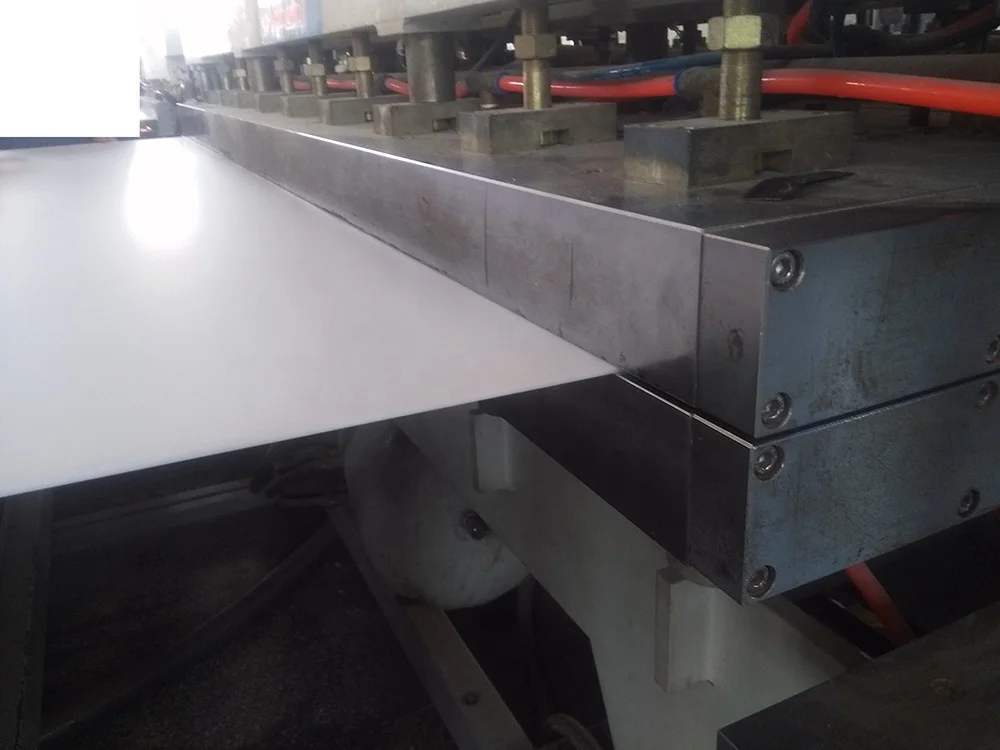

Die head and mould:
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.

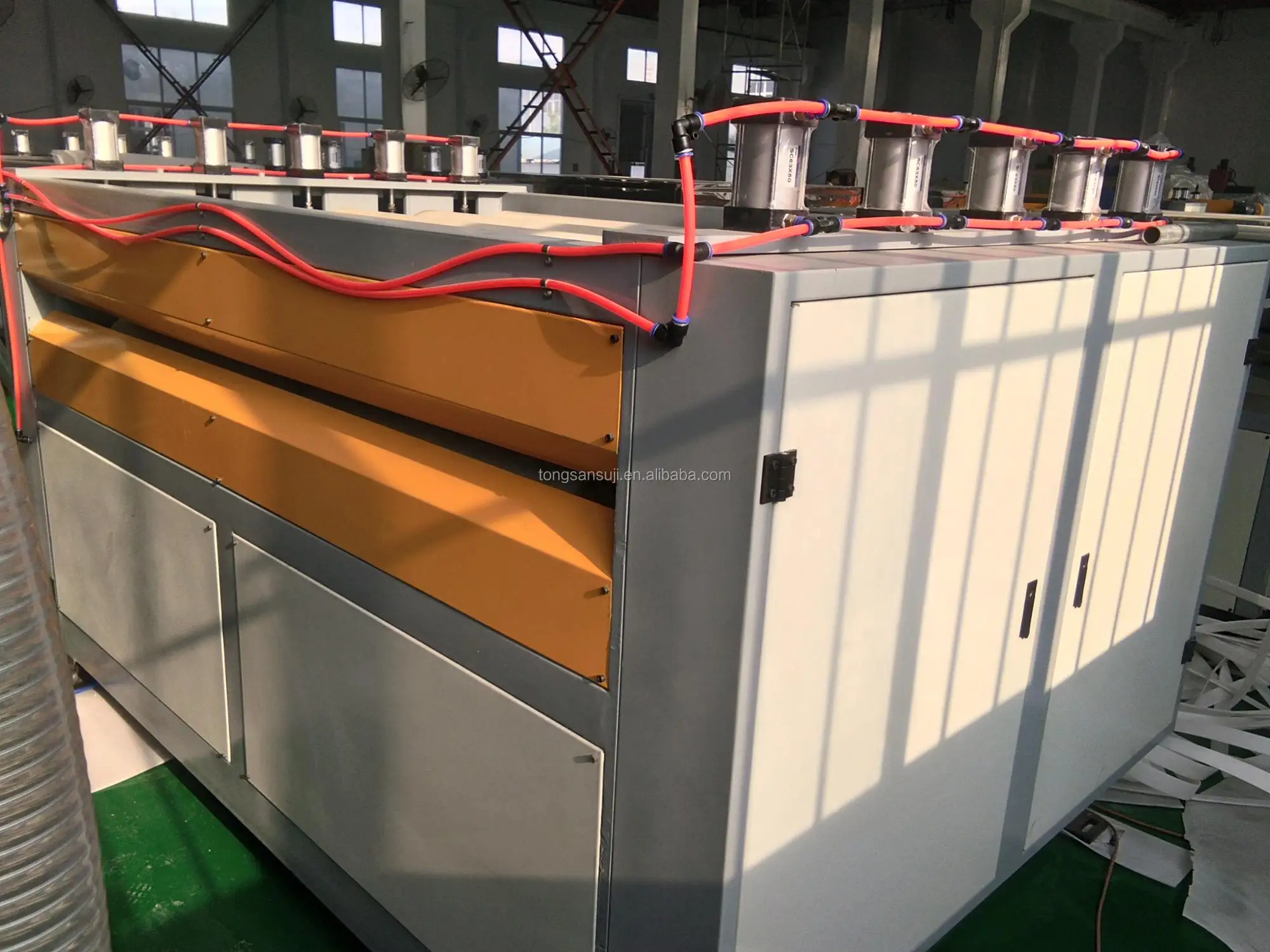

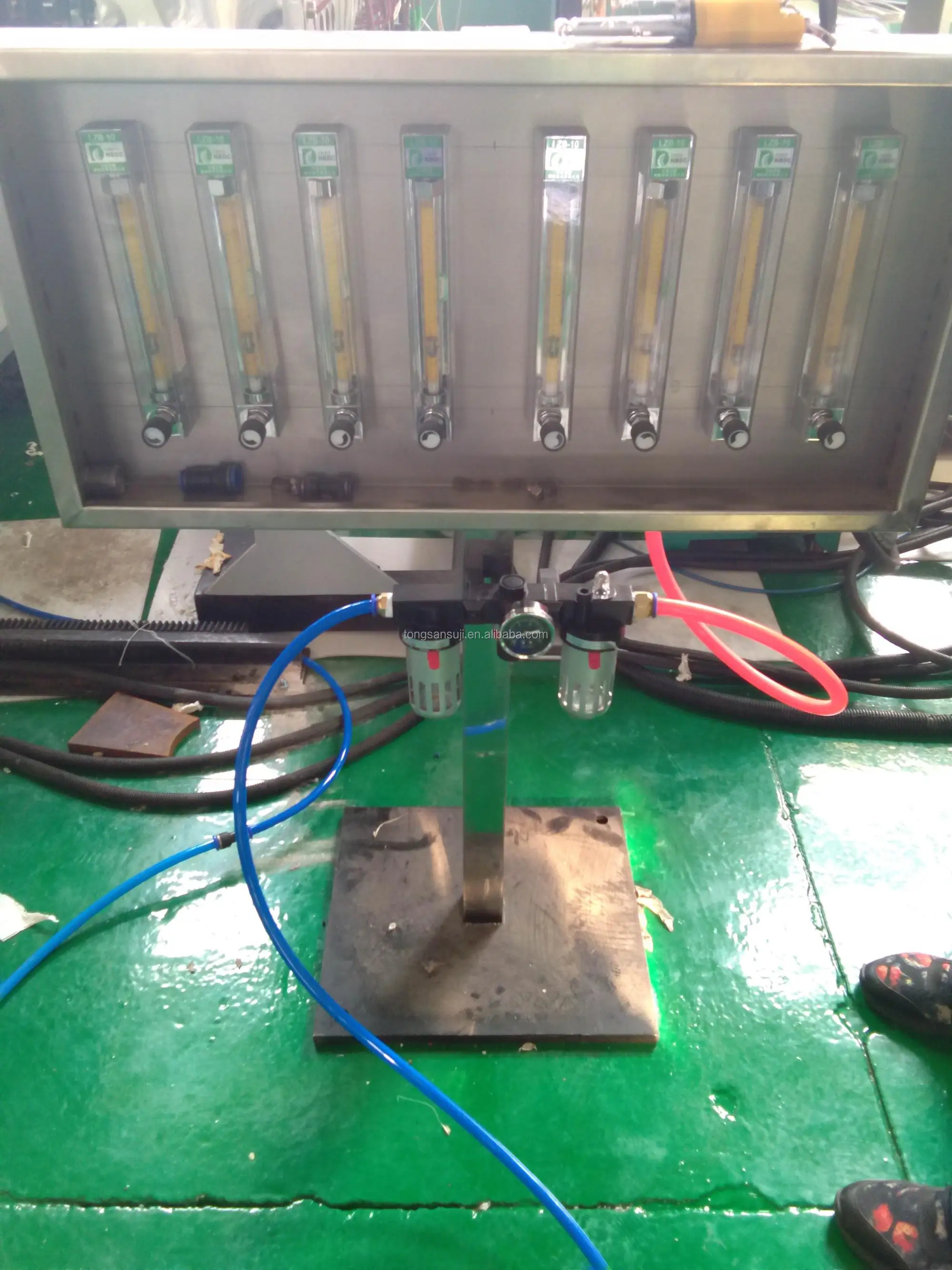

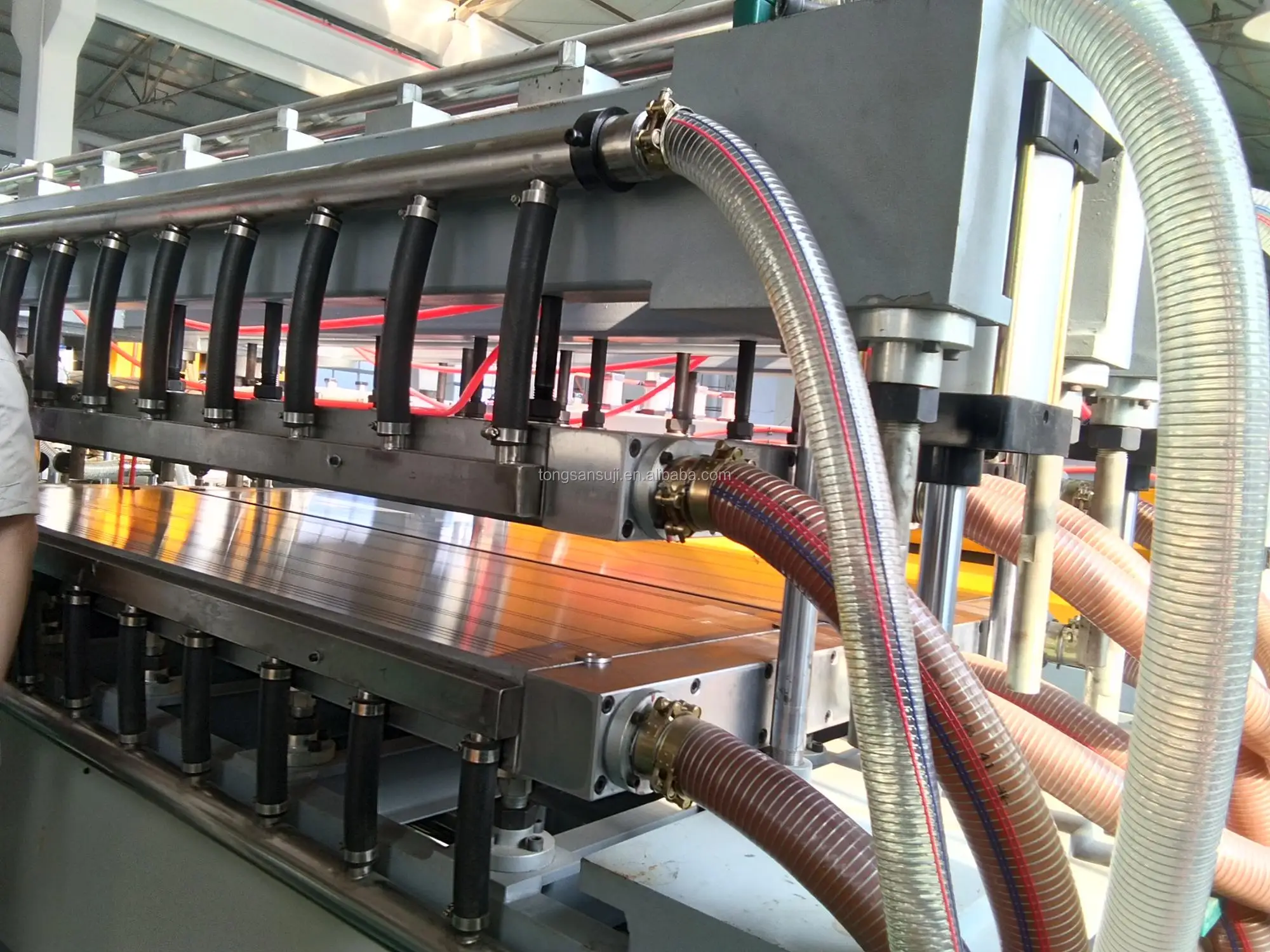

Vacuum calibration stable:
Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
Tractor unit:
There are two tractors. The first one is of high power, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.
Cross Cutting and edge trimming machine:
Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting.

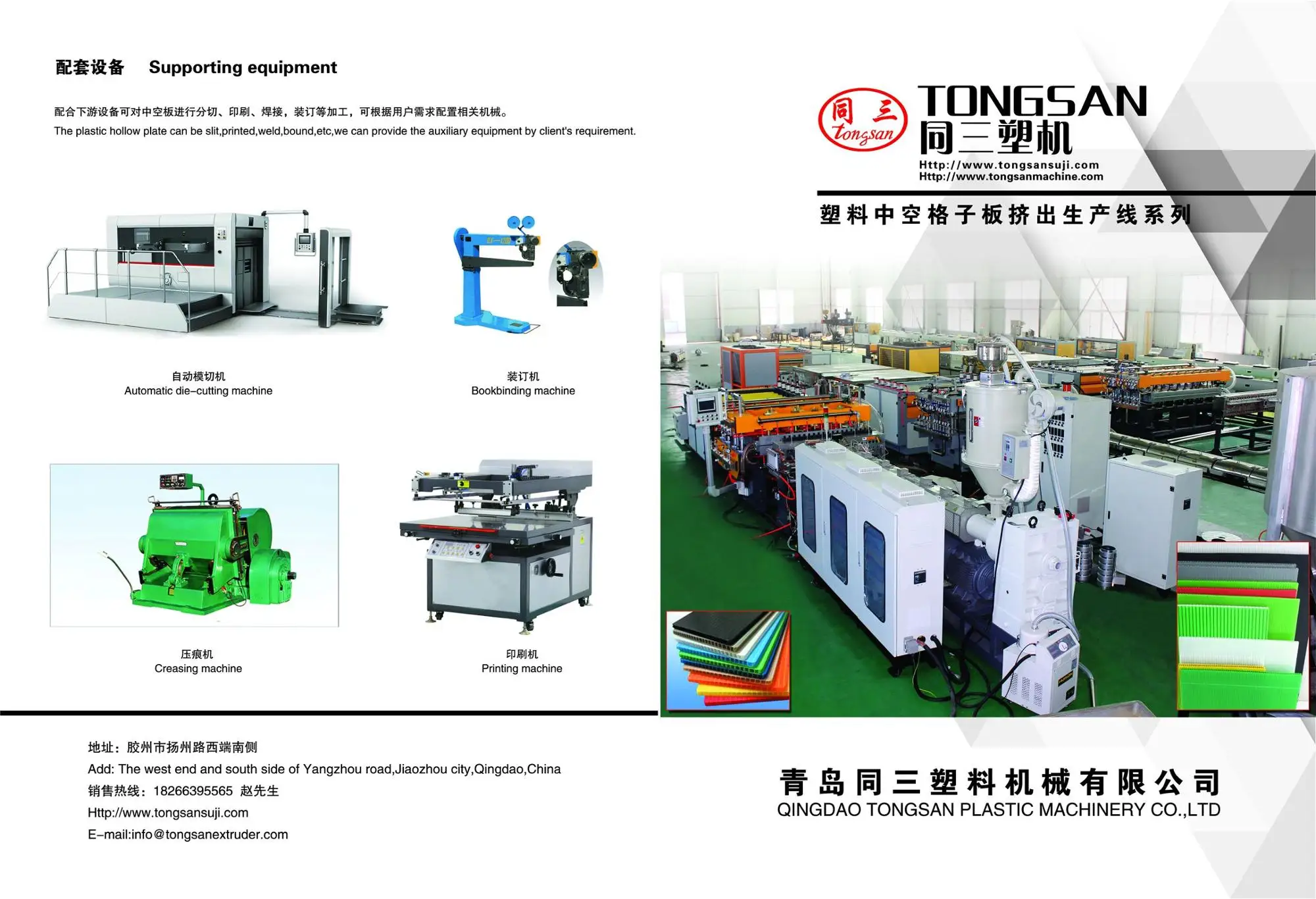

Auxilliary machines for the PP hollow sheet machine
1. Plastic Crusher
2.Creasing machine
3.Die cutting machine
4.Edge/corner sealing machine
After-Sales Service
INSTALLATION AND COMMISSIONING
WE WILL SEND THE TECHNICIAN TO BUYER’S FACTORY FOR INSTALLATION AND TESTING THE WHOLE LINE, AND OUR ENGINEER WILL DO TRAINNING TO BUYER'S WORKERS UNTIL THEY CAN RUN OUR MACHINE FOR STABLY PRODUCTION .
AFTER SELL SERVICE: ONE YEAR GUARNTEE, FOREVER SERVICE!
WITHIN THE GUARANTEE OF ONE YEAR, WE WILL PROVIDE EFFICIENT AND ON TIME MAINTAINS,IF ANY SPARE PARTS DAMAGED IN THE GUARANTEE TERM BECAUSE OF QUALITY PROBLEM, WE WILL PROVIDE NEW SPARE PARTS FOR FREE FOR REPLACMENT.
Turnkey project service:
1, we will provide all the machines for the complete production according to customer's requirements.
2, we will provide complete service for factory layout and other information to help customer to build the factory.
3, we can also provide the raw material to the customer if you need.
4, we will provide good service for machine installation and trainning, until the customers can run the machines and make stably production.
5, Except one year quality guarantee,we will provide after-sell service for all the life.
6, for long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trust-able supplier for turnkey projects. Let us do win-win business together!

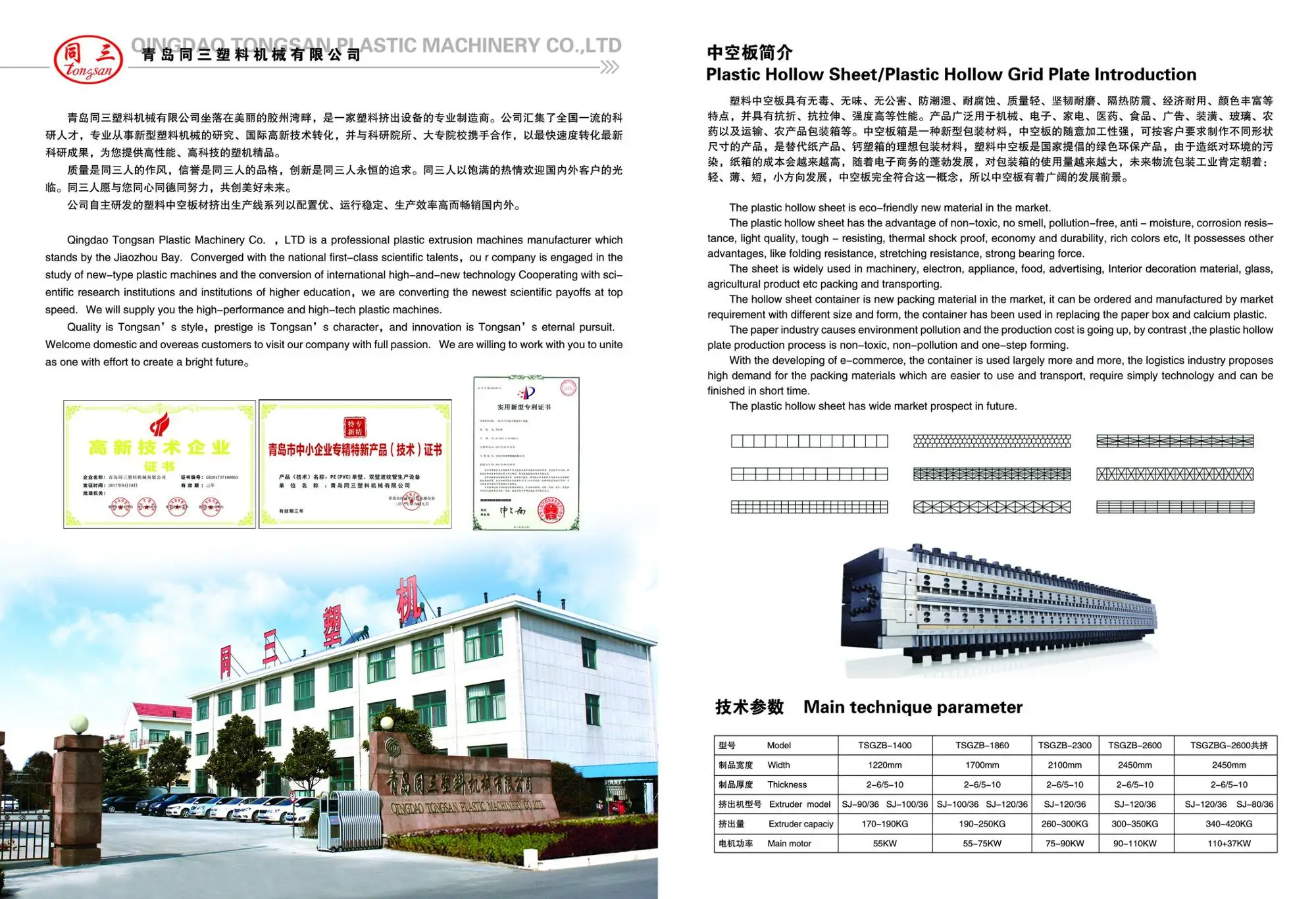

Company Information
Qingdao Tongsan Plastic Machinery Co., LTD, situated on the prosperous Jiaozhou bay, is exclusively specializing in designing and manufacturing a great variety of plastic machinery. With national top scientific manpower, our company is engaged in the researching of late-model plastic machinery, the conversion of the international advanced technology and cooperation with the research institutes and universities to provide plastic machinery with high performance and high technology. All the staff of our company adhere to the principle of “trust is root, client is god, high quality is first , service is best” that we want to do business with the people all over the world on mutual benefit.
Contact Information
We sincerely offer quality products ,looking forward to cooperating with you! Your inquiry is the beginning of our cooperation!
Welcome contact with me freely, Ready to serve you!
Contact Name: Sophie
Mobile/Whatsapp/Wechat:+8615063923327
Email: Salersophie@ tongsanextruder.com
Company Information
Qingdao Tongsan Plastic Machinery Co.,LTD is a profession plastic extrusion machine manufacturer with 20 years experience.Converged with national first-class scientific talents,our company is engaged in the study of new-type plastic machines and the conversion of international high-and-new technology . Cooperating with scientific research institutions and institutions of higher education,we are converting the newest scientific payoffs at top speed.We will supply you the high-performance and high -tech plastic machine.Copperate with us is your best choose.
Perfect Service
Perfect Service:
1. We will provide the Feasibility Analysis Report for your production project.
2. We will provide the model selection and technical parameter for the production line.
3. We will provide the design for products formula according to the product requirements.
4. We will provide the design for the plant and electric power accounting for the facilities.
5. We will provide the technology of products surface treatment.
6. We will provide technique training for operator.
7. We will provide solution for the practical problem during the production.
8. We will install and test the machine for free.
9. We will provide turnkey project to customers
