Capacitive Fork sensor, Push Button setting, Light/Dark NPN/PNP all in one, regardless colors and shiny surface
- Category: >>>
- Supplier: F&C Sensing Technology(Hunan) Co. Ltd.
Share on (60793464089):
Product Overview
Description
Product Description

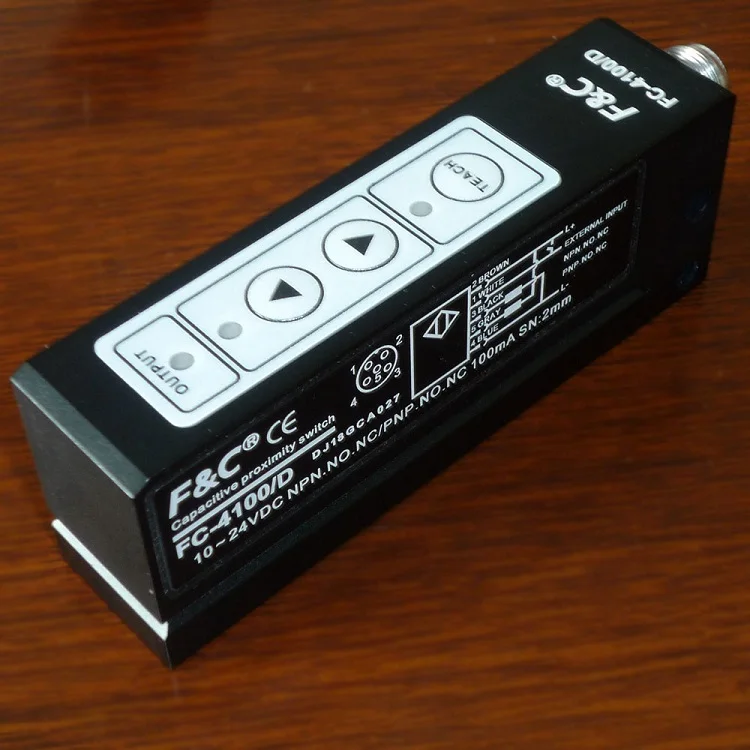

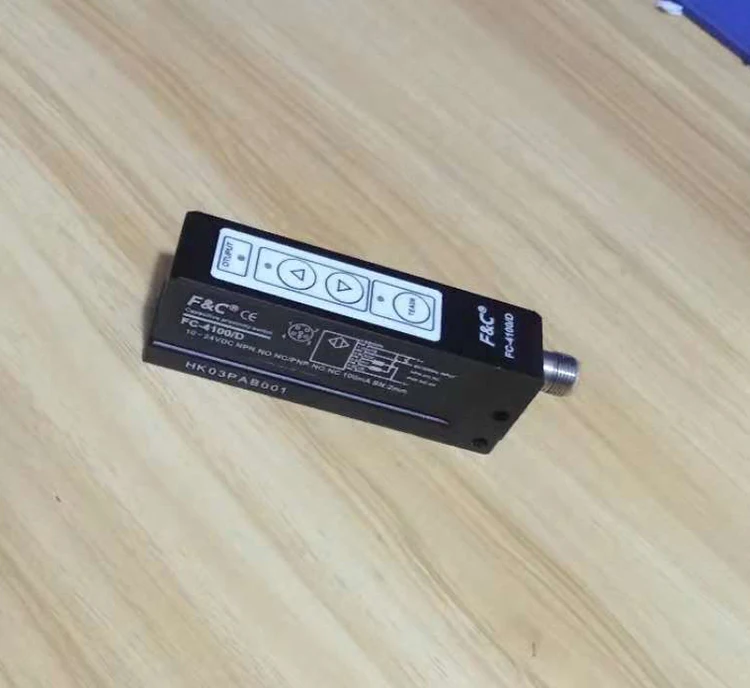

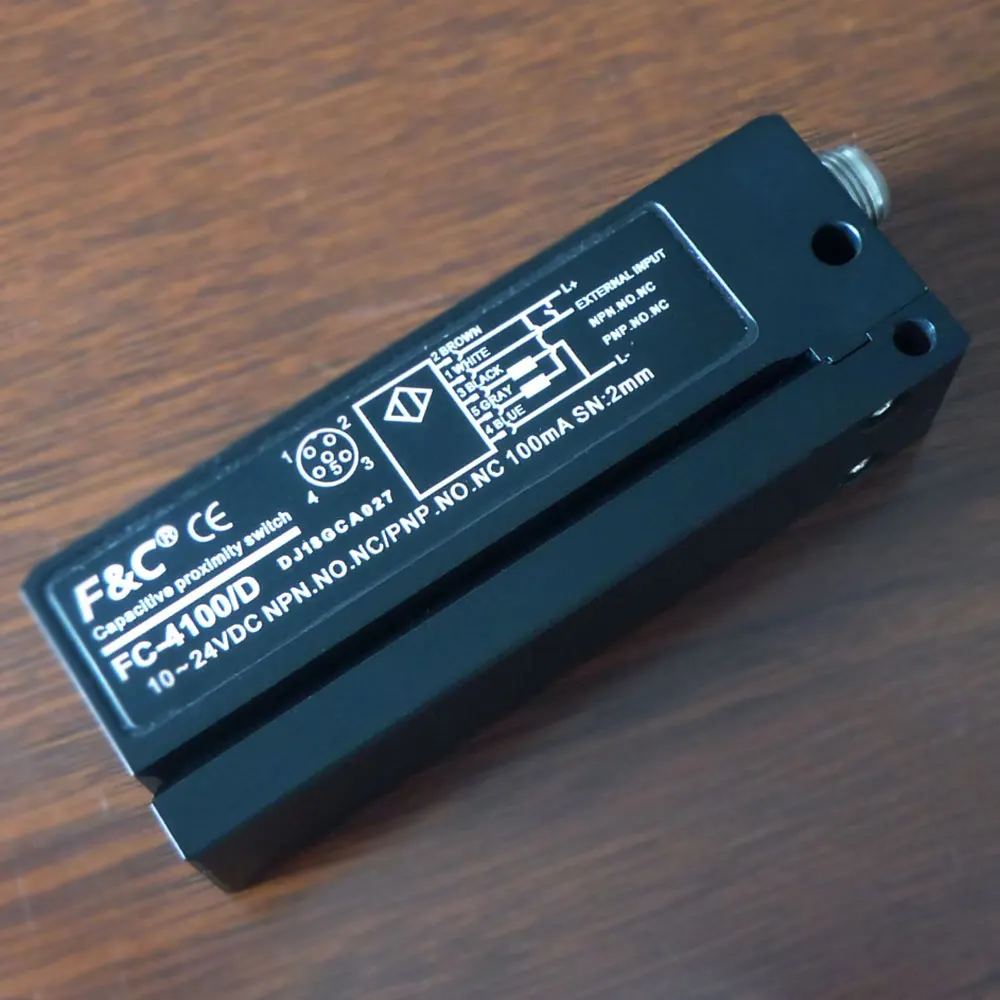

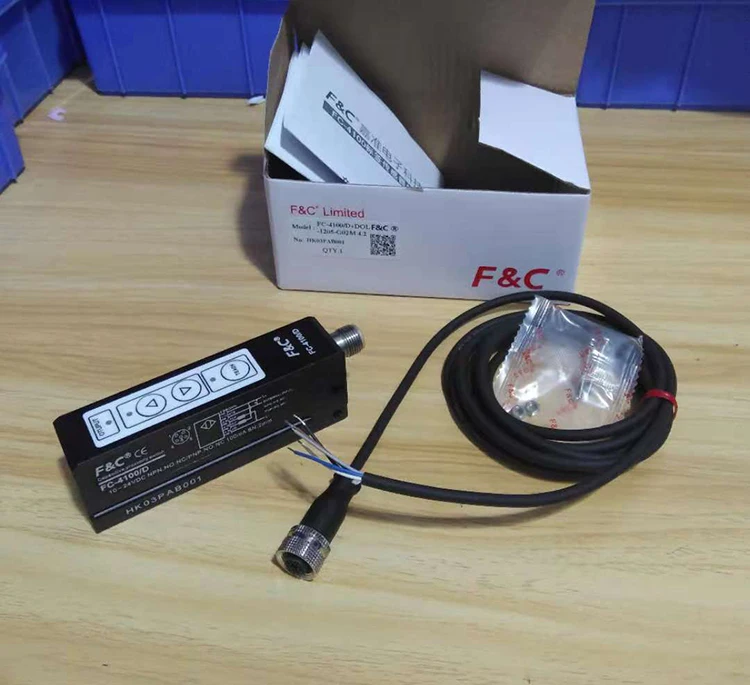

Capacitive Fork sensor, Push-Button setting, Light/Dark NPN/PNP all in one, regardless colors and shiny surface
Product details
| Brand Name | F&C |
| Detection distance | 1mm |
| Detecting method | capacitive way |
| Out put Type | NPN/PNP and N.O. and N.C. all in one |
| Voltage | DC 12-24V 10% |
| Certificate | CE RoHS |
| Entry cable | dia4*2m/4 wires |
| Material | Aluminum metal case |
| Label sensor | Label sensor |
| Color | Black |
| Product Keywords | clear label printing,clear label paper,ce sensor |
Product picture
;
Product Description
;
Emitting light | RedLED:640nm |
Operating voltage | DC:12~24V±10% (Ripple P-P:10%Max) |
Current consumption | 15mA Max |
Load current | 100mA Max at DC 24V |
Output type | N=NPN.NO.NC / P=PNP.NO.NC |
Protection circuit | Reversed supply ciruit protection,short citcuit protection output |
Response time | 50υs Max |
Operation mode | NO.NC selectable |
| Operation current | DC 1.1mA no-load |
Operating temperature | -20°C~+55°C(No freezing allowed) |
Ambient hunidity | 35%~95%RH |
Storage temperarure | -20°C~+55°C(No freezing allowed ) |
Storage hunidity | 35%~95%RH |
Material | AL shell |
Wiring method | φ4×2M/4-wire / φ4×2M / M8(4Pins) |
Protection degree | IP66 |
Weight | -- |
;
;
Diagram
;
;
Our Services
Before-sales Services
1.24-hours online service;is available here. Once you have any questions, just contact us and our professional staff will reply very quickly. Email, Skype, Whatsapp or Online Message are acceptable.
;
2.Market information;also will be provided. Since we are an experienced manufacturer of sensor, the market information about sensors will be offered as long as you need.
;
On-purchase Services:
1.The information of sensors that we provided is fully presented including product details, pictures, delivery and so on;
;
2.All your problems or worries will be solved quickly by our sales. It is worth noting that the;prices of our; sensors;are quite;negotiable. We have large discount for big quantity.
;
After-sales Services
1. The;warranty periodis 18 months.
;
2. If we send the;wrong parts;to you, free replacement will be available.
;
3. As for the;installation of the parts, if you have any questions, do not hesitate to contact us at any time.
FAQ
Q:Are you sensors manufacturer?
A:Yes,;;over 30;years' experience in sensors field.We can make more profit for you.
our product has CE certificate.
;
Q:Can I get samples for test?
A:Yes,;we;support free test samples and shipping cost at your side.
;
Q: What's your leadtime?
A:Generally speaking,we have stocks for 110 kind of different models and can ship at any time. If we don't have stock,our leadtime is 5-7 working days.;We will pull in the production schedule if your demand is urgently.
;
Q: What's your payment term?
A:You can pay us by T/T, Paypal, Westunion.
;
Q:How do you arrange the shipment ?
A:;We normally ship by Fedex, UPS and TNT, we are VIP of this courier and get 60% discount.;;We also can accept other ship method if there is an need.;
