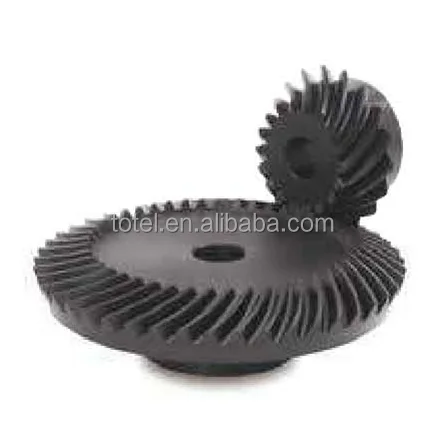

Quality Spiral Bevel Gears

Product Overview

Description



Qualiry Spiral Bevel Gears



1.Technical Details



Specifications
Precision grade	JIS B 1704 :1978  grade 4
Gear teeth	Gleason
Pressure angle	20°
Helix angle	35°
Material	S45C
Heat treatment	Teeth induction hardened
Tooth hardness	50~60 HRC

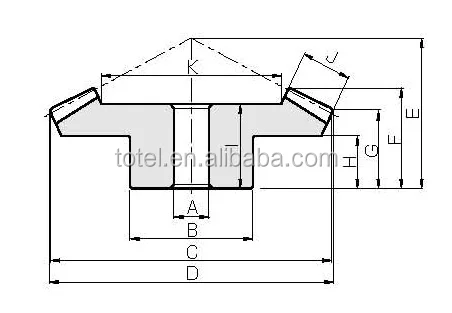

2.Dimensions











Model	Gear ratio	Module	No. of teeth	Diraction of spiral	Bore	Hub dia.	Pitch dia.	Outside Dia.	Mounting distance	Total lemgth	crown to back length
					AH7	B	C	D	E	F	G
TBS2-3020R	1.5	m2	30	R	12	35	60	61.06	40	26.60	21.20
TBS2-2030L			20	L	10	30	40	43.55	45	24.91	16.18
TBS2.5-3020R		m2.5	30	R	15	45	75	77.09	50	33.86	26.56
TBS2.5-2030L			20	L	12	40	50	54.43	55	30.88	18.98
TBS3-3020R		m3	30	R	16	50	90	92.21	50	35.34	26.66
TBS3-2030L			20	L	16	40	60	65.58	70	40.17	26.86
TBS4-3020R		m4	30	R	20	70	120	122.85	75	47.48	37.14
TBS4-2030L			20	L	20	60	80	87.34	90	48.17	32.45
TBS1-4020R	2	m1	40	R	8	25	40	40.52	22	15.02	12.52
TBS1-2040L			20	L	6	16	20	22.08	28	13.73	8.52
TBS1.5-4020R		m1.5	40	R	10	38	60	60.75	35	24.93	20.75
TBS1.5-2040L			20	L	8	25	30	33.08	46	25.45	16.77
TBS2-4020R		m2	40	R	12	40	80	80.99	40	32.26	25.99
TBS2-2040L			20	L	12	32	40	40.10	60	34.04	21.02
TBS2.5-4020R		m2.5	40	R	15	50	100	101.27	55	39.65	31.27
TBS2.5-2040L			20	L	12	40	50	55.21	75	43.61	26.30
TBS3-4020R		m3	40	R	20	60	120	121.48	65	45.76	36.48
TBS3-2040L			20	L	16	50	60	66.06	90	50.63	31.52
TBS4-4020R		m4	40	R	20	70	160	162.07	80	53.69	42.07
TBS4-2040L			20	L	20	60	80	88.55	120	66.24	42.12
TBS5-4020R		m5	40	R	25	100	200	202.54	90	55.02	42.54
TBS5-2040L			20	L	22	80	100	110.45	140	68.48	42.61
TBS2-4515R	3	m2	45	R	12	40	90	96.67	40	30.29	26.01
TBS2-1545L			15	L	10	24	30	34.78	60	29.66	15.80
TBS2.5-4515R		m2.5	45	R	15	50	112.7	113.32	50	28.25	32.47
TBS2.5-1545L			15	L	12	30	37.5	43.36	75	38.27	19.73
TBS3-4515R		m3	45	R	20	60	135	135.99	55	40.59	33.98
TBS3-1545L			15	L	15	38	45	52.08	90	44.98	23.68

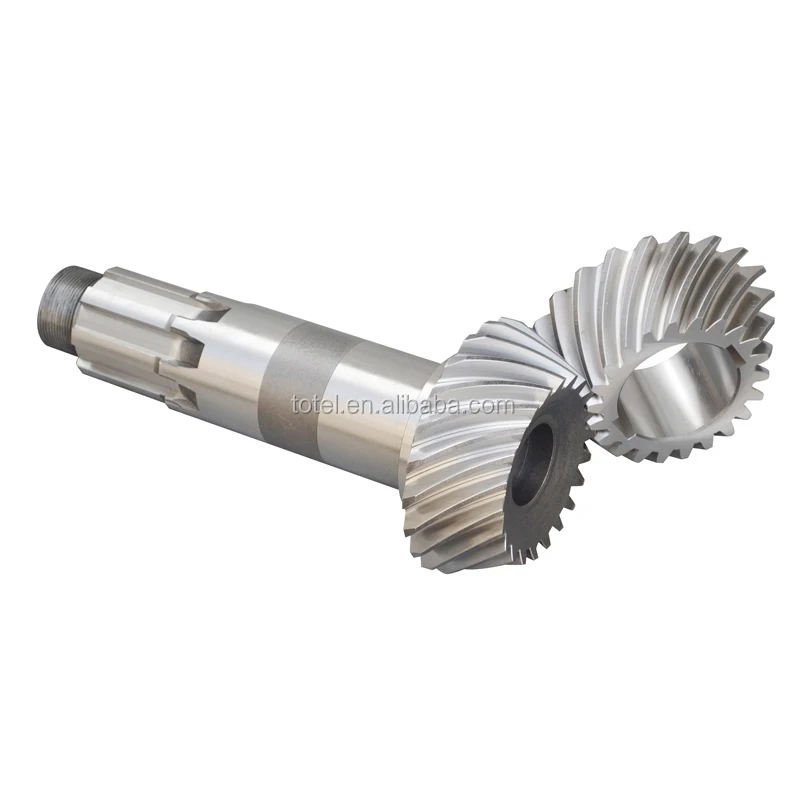

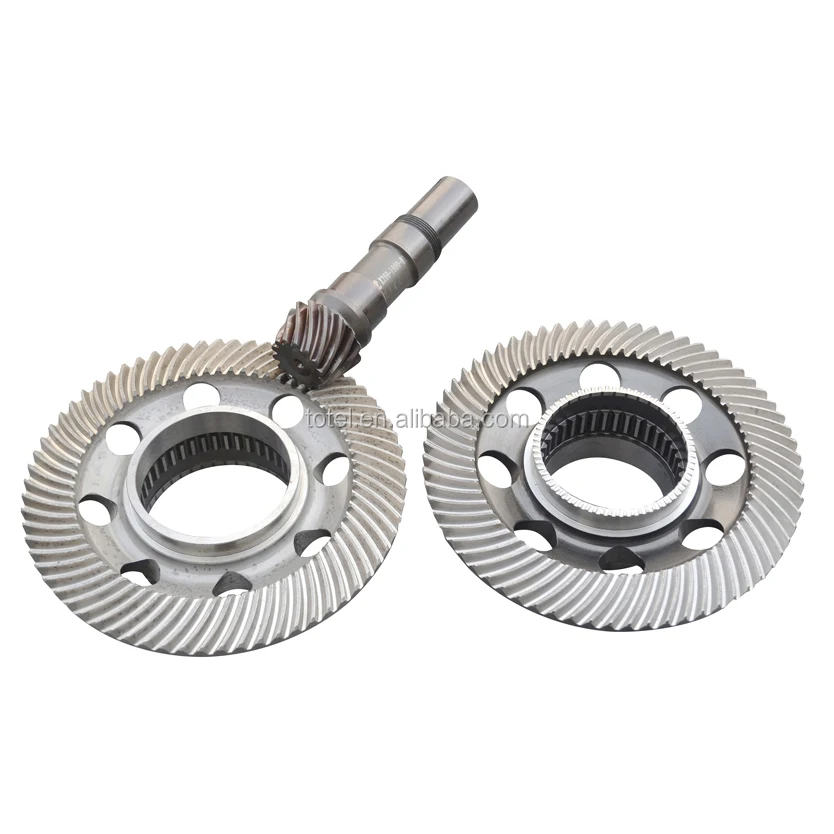

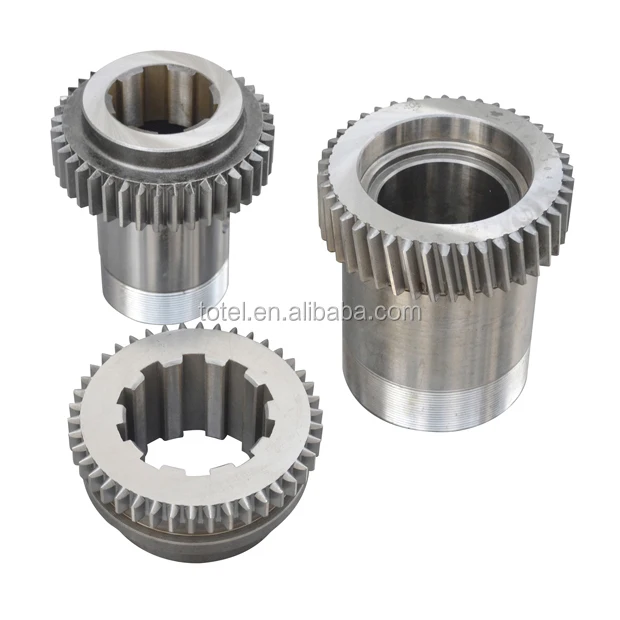

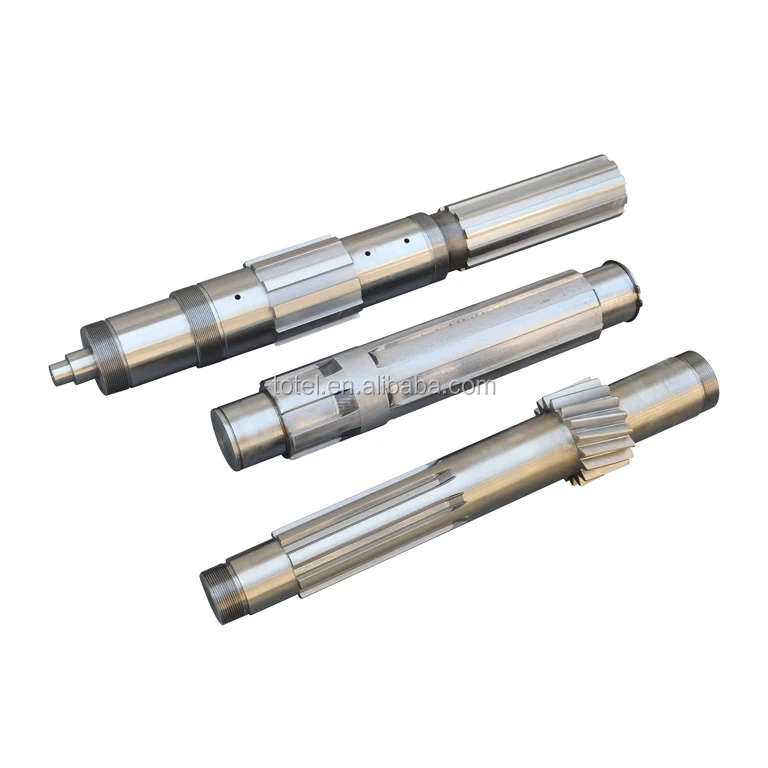

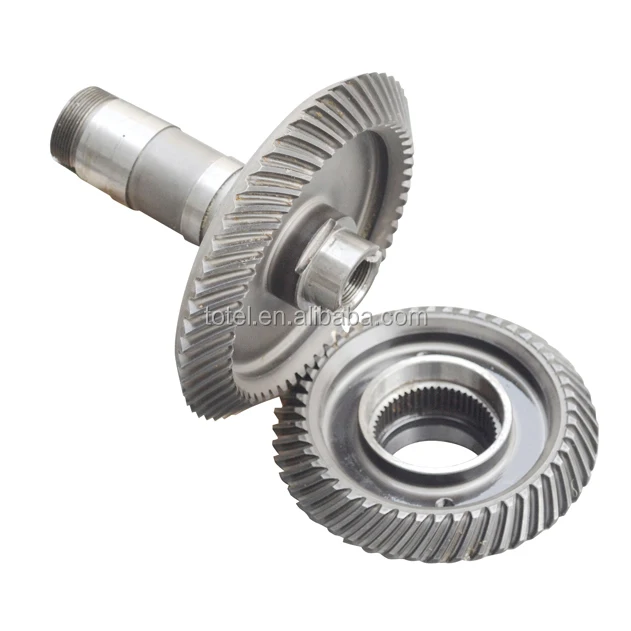

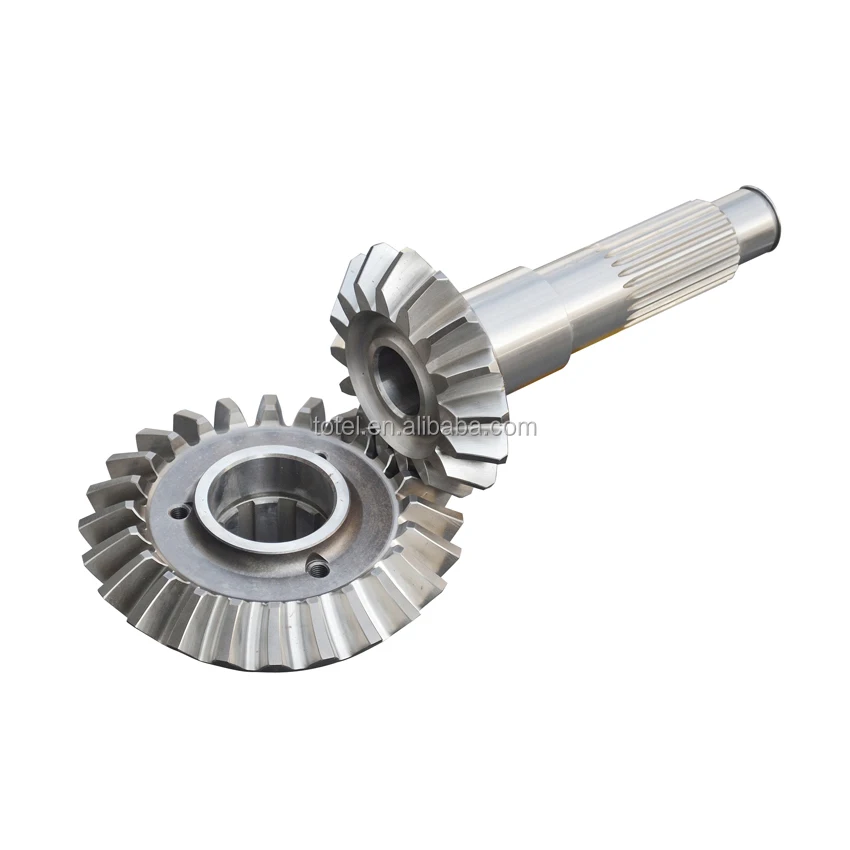

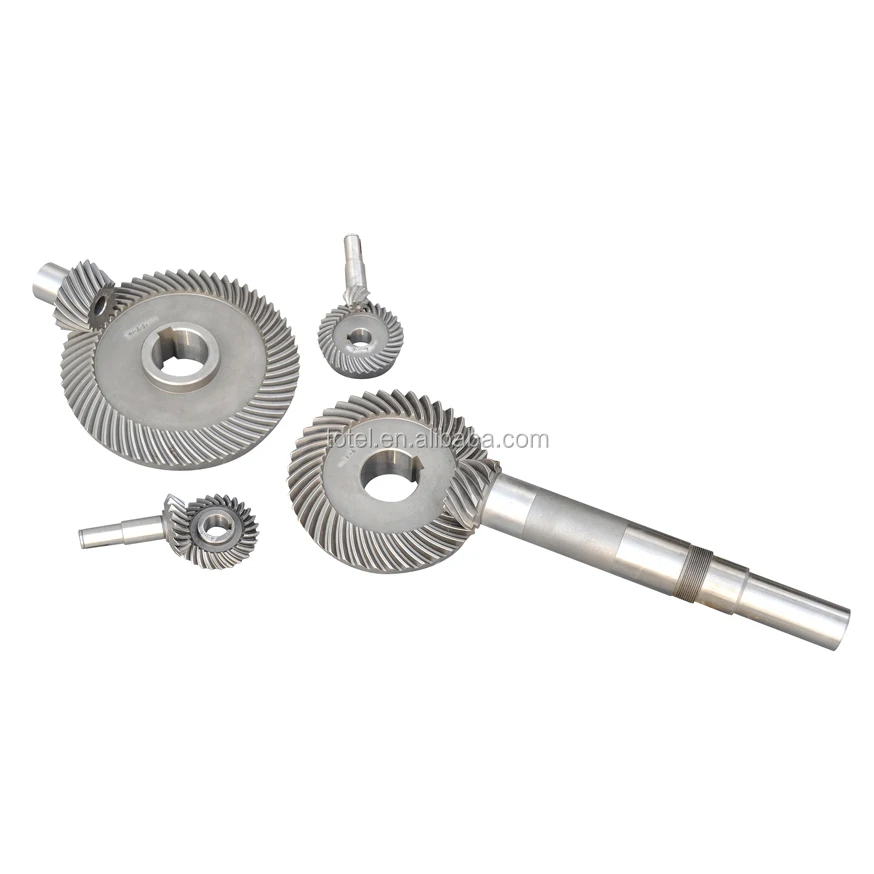

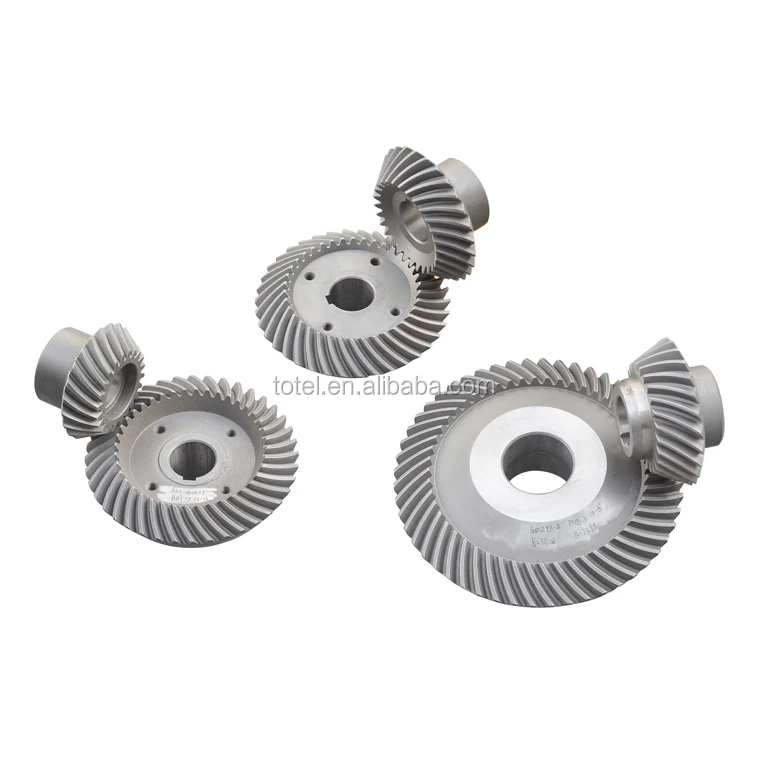

3.Photo of products







4.Equipment and workshop



Gear Grinding Machine









CNC Machine





Testing Center





Heat Treatment Equipment
