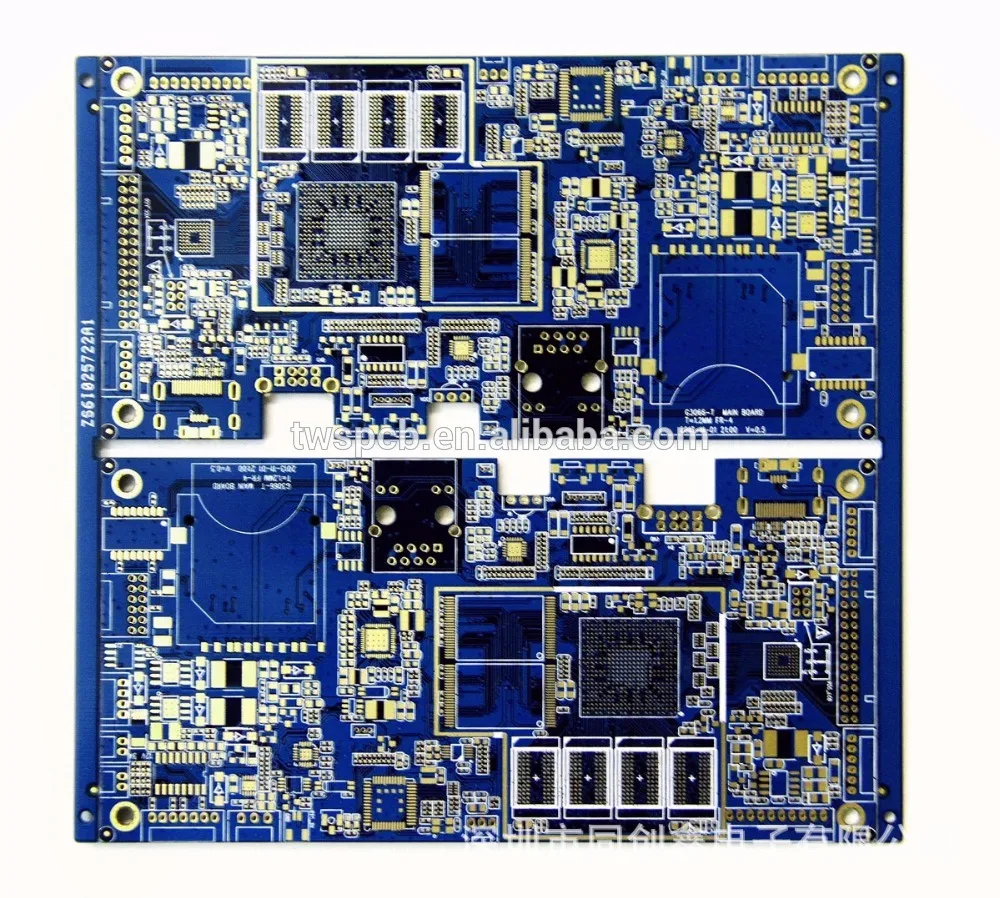

Multi layer PCB electronic board for automotive data recording

ITEM

Technical capabilities

Layers

1-30 layers

Max. Board size

2000×610mm

Min. board Thickness

2-layer   0.15mm

4-layer   0.38mm

6-layer   0.55mm

8-layer   0.80mm

10-layer   1.0mm

Min. line Width/Space

0.075mm(3mil)

Max. Copper thickness

6OZ

Min. S/M Pitch

0.075mm(3mil)

Min. hole size

0.1mm(4mil)

Hole dia. Tolerance (PTH)

±0.05mm(2mil)

Hole dia. Tolerance (NPTH)

+0/-0.05mm(2mil)

Hole position deviation

±0.05mm(2mil)

Outline tolerance

±0.10mm(4mil)

Twist & Bent

0.75%

Insulation Resistance

>1012 Ω Normal

Electric strength

>1.3kv/mm

S/M abrasion

>6H
