DZP 500 Gutta Percha Paper Card Plastic Blister Packaging Machine
- Category: >>>
- Supplier: Shanghai Royal Pharmaceutical Machinery Co. Ltd.
Share on (60793532958):
Product Overview
Description
Product Details
Product Details

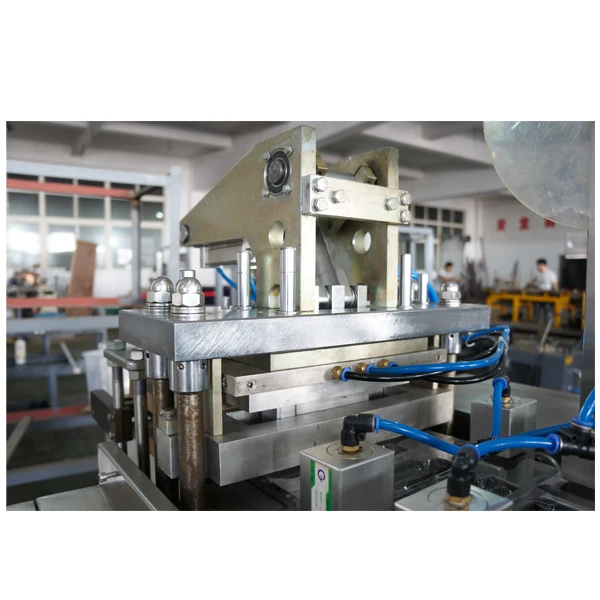

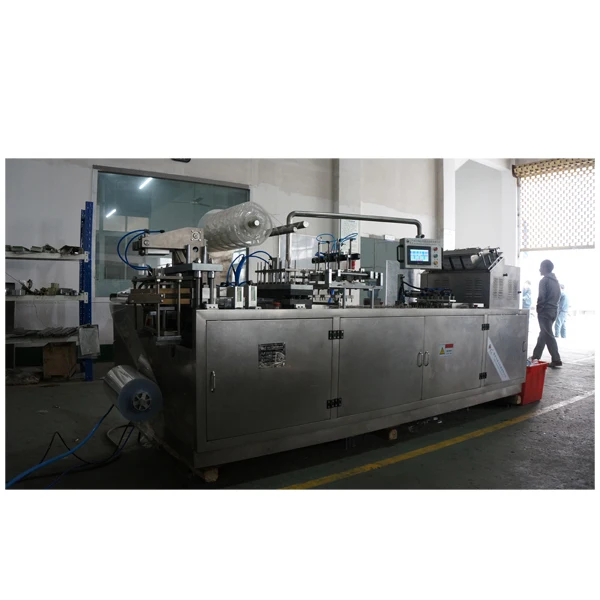

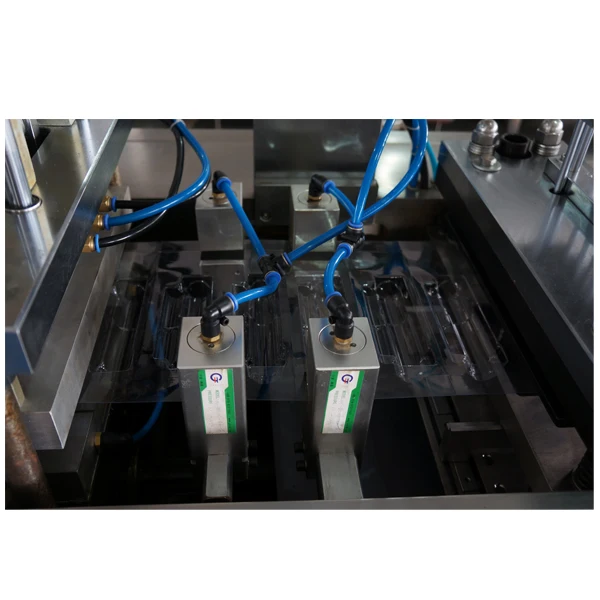

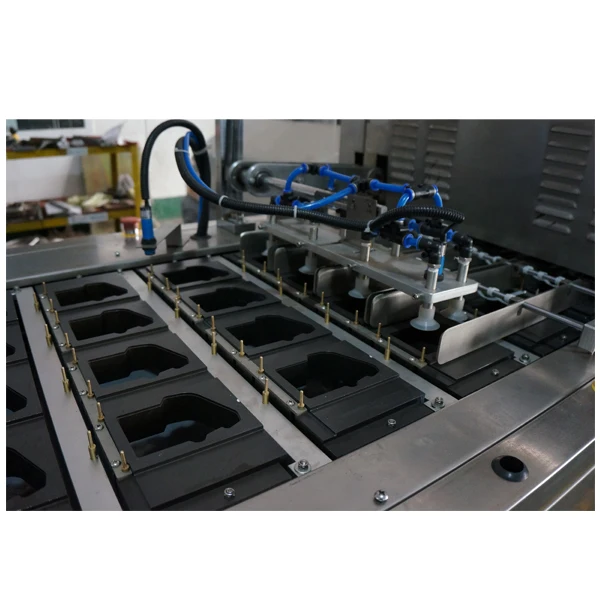

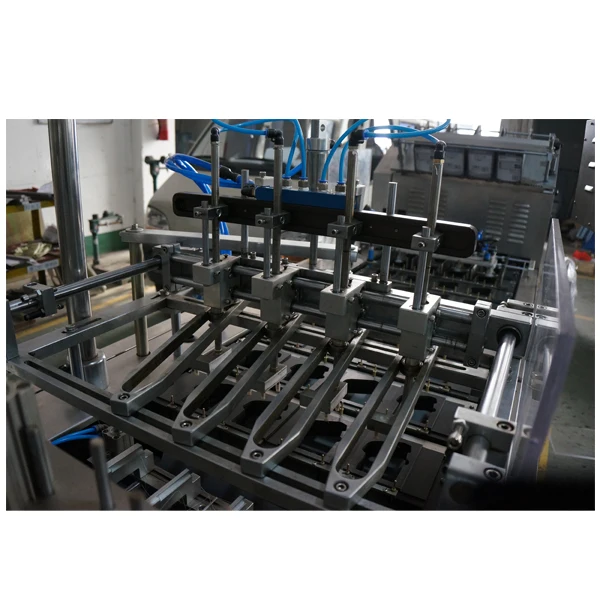

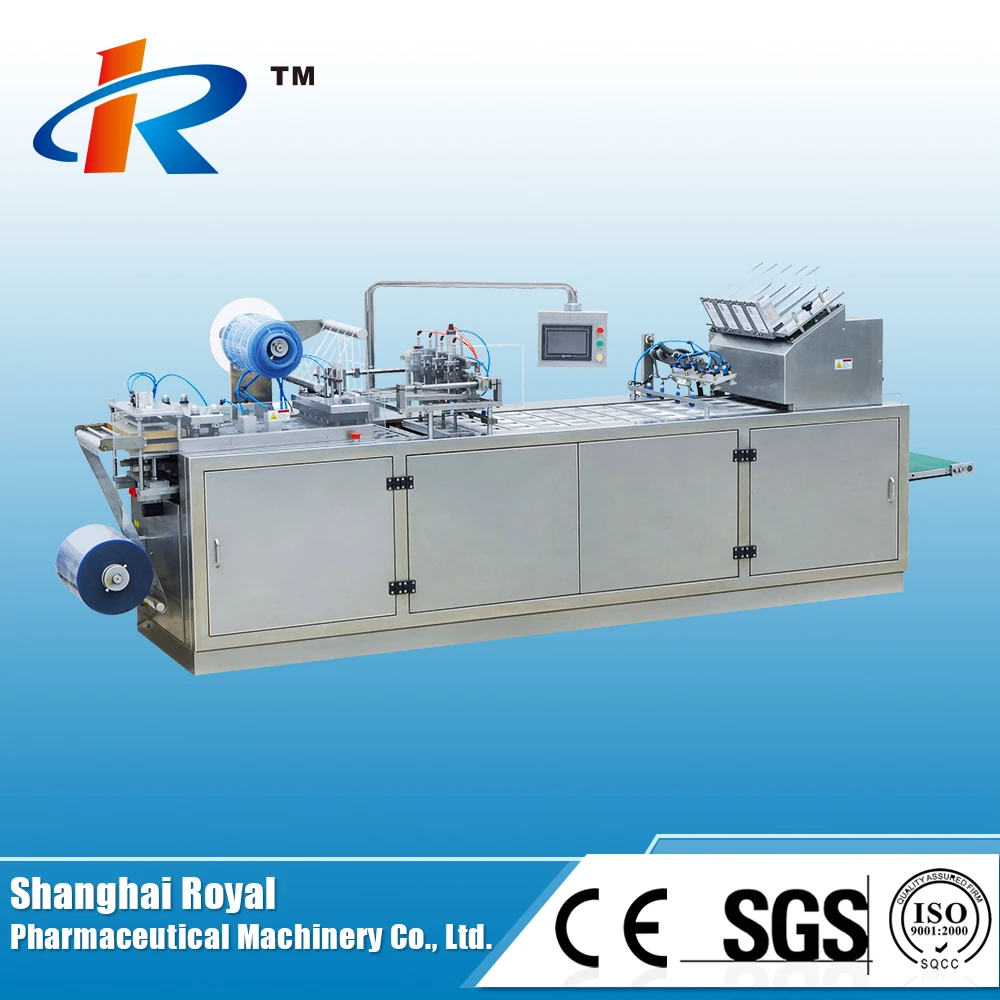

DZP-500 Gutta Percha Paper Card Plastic Blister Packaging Machine
Instruction and features:
DZP Series Automatic Blister Packing Machine is an All in one automatic card blister packaging system (Blister form/ Cut blister/Product feed/Card supply//Seal) designed to meet a wide variety of packaging applications with high efficiency at economical price. Automatic blister mold forming instead of the traditional inventory reserves!
The plastic forms are placed in a die which is 28 pieces (can be less or more) consisted a crawler type circle. Thus the machine can perform fast and steadily. Each card is fixed by accurate alignment dowels. And they are also flexible when changing the different cards.
Workflow:
PVC feeding→PVC heating & positive forming →Blister towing & punching →Waste material collecting →Mechanical hand picking blisters into sealing molds→Inspecting the blister→Feeding automatically or by hand →Feeding & inspecting cardboard→2times heating under high pressure →Finished products
Product Prameters
Model | DZP-500F/S/H | |
Packing Material | PVC sheet thickness | (0.15-0.5)*(330-460)mm |
Cardboard 200g-700g | ||
Compressed air | pressure (0.55-0.85)Mpa | |
air consumption quantity≥0.3m/min | ||
Power consumption | 380V50Hz 7-12Kw | |
Mould cooling water | Running water or circle water consumption50L/h | |
Overall dimension | L*W*H(3600-4300)*900*1650mm | |
Weight | 1500-2300Kg | |
Production capacity | 10-30 punches/min | |
Travel range | 50-(130-180)mm | |
Max area of cardboard | 500*(125-220)mm | |
Max forming area and depth | (310-440)*(120-180)*(16-45)mm (According to customer's requirement) | |
Company Introduction
Company Introduction
Shanghai Royal Pharmaceutical Machinery Co.,Ltd is a professional manufacturer and supplier for pharmaceutical machinery, packing machinery and also production lines.
Our company possesses 25 senior staffs with over 10 years working experience in different fields, such as design, manufacture, Import & Export, quality control and after-sale service. Strong technical support, advanced production equipment, perfect testing and quality management system to make us have the ability to supply excellence products at reasonable price.
Quality Testing
Quality Testing
Certificate Show
Certificate Show
Cooperative Client
Cooperative Client
Our Service
Our Service
Package And Shipping
Package Transportation
FAQ
1.Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
2.Q: What payment terms you take?
A: We prefer T/T, but other terms also workable for us.
3.Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD50/day.
4.Q: How can I visit and check your company?
A:Our factory is located in Shanghai and Zhejiang Province. Headoffice lay in shanghai, Minhang District. From Pudong International Airport to our office need only 45 minutes. U can take the metro line 5 come to our office directly!
Any other doubts about our machine, please feel easy to contact with us.
