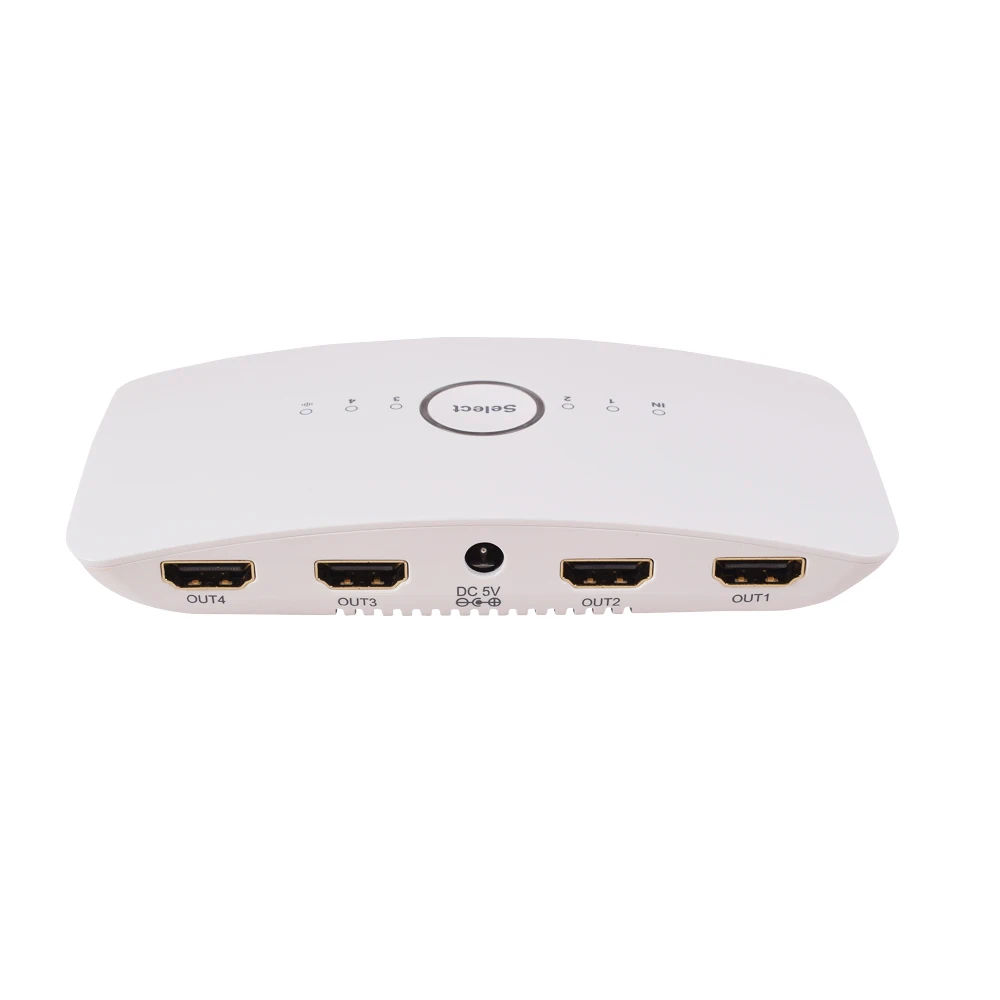

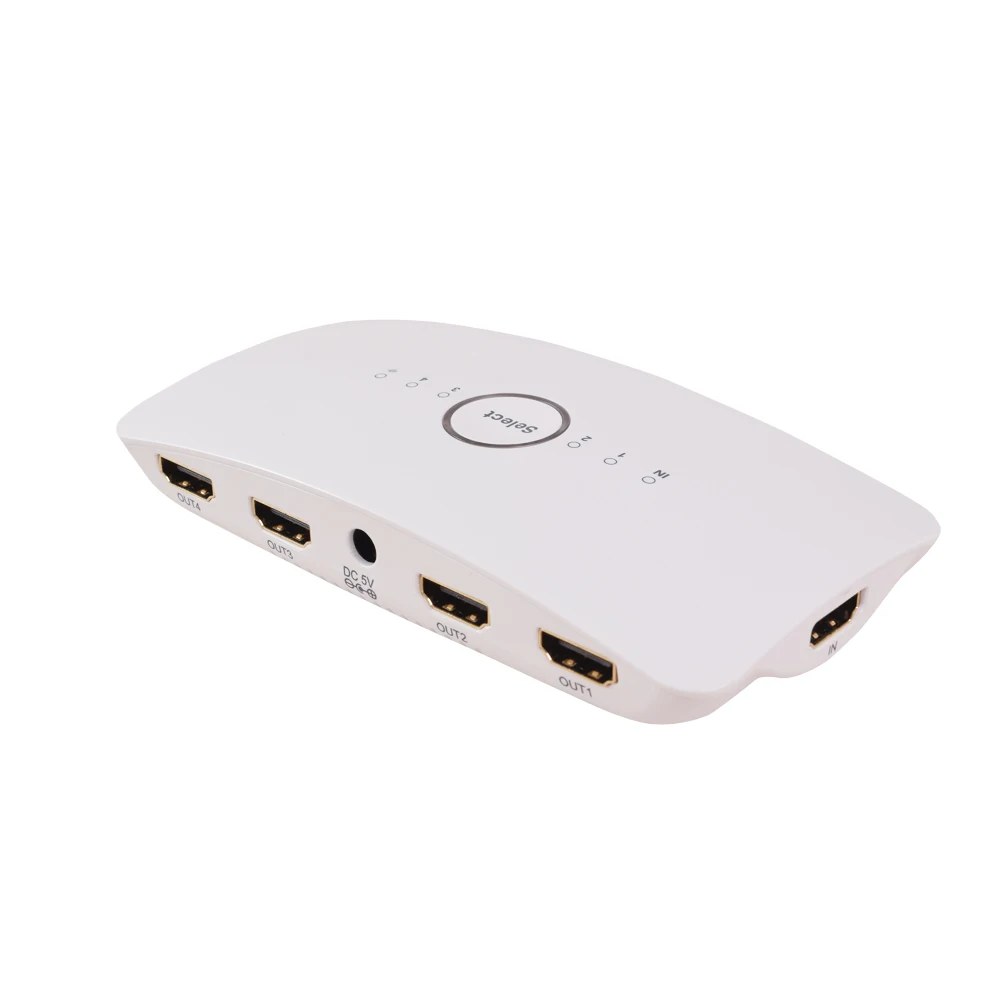

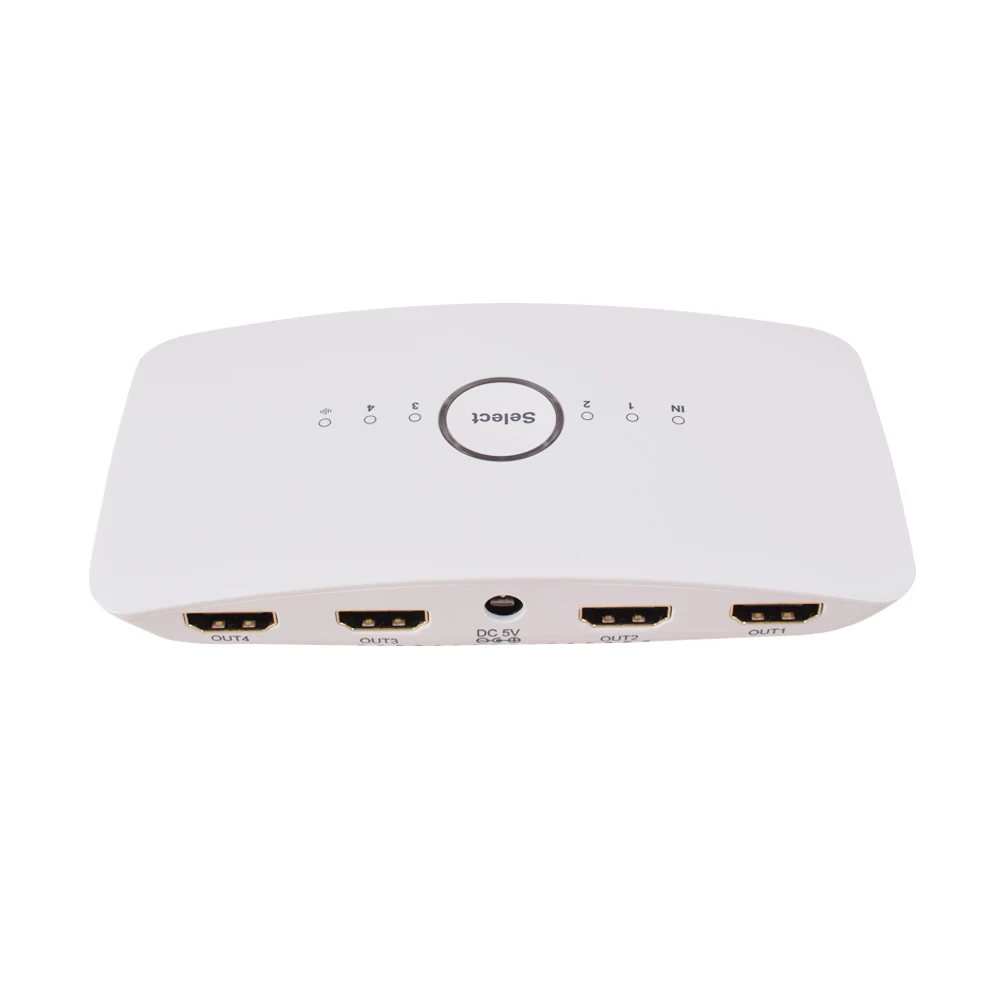

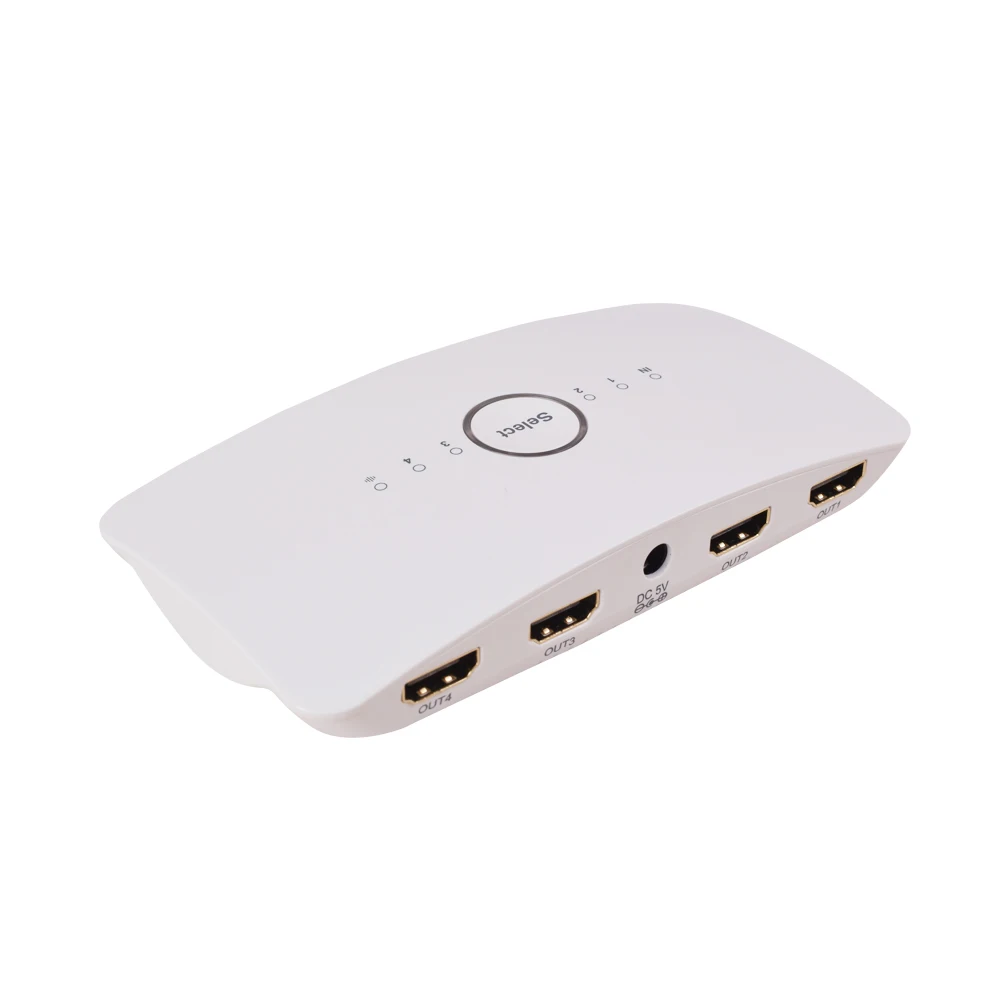

HDR HDMI splitter 1X4 Upscaler/Downscaler, HDCP2.2 18Gbps , Pick your output resolution 1080p, 720p, 4K@60Hz

Product Overview

Description

HDR HDMI splitter 1X4 Upscaler/Downscaler, HDCP2.2 18Gbps , Pick your output resolution 1080p, 720p, 4K@60Hz

 (4K@ 60Hz /UHD/EDID Setting/Scaler Down)

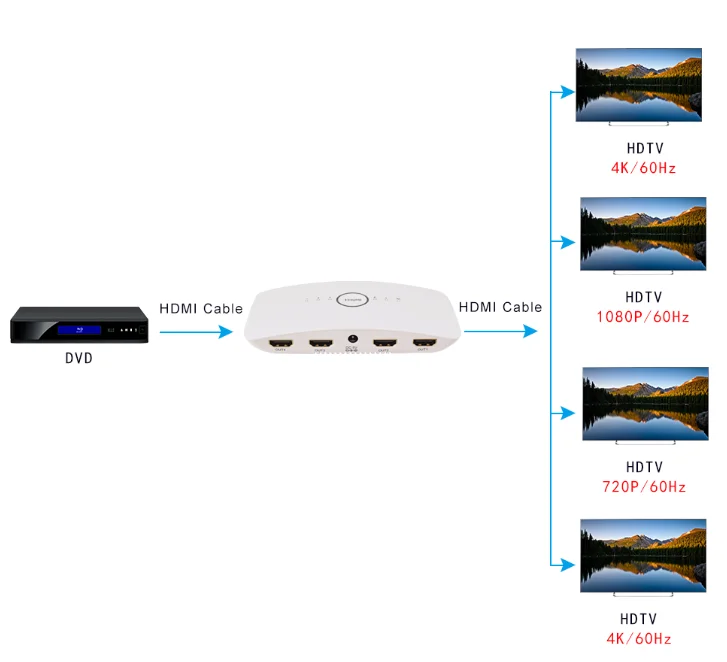

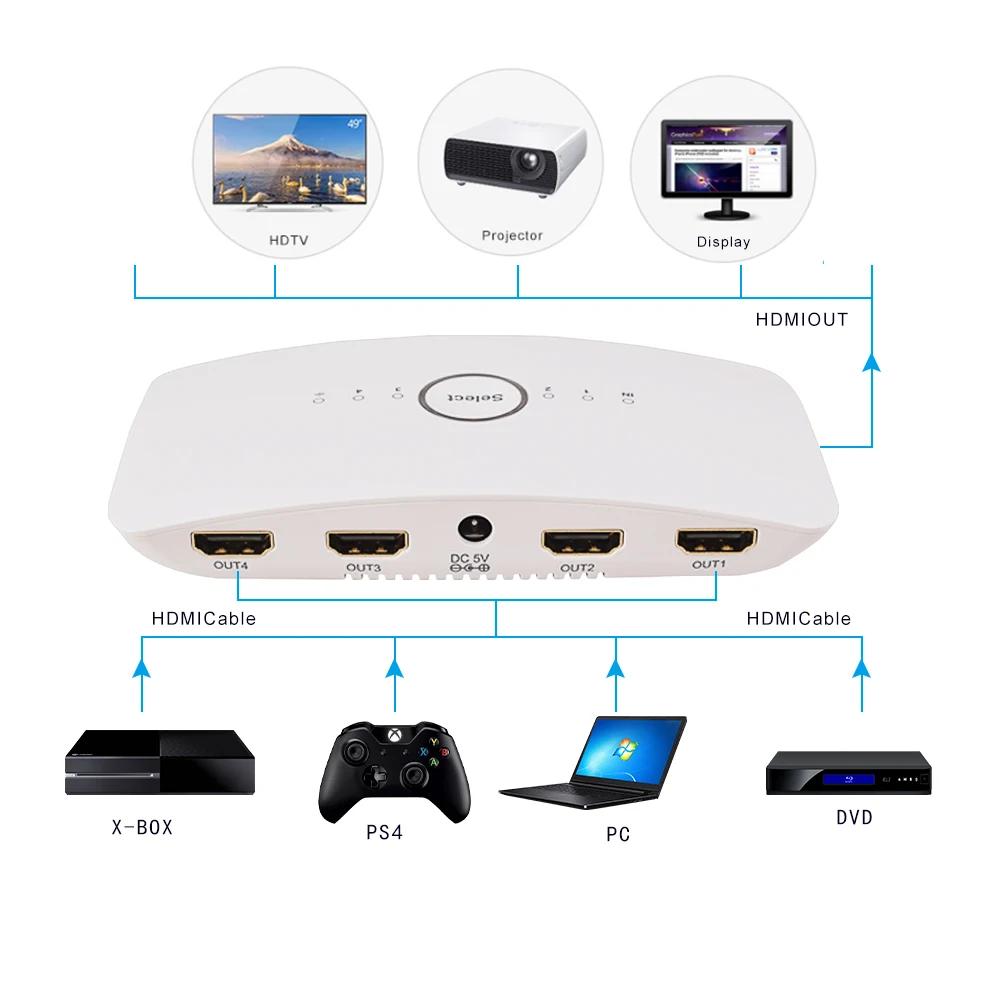

The 1x4 HDMI splitter that supports Full HD 1080P.3D,HDR& 4K*2K/60Hz uses a single HDMI source,accessing to multiple HDMI sinks. The splitter allows one HDMI source to be distributed to four HDMI compatible monitors or projectors. The splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.



FEATURES

l One HDMI  input signal split to four HDMI  sink devices

l When 4K is input, it can support 1080P and 4K two resolutions output . (Note: output only supports the same refresh rate, for example: 60Hz).

l Support  HDR

l Support 4K*2K @60Hz resolution

l Support deep color 24bit, 30bit, 36bit

l HDMI output audio support EDID function: mix and max two audio mode option

l Video format support: 4Kx2K/60Hz 10Bit Ycbcr4:2:0; 4Kx2K/60Hz 12Bit  Ycbcr4:2:0 ; 4Kx2K/60Hz 8Bit Ycbcr4:4:4/ Ycbcr4:2:0(Note: It only support the standard HDMI source Ycbcr4:4:4 signal)

l The HDMI input cable distance can be up to 10m and HDMI output cable distance can be up to 10 when transmit the 1080P signal by using standard AWG24 HDMI cable; The HDMI Input cable distance can be up to 5m and HDMI output cable distance can be up to 5m when transmit the 4Kx2Knal by using standard AWG24 HDMI cable;

l Support signal retiming

l No loss of quality

l Installs in minutes

l Need DC5V/1A power supply





      SPECIFICATIONS:                                HDSP0014M1

HDMI resolution ……………4K@60Hz /4K@30Hz/3D/1080P/1080i/720p/576p/576i/480P/480i

Support audio format……………………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………..600MHz

Max baud rate……………….…….………………….…………………………..18Gbps

Input/Output TMDS signal ………….…………………………..……......… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ………………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….…. ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable

Output cable distance………………………≤10m(1080P)/5M(4K) AWG24 HDMI standard cable

Max working current……………………………………………………………….....400mA

Power adapter format..Input: ………………...AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A

Operating temperature range……..…………….………………………………-0 to +40℃

Storage temperature range…………………………………………………… -20 to +60℃

Operating humidity range………………………….….………….5 to 85%RH (No Condensation)

Storage humidity range………………………….….………….…5 to 95%RH (No Condensation)

Dimension (L x W x H) ……………………………….………………………95X53X22(mm)

Weight…..………………………………………………………..………………………136g
