  • XMC HAC4010 04 G1/2' aluminum die casting FRL pneumatic air pressure regulator filter for welding machine
XMC HAC4010 04 G1/2' aluminum die casting FRL pneumatic air pressure regulator filter for welding machine

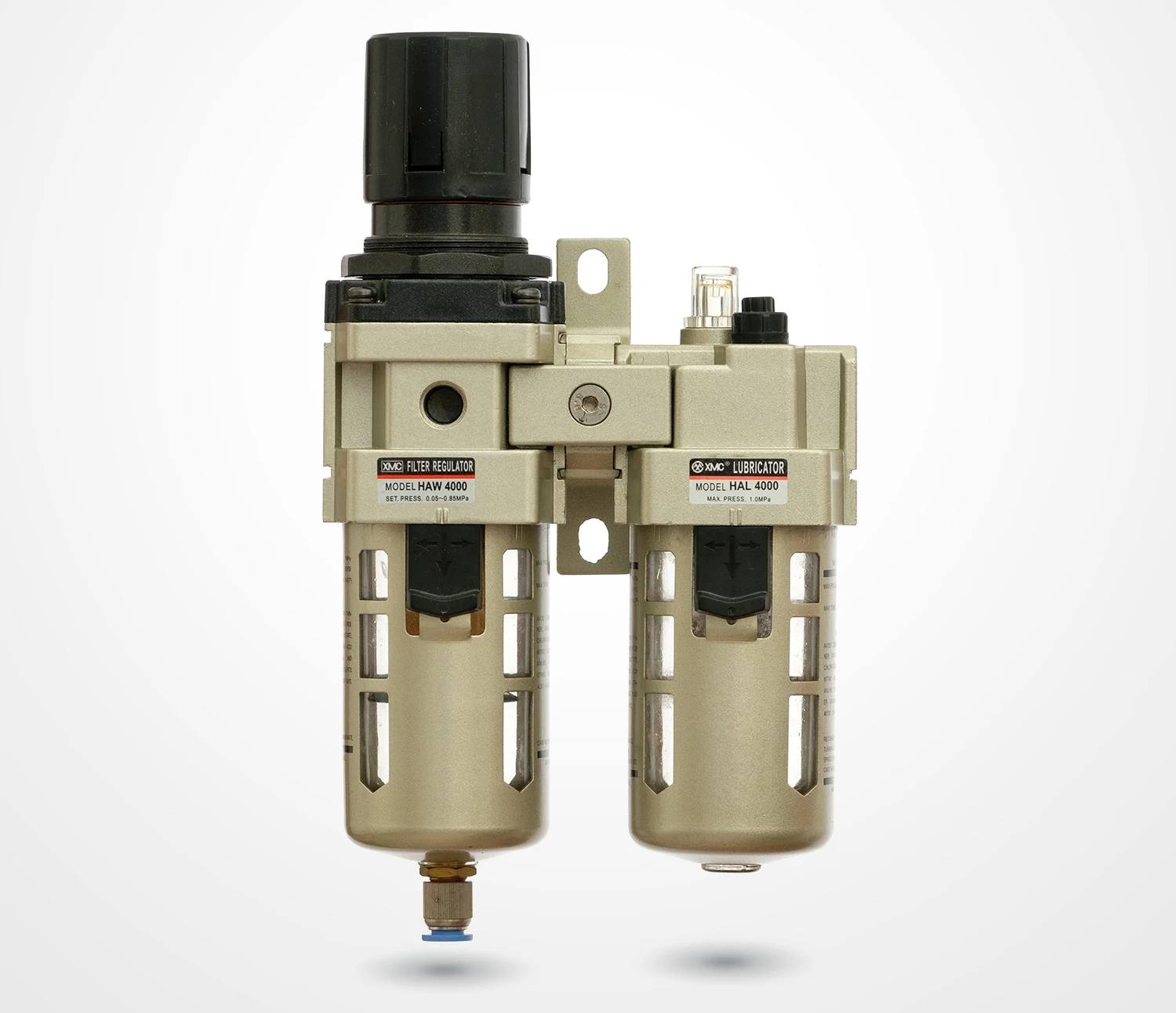

XMC HAC4010-04 G1/2' aluminum die-casting FRL pneumatic air pressure regulator filter for welding machine
XMC HAC4010-04 G1/2' aluminum die-casting FRL pneumatic air pressure regulator filter for welding machine
XMC HAC4010-04 G1/2' aluminum die-casting FRL pneumatic air pressure regulator filter for welding machine

XMC HAC4010 04 G1/2' aluminum die casting FRL pneumatic air pressure regulator filter for welding machine

Share on (60793597779):


Price:$22.75 - $45.50

Quantity:


Product Overview

Description

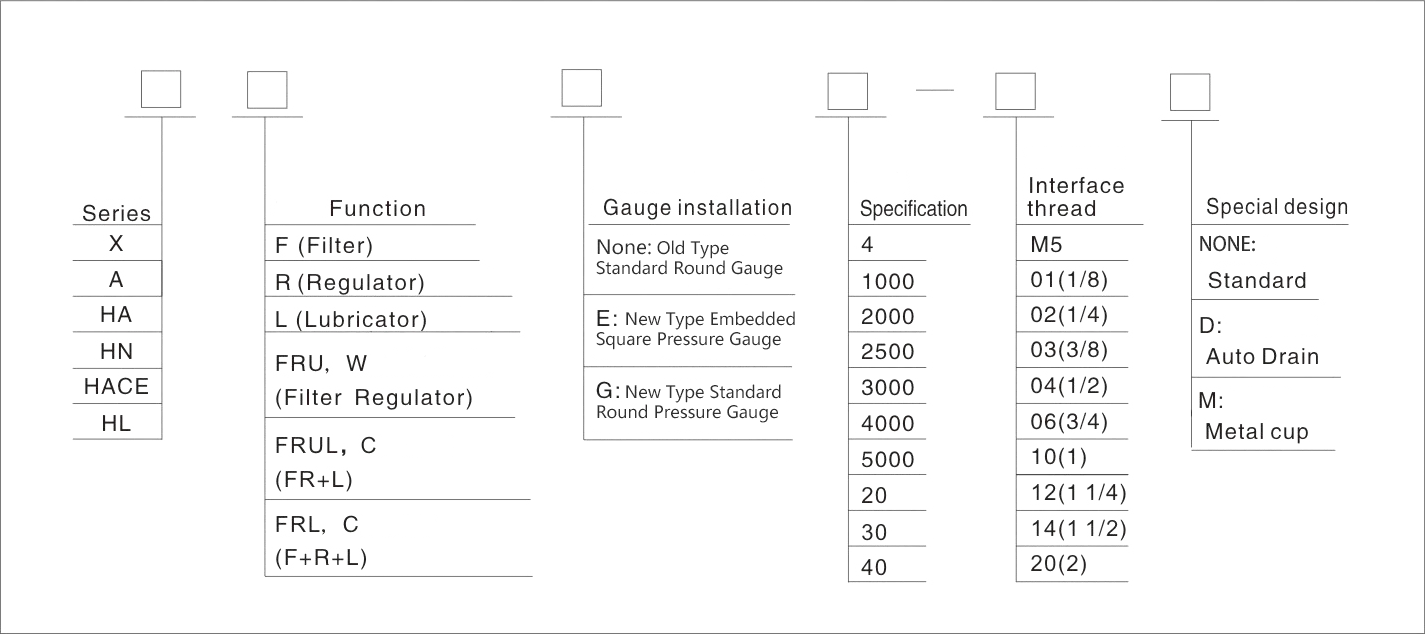

Model Code




Specification


Order No.
HAC4010-04
Ensured Pressure Resistance
1.5MPa (15kgf/cm2)
Highest Working Pressure
1.0MPa (10kgf/cm2)
Ambient and Fluid Temperature
5~60℃
*Filter Precision
25μm
Recommended Oil Use
Turbine No.1 Oil ISOVG32
Container Material
Polycarbonate
Protective Cover
Available
Pressure Regulating Range
0.05~0.85MPa (0.5~8.5kgf/cm2)
Valve Type
With Overflow


*5μm, 50μm available in addition (Optional)

Model Table

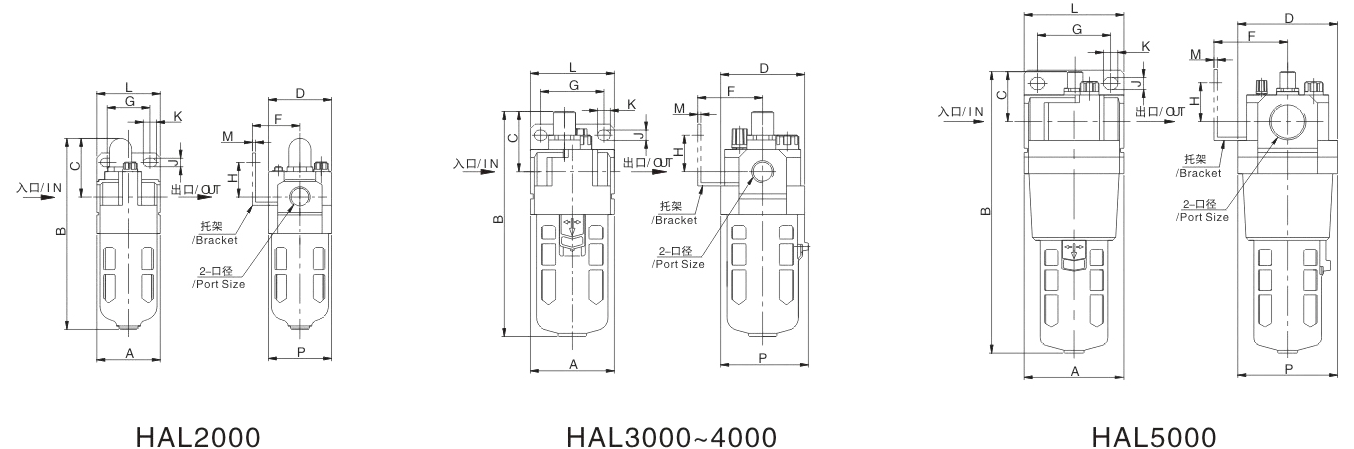

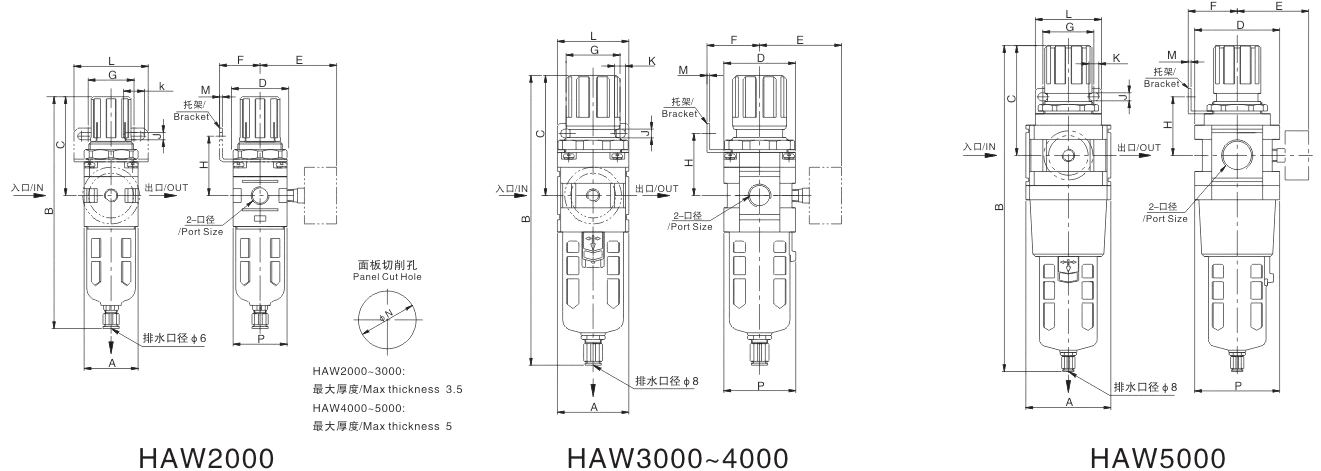

Overall Dimension Drawing (mm)






Overall Dimension Drawing (mm)
