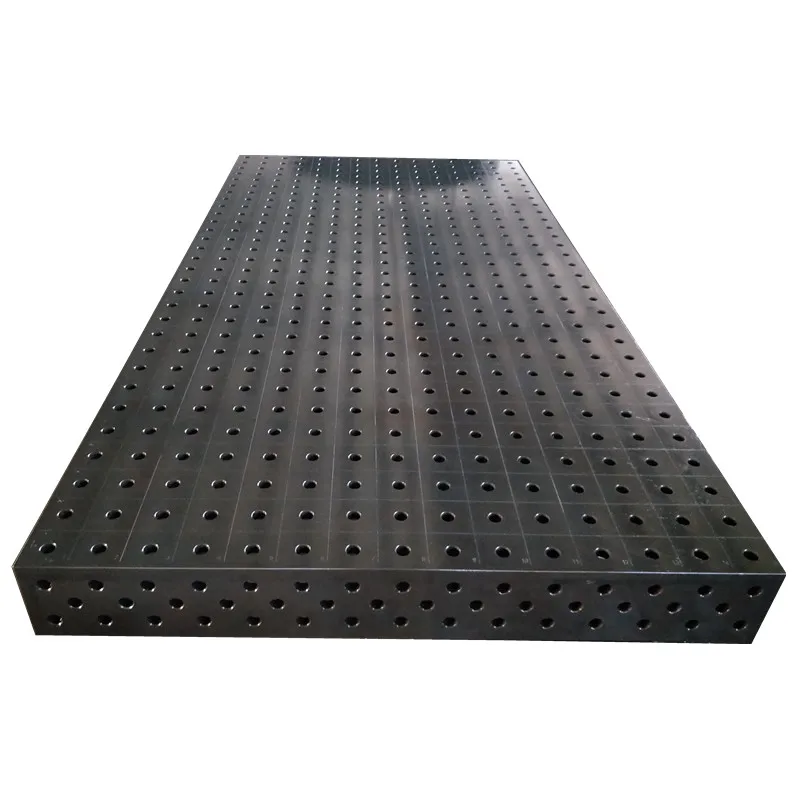

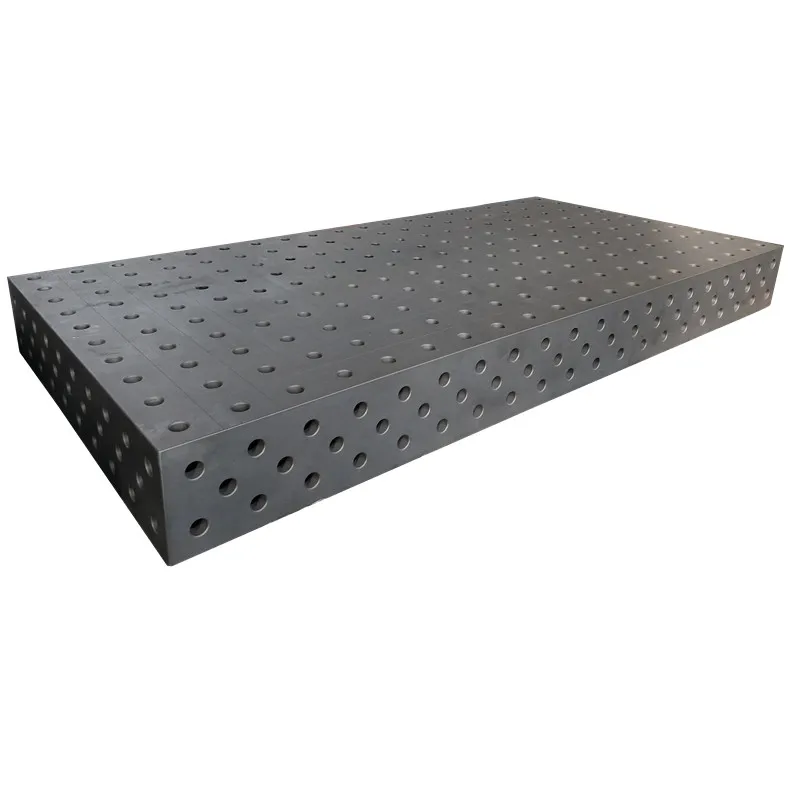

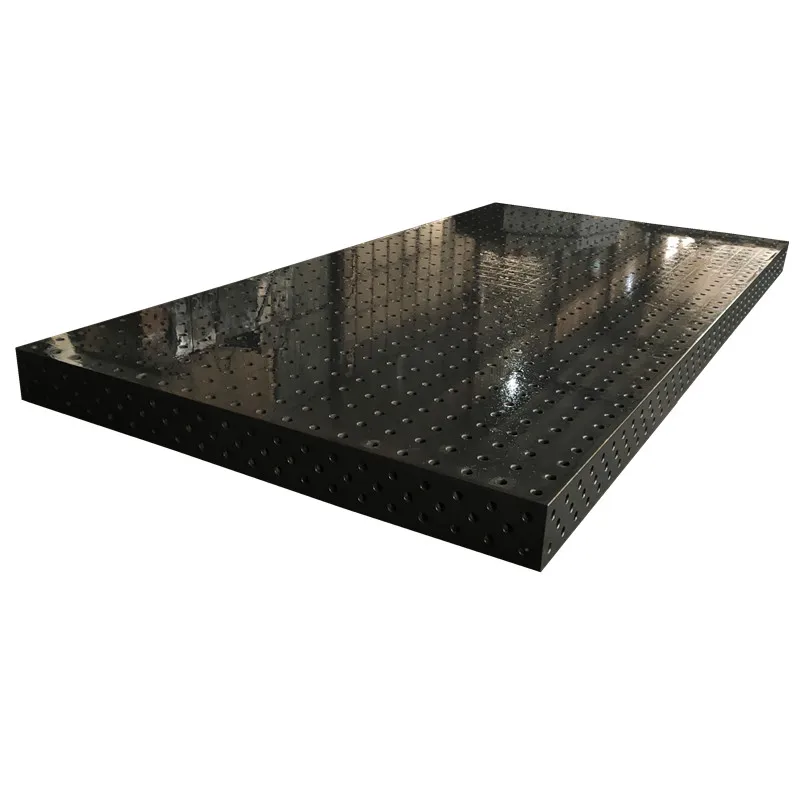

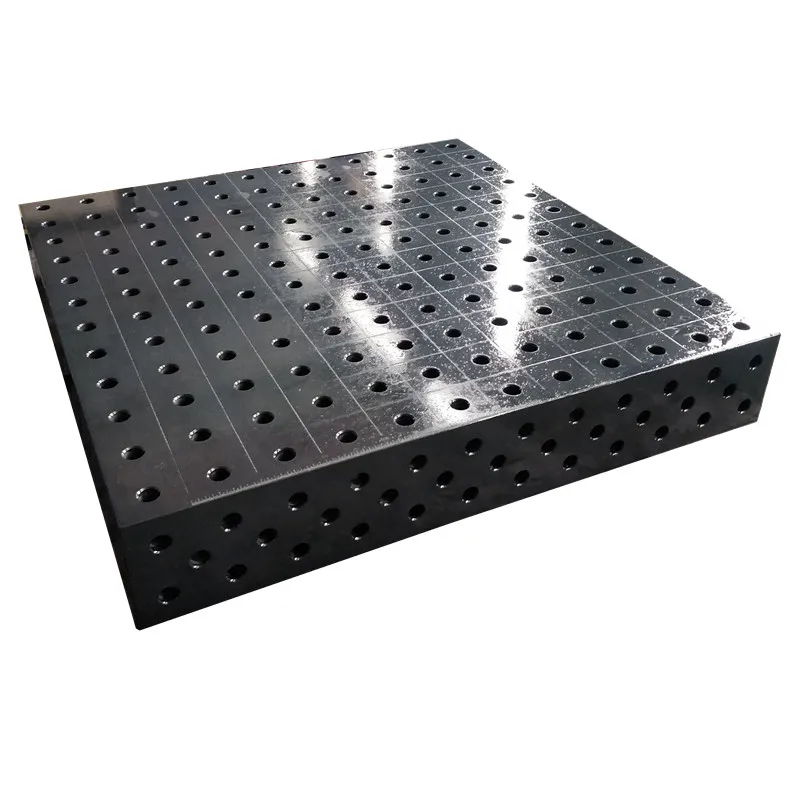

  • High Quality Cast Iron 3D Welding Table plate System Clamping

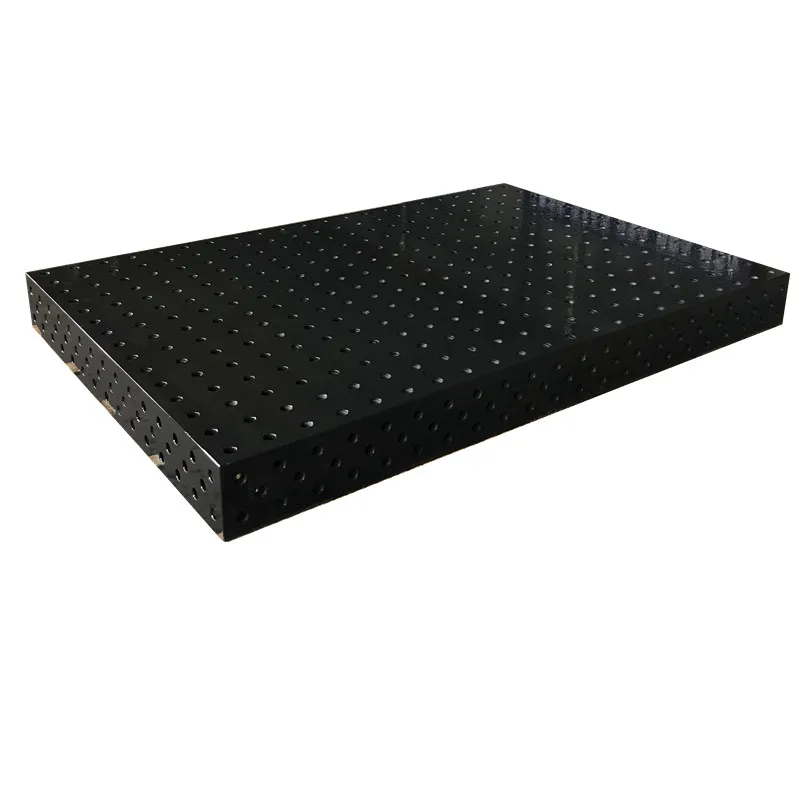

High Quality Cast Iron 3D Welding Table plate System Clamping
High Quality Cast Iron 3D Welding Table plate System Clamping
High Quality Cast Iron 3D Welding Table plate System Clamping
High Quality Cast Iron 3D Welding Table plate System Clamping
High Quality Cast Iron 3D Welding Table plate System Clamping
High Quality Cast Iron 3D Welding Table plate System Clamping
High Quality Cast Iron 3D Welding Table plate System Clamping

High Quality Cast Iron 3D Welding Table plate System Clamping

Share on (60793600308):


Price:$2,400.00 - $2,500.00

Quantity:


Product Overview

Description







D28 series parameters


D28 series parameters
aperture
φ28.065--φ28.149mm
Hole spacing
L1=100±0.05mm
Flatness
0.1/1000mm
verticality
0.1/200mm
Surface roughness
RA3.2
Standard load bearing
2T
Frame bearing
5T
Nitriding hardness
HV450~HV630
Specifications
1000*1000~2000*4000mm


Part NO.
Specifcation（mm）
Weight（KG）
YP2810001
1000*1000*200
345
YP2810002
1200*1200*200
455
YP2810003
1500*1000*200
480
YP2810004
1500*1500*200
725
YP2810005
2000*1000*200
655
YP2810006
2400*1200*200
870
YP2810007
3000*1500*200
1365
YP2810008
4000*2000*-200
2375


D16 series parameters


D16 series parameters
aperture
φ16.065--φ16.149mm
Hole spacing
L1=50±0.05mm
Flatness
0.1/1000mm
verticality
0.1/200mm
Surface roughness
RA1.6
Standard load bearing
2T
Frame bearing
5T
Nitriding hardness
HV450~HV630
Specifications
1000*500~2400*1200mm


Part NO.
Specifcation（mm）
Weight（KG）
YP1610001
1000*500*100
82
YP1610001
1000*1000*100
156
YP1610001
1200*800*100
142
YP1610001
1200*1200*100
210
YP1610001
1500*1000*100
232
YP1610001
1500*1500*100
345
YP1610001
2000*1000*100
297
YP1610001
2400*1200*100
453
















Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: Do you provide free samples ?
A3: No, We don't provide samples.
Q4: How about the quality?
A4: We have the best professional engineer and strict QA and QC system.
Q5: Can we be your distributor?
A5: We are looking for distributor and agent all over the world.
Q6: How’s the package?
A6: Normally are wooden case, but also we can pack it according to your requirements.
Q7: How’s the delivery time?
A7: It depends on the quantity you need, 20days usually.
