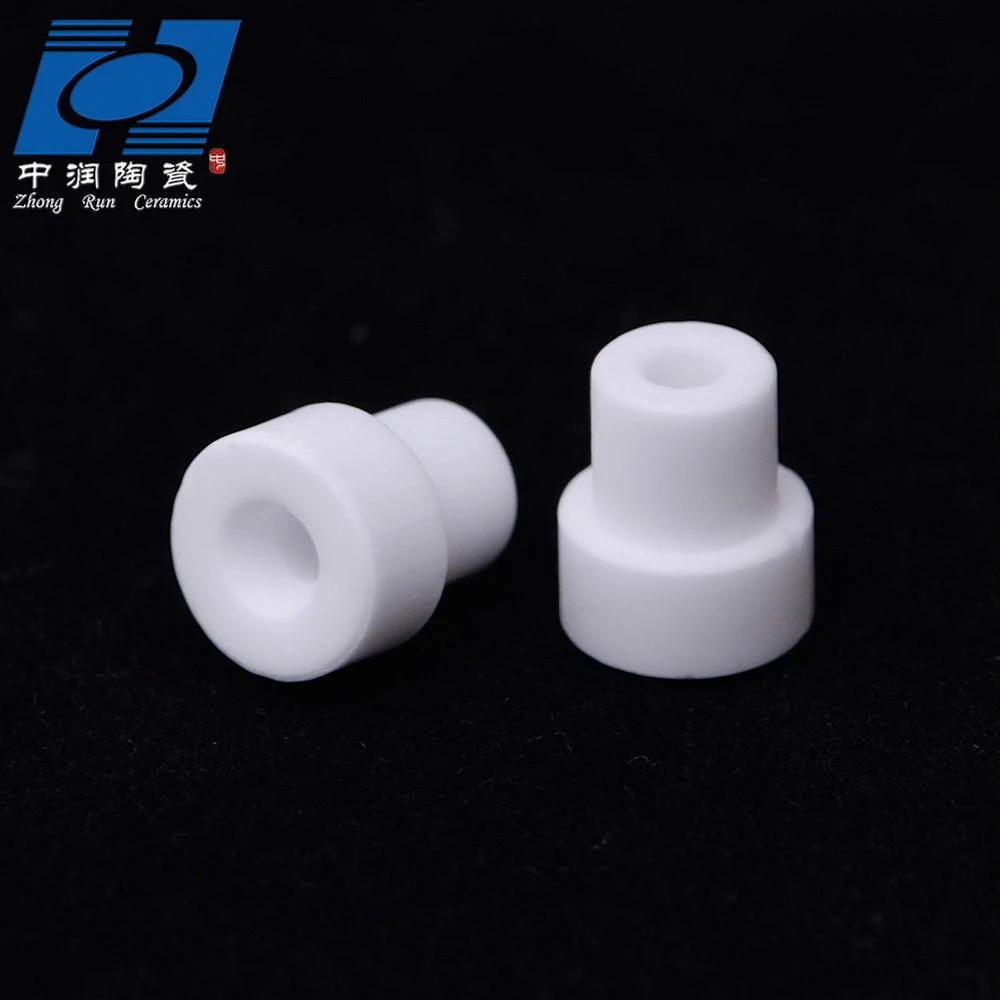

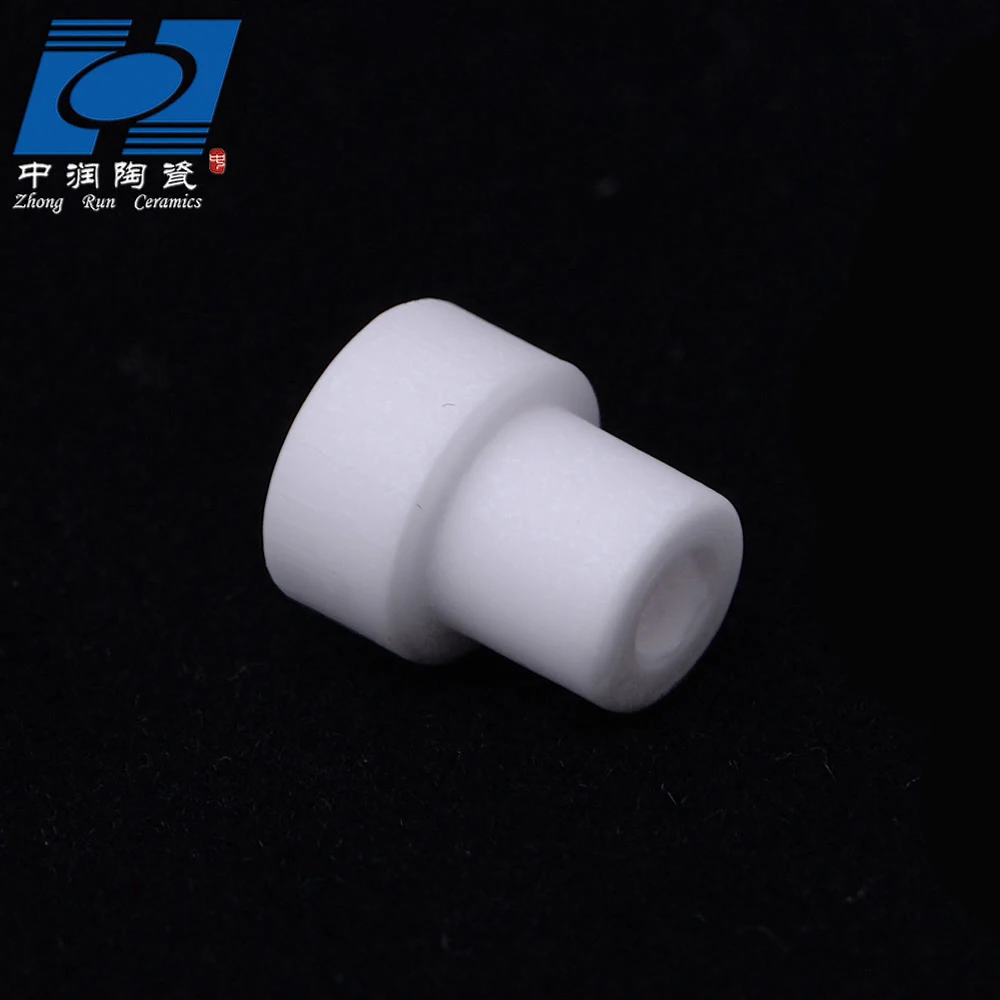

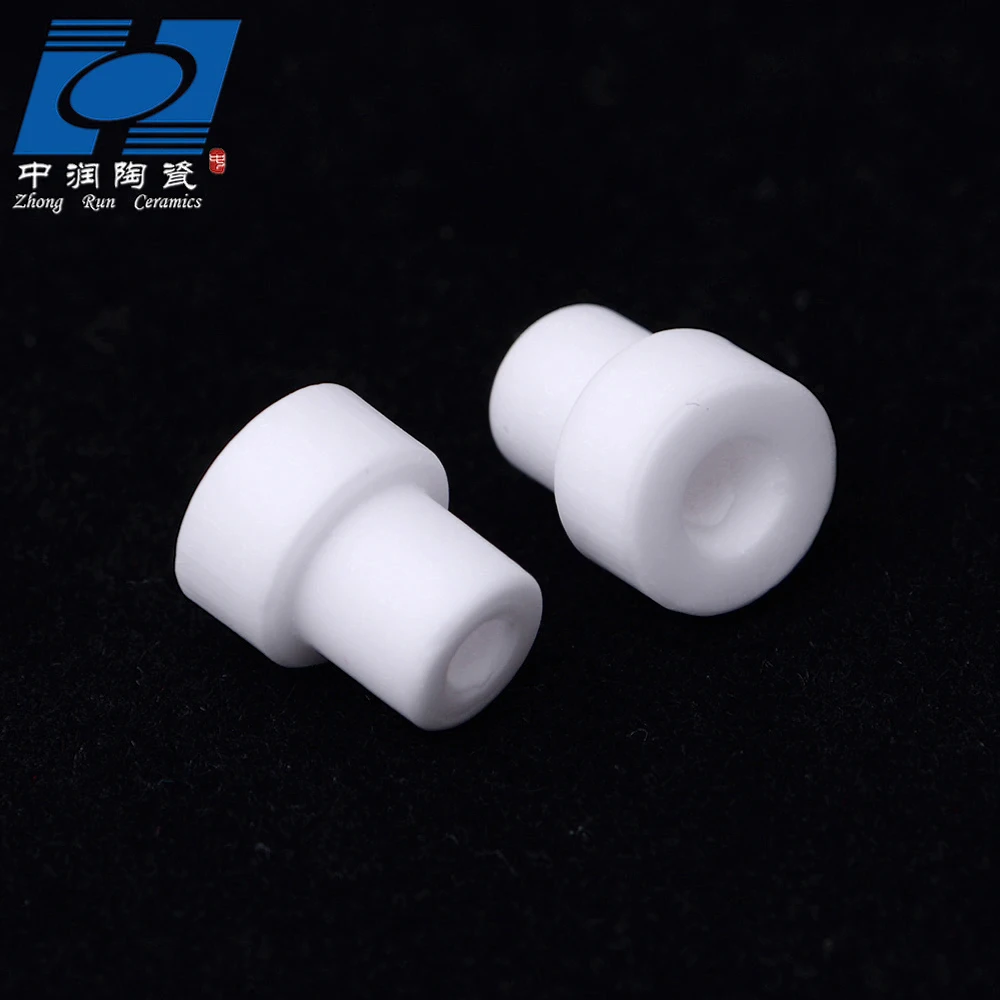

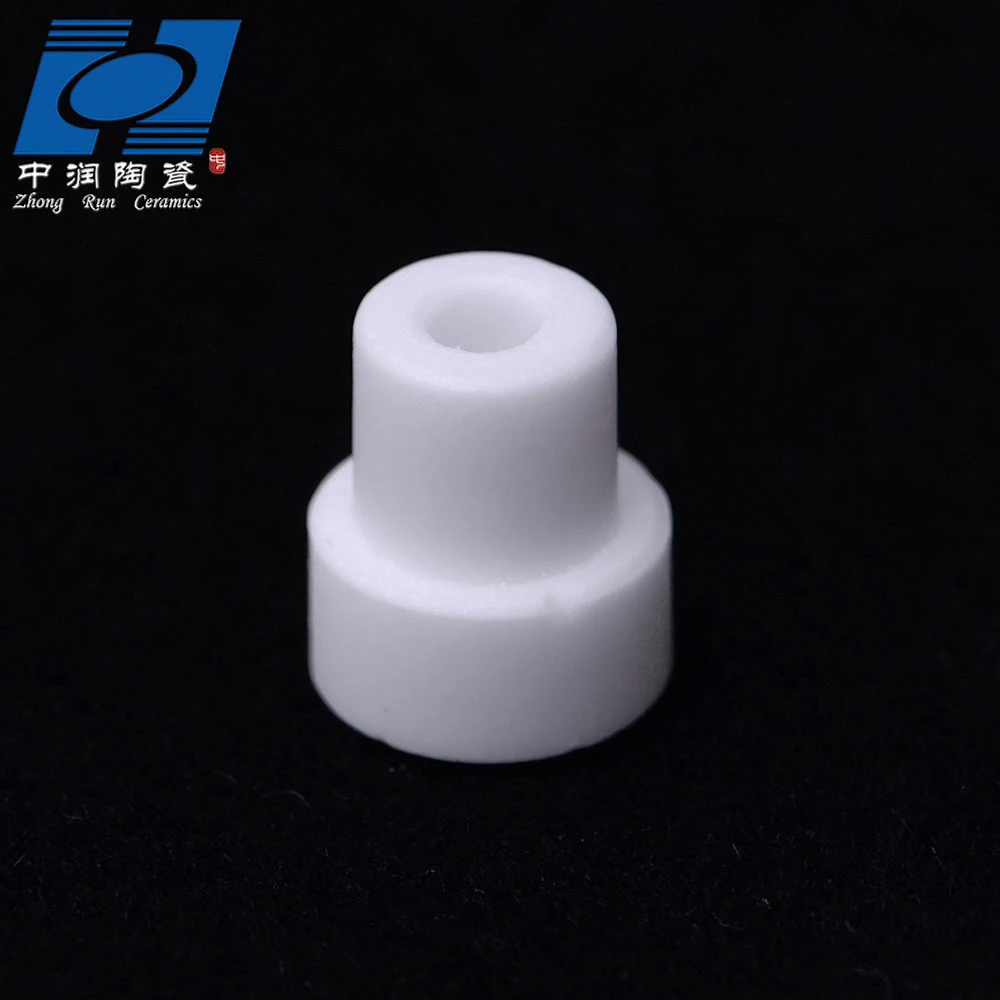

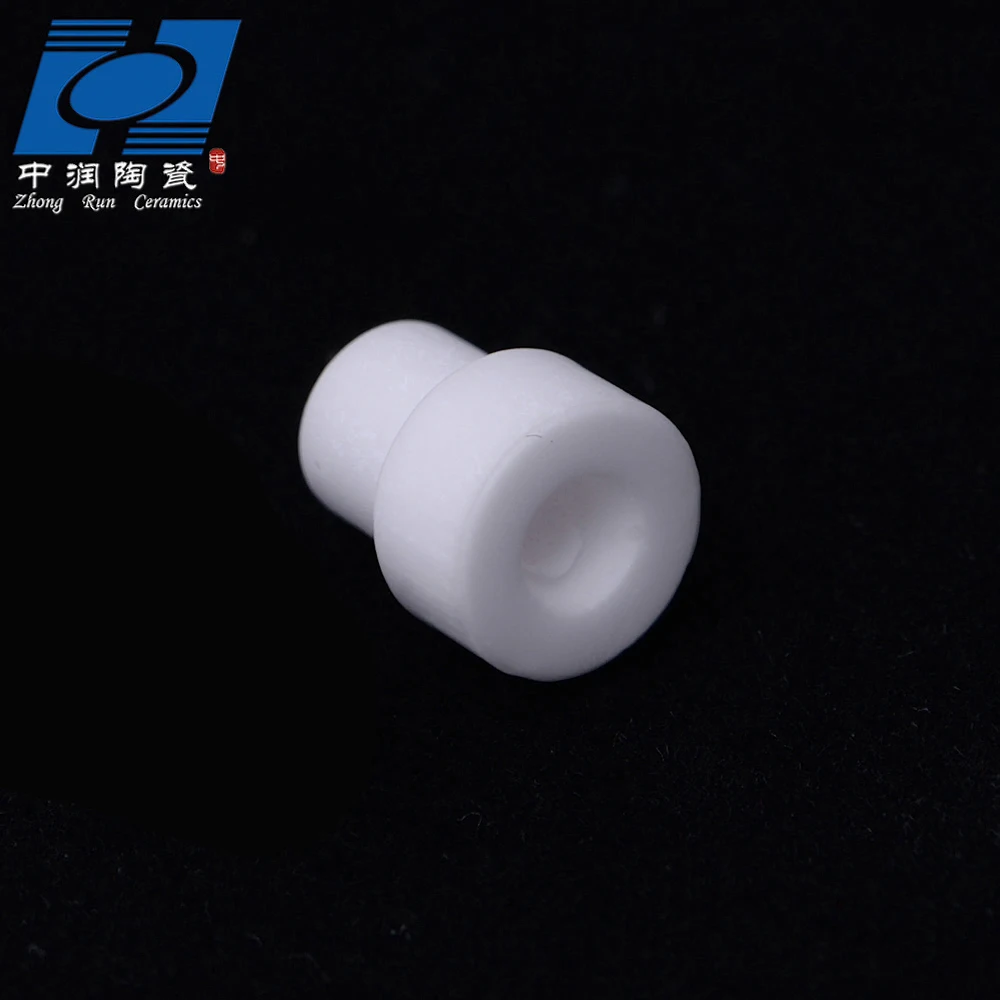

95 alumina ceramic small beads for heater
- Category: >>>
- Supplier: Yixing Zhong Run Ceramics Technology Co. Ltd.
Share on (60793606308):
Product Overview
Description
| 95 alumina ceramic small beads for heater | ||
|---|---|---|

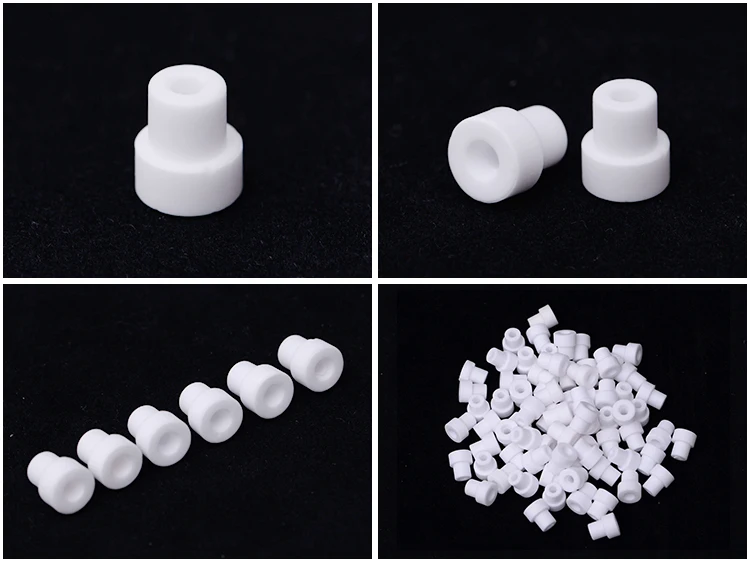

Product Display
• All items According to client's drawing
Product Description
| Product Description |
| Product name | alumina ceramic small beads |
| Place of Origin | Jiangsu, China(mainland) |
| Brand Name | Zhong Run |
| Type | Ceramic bead |
| Material | Alumina |
| Color | White |
| Size | Customzied |
| Shape | Custom-shaped |
| Producing Method | Hot pressing/Dry pressing |
| Design | According to client's drawing or samples |
| Payment | T/T, Western Union |
| MOQ | 1000pieces |
| Packing | Carton /Pallet/Wooden case (According to clients requirement) |
| Delivery time | Standard Product: Within 3 days |
| New developed items: 15days | |
| Application | Industry Usage |
| Features | 1. Many kinds of insulated ceramics available |
| 2. It can satisfy constant's technical request | |
| 3. Good lead-heat capability, Good compressive strength | |
| 4. High resistance, Good air tightness | |
| 5. High temperature and high voltage resistant |
Alumina Ceramic Base selected raw materials
We manufactures custom technical ceramics, covering a wide range of customer requirements.
We make use of several forming and machining techniques to process components made from alumina Ceramics.
| Alumina Ceramic Technical Parameter |
| Alumina Content | 80-85% | 90-96% | > 99.5% | 99% |
| General Application | Lower Cost Electrical & Mechanical | High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing | Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance | Porous, Easily Degassed & Machinable |
Porosity (%) | 0-.05 | 0-.05 | 0-.05 | Variable |
Density (gm/cm3) | 3.45-3.50 | 3.55-3.75 | 3.75-3.95 | 2.4 |
| Flexural Strength (kpsi) | 35.0-40.0 | 40.0-50.0 | 50.0-55.0 | - |
Comprehensive Strength (kpsi) | 260.0 | > 300.0 | > 300.0 | - |
Tensile Strength (kpsi) | 15.0-20.0 | 20.0-28.0 | 20.0-28.0 | - |
Linear Coefficient of Thermal Expansion ((cm/cm/°C) 25-300°C 25-700°C) | 5.9X10-6 6.5X10-6 | 6.3X10-6 7.0X10-6 | 6.5X10-6 7.5X10-6 | 6.5X10-6 7.5X10-6 |
Dielecctric Constant at 25°C (1 MH 10 MH) | 8.5-8.9 8.4-8.8 | 9.2-9.8 9.0-9.6 | 9.5-9.9 9.3-9.7 | - |
Dielectric Strength (Volt/mil) | 200 | 225 | 225 | - |
Te Value (°F °C) | 1472 800 | > 1832 > 1000 | > 1832 > 1000 | > 1832 > 1000 |
| Thermal Conductivity at 25°C (cal/sec/cm2/cm/°C) | .03-.04 | .04-.06 | .07-.08 | - |
| Thermal Shock | Good | Good | Good | Good |
| Safe Use Temperature (°F °C) | 2550 1400 | 3000-3100 1650-1700 | 3275 1800 | 3275 1800 |
Technical process
Technical process for alumina ceramic small beads
Our products
| Hot-selling Products |
| Main Raw Materials |
|---|
Alumina ceramics
Alumina Ceramic may be used in applications that require high elevated temperatures, High dielectric strength, excellent electrical resistance, wear or corrosion resistance, high temperature capability. High Electrical insulation. high pressure alumina ceramic cylinder plunger pump pump manufacturer
Zirconia ceramics
Zirconia (ZrO2) is a unique advanced ceramic.
Products manufactured from zirconia powder exhibit superior mechanical properties such as high strength and flexibility.
Steatite ceramics
Steatite is used to support heating elements in electric heaters, toasters, and ovens. Steatite is a good high voltage insulator. It holds up under thousands of volts without breaking down.
Cordierite ceramics
The main chemical ingredient of cordierite ceramic is 2MgO·2Al2O3·5SiO2, main material is steatite, clay, alumina, feldspar, etc. Manufactured by normal ceramic technic, can be used for loop frame work, insulators of arc-resistance, element of composite materials, burnable nozzle of electrical insulators, etc.
Contact us
Professional Industrial Ceramics Manufacturer
Nancy Yixing Zhong Run Ceramics Technology Co., Ltd
Add: Luojian Industrial .Dingshu.Yixing City ,Jiangsu Province .China Tel: +86-510-87490978 Fax: +86-510-87487578 Mobile: +86-13901533340 Web: www.zrceramics.com
|
|---|
Company Information
Yixing Zhong Run Ceramics Technology Co.,Ltd is a manufacturing company specialized in pressing Industrial Ceramics.
We make use of several forming and machining techniques to process components made from alumina ceramic, Steatite Ceramics, Zirconia Ceramics, Cordierite Ceramics, Mgo Ceramics, Corundum Ceramics, long service high pressure alumina ceramic cylinder plunger pump pump etc. These materials may be used in applications that require wear or corrosion resistance, high temperature capability, abrasion resistant, electrical resistance. Our mainly materials are widely used in electrical appliance industry, Automotive industry, Mechanical Industry, Led lighting industry, Heating industry, Electrothermal Industry, Engineering Industry etc.
Zhong Run Ceramics believes in Manufacturing Quality products and delivers the products as per the customers drawing or samples.
We aim for excellence by setting Superior standards of performance and Commitments!
Moulding
The moulding methods are manual, automatic and dry pressing. alumina ceramic small beads are made by these three methods.
Sintering
Our company has two kilns, which have advantages in similar enterprises. We can burn more alumina ceramic small beads in a short time.
Packing
When the alumina ceramic small beadss is finished, the person will be responsible for the packing.
FAQ
Q1. Is it available to provide customize products?
A: We always support custom-made spark plug ceramic insulator as per clients' different raw material, specification and finish treatment.
Q2. Are you a factory or trading company?
A: We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q3. How can you get quotation?
A: Please kindly send me your drawing with technic requirement and demand quantity.
If you don’t have the drawing,please kindly courier samples to us.
We will quote our best price in 24 hours
