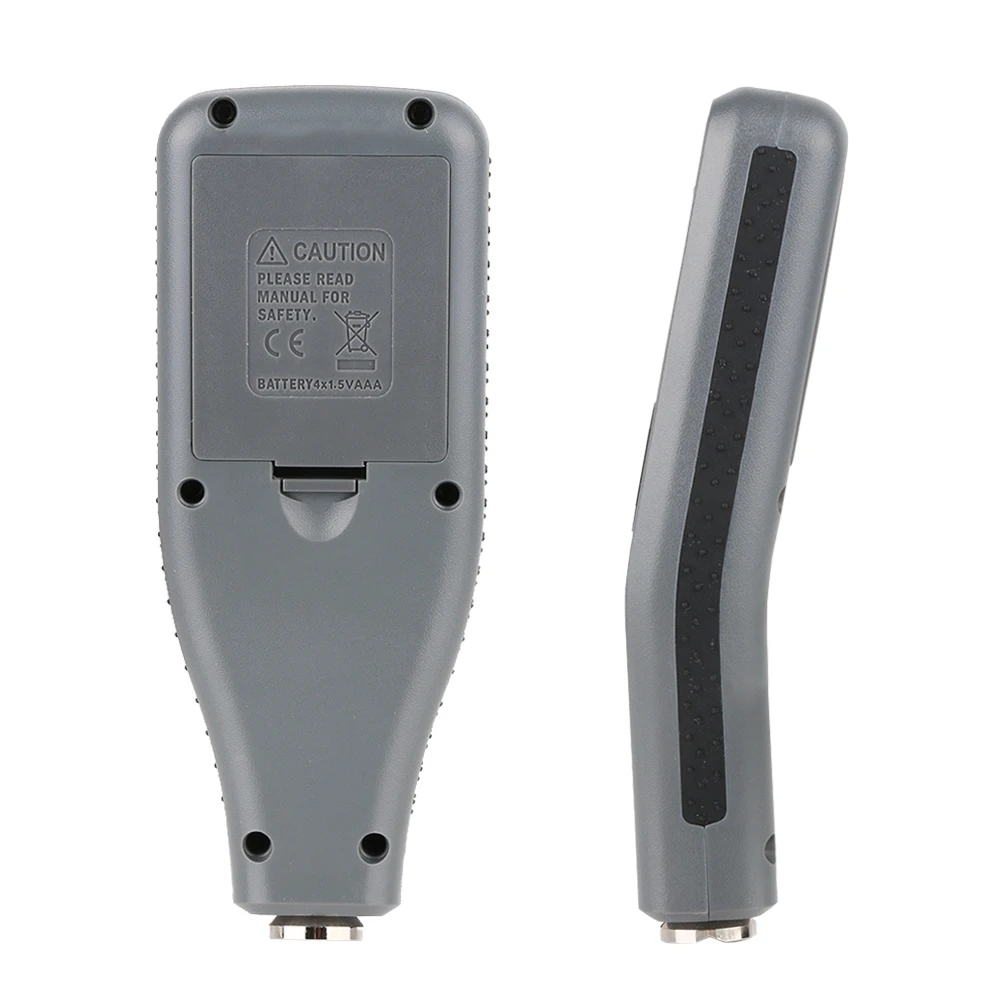

Coating Thickness Gauge Digital Coating Paint Thickness Gauge Meter Tools Ferrous and non Ferrous 2 in 1 RZ240
- Category: Gauges >>>
- Supplier: Shenzhen XRC Electronics Co. Ltd.
Share on (60793646239):
Product Overview
Description
Product Description
Coating Thickness Gauge Digital Coating Paint Thickness Gauge Meter Tools Ferrous and non-Ferrous 2 in 1 RZ240
The thickness gauge is used to measure the thickness of the plated and coated sheet ,paint and anodizing coating on aluminum/copper.
The Gauge takes the precision integrated probe,and uses principles of electro-magnetic induction and the eddy current effect ,which automatically detects the attribute of substrates.
It often used to measure the thickness of galvanizing layer,lacquer,porcelain enamelayer,phosphide layer,copper tile,aluminiumtile,some alloy tile,paperetc.(e.g. paint,plastic,porcelain enamel,copper,zinc,aluminium.chrome iron,nickle etc)
It is use on anodizing,varnish,paint,enamel,enamel,pastic coatings,powder,etc.applied to aluminum.brass.non-magnetic stainless,etc
Technical parameters
-More widely measuring range
-Two measuring mode:Target Ferrous and Target non-Ferrous material
-Both with zero point calibration and multi-point calibration
-Automatically identify sustrate material and display on the LCD

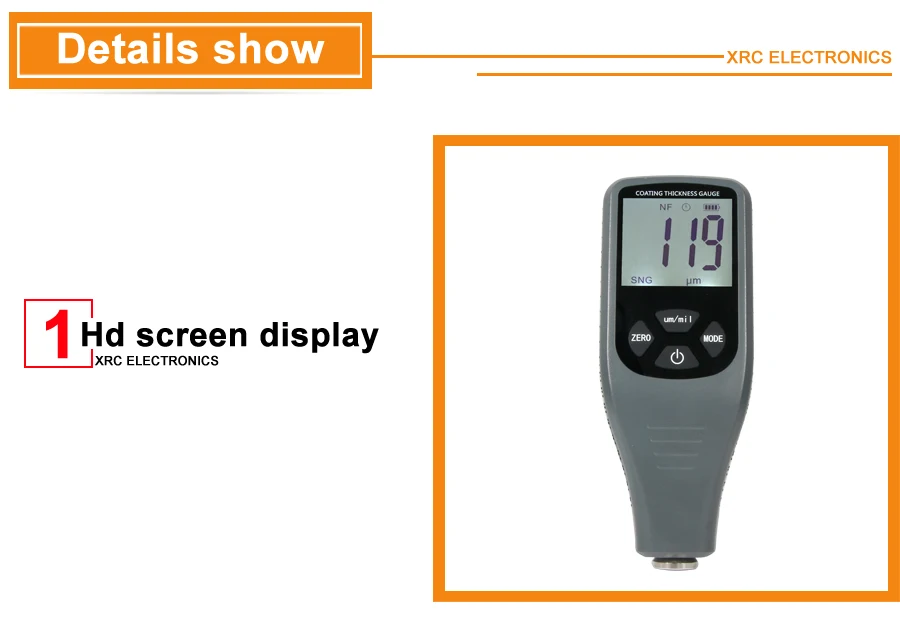

-Large LCD display screen

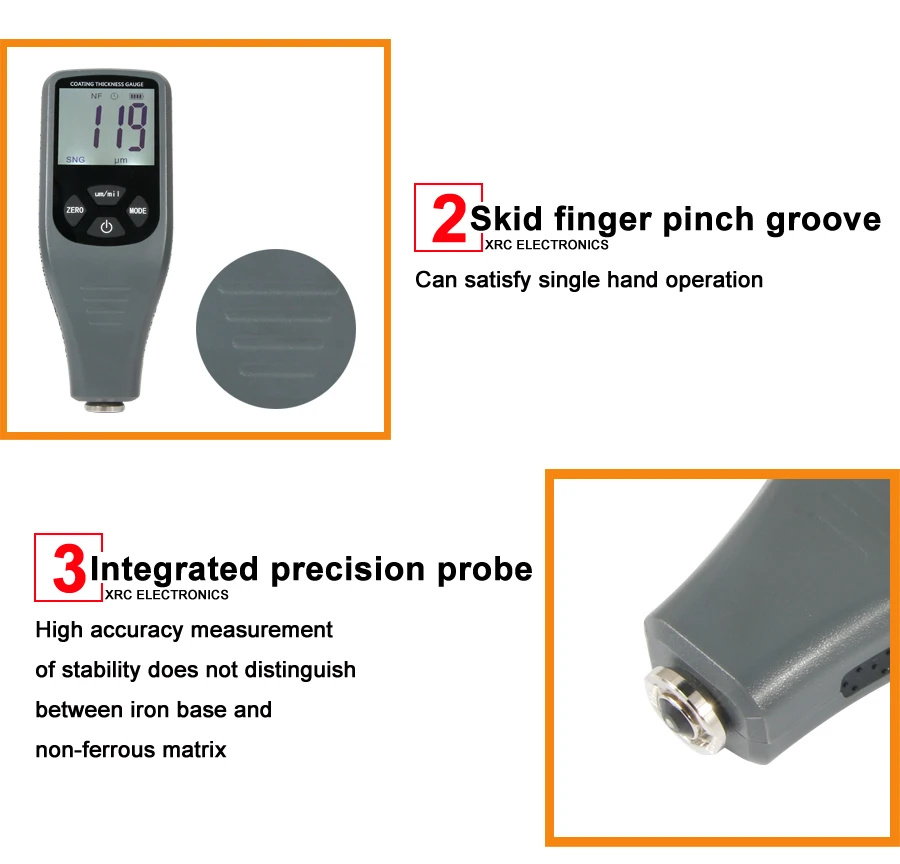

- Button is simple, easy to operate, one-hand operation
- V shaped groove suitable for measurements on cylindrical parts
-Specail probe structure comes with better stability
- Auto power off in 15minutes with no-operation.
-Low battery indication
-''Beep"sound when measurement or calibration is completed

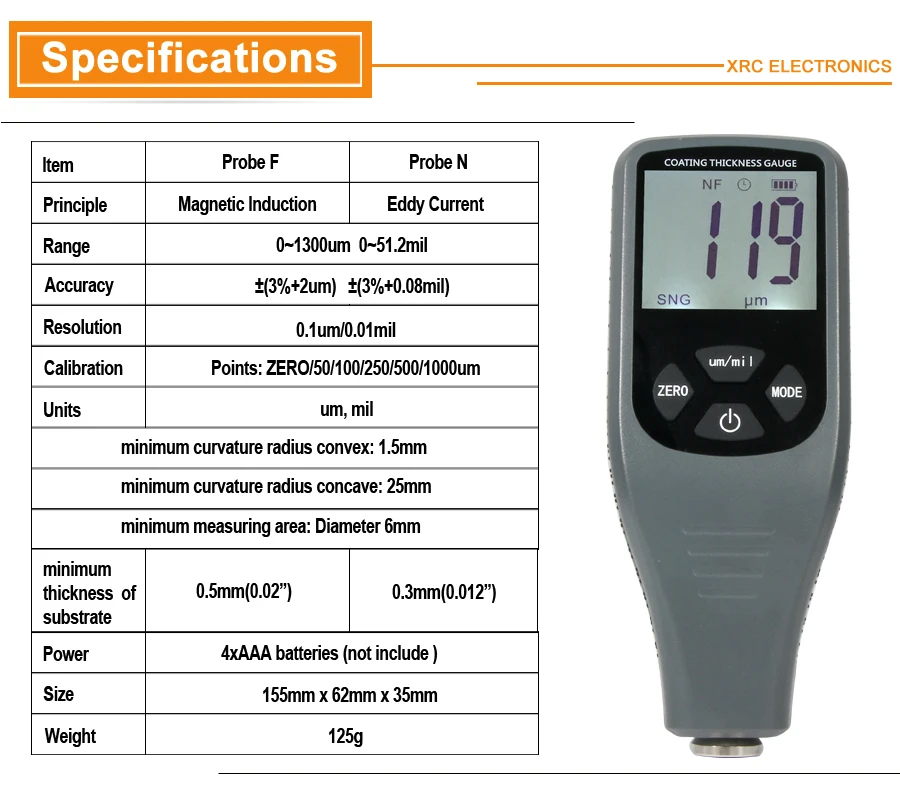

| Specification | ||
| Product Name | Probe F | Probe N |
| Principle | Magnetic Induction | Eddy current |

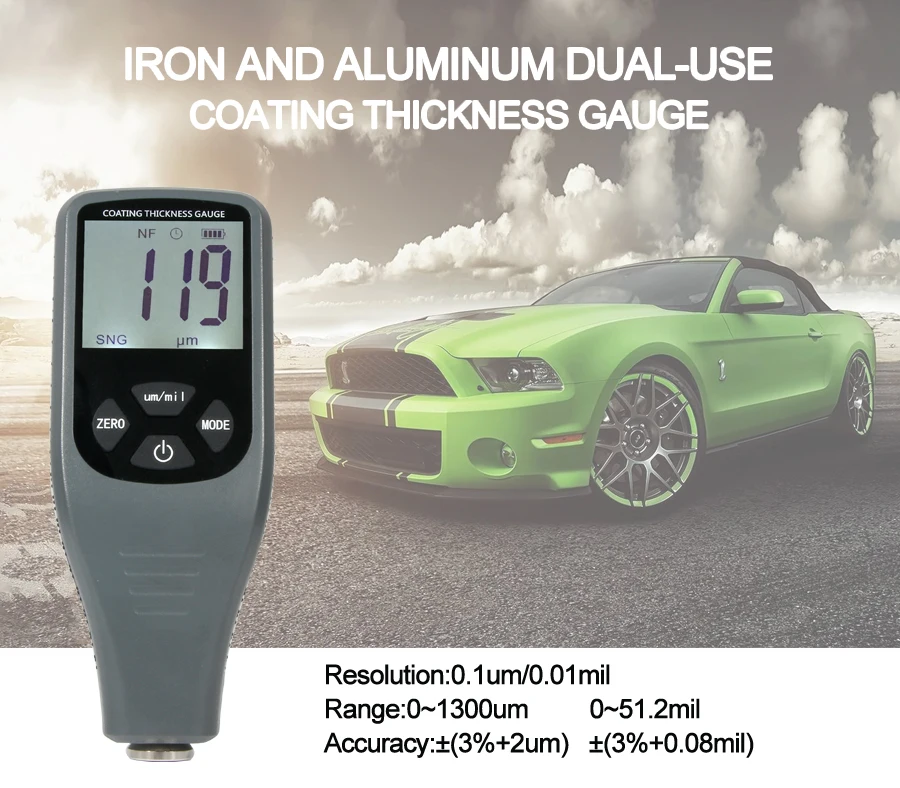

| Measurement range: | 0 - 1300um; 0 - 51.2mil | 0 - 1300um; 0 - 51.2mil |
| Accuracy: | ± (2um+3%H),±(3%+0.08mil) | ± (2um+3%H),±(3%+0.08mil) |
| Resolution | 0.1μm /0.01mil | 0.1μm /0.0 1mil |
| Calibration | Points:ZERO/50/100/250/500/1000μm | |
| Units | μm,mil | |
| Minimum curvature radius convex | 1.5mm | |
| Minimum curvature radius concave | 25mm | |
| Minimum measuring area | Diameter 6mm | |
| Minimum thickness of substrate | 0.5mm(0.02'') | 0.3mm(0.012'') |
| Operating Condition | Temperature:0℃~40℃(32~104℉)Humidity:20%~90%RH | |

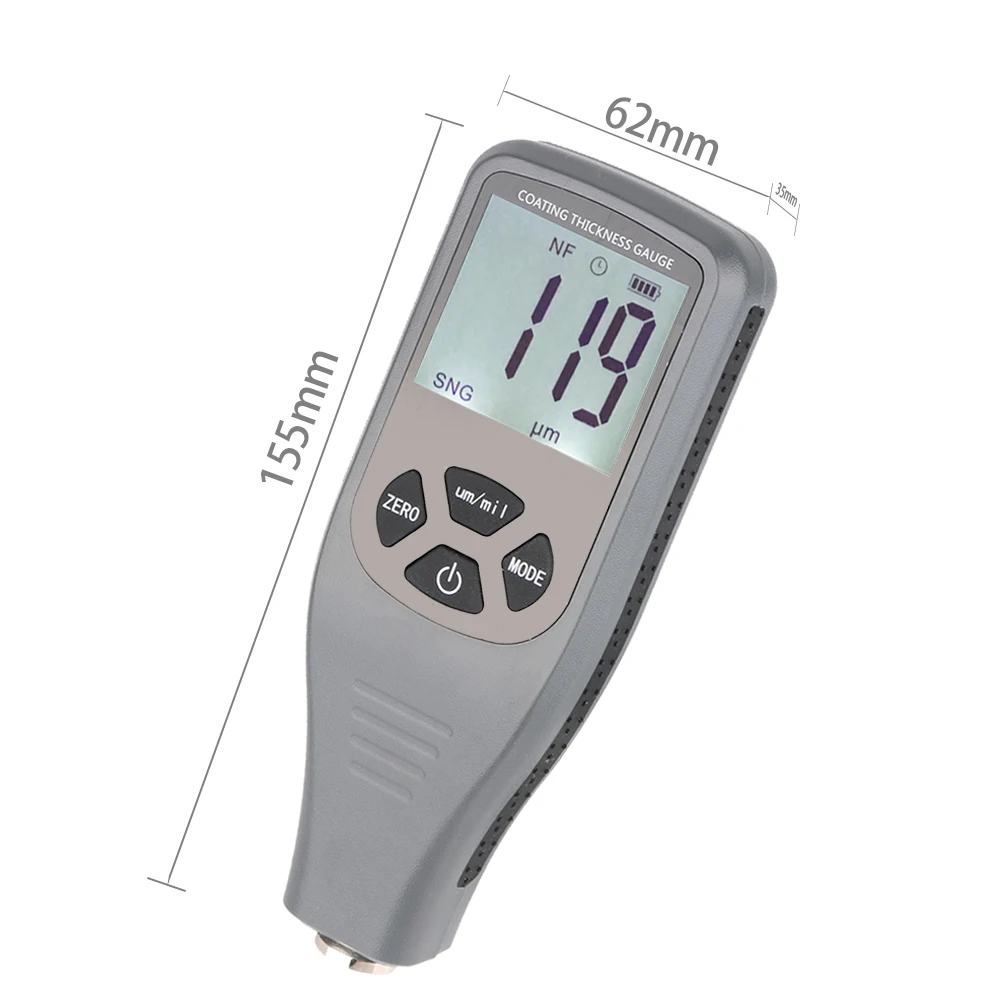

| Size | 155mm*62mm*35mm(6.10''*2.44''*1.38'') | |
| Weight | 125g(4.41oz) | |
Detail Images

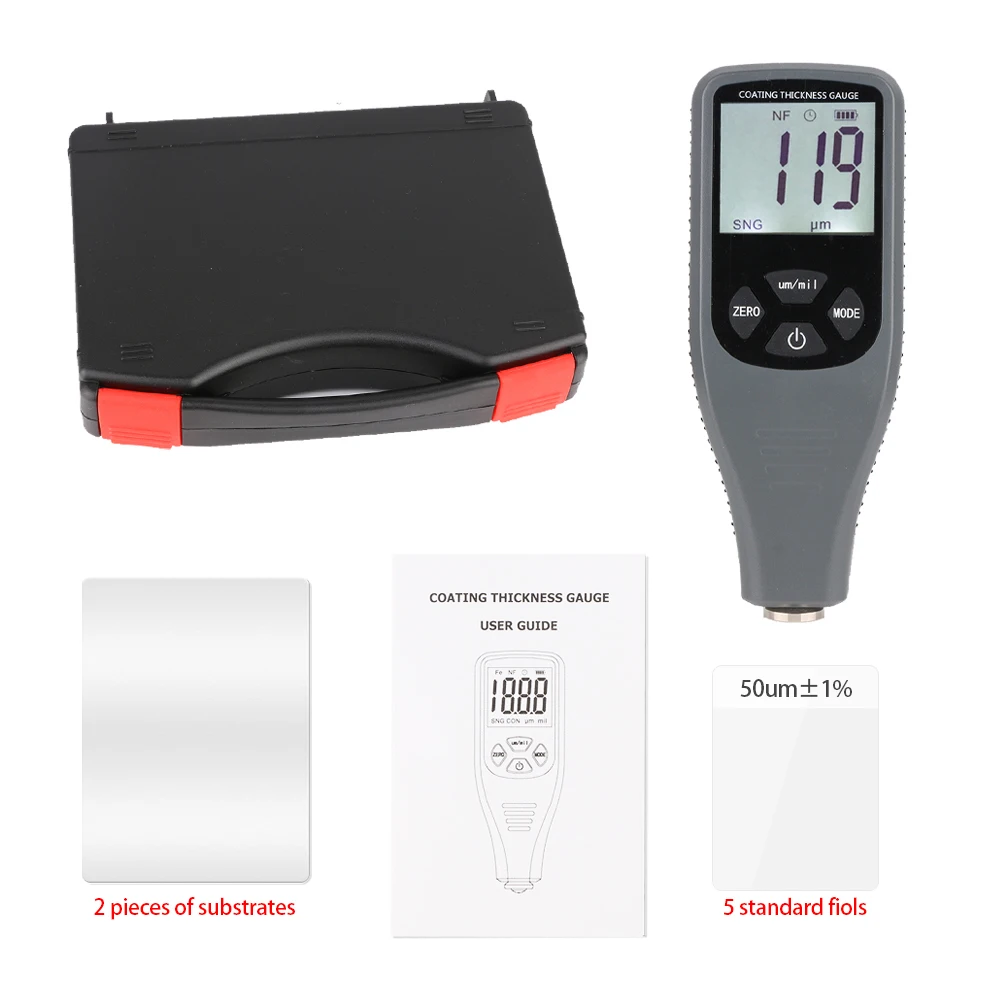

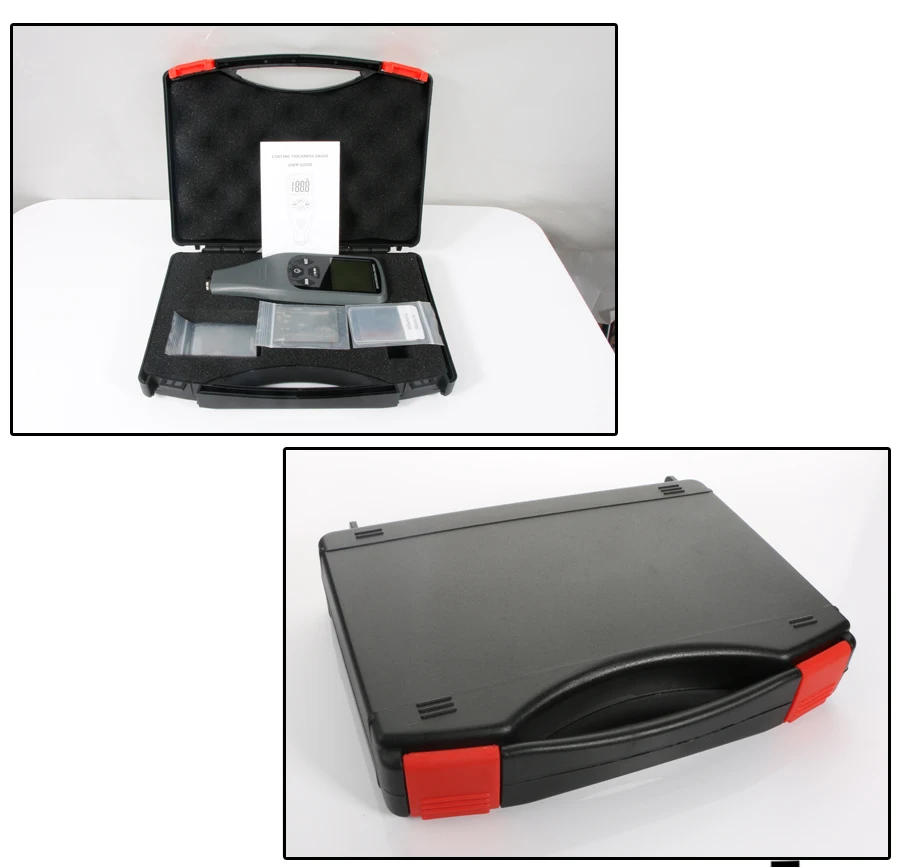

Packaging & Shipping

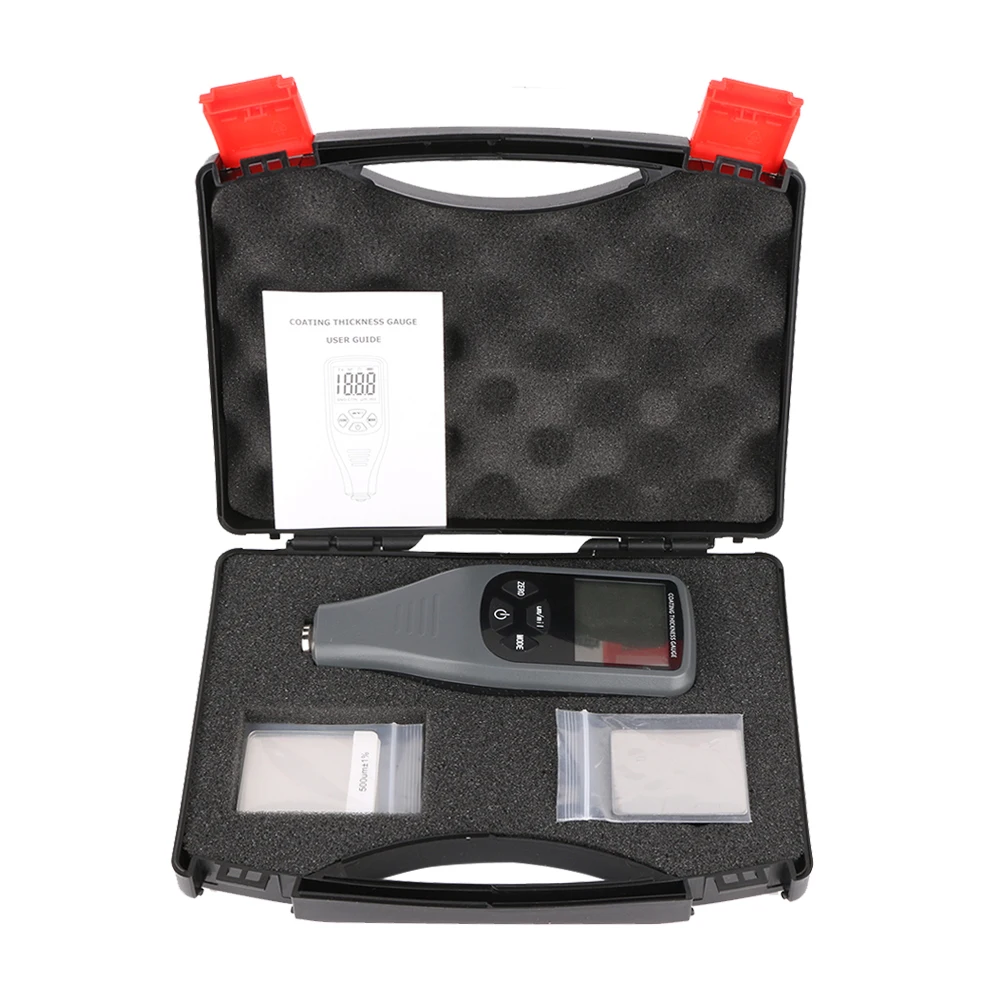

1xCoating Thickness Gauge
1xEnglish User guide
2xSubstrates
5xStandard foils
1xProtective Case
5xStandard foils
1xProtective Case
Packaging Details:
Unit Type: piece
Package Weight: 0.73kg (1.61lb.)
Package Size: 29cm x 23cm x 10cm (11.42in x 9.06in x 3.94in)
