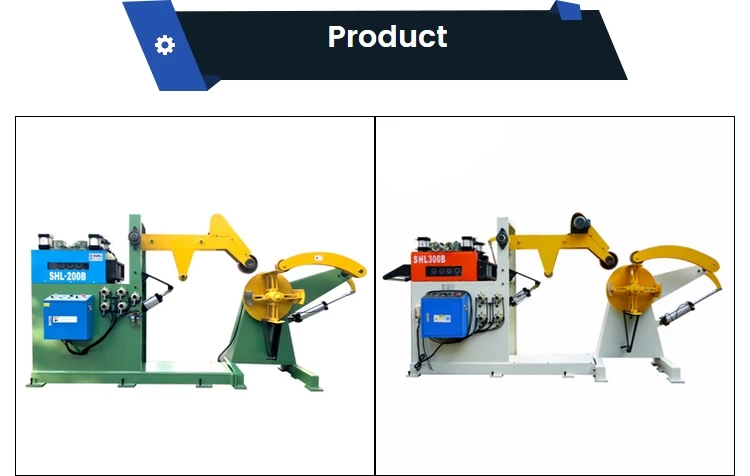

SHL 200 2 In 1 Automatic Uncoiler With Straightener Leveler And Decoiler Machine
- Category: >>>
- Supplier: Dongguan Henli Machinery Equipment Co. Ltd.
Share on (60793695927):
Product Overview
Description
| Model | SHL-200A | SHL-300A | SHL-400A | SHL-500A | SHL-600A | SHL-700A | SHL-800A | SHL-900A |
| SHL-200B | SHL-300B | SHL-400B | SHL-500B | SHL-600B | SHL-700B | SHL-800B | SHL-900B | |
| Width of Material (mm) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| Thickness of Material (mm) | 0.5-4.5 | |||||||
| - | 0.6-6.0 | |||||||
| Coil I.D.(mm) | 450-530 | |||||||
| Coil O.D.(mm) | 1500 | |||||||
| Max. Speed (m/min) | 15 | |||||||
| Motor (HP) | 3 | 5 | 7.5 | 10 | ||||
| - | 5 | |||||||
| Uncoil Expansion | Manual Expansion | Hydraulic Expansion | ||||||
| Machine Size (m) | 5×1.9 | 5×1.9 | 5×2.0 | 5×2.1 | 5×2.2 | 5×2.3 | 5×2.4 | 5×2.5 |
| ×2.5 | ×2.5 | ×2.5 | ×2.5 | ×2.5 | ×2.5 | ×2.5 | ×2.5 | |
Features:
1.The control box uses Japanese electronic components
2.This unit combines the functions of leveling and conveying materials, and can replace the manpower and operate all the tim Cooperate with the press to achieve automated production, improve work efficiency and reduce production cost
3.It is suitable for leveling feeding of 0.5~4.5 (type A) and 0.6~6.0 (type B) thick plate The material is smooth and has no indentation after level
4,The stepless speed change device can be used according to the discharge speed

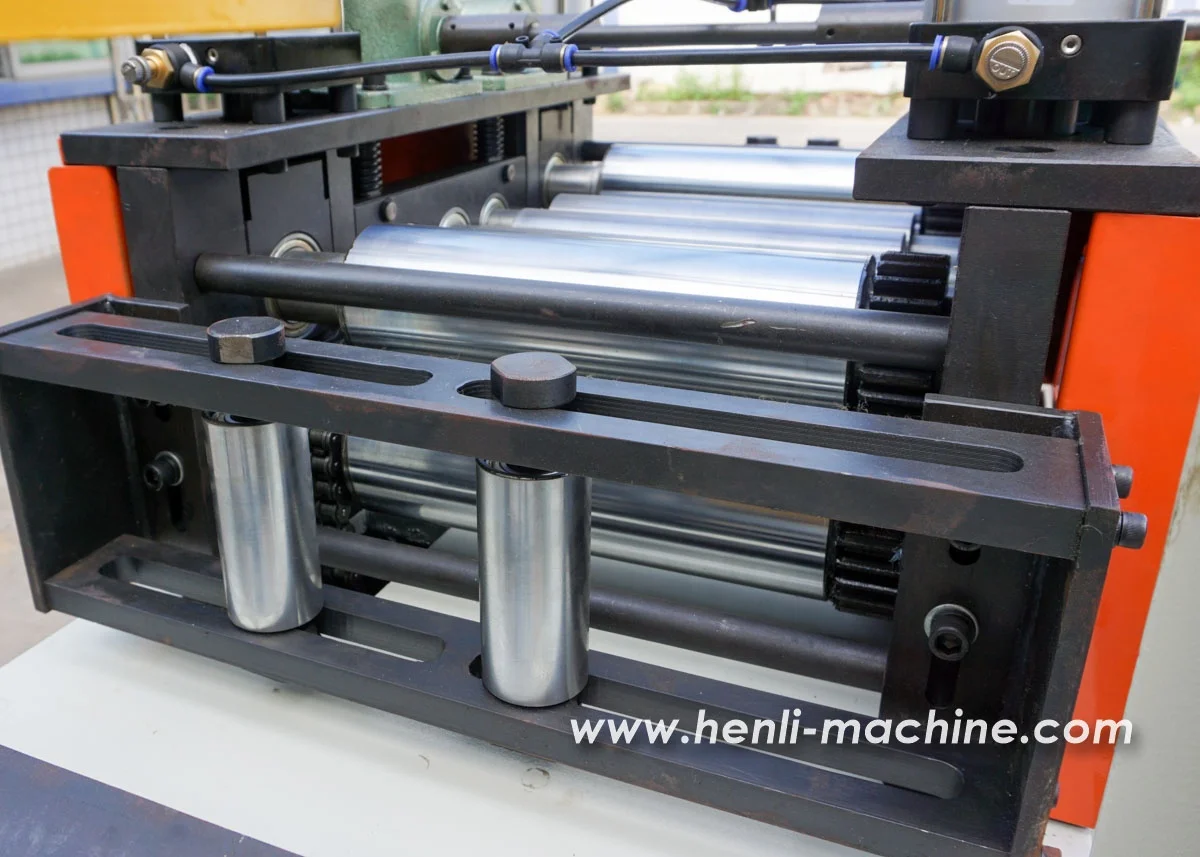

5.The roller is made of solid bearing steel, heat treated, chrome plated and ground, with high hardness, good wear resistance and long service life
6.The material roll device uses oil pressure expansion, and the material is sent to the die without manual feeding, which is highly safe
7.This machine can be designed and manufactured according to customer''s special requirement
