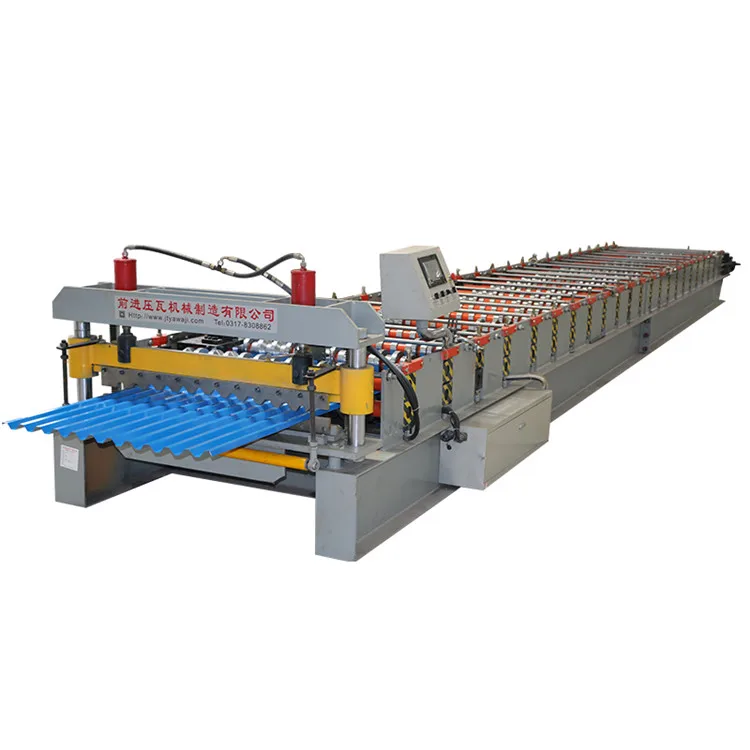

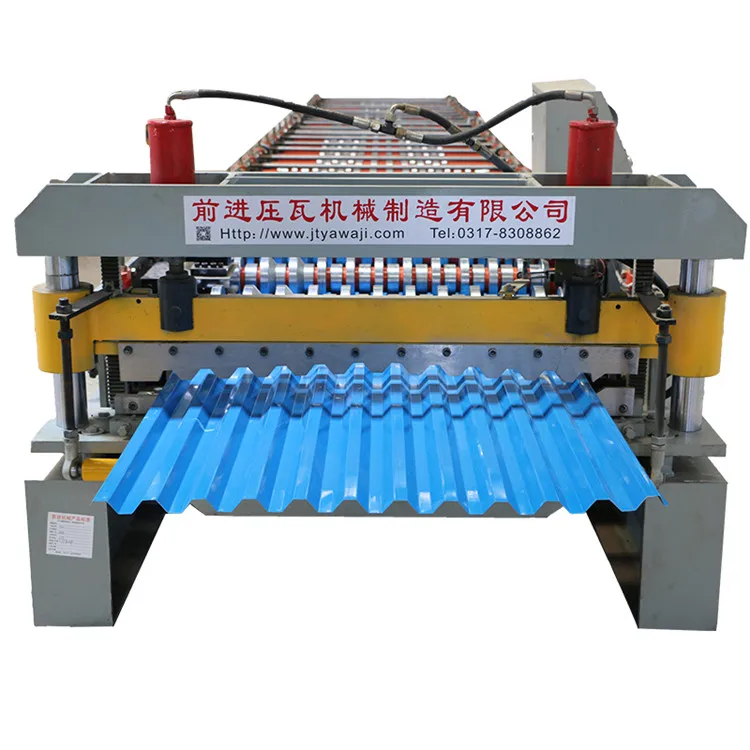

High Quality Metal Roofing Sheet Roll Forming Making Machines For Sale

Product Description

The finished product of Metal Roofing Sheet Roll Forming Making Machines For Sale is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

Main Technical Specifications:

Name

High Quality Metal Roofing Sheet Roll Forming Making Machines For Sale

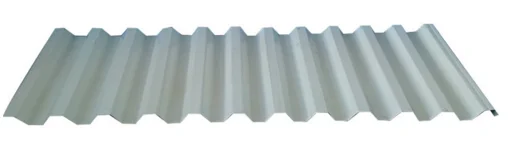

Profile Drawing or Sample Picture



1

Suitable raw material

PPGI/PPGL/GI/GL Steel Coils

2

Thickness of coil sheet

0.3-0.6mm

3

Feeding Coil width

1219mm

4

Effective width

935mm

5

Under frame

400H-beam

6

Diameter of Soild shaft

70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway

7

Roller

High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm

8

Thickness of middle plate

Guide pillar memorial archway

9

Forming stations

23

10

Drive type

By chain(1.0 inch) link bearing model 6210

11

Power of main motor

5.5kw with Cycloidal reducer, Lichao, Shanghai

12

Power of pump station

4kw, Lichao, Shanghai

13

Forming speed

About 15-20m/min

14

Hydraulic cutting

Controlled by PLC

15

PLC

DELTA, TAIWAN / Mitsubishi, Japan

16

Material of cutting blade

Cr12Mov, quenching 58-62℃

17

Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial

standard ±3mm).

18

Switch

CHNT

19

Transducer

SAJ

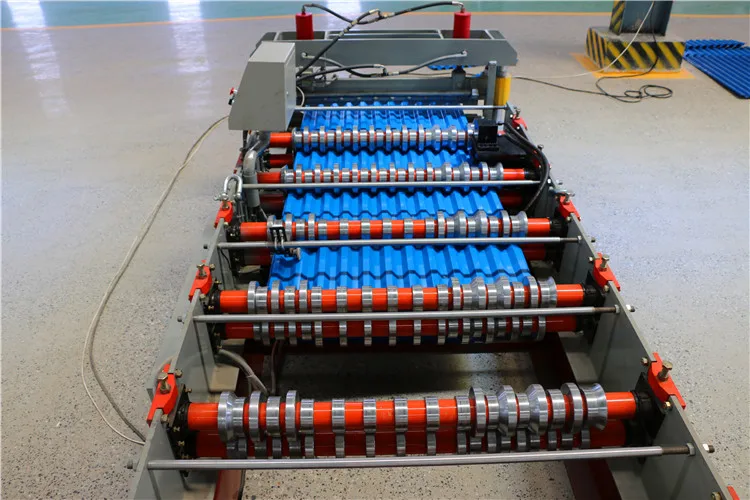

roll forming machine6

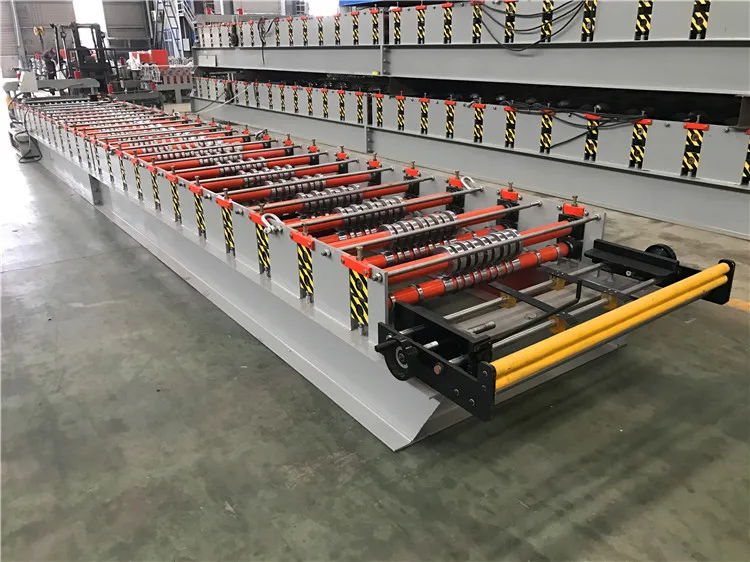

roll forming machine8

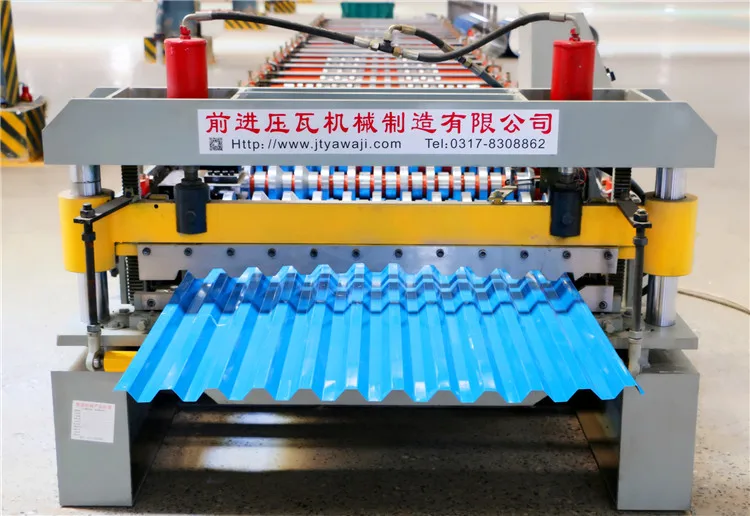

roll forming machine3

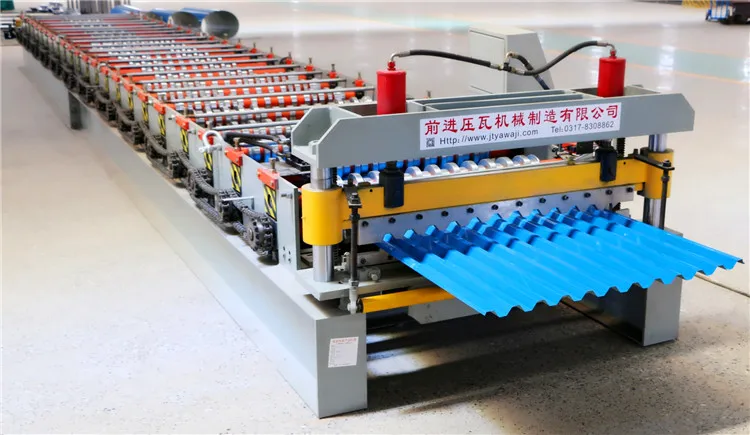

roll forming machine4

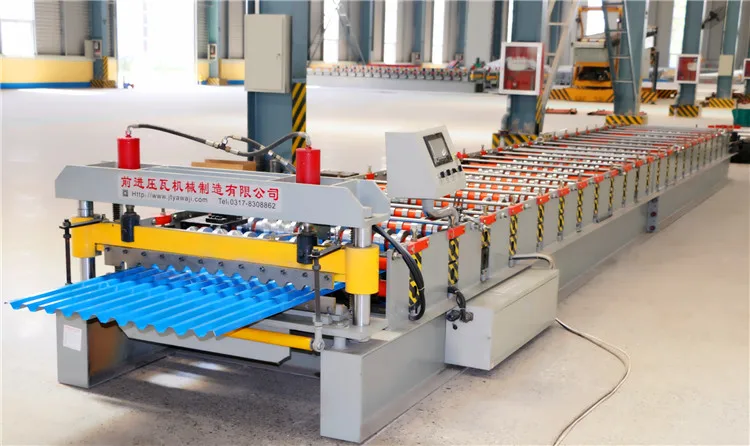

roll forming machine1

Production Flow


  • Main Components:
Item Name Qty
1 5T Manual Decoiler 1
2 Feeding platform with hand cutting system 1
3 Main forming system 1
4 Hydraulic cutting system 1
5 Hydraulic pump station 1
6 Electrical motor 1
7 PLC control system 1
8 Touch screen operation 1
9 Finished products receive table 1
10 Safety shield(optional) 1
11 Hydraulic decoiler(optional) 1
12 Automatic stacker(optional) 1

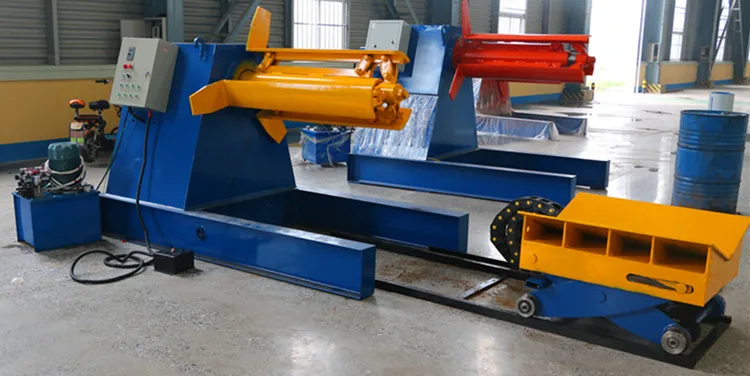

  • 5T Hydraulic Decoiler

5T Hydraulic Decoiler.jpg

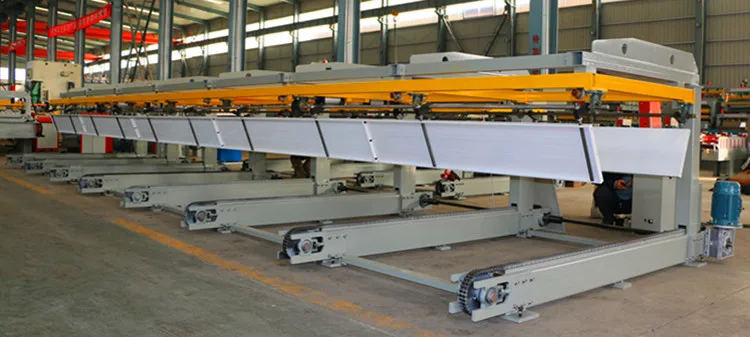

  • Auto Stacker

Auto Stacker.jpg
