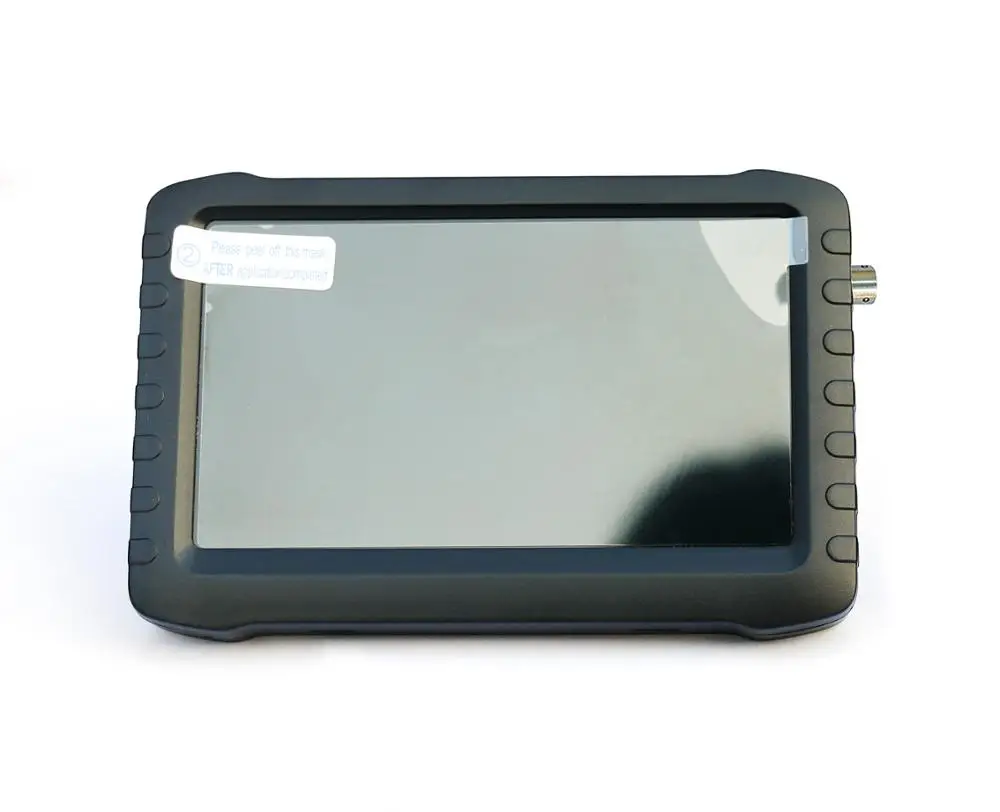

H.264 full HD DVR CCTV test monitor 5-inch portable security monitor
(1080p, 128GB Recording time )

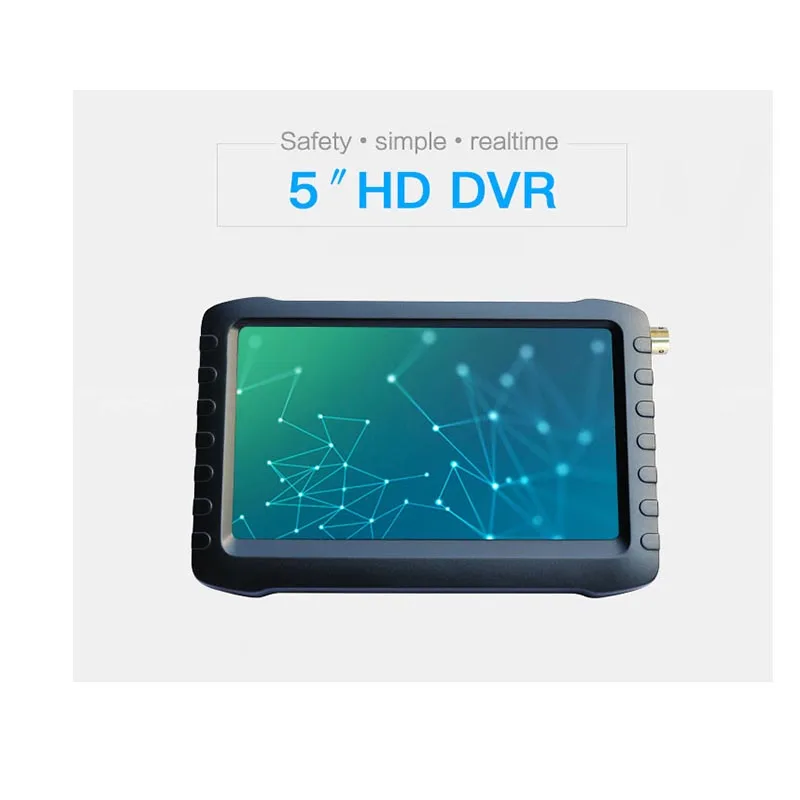

D Description of our 1080 p 5-inch portable security monitor
DS-805 all-in-one 5 ”AHD security monitor DVR with HD record and display function is new generation product with four mixed coaxial from 3rd Eye Electronics Co., Ltd. This product is compatible with FHD TVI, AHD, CVBS, CVI coaxial HD specifications. It can access FHDTVI, AHD, CVI, CVBS signal. And it integrates multinomial IT high-tech. It can achieve local HD surveillance video independently, can also be used in camera debugging and installation, and outdoor HD monitoring operations.
It can be widely used in security precautions and monitoring of the family, field, public security, military, medical, equipment, industry and other areas.
W What is the feature of 1080p 5-inch portable security monitor
l Meet FTVI, AHD signal standard specifications, support FTVI, AHD, CVI, CVBS four mixed signal access.
l Supports Smart264 encoding. Lower bit rate with same resolution; Longer recording time with the same hard disk.
l Long-range coaxial cable transmission, support the maximum 800 meters TVI 1080P signal reliable transmission.
l Supports HD 5MP signal real-time preview video.
l Full view 800x480 HD TN screen.
l Built-in 4500mAh large capacity battery.
l Supports 128G TF card.
l Supports 10 languages.
l Supports wide voltage 5-12V input.
l Full number of channels support HD 5MP signal preview.
l Support recording files packed by time.
l Supports recording, taking photos and playback.
l Supports 12V power supply to power the camera.

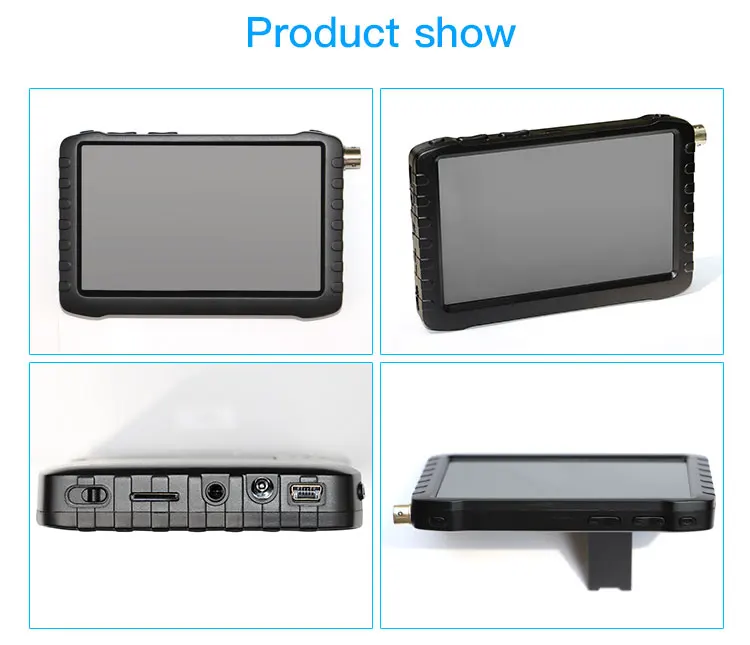

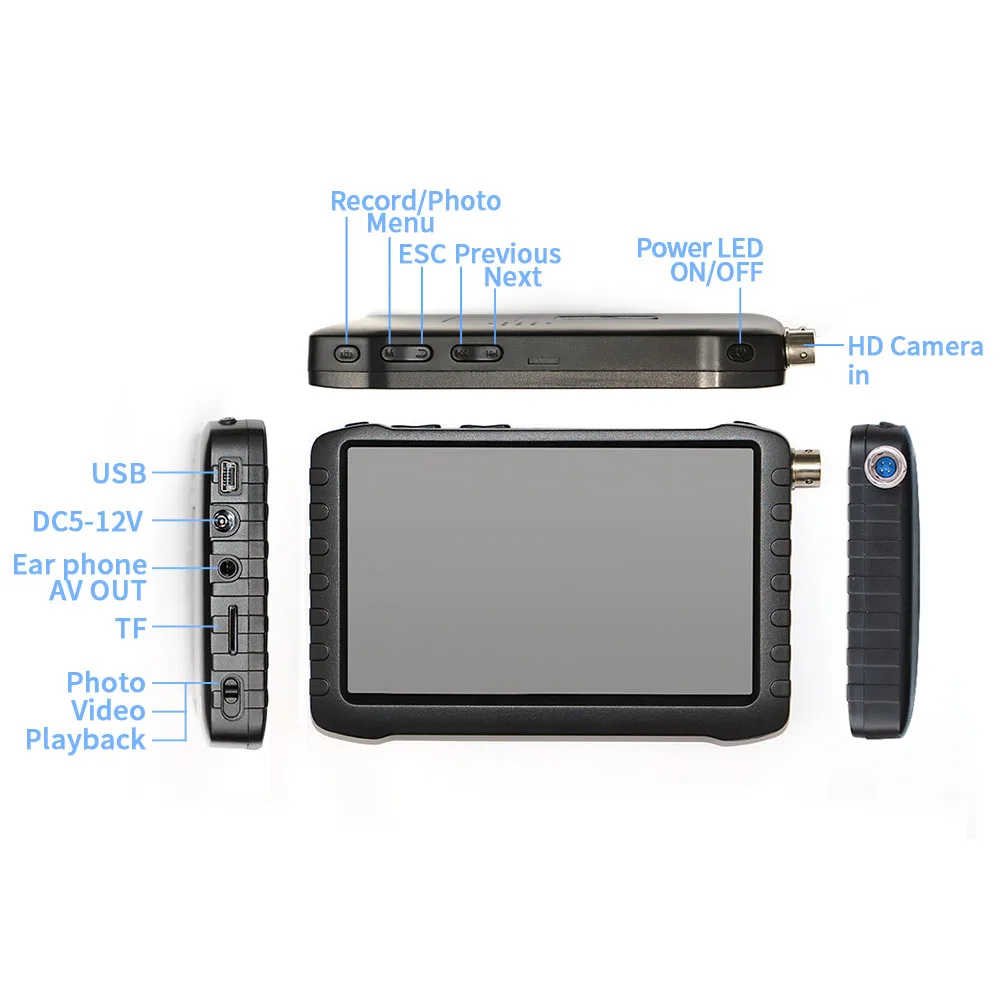

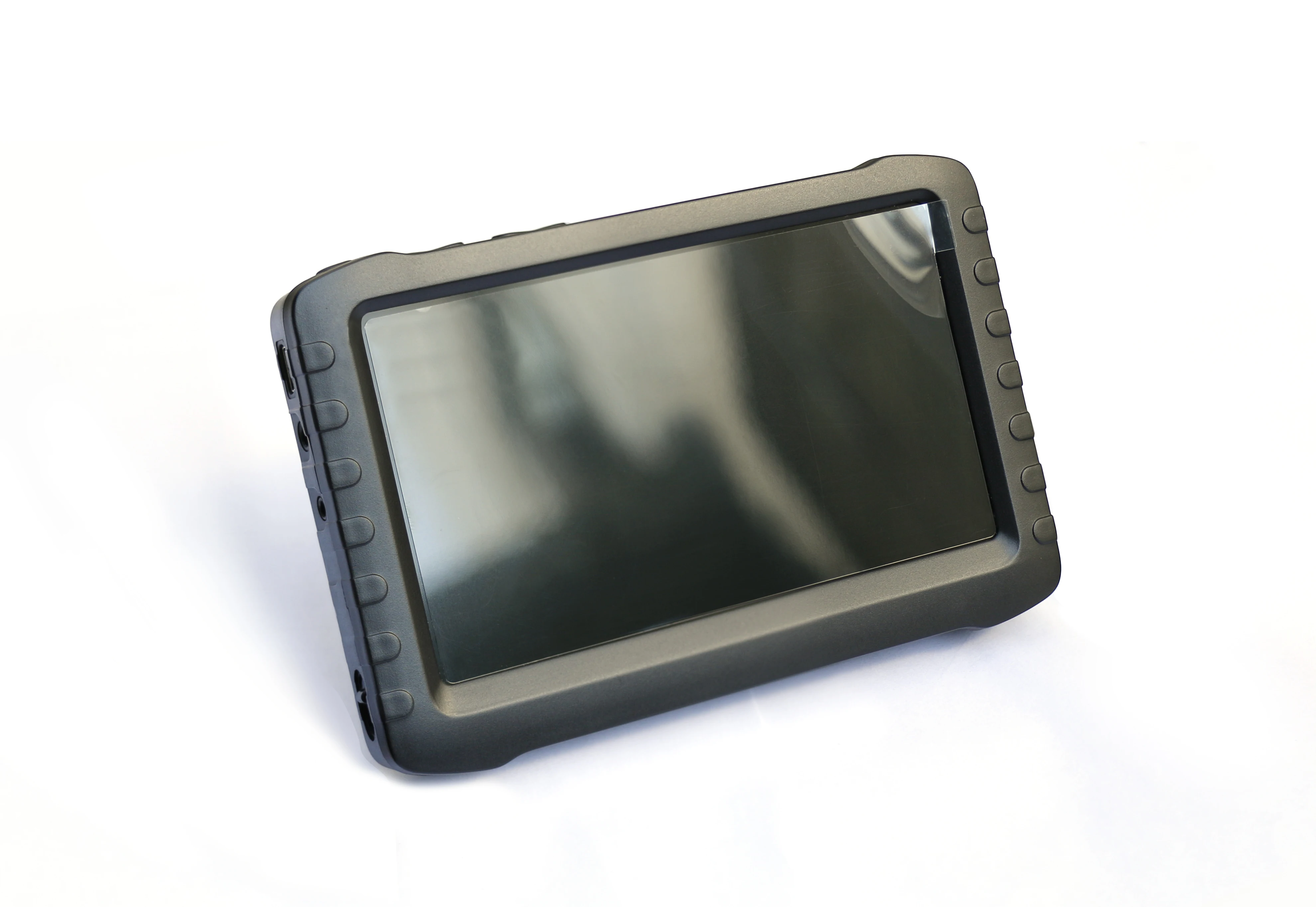

P Detail Photo Show of our 5-inch portable security monitor

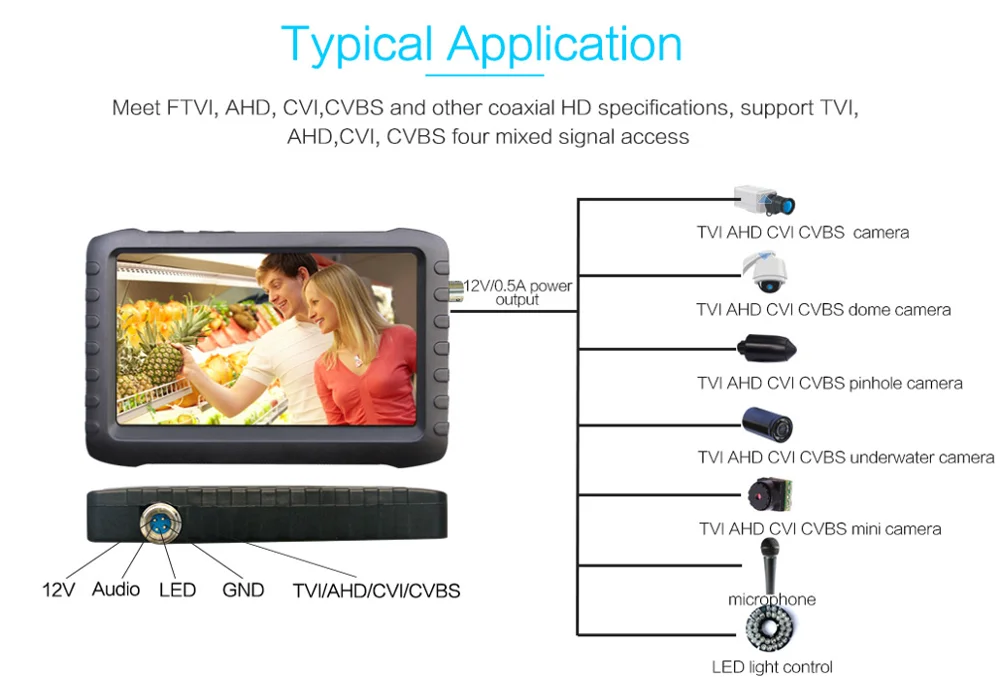

W What is the Typical Applications of 1080 p 5-inch portable security monitor

CCTV test monitor 5-inch portable security monitor
W What is the Specification of our 1080 p 5-inch portable security monitor
| Items | Value | |
| Display | View angle | View angle 90 ° |
| Brightness | 350 cd/square meters | |
| Video | Video input | FHDTVI,AHD,CVI,Analog signal |
| Video transmitting range | 800 meters for TVI 1080P signal | |
| Video delay time | <0.1s | |
| Power output | 12V 300MA | |
| Video LED control output | LED On/Off | |
| Video Storage Pixels(16:9) | 1920* 1080 | |
| Video compress | H.264 | |
| Video storage Format | AVI | |
| Audio | Audio Frequency Range | 20HZ-20KHz AAC |
| Audio Compression Format | AAC | |
| Photo | Photo storage Format | JPG 5.0 mega :2560(H)×1920(V) |
| Storage | External SD card | TF card 2-128GB (Optional) |
| 128GB Recording time | 18-60 hours | |
| Operating System | PC | Windows & Mac OS |
| Port | USB 2.0 | |
Items | Value | |
| Language | Multiple | |
| Power | Working voltage | DC :5-12V |
| Working Current | 2A | |
| Battery | Built-in Li Battery | 4500Mah |
| Working time | ≥4hours | |

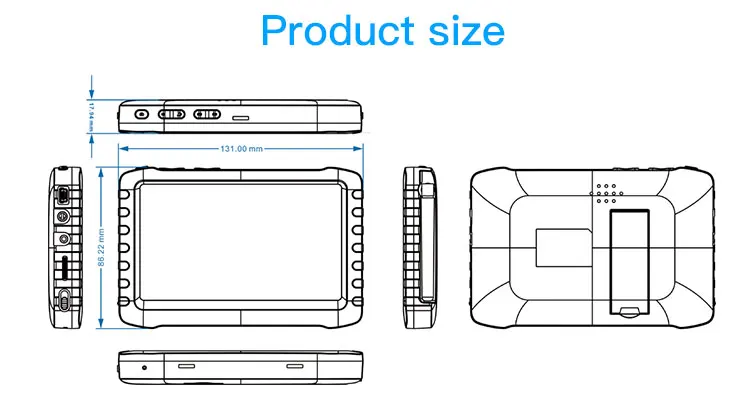

| Dimension:(LxWx H) | DVR main part | 178mm x 122mmx 17mm |
| DVR main part | 350 gram | |
P What is the Package of 5-inch portable security monitor
1 x 5inch All-in-one AHD security monitor
1 x AC adapter
1 x User manual
1 x USB cable
1 x AV-OUT cable
1 x Package color box
