High Quality AC series oil buffer hydraulic cylinder
- Category: >>>
- Supplier: Yueqing HF-Shaw Electric Co. Ltd.
Share on (60793765587):
Product Overview
Description
HF-Shaw Electronic
Product Description

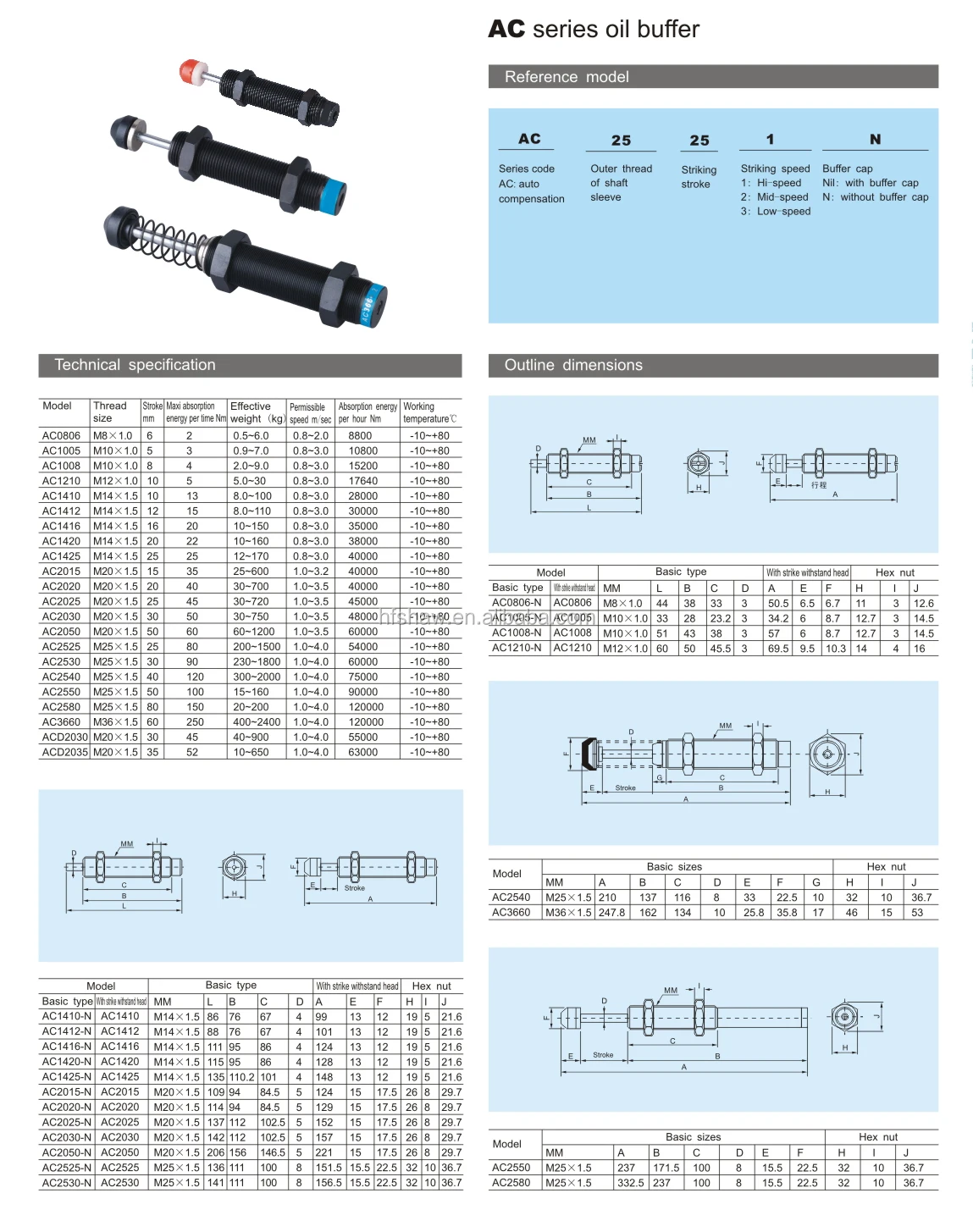

Desc: AC series oil buffer
Model:AC
| Type | Max.absorbed energy | Max.thrust | Permissive speed | Storke | Thread size |
| AC10806/1/2/3 | 2N.M | 6N | 0.8-2m/S | 6mm | M8*1 |
| AC1005/1/2/3 | 3N.M | 7N | 0.8-3m/s | 5mm | M10*1 |
| AC1008/1/2/3 | 4N.M | 9N | 0.8-3m/s | 8mm | M10*1 |
| AC1210/1/2/3 | 5N.M | 30N | 0.8-3m/s | 10mm | M12*1 |
| AC1410/1/2/3 | 13N.M | 100N | 0.8-3m/s | 10mm | M14*1.5 |
| AC1420/1/2/3 | 15N.M | 110N | 0.8-3m/s | 12mm | M14*1.5 |
| AC1416/1/2/3 | 20N.M | 150N | 0.8-3m/s | 16mm | M14*1.5 |
| AC1420/1/2/3 | 22N.M | 160N | 0.8-3m/s | 20mm | M14*1.5 |
| AC1425/1/2/3 | 25N.M | 170N | 0.8-3m/s | 25mm | M14*1.5 |
| AC2015/1/2/3 | 35N.M | 600N | 1.0-3.2m/s | 15mm | M20*1.5 |
| AC2020/1/2/3 | 40N.M | 700N | 1.0-3.5m/s | 20mm | M20*1.5 |
| AC2025/1/2/3 | 45N.M | 720N | 1.0-3.5m/s | 25mm | M20*1.5 |
| AC2030/1/2/3 | 50N.M | 750N | 1.0-3.5m/s | 30mm | M20*1.5 |
| AC2050/1/2/3 | 60N.M | 1200N | 1.0-3.5m/s | 50mm | M20*1.5 |
| AC2525/1/2/3 | 80N.M | 1500N | 1.0-4.0m/s | 25mm | M25*1.5 |
| AC2530/1/2/3 | 90N.M | 1800N | 1.0-4.0m/s | 30mm | M25*1.5 |
| AC2540/1/2/3 | 120N.M | 2000N | 1.0-4.0m/s | 40mm | M25*1.5 |
| AC2550/1/2/3 | 100N.M | 160N | 1.0-4.0m/s | 50mm | M25*1.5 |
| AC2580/1/2/3 | 150N.M | 200N | 1.0-4.0m/s | 80mm | M25*1.5 |
| AC3660/1/2/3 | 250N.M | 2400N | 1.0-4.0m/s | 60mm | M36*1.5 |
| ACD2030 | 45N.M | 900N | 1.0-4.0m/s | 30mm | M20*1.5 |
| ACD2035 | 45N.M | 650N | 1.0-4.0m/s | 35mm | M20*1.5 |
| ACD2050 | 52N.M | 500N | 1.0-4.0m/s | 50mm | M20*1.5 |
| ACD2050-W | 60N.M | 500N | 1.0-4.0m/s | 50mm | M20*1.5 |
Detailed Images
