Product Overview

Description


USB + EtherNet/IP, serial comm. option slot 700mA 40 ns 60K Omron CPU CJ2M-CPU35









Product Features

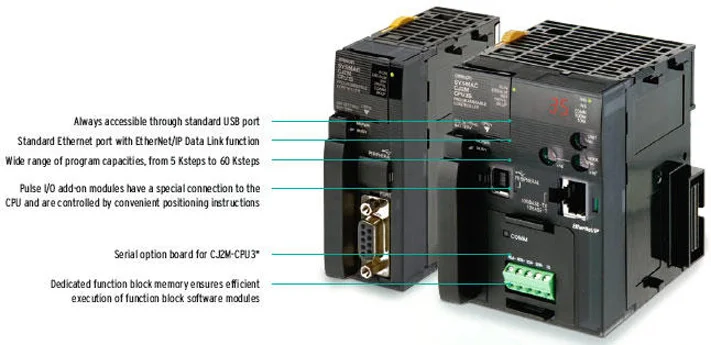

CJ2M for basic machine automation



The CJ2M Series is ideal for packaging and general machine automation needs. Connectivity is assured thanks to the built-in USB port and the choice of Ethernet and RS-232C/422/485 interfaces on the CPU.



  • Always accessible through standard USB port

  • Standard Ethernet port with EtherNet/IP Data Link function

  • Wide range of program capacities from 5K steps to 60K steps

  • Serial option board

  • Dedicated function block memory ensures efficient execution of function block software module






Related Products








Specification































































































































Max. digital
I/O points



Program capacity



Data memory capacity



Logic execution speed



Max. I/O units



Width



5 V current
consumption



Built-in functions



Order code



2,560



400 K



832 K



16 ns



40



80 mm



820 mA



USB + EtherNet/IP + RS-232C



CJ2H-CPU68-EIP



2,560



250 K



512 K



16 ns



40



80 mm



820 mA



USB + EtherNet/IP + RS-232C



CJ2H-CPU67-EIP



2,560



150 K



352 K



16 ns



40



80 mm



820 mA



USB + EtherNet/IP + RS-232C



CJ2H-CPU66-EIP



2,560



100 K



160 K



16 ns



40



80 mm



820 mA



USB + EtherNet/IP + RS-232C



CJ2H-CPU65-EIP



2,560



50 K



160 K



16 ns



40



80 mm



820 mA



USB + EtherNet/IP + RS-232C



CJ2H-CPU64-EIP



2,560



60 K



160 K



40 ns



40



62 mm



700 mA



USB + EtherNet/IP, serial comm. option slot



CJ2M-CPU35



2,560



30 K



160 K



40 ns



40



62 mm



700 mA



USB + EtherNet/IP, serial comm. option slot



CJ2M-CPU34



2,560



20 K



64 K



40 ns



40



62 mm



700 mA



USB + EtherNet/IP, serial comm. option slot



CJ2M-CPU33



2,560



10 K



64 K



40 ns



40



62 mm



700 mA



USB + EtherNet/IP, serial comm. option slot



CJ2M-CPU32



2,560



5 K



64 K



40 ns



40



62 mm



700 mA



USB + EtherNet/IP, serial comm. option slot



CJ2M-CPU31








Images





 720172037204




Accessories









































































































































Description



Remarks



Order code



High-speed data collection and storage unit, with CF card slot and Ethernet port



CPU bus unit



CJ1W-SPU01-V2



Pulse I/O option module for CJ2M CPU Units, 2 encoder inputs, 2 pulse outputs



NPN (sinking) outputs



CJ2M-MD211



Pulse I/O option module for CJ2M CPU Units, 2 encoder inputs, 2 pulse outputs



PNP (sourcing) outputs



CJ2M-MD212



CompactFlash memory card, 128 MB, for all models (not required for operation)



Industrial grade



HMC-EF183



CompactFlash memory card, 256 MB, for all models (not required for operation)



Industrial grade



HMC-EF283



CompactFlash memory card, 512 MB, for all models (not required for operation)



Industrial grade



HMC-EF583



CompactFlash PC-Card adapter



-



HMC-AP001



I/O terminal block (40-pt.) for CJ1M-CPU2_/CJ2M-MD21_



Push-in



XW2R-P40G-T



I/O terminal block (40-pt.) for CJ1M-CPU2_/CJ2M-MD21_



Clamp



XW2R-E40G-T



I/O terminal block (40-pt.) for CJ1M-CPU2_/CJ2M-MD21_



M3 Screws



XW2R-J40G-T



Connection cable between I/O terminal block and CJ1M-CPU2_/CJ2M-MD21_ ( ____ = length in cm)



MIL (40 pt)



XW2Z-____FF-L



Servo unit terminal block for 1 axis



-



XW2B-20J6-8A



Servo unit terminal block for 2 axes



-



XW2B-40J6-9A



SMARTSTEP cable for CJ1M-CPU2_/CJ2M-MD21_, cable length: 1 m



-



XW2Z-100J-A26



W-series servo cable for CJ1M-CPU2_/CJ2M-MD21_, cable length: 1 m



-



XW2Z-100J-A27



CX-One, integrated software for programming and configuration of all Omron control system components



-



CX-ONE-AL__C-E



Connection cable, D-Sub 9-pin PC serial port to PLC peripheral port (length: 2.0 m)



-



CS1W-CN226



Connection cable, D-Sub 9-pin PC serial port to PLC peripheral port (length: 6.0 m)



-



CS1W-CN626



USB to serial conversion cable



-



CS1W-CIF31



RS-232C Option Board


1

1. Only used with CJ2M-CPU3_




-



CP1W-CIF01



RS-422A/485 Option board


1

1. Only used with CJ2M-CPU3_




-



CP1W-CIF11



RS422A/485 (isolated) Option board


1

1. Only used with CJ2M-CPU3_




-



CP1W-CIF12



Battery Set


2

2. Included with the CPU unit




-



CJ1W-BAT01



USB Programming cable



-



CP1W-CN221
