Hand held aluminum flat sheet polisher

Share on (60793790262):


Price:

Quantity:


Product Overview

Description


Product Description

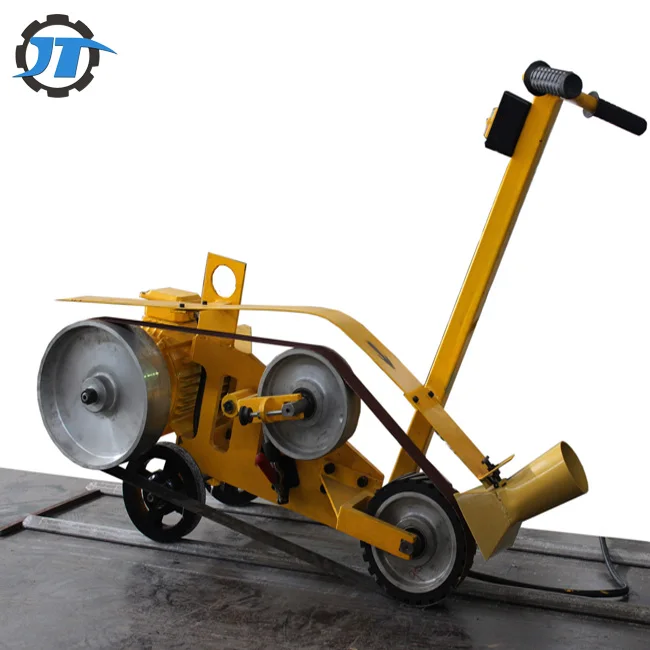

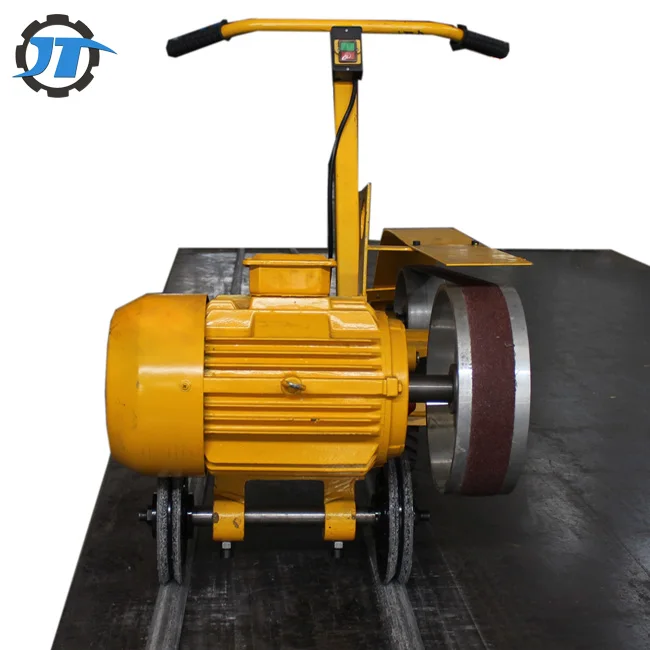

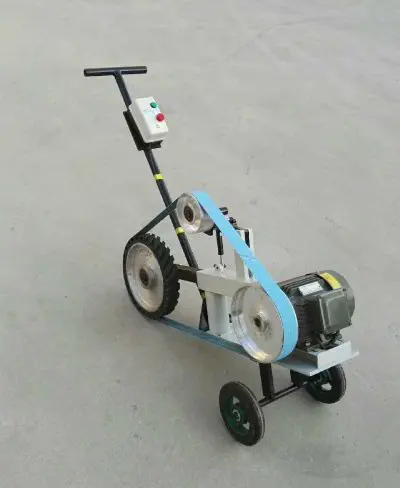

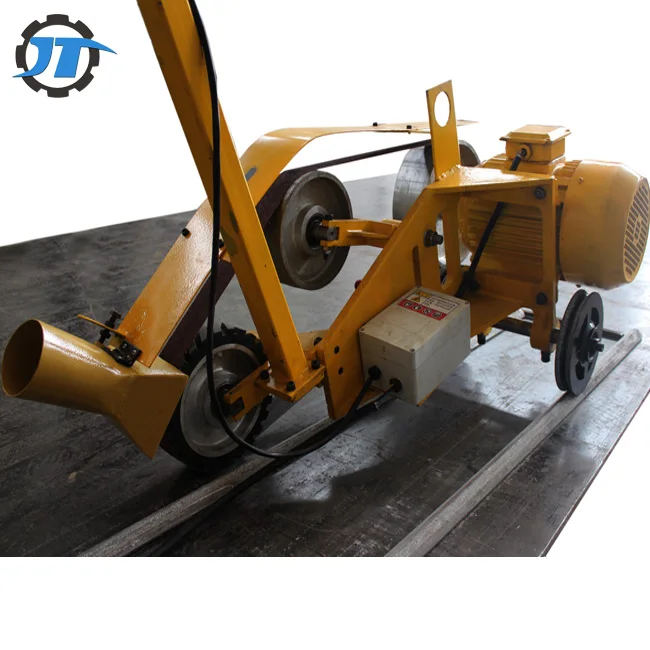

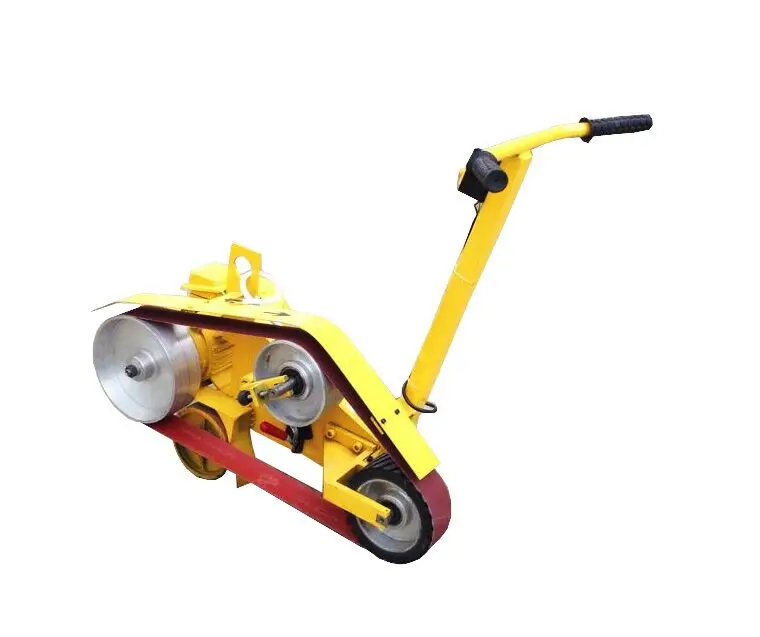

JT-XTC Welding Seam Polsihing Machine

This machine is mainly composed of a belt drive mechanism, a contact wheel (grinding wheel) system, a grinding head body, a support, a leg, a caster, an abrasive belt, a hand push rod and an electric control system. The electric motor directly transmits the power to the driving wheel, drives the belt to rotate at a high speed, tensions the belt through the tensioning mechanism, and grinds with the contact wheel.

\t
Technical Parameters
\t
Effiency
\t
6 square meters per hour
\t
Precision
\t
Ra ≤ 0.4 μm (mirror finsined)
\t
Belt specification
\t
2000*50 mm
\t
Contact wheel specification
\t
100*50 mm
\t
Belt speed
\t
30 m/s
\t
Belt granule
\t
60-600 #
\t
Power
\t
3 KW
Product Features

1. Light weight, simple structure, easy maintenance and low cost

2. The machine adopts abrasive belt grinding, which has small dust, low noise, small vibration and easy operation. Abrasive belt grinding has large cutting force and is suitable for surface grinding of welded parts and surface grinding of carbon steel heavy plates.

3. The contact wheel is located at the front end of the polishing machine, which is convenient for observing the grinding condition. The grinding angle and pressure are adjusted at any time. The motor directly transmits the power to the driving wheel, driving the belt to rotate at a high speed, tensioning the belt through the tensioning structure, and using the contact wheel. Grinding is performed.

Our Team

Anhui Jotun supply China professional Metal tank shell,dished end,flat sheet polishing grinding/buffing machine,welding seam treatment equipment,widely used for pharmaceutical industry,food,water purification,water supply,chemical,and new energy.Including elliptical dish,cone dish head,spherical shell ,butterfly shell,pharmaceutical stainless steel tank,pressure vessel, brewery, cylinder, cosmetic, sanitary, reaction kettle,fermentation tank,sterilizer,disinfection cabinet,filter, and LNG etc.

Everyone in our team will do their best to serve you, solve your problems and achieve mutually beneficial cooperation.

Certifications
Our Service

Our product has exported to America,Argentina,Australia,Denmark,South Korea,India,Poland and 20 other countries and regions.We always focused on research development and innovation,and has recently developed water polishing to meet enviroment management certification.

We regards"reasonable prices,efficient production time and good after-sales service".Hope to cooperate with more customers for mutual development and benefits.
Welcome to visit us!

Packing & Shipping

After the product is commissioned, we will split the product. The shock absorbing material is carefully wrapped on the surface of the product to prevent the product from being worn during transportation. The product will then be fixed in accordance with the shipping method requested by the customer to protect the integrity and condition of the product. The way the product is packaged can be determined by the customer and we will do our best to meet your requirements.
