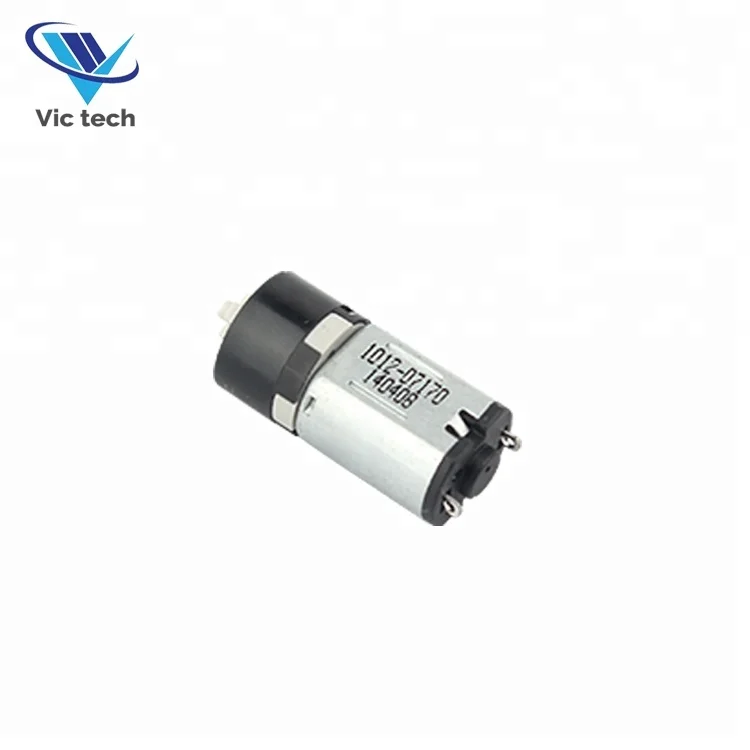

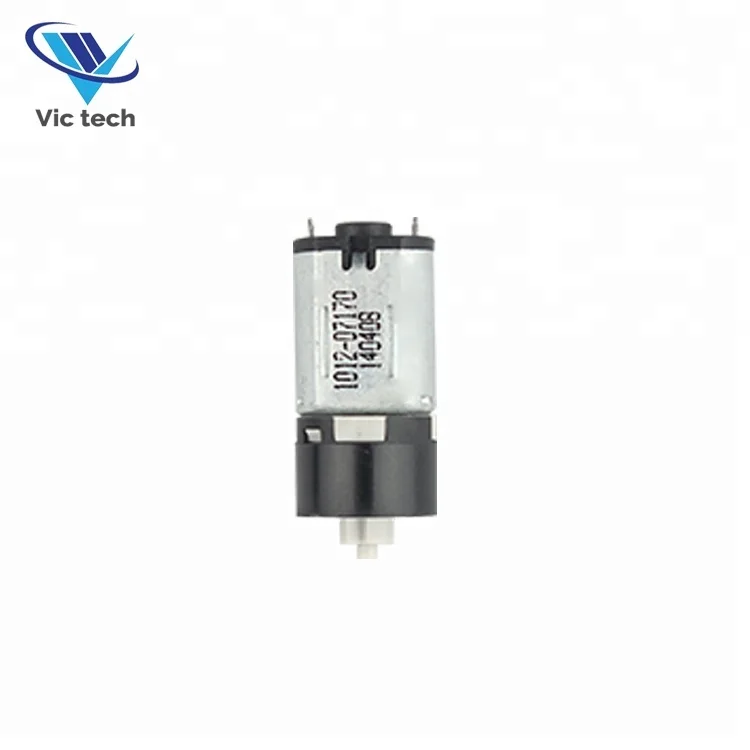

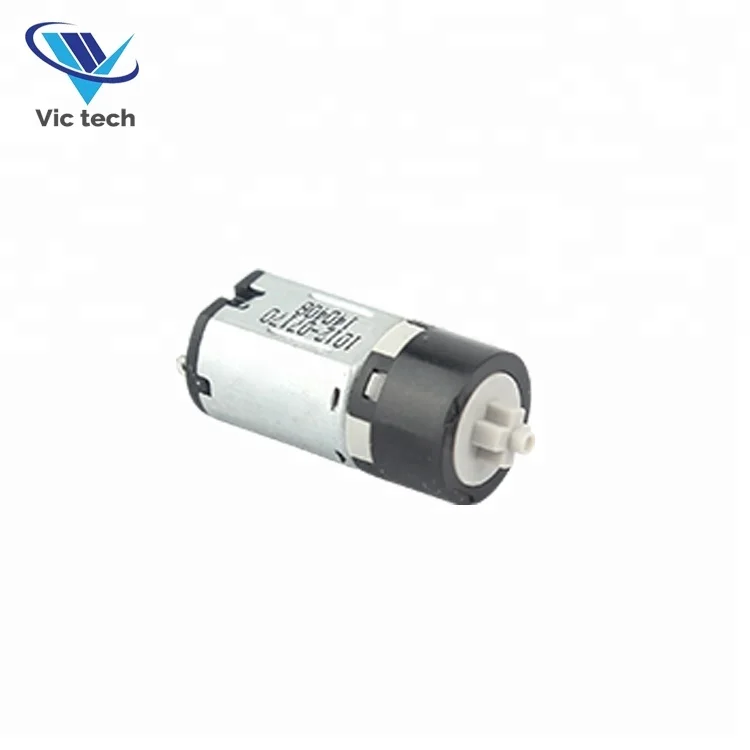

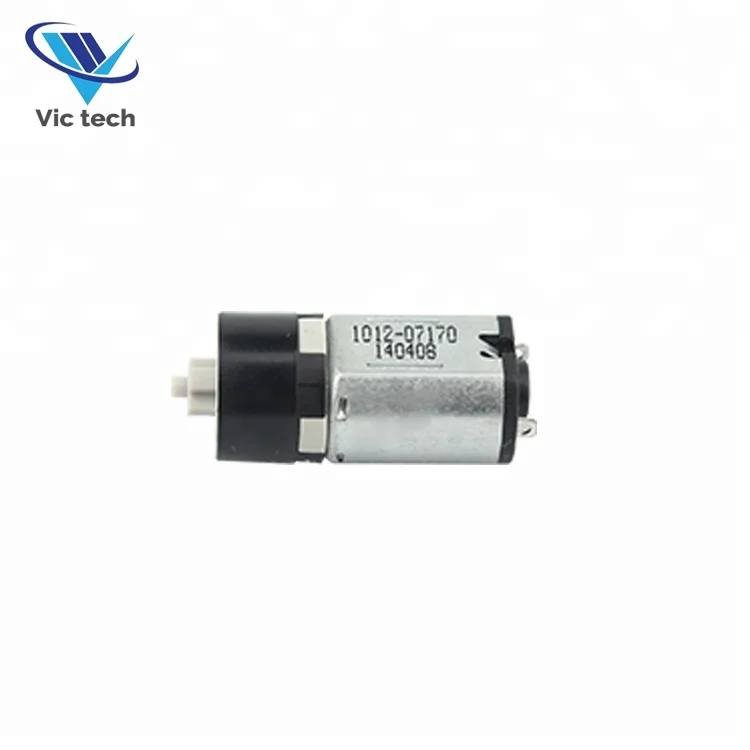

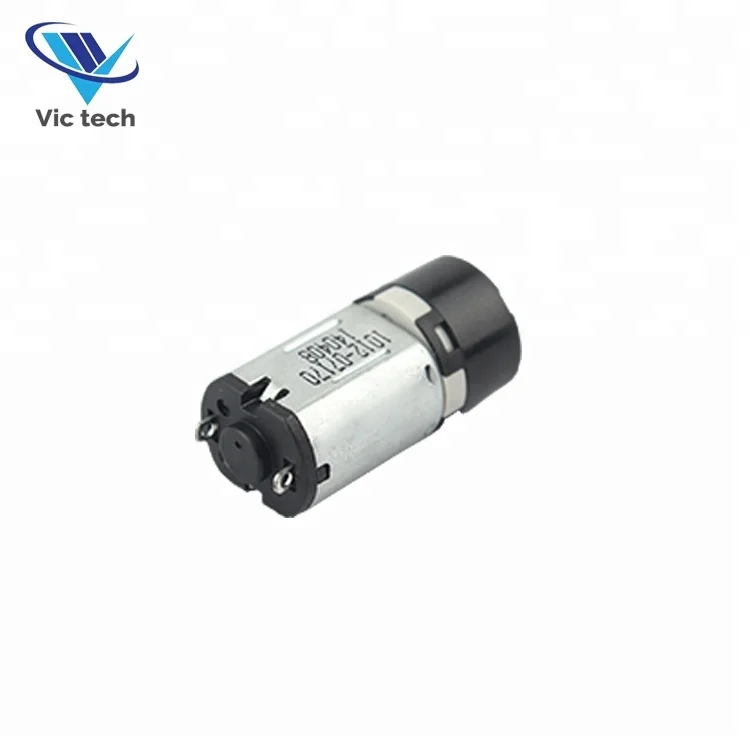

N10 small DC gear motor precious metal reversing planetary gear set micro gear motor

Product Overview

Description

 precious metal reversing planetary gear set gear motor



VSM M10 precious metal reversing planetary gear set gear motor, suitable for video products, high-end toys, personal health products, security equipment, etc. Customizable parameters: wire length, shaft length, performance, gear box.

Our gearboxes are processed and assembled by imported machine tools to ensure that the accuracy of each gear is higher than other manufacturers in the same industry, so the gearbox is stable in transmission, low in noise, high in efficiency, reliable in structure, long in life and quality.
stability.

Our team has more than 10 years of experience in micro-motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!



PRODUCT NAME	Brush dc motor
MODEL	VSM M20
VOLTAGE	2.5V
TERMINAL RESISTANCE	3.7Ω
NO-LOAD SPEED	110rpm
NO-LOAD CURRENT	100mA
MAX TORQUE	37.2mNM
LOAD TORQUE	9.8mNM
LOAD SPEED	80rpm
LOAD CURRENT	230mA
WEIGHT	3.8g
GEAR RATIO	1:171
OPERATING ENVIRONMENT	-10~+60℃;15~90%RH

Precious metal commutation
