Metal cable waterproof connector Brass Cable Gland MG
- Category: >>>
- Supplier: Shanghai Richeng Electronics Co. Ltd.
Share on (60793922607):
Product Overview
Description
>>Conduit >>wiring duct >>cable terminals >>cable gland >>cable tie
Product Description
Top Design, Professional Process, High-Quality Service
RCCN Brass Cable Gland MG
New Product:Metal cable waterproof connector
Thread Size: M / PG / NPT / G

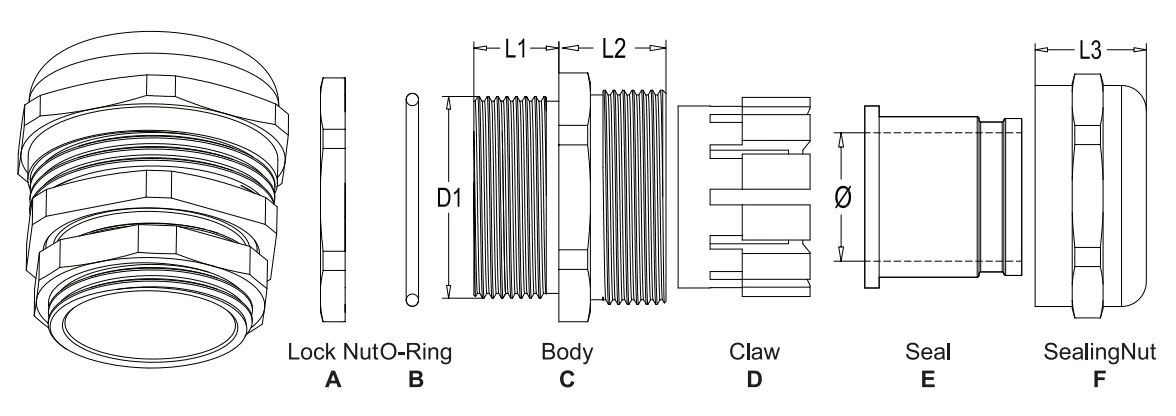

Material: A.C.F Brass nickel-plated D NBR B. E eye rubber.

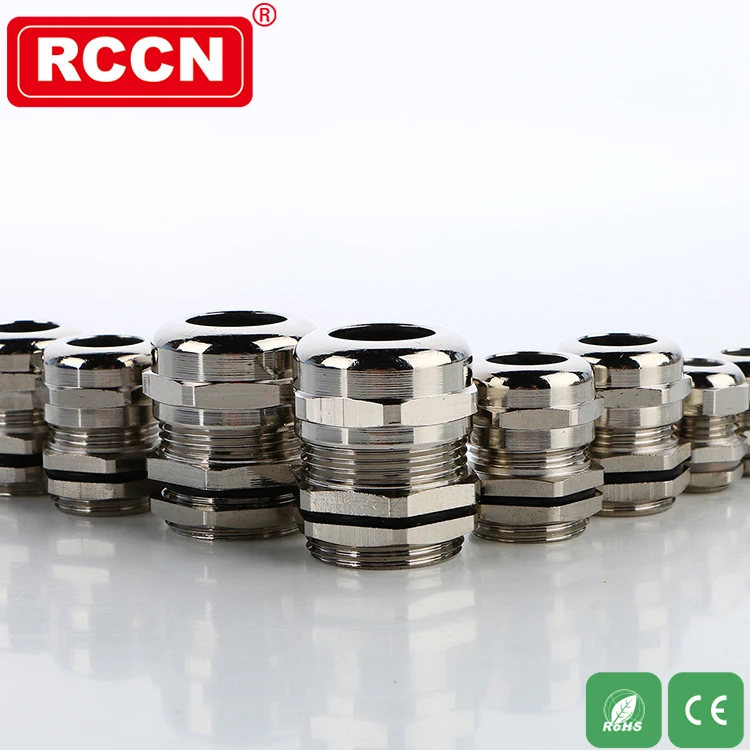

Product Certification: European CE, ROHS
Operating Temperature: Static -40 ° C to 100 ° C
Degree of protection: in the provisions of the bayonet range, and the use of O-ring tightening tight head.

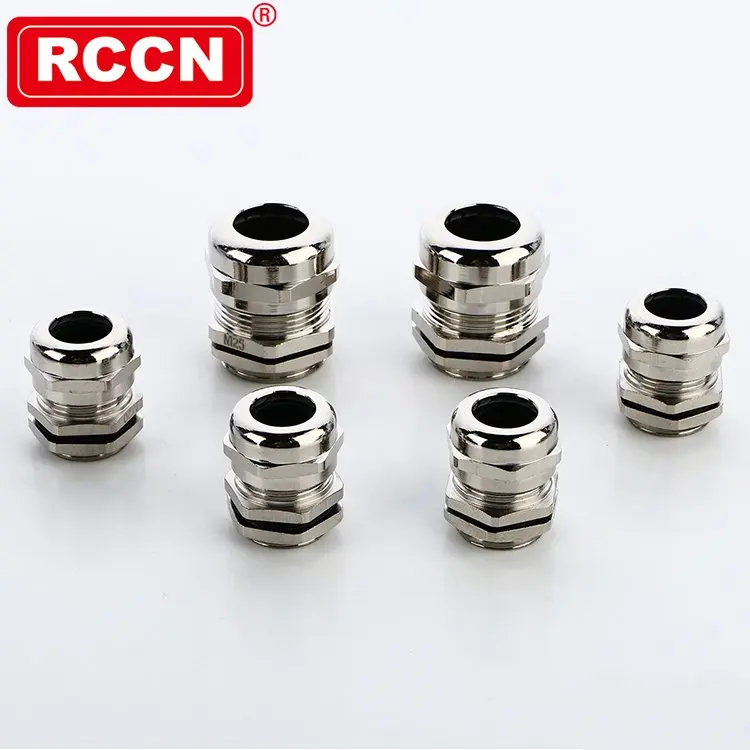

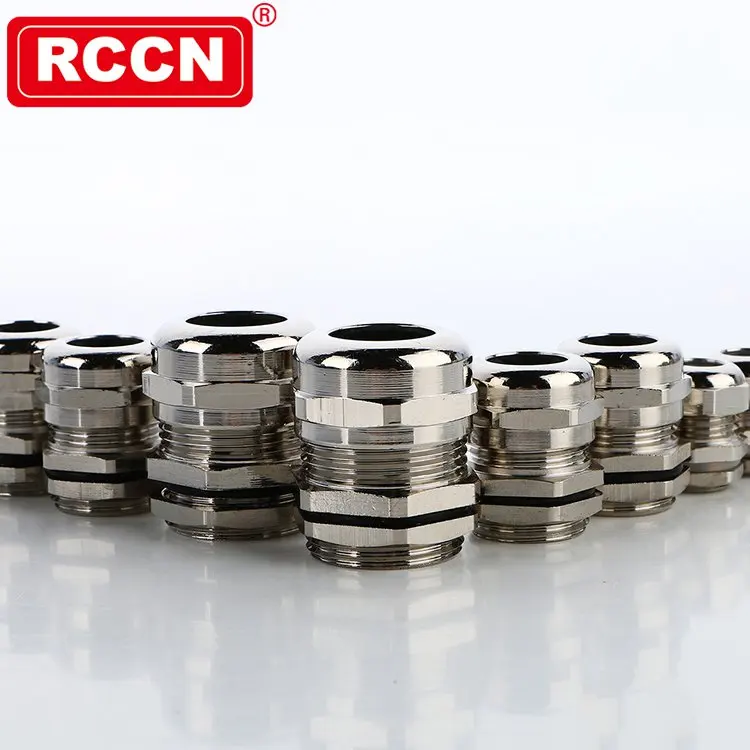

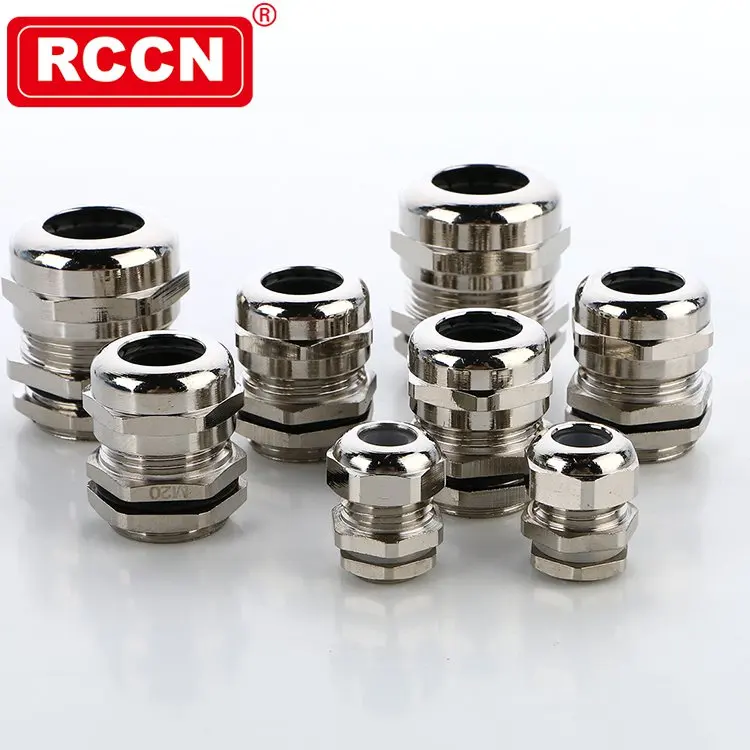

1 Pictures of cable gland
2 Data Sheet of RCCN Nylon Cable Gland.
M |
PG |
NPT |
G |
Cable Range |
|
Joint Length L2+L3 |
Spanner SW A/F | |
| L1 | L1 | |||||||
| MG12×1.5-6.5 | MG-PG7-6.5 | MG-NPT1/4-6.5 | MG-G1/4-6.5 | 3-6.5 | 6 | 12 | 18 | 14 |
| MG12×1.5-8 | 3-6.5 | 6 | 12 | 18 | 16 | |||
| MG16×1.5-8 | MG-PG9-8 | 4-8 | 7 | 12 | 20 | 18 | ||
| MG16×1.5-10 | 6-10 | 7 | 12 | 21 | 20 | |||
| MG18×1.5-10 | MG-PG11-10 | MG-NPT3/8-10 | MG-G3/8-10 | 6-10 | 7 | 12 | 21 | 20 |
| MG20×1.5-12 | MG-PG13.5-12 | MG-NPT1/2-12 | MG-G1/2-12 | 8-12 | 8 | 12 | 22 | 22 |
| MG20×1.5-14 | 10-14 | 8 | 12 | 23 | 24 | |||
| MG22×1.5-14 | MG-PG16-14 | MG-NPT1/2-14 | MG-G1/2-14 | 10-14 | 8 | 12 | 23 | 24 |
| MG24×1.5-16 | 10-16 | 9 | 13 | 25 | 28 | |||
| MG25×1.5-16 | 10-16 | 9 | 13 | 25 | 28 | |||
| MG25×1.5-18 | MG-PG21-18 | MG-NPT3/4-18 | MG-G3/4-18 | 13-18 | 9 | 13 | 25 | 30 |
| MG27×2.0-18 | 13-18 | 9 | 13 | 25 | 30 | |||
| MG30×2.0-18 | 13-18 | 11 | 15 | 25 | 32 | |||
| MG30×2.0-20 | 15-20 | 11 | 15 | 25 | 32 | |||
| MG32×1.5-18 | 13-18 | 11 | 15 | 25 | 32 | |||
| MG32×1.5-22 | 16-22 | 11 | 15 | 26 | 34 | |||
| MG32×1.5-25 | 18-25 | 11 | 15 | 30 | 36 | |||
| MG36×1.5-25 | MG-PG29-25 | MG-NPT1-25 | MG-G1-25 | 18-25 | 11 | 15 | 30 | 40 |
| MG40×1.5-28 | 22-28 | 11 | 15 | 31 | 45 | |||
| MG40×1.5-30 | MG-NPT1-1/4-30 | MG-G1-1/4-30 | 22-30 | 11 | 15 | 35 | 45 | |
| MG42×2.0-30 | 22-30 | 11 | 15 | 31 | 45 | |||
| MG40×1.5-32 | MG-PG36-32 | MG-NPT1-1/4-32 | MG-G1-1/4-32 | 22-32 | 11 | 15 | 35 | 50 |
| MG48×2.0-32 | 22-32 | 11 | 15 | 35 | 50 | |||
| MG50×1.5-36 | MG-NPT1-1/2-36 | MG-G1-1/2-36 | 28-36 | 11 | 15 | 38 | 54 | |
| MG50×1.5-38 | MG-PG42-38 | MG-NPT1-1/2-38 | MG-G1-1/2-38 | 32-38 | 11 | 15 | 38 | 54 |
| MG54×2.0-38 | MG-PG42-38 | 32-38 | 11 | 15 | 38 | 57 | ||
| MG-PG42-38 | 32-38 | 11 | 15 | 38 | 58 | |||
| MG60×2.0-44 | MG-PG48-44 | MG-NPT2-44 | MG-G2-44 | 37-44 | 14 | 18 | 40 | 64 |
| MG63×1.5-44 | 37-44 | 14 | 18 | 40 | 68 | |||
| MG72×2.0-52 | 42-52 | 15 | 20 | 40 | 76 | |||
| MG75×2.0-55 | MG-NPT2-1/2-55 | MG-G2-1/2-55 | 50-55 | 15 | 20 | 40 | 80 | |
| MG80×2.0-60 | 55-60 | 20 | 25 | 40 | 84.5 | |||
| MG88×2.0-70 | 65-70 | 20 | 25 | 40 | 92.5 | |||
| MG90×2.0-70 | 65-70 | 20 | 25 | 40 | 96 |
procduct
FAQ
1 Q:Do you have your own factory or just a trading company?
A: We have our R&D, producing, marketing and trading team, more than 200 employees in total. With 12 years manufacturing and selling experience in wiring accessories, we can provide you products with best quality, competitive price, satisfying pre-sale and after-sale service.
2 Q: Could you change the size for the customer?
A: Yes, sizes can be customized, for more details please contact us.
3 Q: How many days delivery the order?
A: Normally after deposit or L/C 15 days,In case of urgent need, delivery date can be advanced depends on your request.
4 Q: Do you provide free sample?
A:Yes, Sample can be provided with freight charge to be collected.
5 Q: Do you accept OEM or ODM?
A:Yes, OEM and ODM are available, any legal logo can be printed on the product.
6 Q:How about the after-sale service?
A: Any feedback or comments are welcomed. We have engineers available to solve your application problems.
