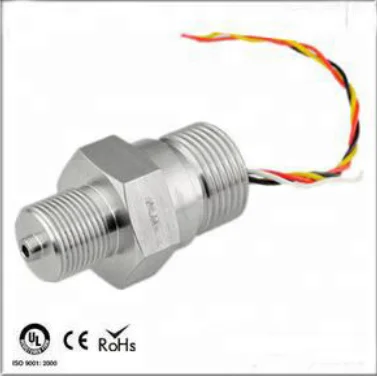

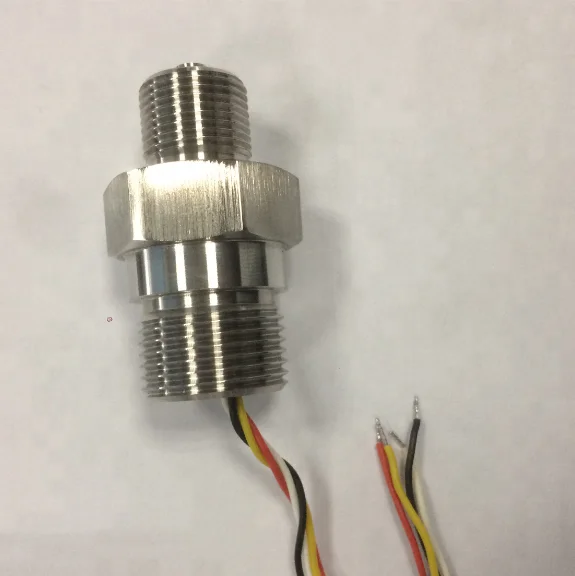

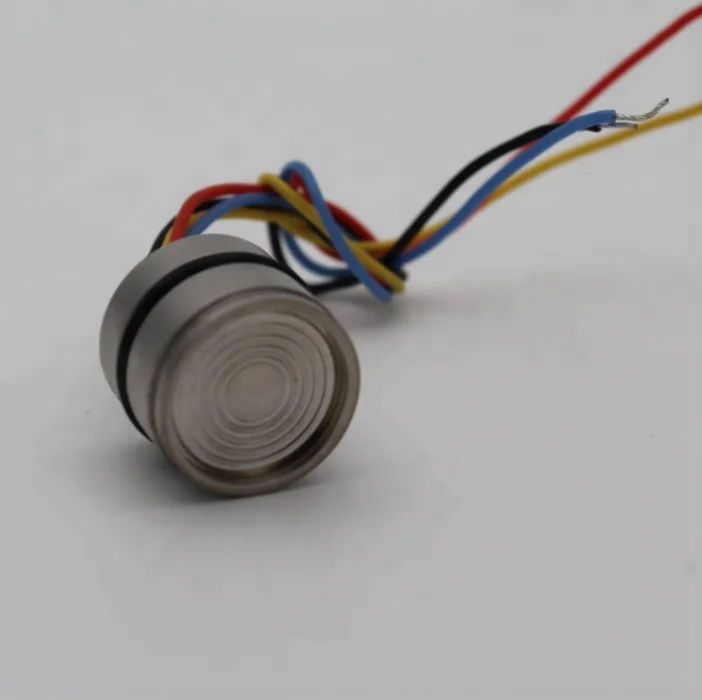

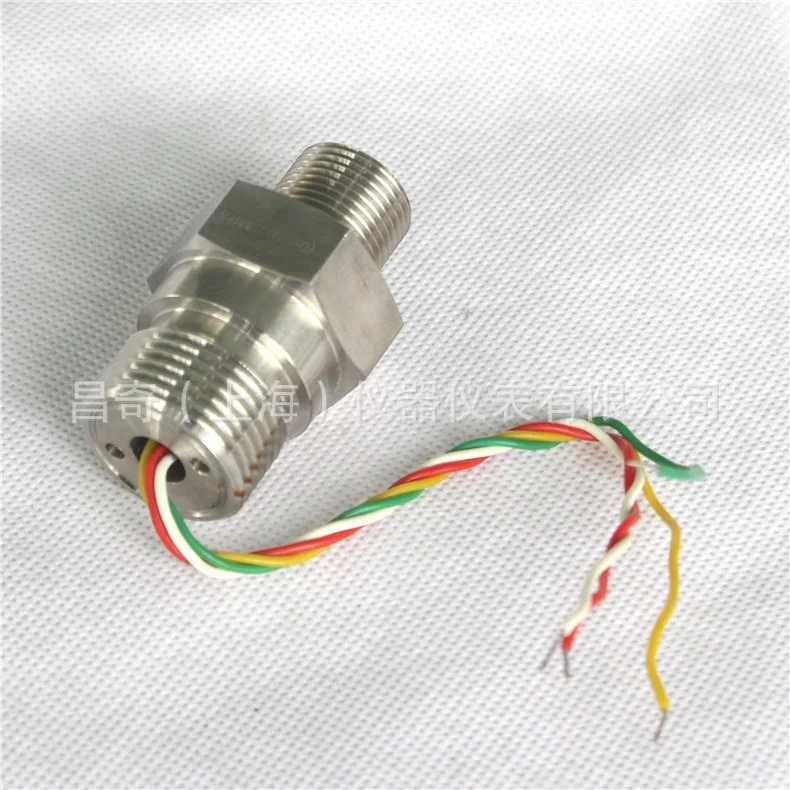

O ring seal Customized Piezoresistive Silicon Pressure Sensor transducer transmitter
- Category: >>>
- Supplier: Shanghai Kara Instruments Co. Ltd.
Share on (60793932133):
Product Overview
Description
| 1. BS12N-1:“O” Model | |||
| Excitation | 1.5mADC or 10 VDC | Pressure Style | Gauge, Abs.; Seal |
| Measuring Medium | Liquid, gas and steam compatible with SS 316L | ||
| Pressure Range | -100KPa~100MPa | Input Impedance | 2KΩ~6KΩ(Constant current supply) |
| Zero | 0.02%FS/℃(≥100kPa) | Sensitivity | 0.03%FS/℃(≥100kPa) |
| Temp. Coifficient | 0.03%FS/℃(<100kPa) | Span Temp. Coefficient | 0.04%FS/℃(<100kPa) |
| Temp.Compensation | -10℃~70℃(>70kPa) | Overpressure | 200%FS (<3.5MPa) |
| 0℃~70℃(≤70kPa) | 150%FS (≥3.5MPa) | ||
| Operating Temp. | -45℃~125℃ | Accuracy | 0.25%FS(Typical) |
| Insulation Resistance | 250MΩ/250VDC | Zero Output | ±2mV |

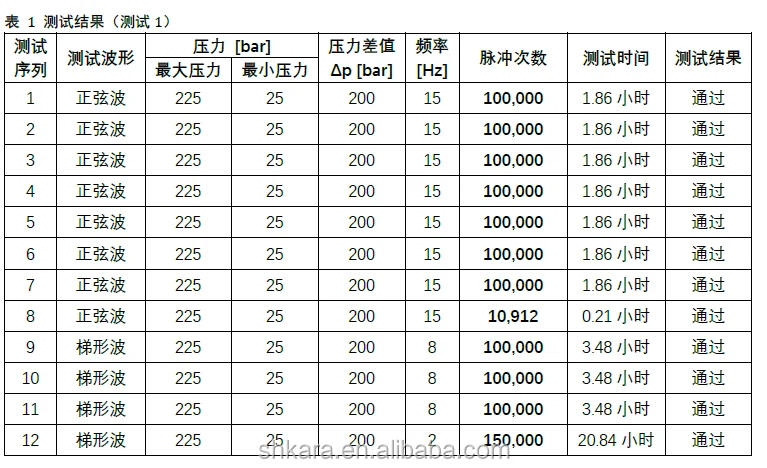

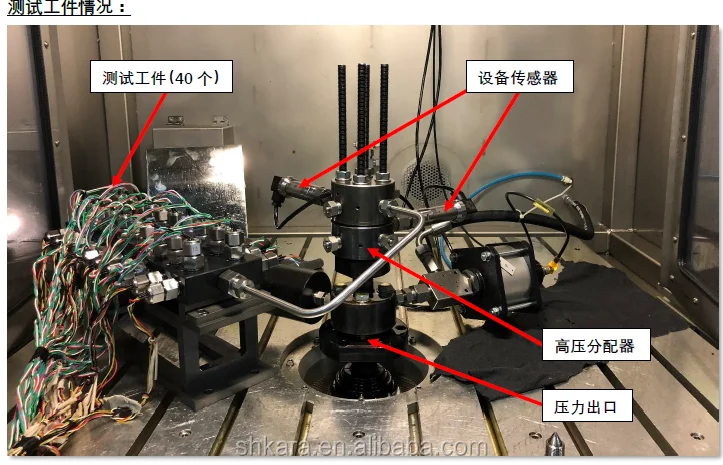

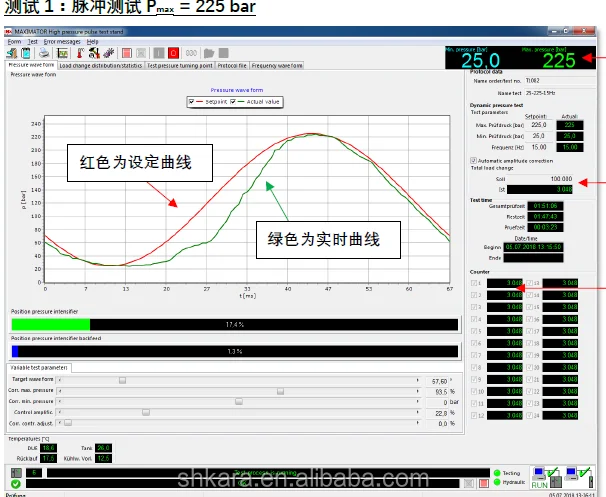

Test Report:
