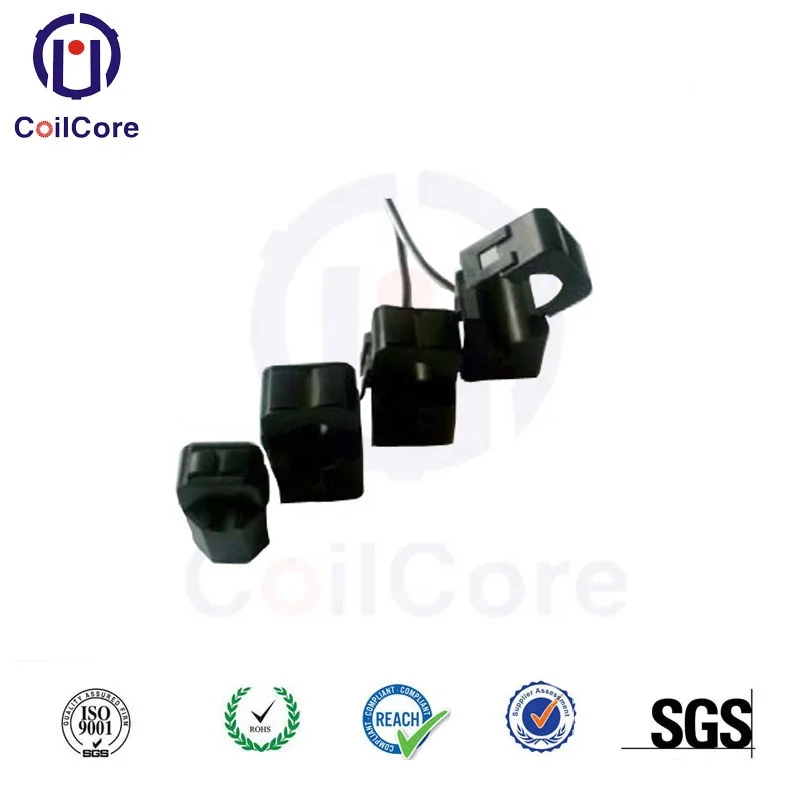

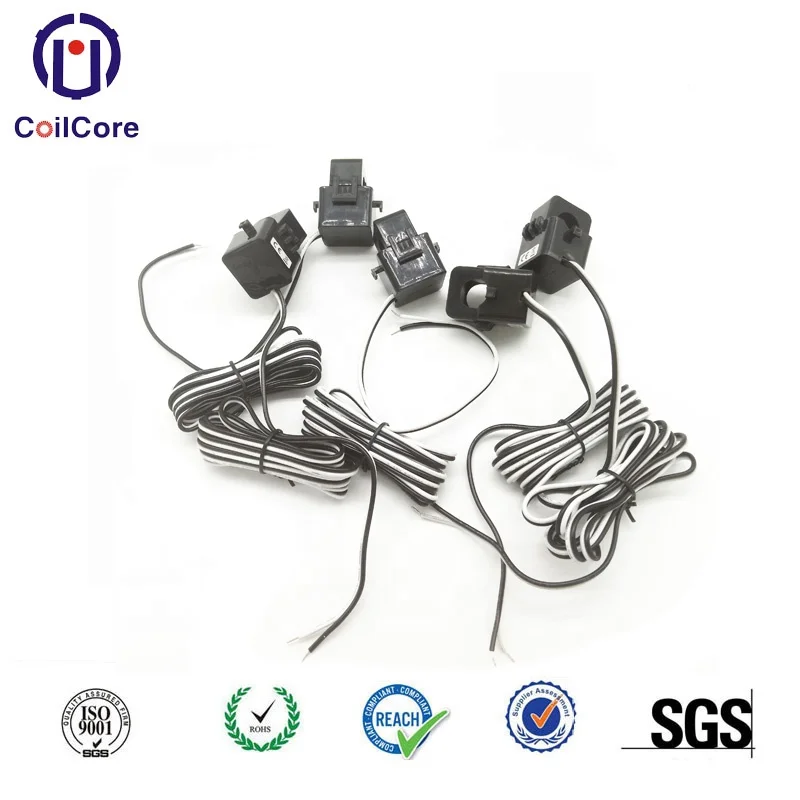

50A 333mV Accuracy 0.5 Split Core Current Clamp Sensor

Product Overview

Description



Key Properties:

1. Inherit the simple structure of the traditional C cores

2. Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance.

3. Comparing other materials, with high accuracy, due to nanocrystalline high permeability.

4. Energy conservation & environment protection, huge potential market





Electrical Characteristics
No	Item	Specification
1	Primary Current (Arms 50/60Hz)	50A
2	Secondary Current at primary nominal (rms)	33.33mA
3	Secondary Output Voltage (Vrms)	0.333V
4	Primary/secondary currents ratio  in the nominal range of primary current	1500Ts
5	Burden resistive load of secondary winding	10Ω
6	Amplitude Error  f(%) in the range of primary current	±.0.5%
7	Dielectric Withstanding Voltage(Hi-Pot) (Vrms)	1500V
8	Insulation Reslstance(500VDC)	100MΩ Min
9	Ambient operating temperature range	-40oC~80oC
10	Class (Accuracy)	0.5

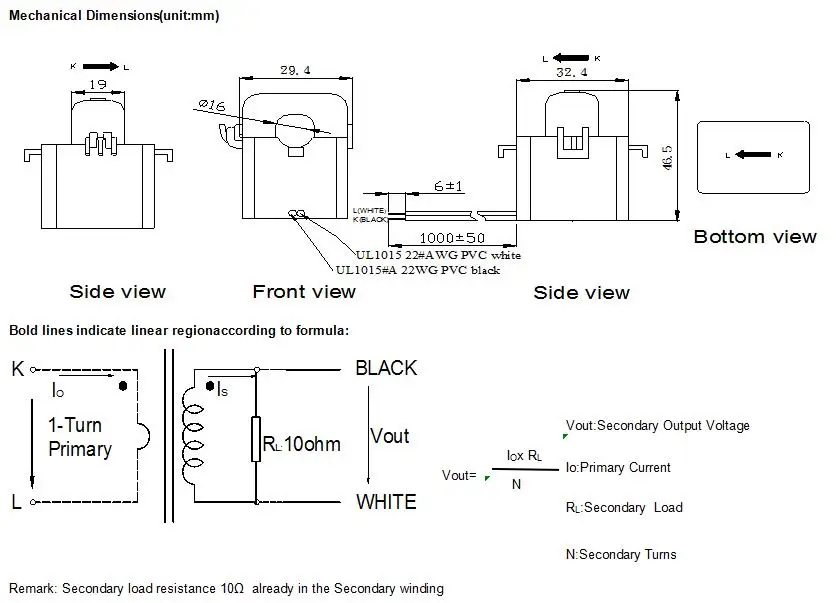

Mechanical Specifications
No	Item	Describe
1	Housing	PP
2	Bobbin	PP
3	core	Ferrite
4	Tap	Polyethylene Terephthalate (PET)
5	Magnet Wire	2UEW
6	Leader wire	UL1015 22#AWG  Black, White PVC wire,  1000mm
7	Flame retardant	UL94-V0
8	Approximate Weight	65g
9	All materIal to the requirement of ROHS



Main Application:

Our Split-core current transformer can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. Which is widely used for:

· Current Measurement

· Electrical loading monitoring

· Energy and sub-metering products

· Network equipment

· Instruments and sensors

· Control System

· Go GREEN initiatives





Flexible Design:

1. Various shape design supported



2. Our workshop produce form Split Core, to Split current Transformer







3. Customised Size as request. Our Common Standard CTs & dimentions for your first reference as below:





We can design & produce goods based on specifications & drawing, specification needed including:

1. Bare core size, Size finished, special Min. Hole size.

2. Split CT Turns ratio, accuracy
