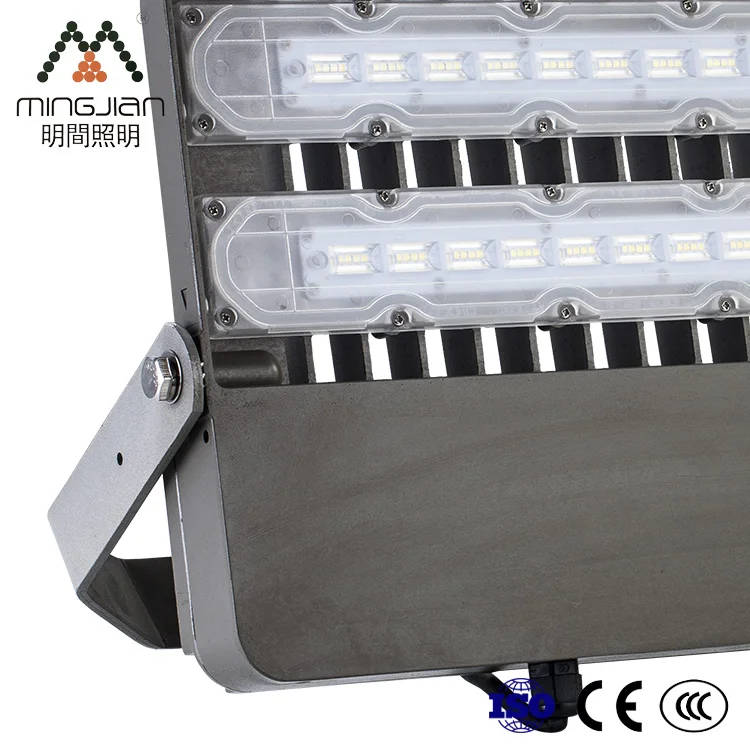

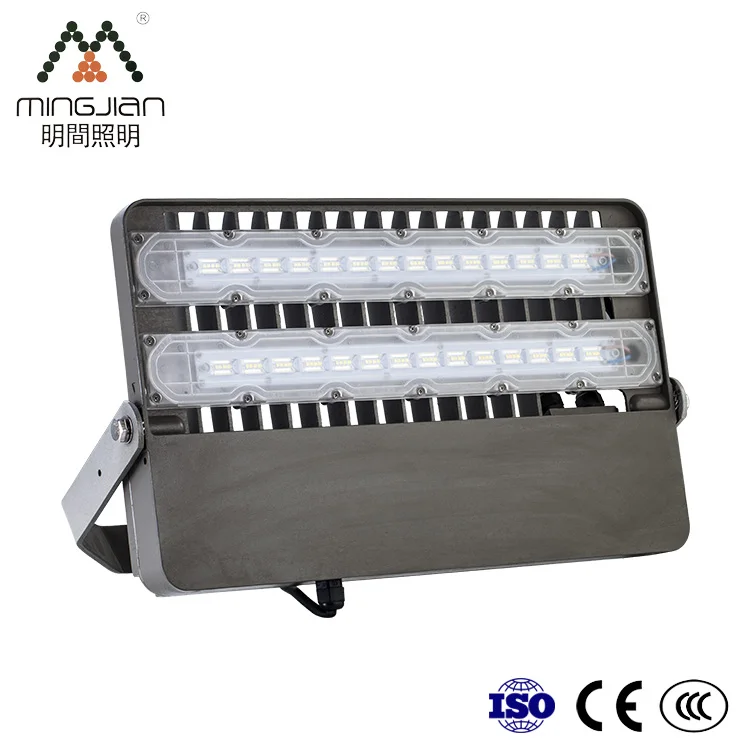

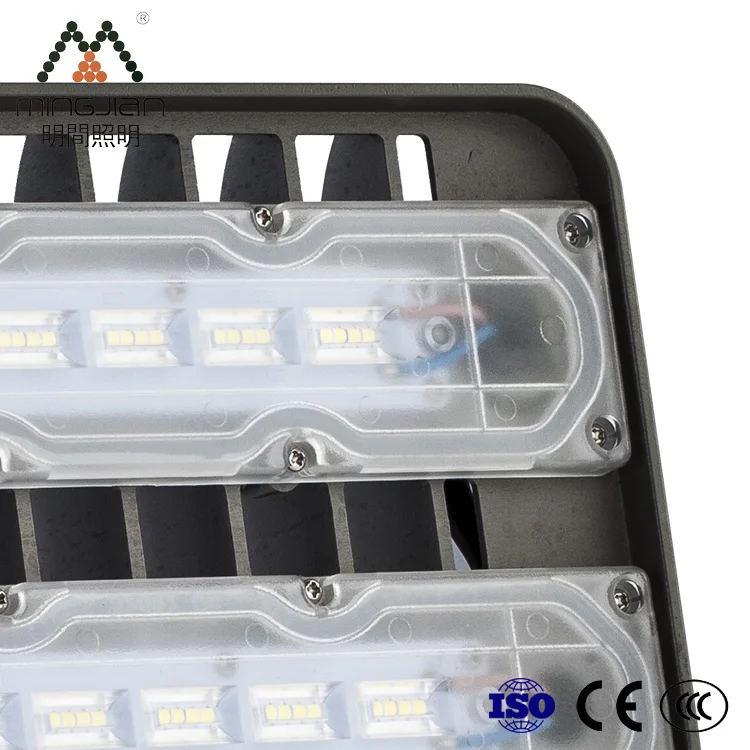

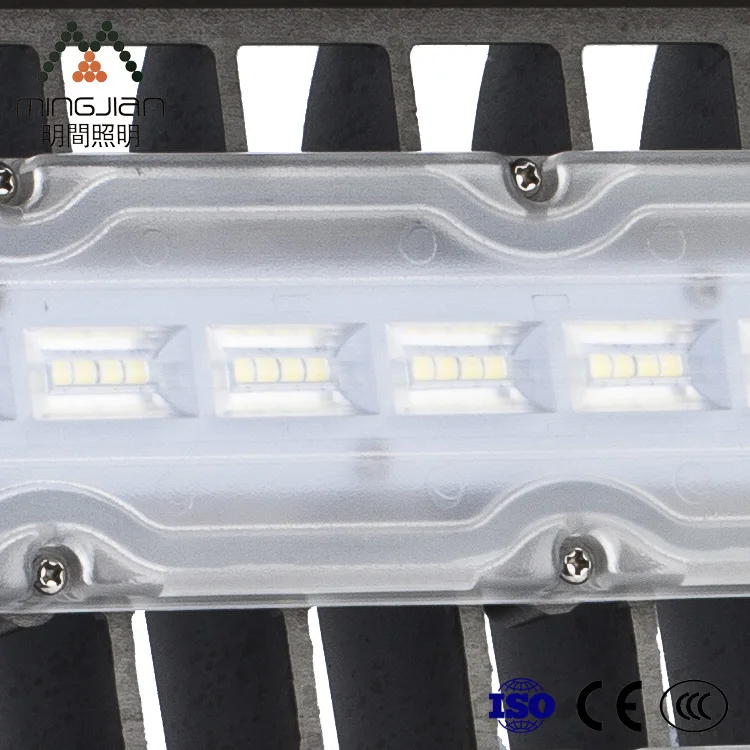

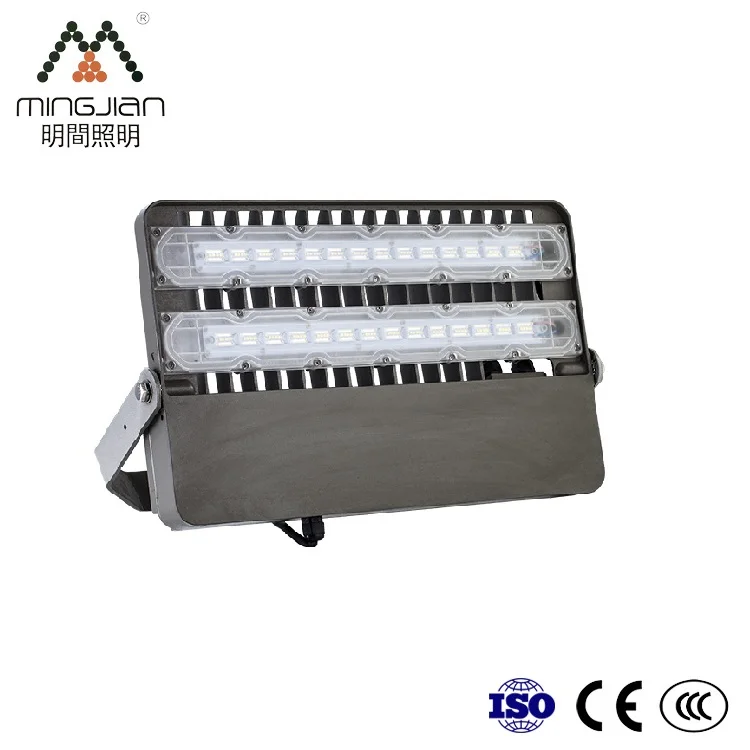

Modular Design Module Luminaire 19200 Lumen 120W Modular LED Tunnel Light
| Item No. | MJ-120FB | |
| Brand | MINGJIAN | |
| Power | 120W | |
| Input Voltage | AC85-265V | |
| Frequency | 50Hz/60Hz | |
| THD | ≤20% | |
| Power Factor | >0.95 | |
| LED Working Voltage | DC42-52V | |
| LED QTY | 112pcs 3030LED | |
| LED Consumption | 120W | |
| LED Luminous Efficiency | 160LM/W | |
| LED Lumen | 19200LM | |
| Net Weight | 4.6KG | |
| Light Efficiency | >91% | |
| Illuminance Uniformity | >0.8 | |
| Color Temperature | 3000K;4000-4500K; 5700-6500K | |
| CRI | Ra>70 | |
| Light Distribution | Symmetrical / rectangular spot | |
| Light Design | LED+Lens | |
| LED Juncton Temp | 125℃ | |
| Working Temp | -20℃——+40℃ | |
| Storage Temp | -25℃——+65℃ | |
| Working Life-span | >50,000H | |
| Shell Color | Black / Gray | |
| Beam Angle | 60°/ 90°/120° | |
| Certificate | CE, RoHS | |





Q1: What’s your MOQ ?
A: No MOQ required, sample checking provided.
Q2: How long is the sample production time ?
A: Normally around 3-5 days, except for special cases.
Q3: How about the warranty for the products ?
3-5 years guarantee.
Q4: Can you provide IES file ?
A: Yes, we can. Professional lighting solution is available.
Q5: How to proceed an order ?
A: First, let us know about your requirements or application details.
Second, we quote accordingly.
Third, customers confirm and pay the deposit
Finally, production is arranged.
