RFTYT SMA VHF High Quality Microwave BTS C Band RF Drop In Circulator
- Category: >>>
- Supplier: Sichuan Rftyt Technology Co. Ltd.
Share on (60794014061):
Product Overview
Description

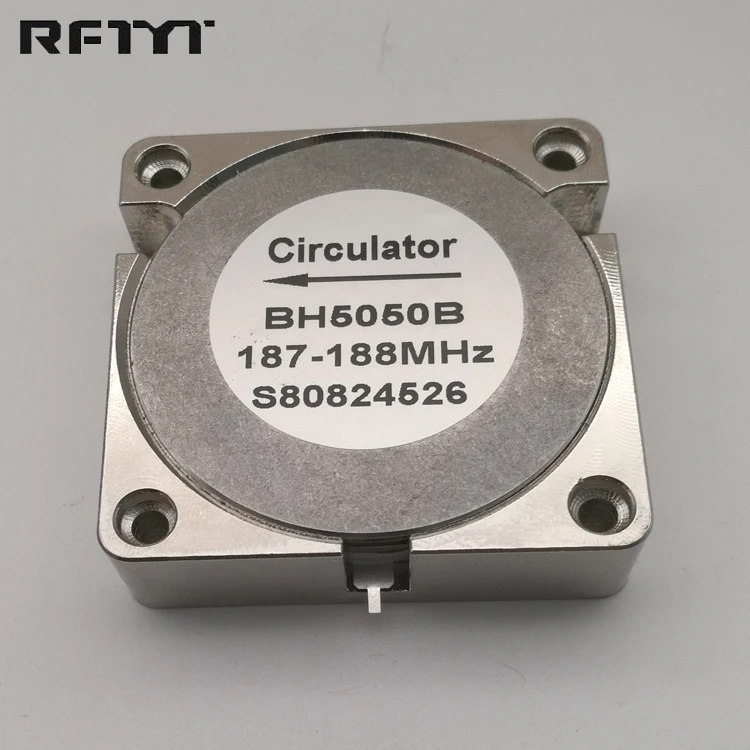

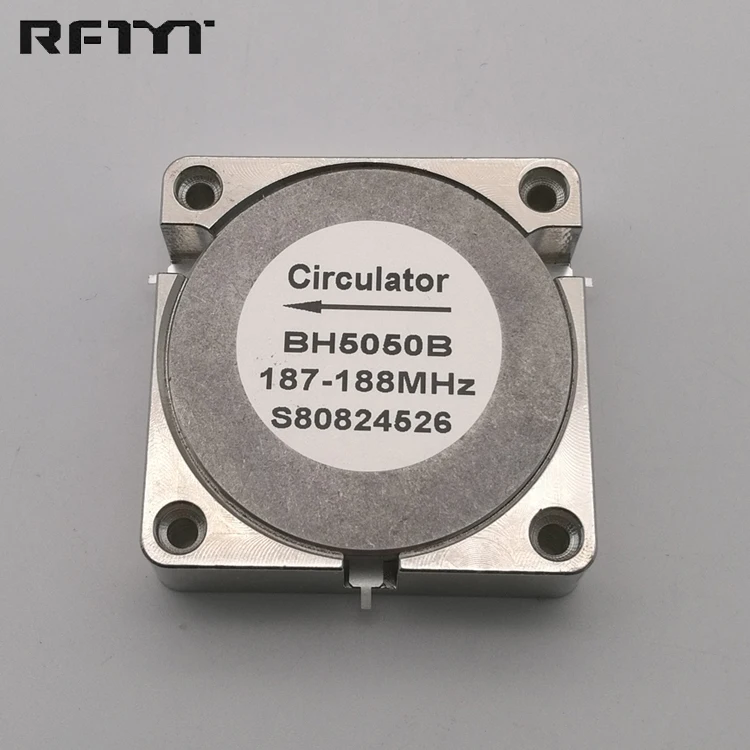

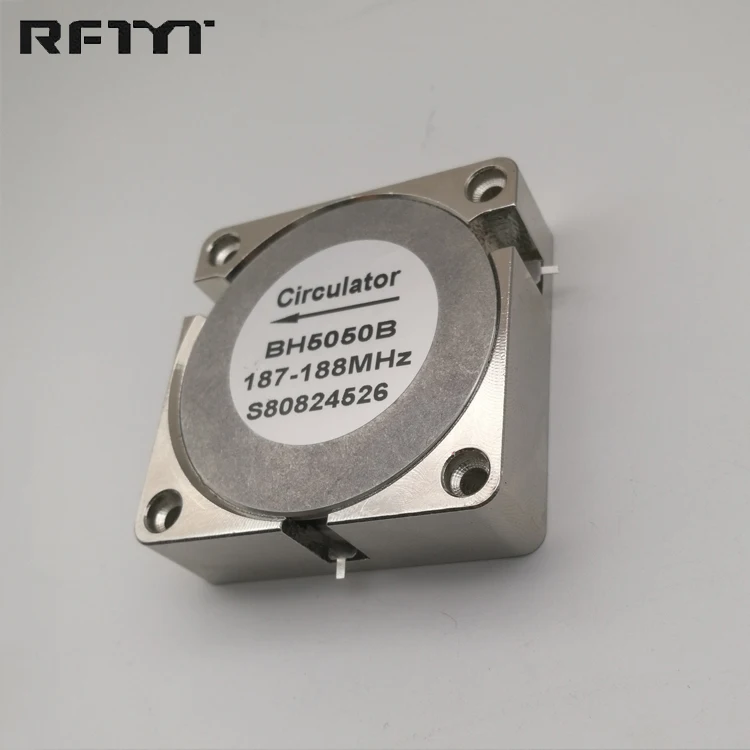

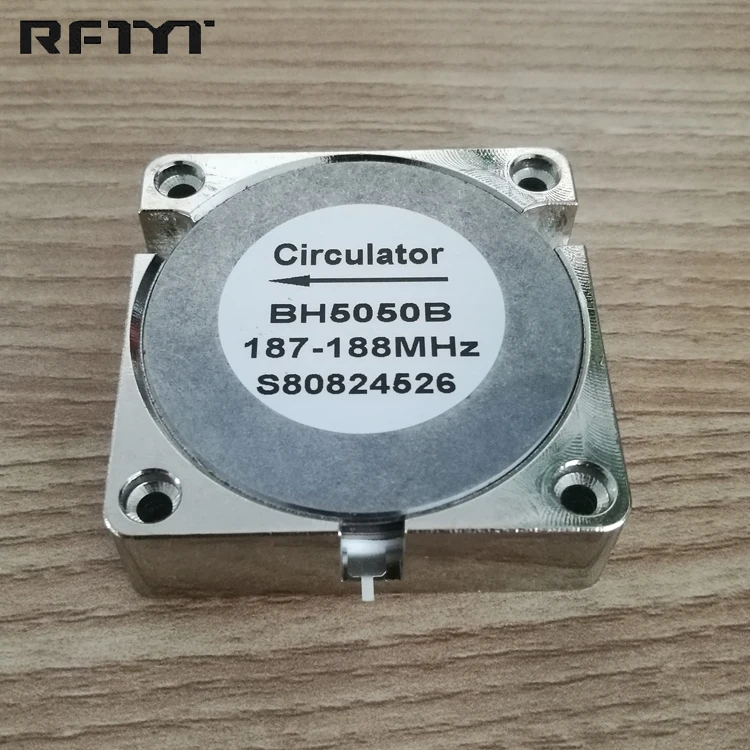

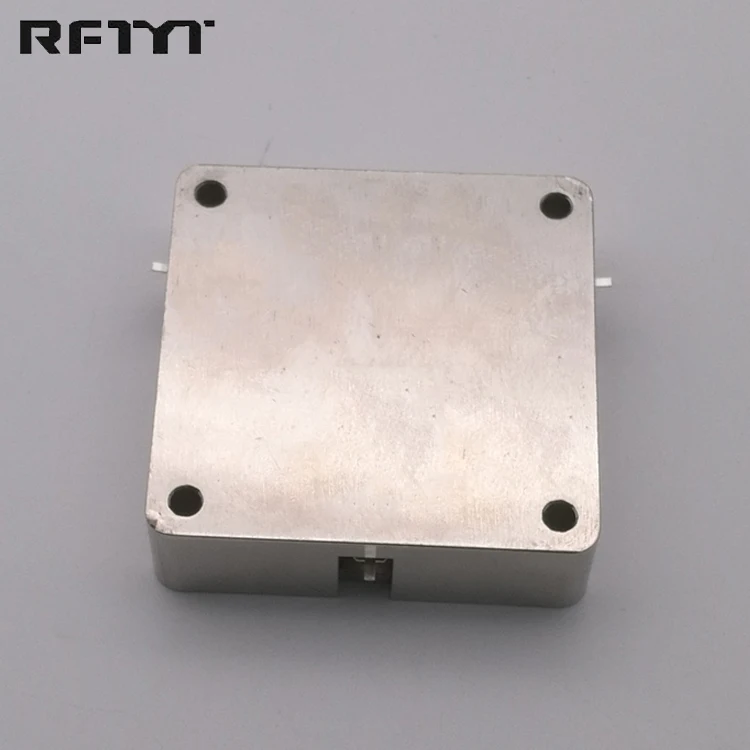

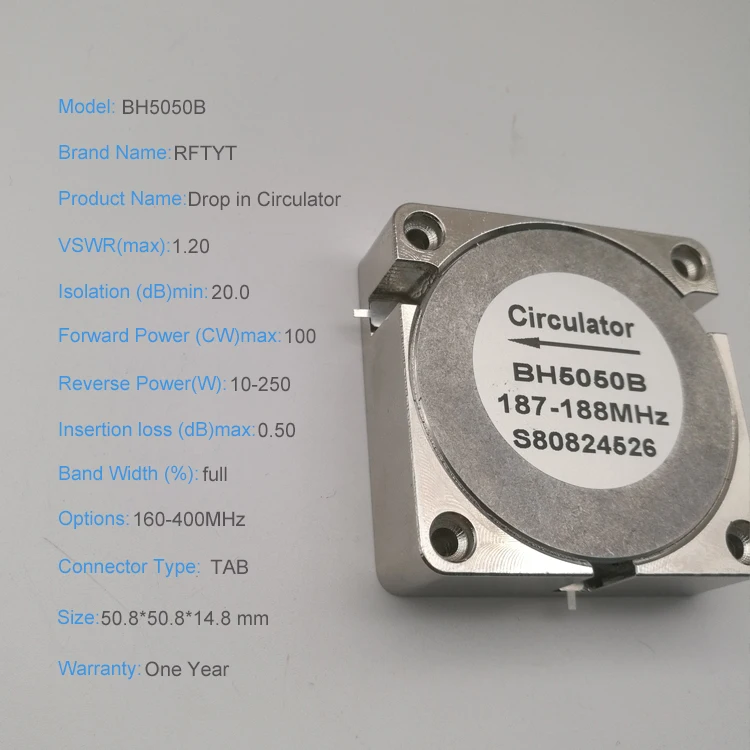

RFTYT SMA VHF High Quality Microwave BTS C Band RF Drop In Circulator
Product Description
Our Products Features:
1.Good temperature behavior, High aseismatic capability. 2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery. 4.Custom design available upon request.
5.Meet ROHS standard. 6.Guaranteed for one year standard
10 MHz-20 GHz Drop in Circulator
Model
|
Frequency range |
Forward Power (max) |
Size
|
Connector Type |
Installation |
WH6466E
|
30-230MHz |
150W |
64.0*66.0*22.0 mm |
SMA/N/TAB |
Through hole installation |
WH6060E
|
30-230MHz. |
50W |
60.0*60.0*25.5 mm |
SMA/N/TAB |
Installation of ground screw holes |
WH6466X
|
130-200MHz |
500W |
64.0*66.0*15.0 mm |
TAB |
Through hole installation |

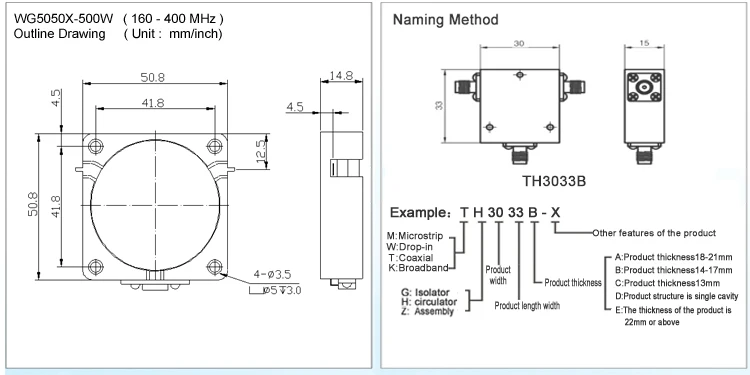

WH5050X
|
200-400MHz |
500W |
50.8*50.8*15.0 mm |
TAB |
Through hole installation |
WH4545X
|
300-1000MHz |
400W |
45.0*45.0*13.0 mm |
TAB |
Through hole installation |
WH3538X |
300-1850MHz
|
300W |
35.0*38.0*11.0 mm |
TAB |
Through hole installation |
WH3838X
|
400-860MHz |
300W |
38.0*38.0*11.0 mm |
TAB |
Through hole installation |
WH2525X |
360-4000MHz |
250W |
25.4*25.4*10.0 mm |
TAB |
Through hole installation
|
WH2525M
|
360-4000MHz |
250W |
25.4*25.4*10.0 mm |
TAB |
Screw hole installation |
WH2020X |
700-4000MHz |
100W |
20.0*20.0*8.6 mm |
TAB |
Through hole installation
|
WH2020M
|
700-4000MHz |
100W |
20.0*20.0*8.6 mm |
TAB |
Screw hole installation |
WH1919X
|
800-4000MHz |
100W |
19.0*19.0*8.6 mm |
TAB |
Through hole installation |
WH1919M
|
800-4000MHz |
100W |
19.0*19.0*8.6 mm |
TAB |
Screw hole installation |
WH6466E |
950-2000MHz |
100W |
64.0*66.0*26.0 mm |
SMA/N/TAB |
Screw hole installation
|
WH1313T
|
1.8 - 6.0 GHz |
60W |
12.7*12.7*7.2 mm |
TAB |
Through hole installation |
WH1313M
|
1.8 - 6.0 GHz |
60W |
12.7*12.7*7.2 mm |
TAB |
Screw hole installation |
WH3234A |
2.0 - 4.0 GHz |
100W
|
32.0*34.0*21.0 mm |
SMA/N/TAB |
Screw hole installation |
WH1822D
|
4.0 - 5.0 GHz |
60W |
18.0*22.0*10.4 mm |
TAB |
Through hole installation |
WH1623D |
5.0 - 6.5 GHz |
100W |
16.0*23.0*9.7 mm |
TAB |
Through hole installation
|
WH1220D |
5.0 - 6.5 GHz |
60W |
12.0*20.0*9.5 mm |
TAB |
Through hole installation
|
WH0915D |
7.0 - 18.0GHz |
30W |
8.9*15.0*7.8 mm |
TAB |
Through hole installation
|
For more detail specifications, please contact us or go to the official website.
(WWW.RFTYT.COM)
Forms are specify frequency range and other ranges available
(The temperature is generally -30 to 70, which can be customized -40 to 80 or your specified requirement.)
Tip:These informations are needed for your enquiry.
*1.The frequency range that you need. *2.Power capacity (Forward ,Reverse,Peak,etc.). *3.Joint form
4.Your special requirements (Insertion loss.Isolation.VSWR.Temperature.Dimension.etc.)
