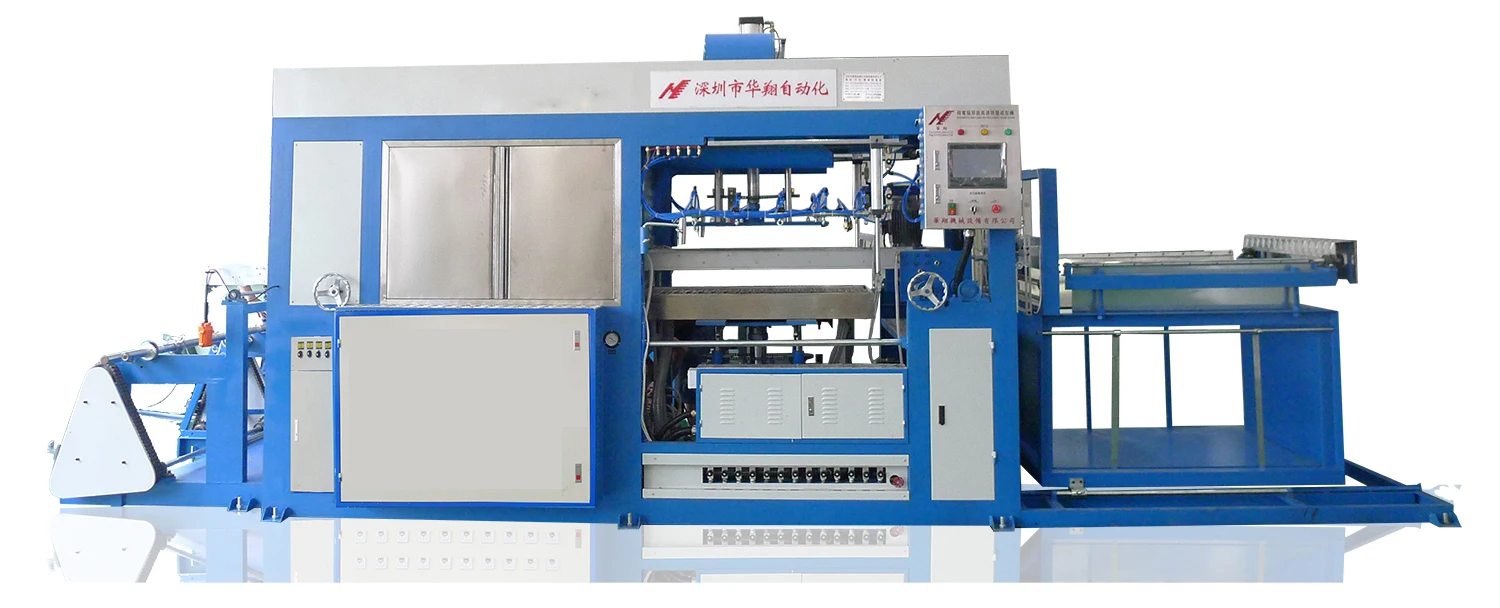

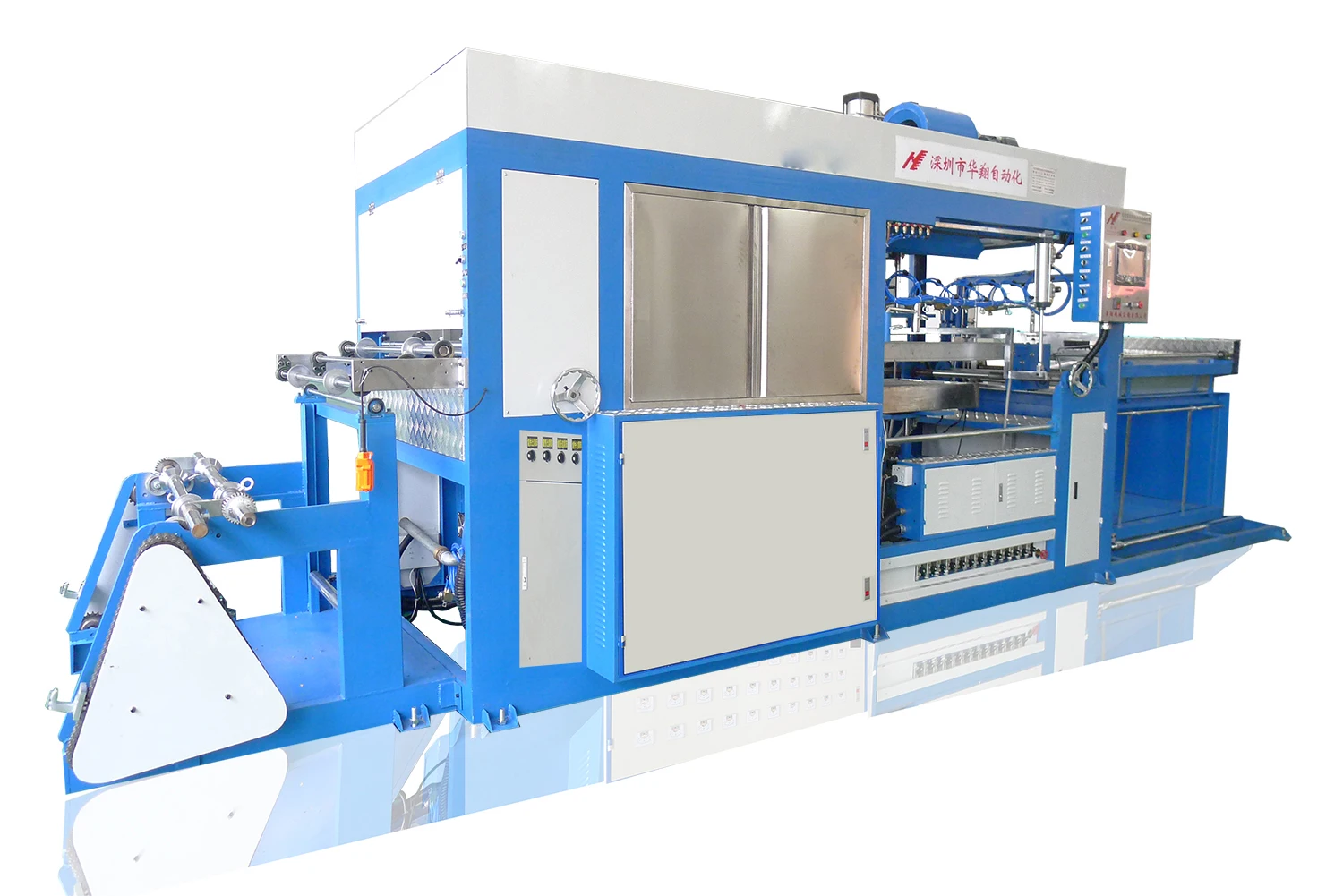

HX-18 Series Thermoforming/Vacuum Forming Machine
HX-18 series is user friendly machine with the power and capability to form demanding shapes and materials, Price-performance ratio for automatic production class machines. Combines the material feeding, heating, drawing, forming, and stacking into one process. Efficient heat management, ease of use, big forming size and accessible price are instrumental to the internationally successful by many companies.
This machine has high capacity and advanced technology for large outputs with low moulds cost.
This machine has high capacity and advanced technology for large outputs with low moulds cost.
Application
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.
Types of thermoforming molds
Wood Patterns ;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;
Parameter:
Model | HX-18 |
Forming Length(mm) | Max.1220 |
Forming Width(mm) | 460-710 (Adjustable) |
Roll material width(mm) | 500-760 (Adjustable) |
Material Thickness(mm) | 0.2-2.0 |
Material | PVC,PET,PP,PS |
Material type | Roll |
Heater(pcs) | 60 |
Heating Power(kw) | 36 |
Total Installed Power(kw) | 40 |
Power Consumption(kw) | 20-30 |
Vacuum Pump(m³/h) | 100 |
Customized Cooling Fan(set) | 2 |
Spray gun(pcs) | 12 |
Spray gun for mold lubricant | ● |
PLC Control | ● |
Mold table with cooling | ● |
Chain conveyor with cooling | ● |
Dimension(mm) | L7500*W1800*H2300 |
Machine Weight(kg) | 4000 |
Main Features
1. In the digital temperature controller, temperature setting is convenient, high precision of temperature control;
2. Ceramic and radiant-panel oven heaters generally provide more precise and thorough sheet heating Allow for zoning of ovens into areas of adjustable heat;
3. Rather than air cylinders which have traditionally been the industry standard, giving more precise control over closing and opening speeds and timing of the tooling;
4. The ability to place formed sheet into an inline trim station for more precise trim registration has been hugely improved due to the common use of electric motors for chain indexing versus air cylinders, gear racks, and clutches on older machines;
5. Heavy-duty industrial design;
6. Plug/grid assist adjustable from touch screen;
7. High-powered cooling blower and water-cooled mold plate to reduce process time;
8. Electrical cabinet and installation to CE standard.

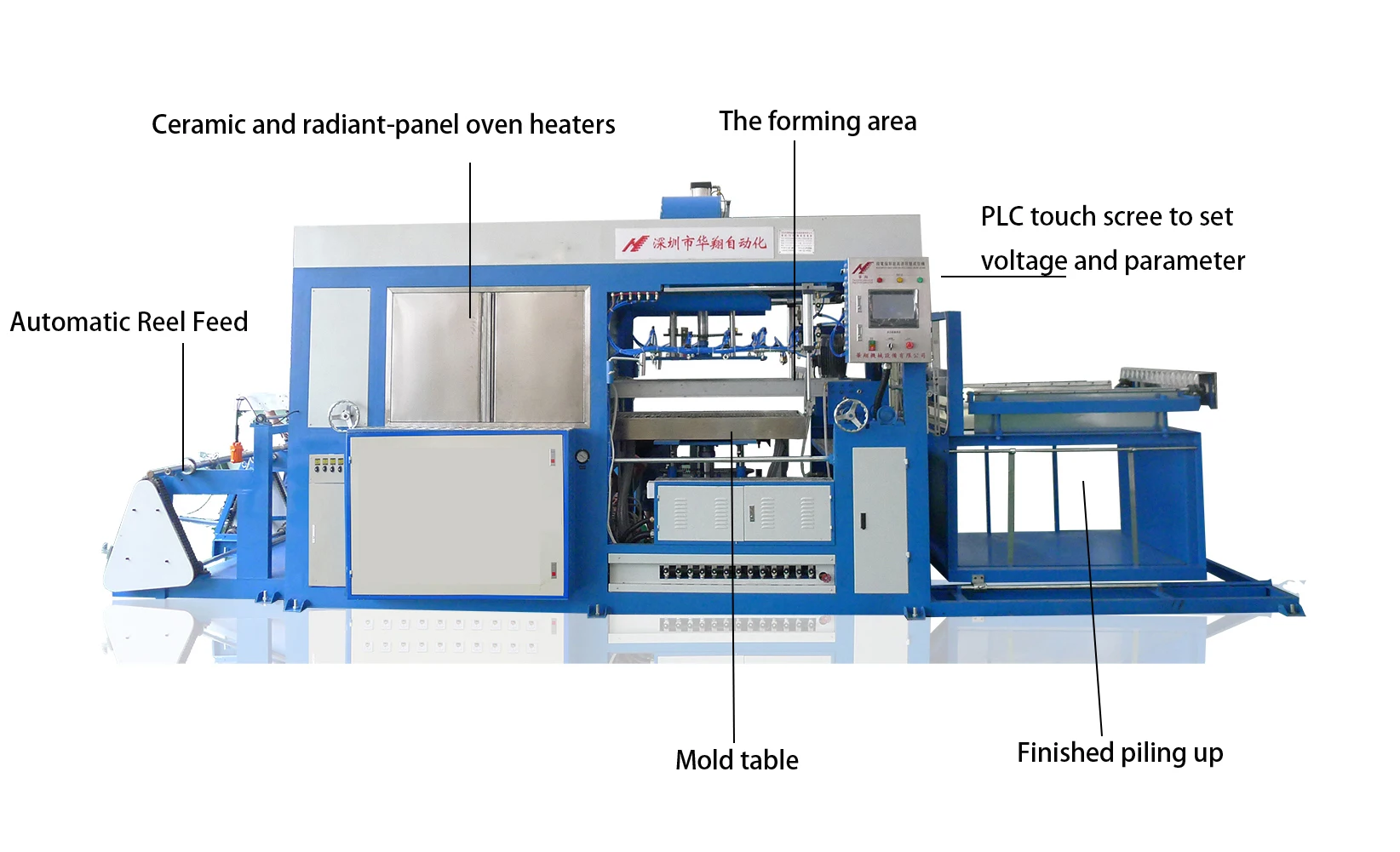

Machine function
PLC Control with 10'' Touch Screen
400 Programme Memory
Ceramic Heaters with Variable Standby
Mold table with Cooling
Mould Table with Height adjustment
Pneumatic Heater Drive
Electric motor Plug Assist
Pneumatically Powered Clamping Frame
Vacuum Receiver Tank
60/94 Independently Controllable Heating Zones
Ceramic Heaters with Full Temperature Feedback
Auto-level
Upward air blown gas
PLC to set voltage and parameter
Vacuum Flow Regulator
Automatic finished unloader
Twin Cooling Fans
Vacuum meter
Cooling Bolster
Rietschie Thomas Vacuum Pump
Dynamoelectric conveyor with Rack and Pinion
Safety Light Curtain
2 Stage Clamping
12 Spray Gun (Spray Mist)
Automatic Reel Feed

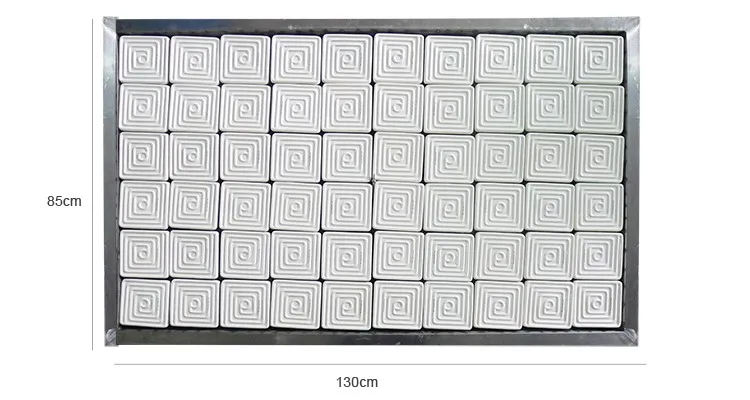

Heating system
1. Heating Oven generally provide more precise and thorough sheet heating Allow for zoning of ovens into areas of adjustable heat;
2. Ceramic heaters individually adjustable;
3. High efficiency radiant panel heating elements for maximum heat to film while conserving energy;
4. Heater oven zoned for uniform heating of material;
5. Heating oven preserve invariable temperature;
6. Single-stage inline heater oven to decrease cycle times;
7. Optional features such as a sandwich (upper and lower) heater.
Forming System
1. HX-18 Series is offered with a standard form size 1220*710mm as well as customized sizes to meet customer's requirements;
2. HX-18 series increase production up to 400% over typical single moveable oven type compare HX-600 series;
3. Vacuum and pressure automatic thermoforming machine built for average and high production;
4. High-productivity with a constant operating speed;
5. High thermoforming quality with simple mold height adjustment;
6. Low mold cost, helps enterprise to recover the investment;
1. Forming various kinds of products in one time.
2. Low mold cost.
Industrial cooling fan
Compared with other types of engine's cooling fan-driving
system, our cooling system is more reasonable;
system, our cooling system is more reasonable;
Chain&conveyor
Water cooled, aluminum profile chain rails
Special metal for crossbeam, sturdy and durable.
Special metal for crossbeam, sturdy and durable.
Electricity box
The switch, electricity meter of the meter box are set in separate area;
The floor box provides a plurality of facilities, such as vacuum and electricity;
High quality electrical and electronic components;
Electrical cabinet and installation to CE standard.
Electrical cabinet and installation to CE standard.
\t\t\t\t\t\t\t\t\tDetailed Parts \t\t\t\t\t\t\t

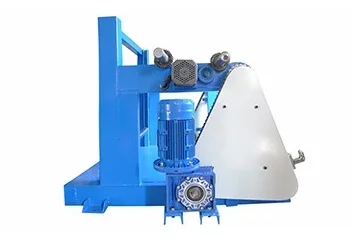

Automatic Material Feeder
Name: Reel Feed
Brand:HUAXIANG
Able to put double rolls;
Material placed in this shelf;
load bearing 100-200kgs;
Easy to put the rolls on machine;
PLC tempereture controller
Name: PLC Touch Temperature Controller
PLC Control with 7' Touch Screen, 400 Programme Memory;
Softerware: HUAXIANG
temperature setting is convenient, high precision of temperature control.

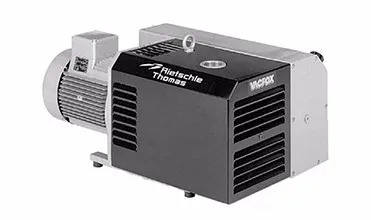

Vacuum pump
Name: vacuum pump
Brand: Rietschie Thomas
Original: Germany
100m³/150m³

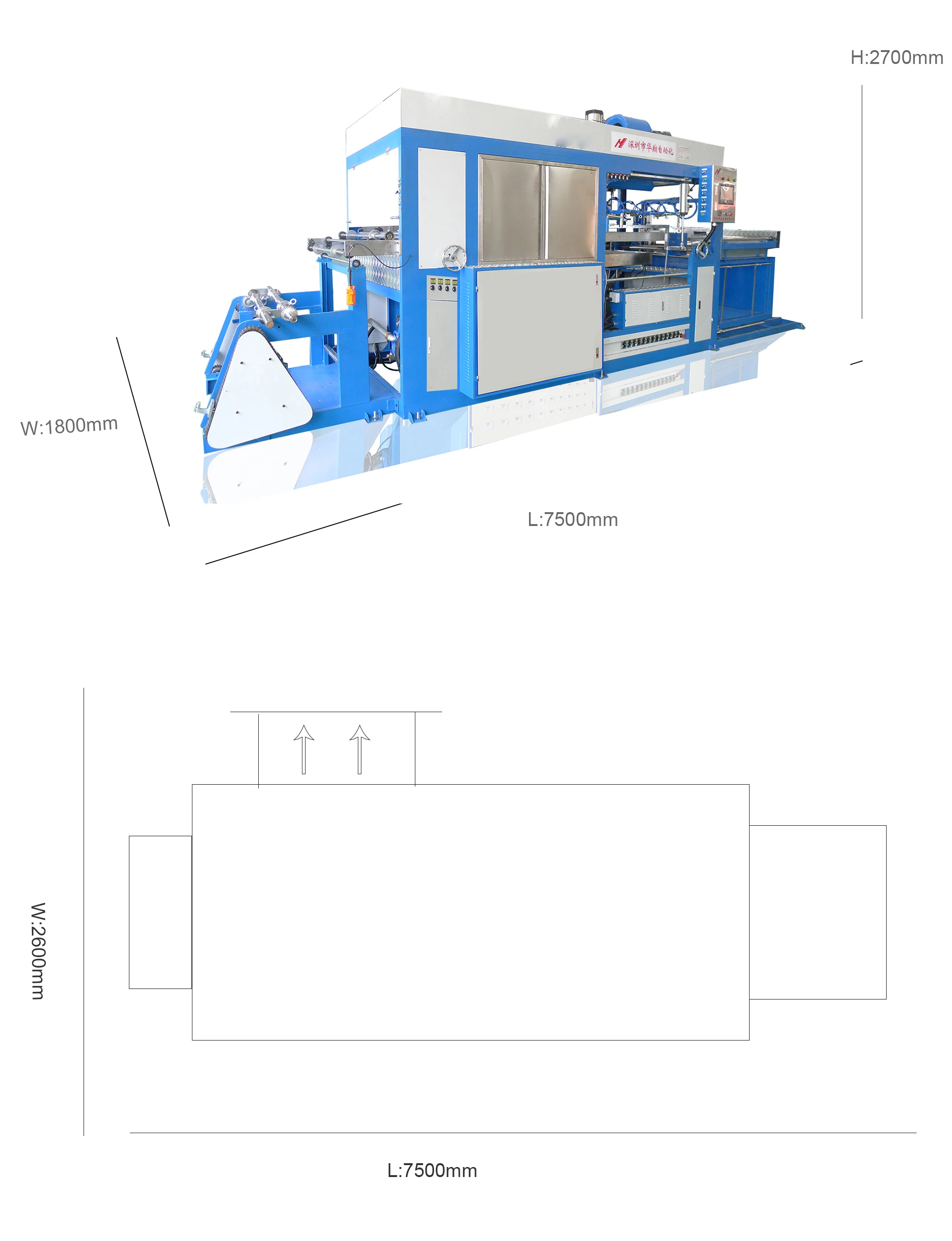

Machine Size
Place
1) The machine overs an area of 19.5m²;
2) Requires 40m² of space to place ;
3) In the open air environment;
4) Weight: 4000kg-4500kg

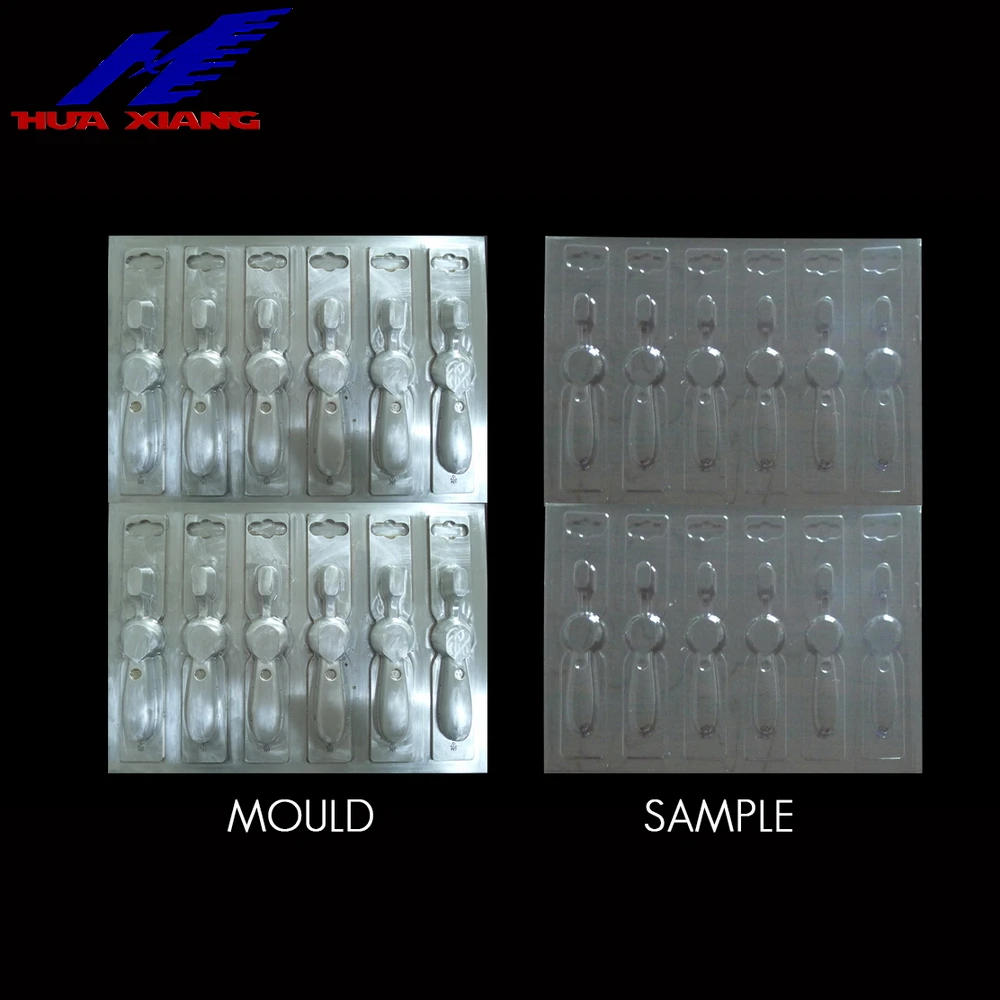

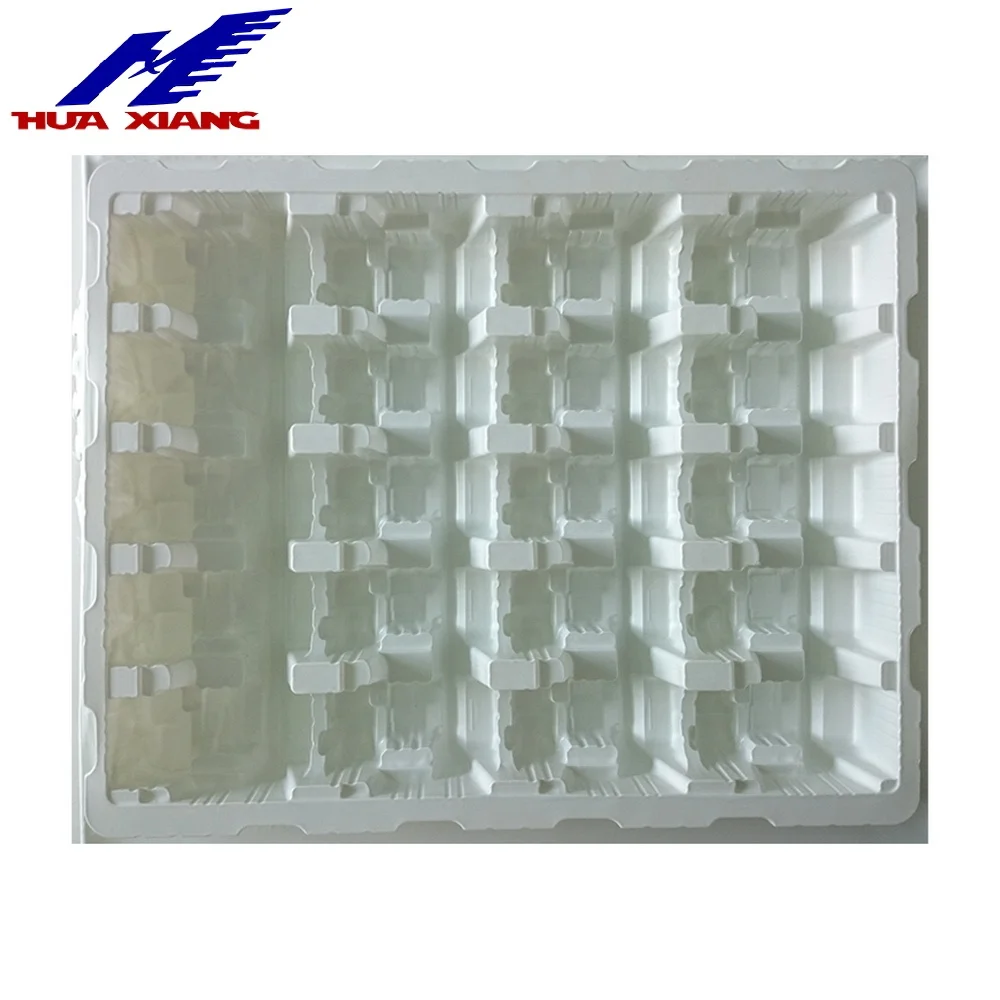

Sample Show

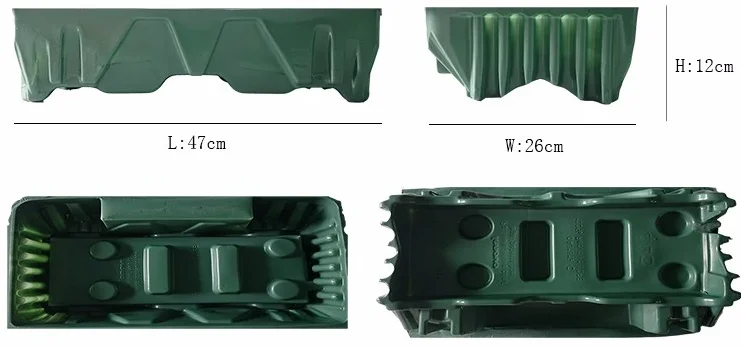

PE sample
Material: PE-LD,Thickness: 1mm
Speed: 20s/cycle, 4 pcs/cycle

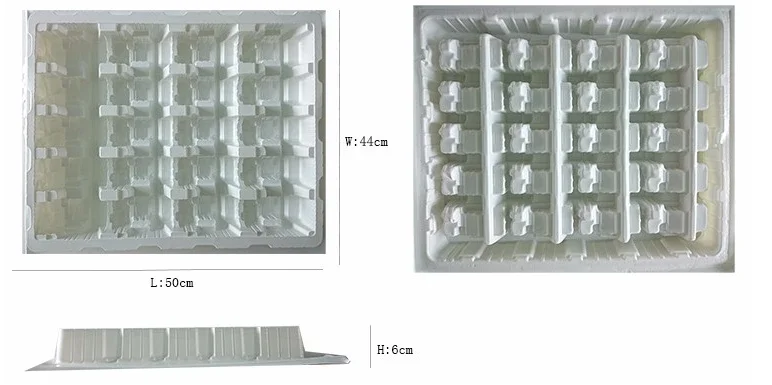

PS sample.
Material: PE-LD,Thickness: 0.7mm
Speed: 10s/cycle, 2 pcs/cycle

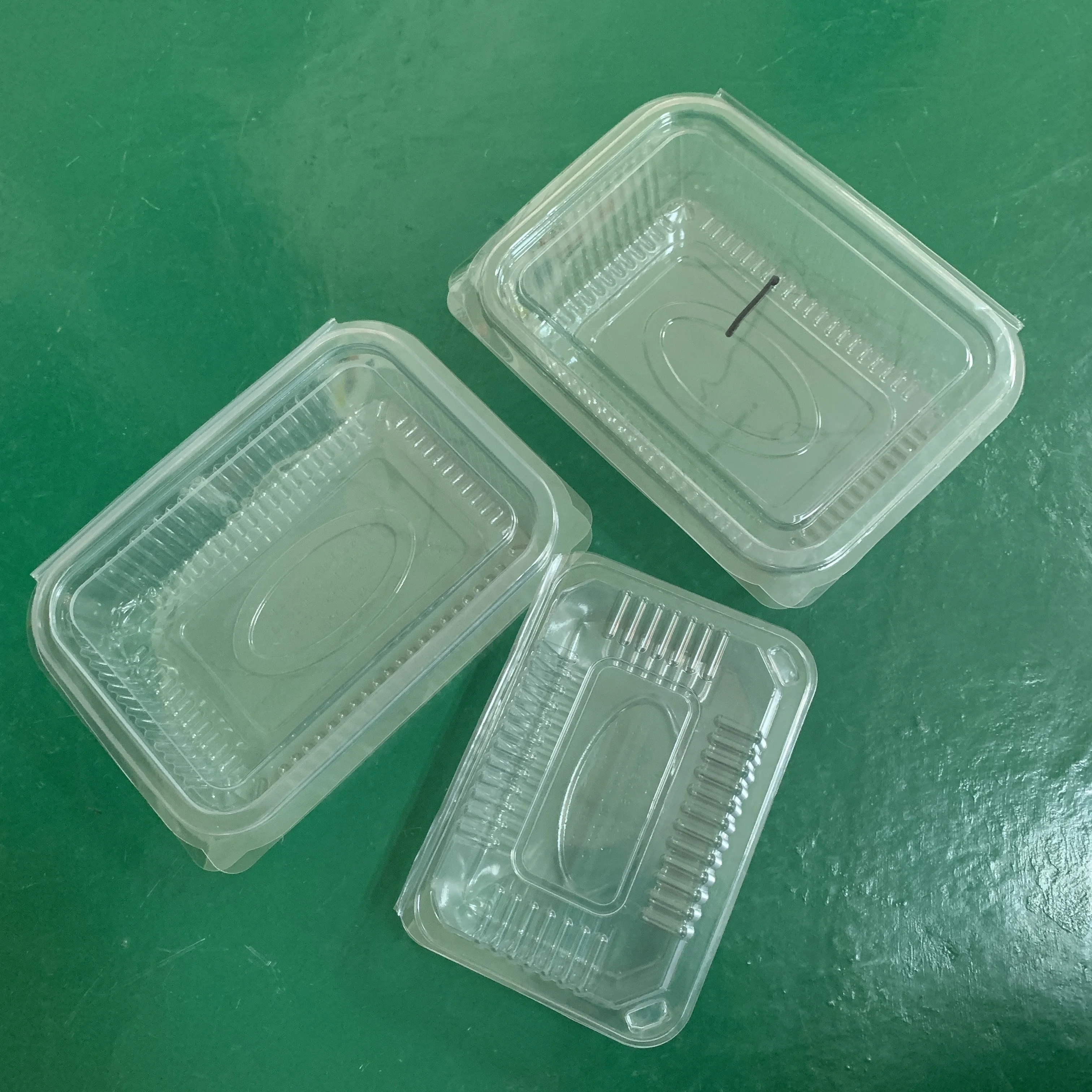

PET Fruit box
Material:PET, thickness:0.4mm;
Speed:10s/cycles, 12 pcs/cycle
PE foam tray
PE FOAM, Thickness:0.8mm,
Speed:3s/cycle.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Personality customization owns diverse selection
1. Efficiency can also be enhanced through personalization.
2. Choose differnet colour and configuration
3. Our company is focused on the thermoforming industry, with high quality innovation products and personalized strategy to improve our standard.
Factory Info
Shenzhen HuaXiang Factory Co. , Ltd is a diversified export-oriented enterprise integrated with technology, industry and trade. Established in 2005, is the largest enterprise specializing in the production of Vacuum Forming Machine. Our machine are used a lot in plastic forming、plastic packaging field;
