chinese ck6180 cnc lathe machine price Chenghai
chinese ck6180 cnc lathe machine price Chenghai

chinese ck6180 cnc lathe machine price Chenghai

Share on (60794043714):


Price:$8,850.00 - $8,880.00

Quantity:


Product Overview

Description


Product Description

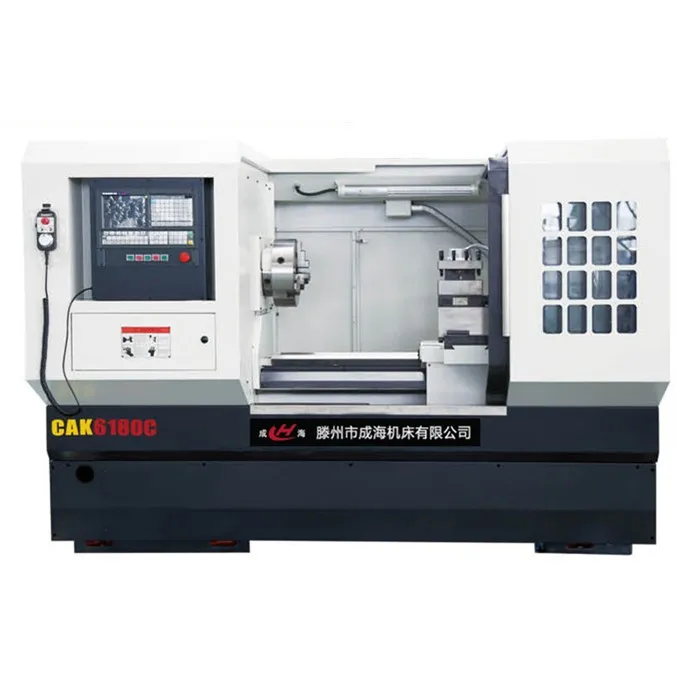

CNC lathe machine

Cartesian coordinate system is the right hand right Angle coordinate system, the basic coordinate for the X, Y, Z coordinates, as shown in the figure below, the provisions of the three orthogonal axes X, Y, Z direction, the coordinate system of the coordinate axes and the machine tool main guide in parallel.According to the right hand helix rule, we can determine the direction of rotation coordinates A, B and C.


\t
main technical parameter
\t
unit
\t
                                          ck6180
\t
       Max working turning diameter of bed
\t
mm
\t
800
\t
The max working turning diameter on the pallet
\t
mm
\t
600
\t
Maximum diameter of rotation across the drag plate
\t
mm
\t
550
\t
Max workpiece length
\t
mm
\t
1500-6000
\t
Diameter of main shaft through hole
\t
mm
\t
105
\t
Spindle end dimensions
\t
NO.
\t
D11
\t
taper hole of spindle
\t
\t
metric system1:20
\t
Spindle speed range (series)
\t
mm/min
\t
40-1000rpm(Three gears automatic transmission)
\t
Rapid movement speed
\t
mm
\t
6/10
\t
 Minimum input unit
\t
mm
\t
0.001
\t
Tool quantity
\t
mm
\t
4
\t
Tool body size
\t
mm
\t
32*32
\t
Tool exchanging time
\t
s
\t
2
\t
Taper of tailstock sleeve
\t
\t
MT6
\t
Puppetheadcentre range
\t
mm
\t
230
\t
positionaI accuracyX/Z
\t
mm
\t
0.015
\t
Repeat positionaI accuracyX/Z
\t
mm
\t
0.006
\t
Spindle motor power
\t
kw
\t
11kw
\t
Chuck clamping mode
\t
\t
Manual clamping
Certifications

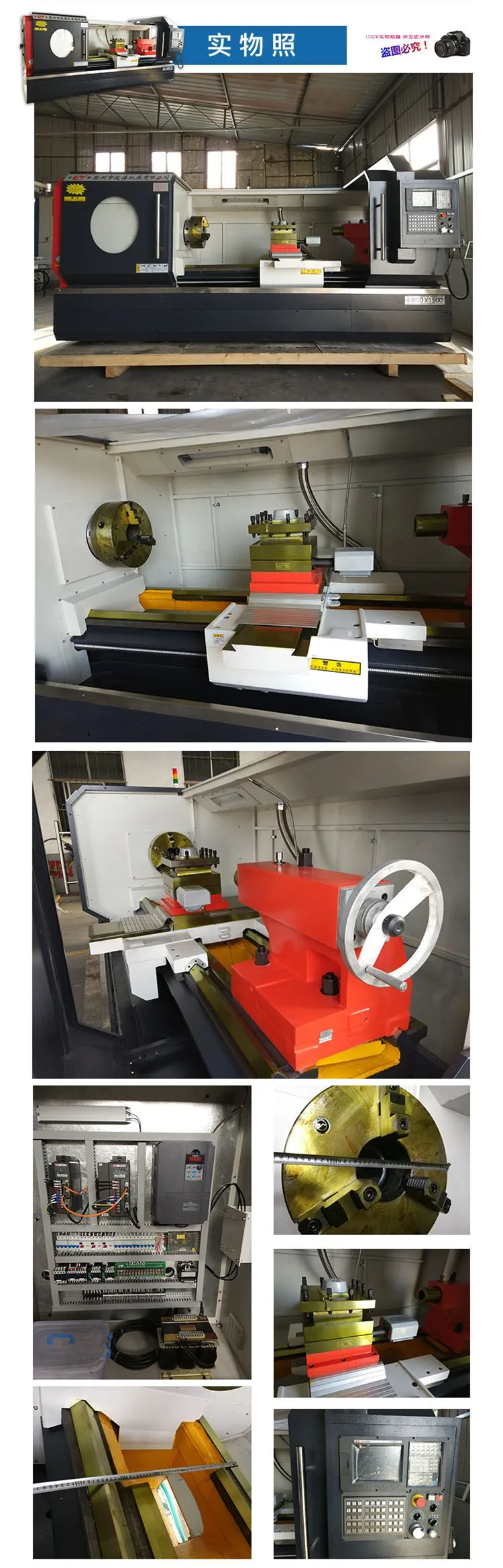

Detailed Images
Our Service

Pre-Sales Service


* We are providing ustomized service for our customer,
our engineer will design according to your require.

* Machine drawings are available.

* Configuration is optional.

* technical support every day.

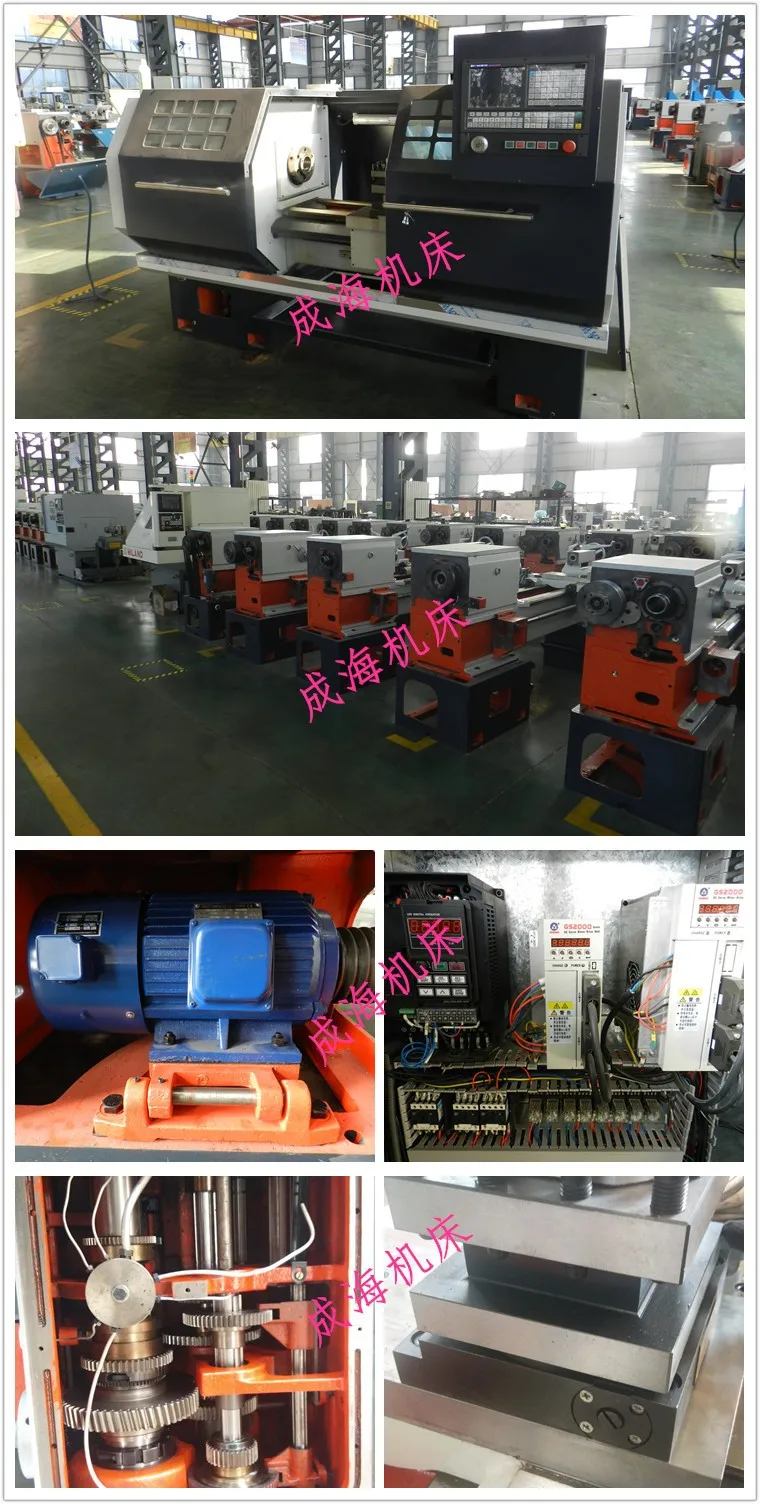

* View our factory.

Selling service:

* We will send to you pictures or documents to you. Including material purchase,machining parts,production,test,packaging,loading.


* We will training your staff before shipping.


* Sending all the documents to you ASAP.


After-sale service:


*24-hours technical support by email or on line.


*use friendly english manual for machine operating and maintaining.

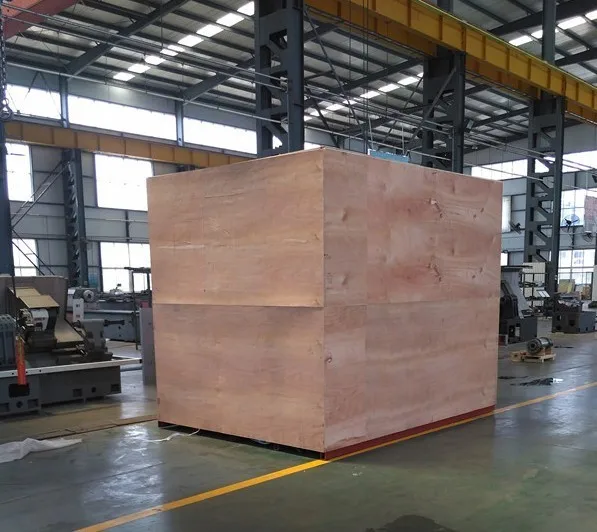

Packing & Delivery
\t
Packaging
\t
Size
\t
2000*1200*1700
\t
Weight
\t
1900kg
\t



Packaging Details
\t
Packaging: 1 set CNC milling machine packed in 1 wooden case.



Delivery: Delivery time should be with 30 days after receiving deposit.



Shipping: Usually by SEA.
FAQ

1.Q:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .


2.Q: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3.Q:Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4.Q:What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: Q:What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6.Q:What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )


Exhibition
