20W 19.2w Meanwell DIN RAIL SMPS KNX 20E 640 640mA 30V dian rail Power Supply
- Category: >>>
- Supplier: Hangzhou Moonlight Box Technology Co. Ltd.
Share on (60794059514):
Product Overview
Description
More Meanwell led power supply:

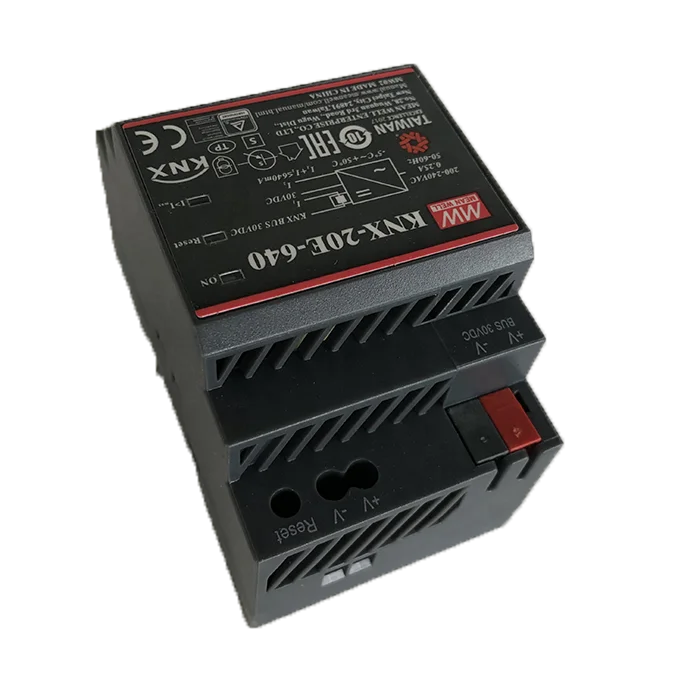

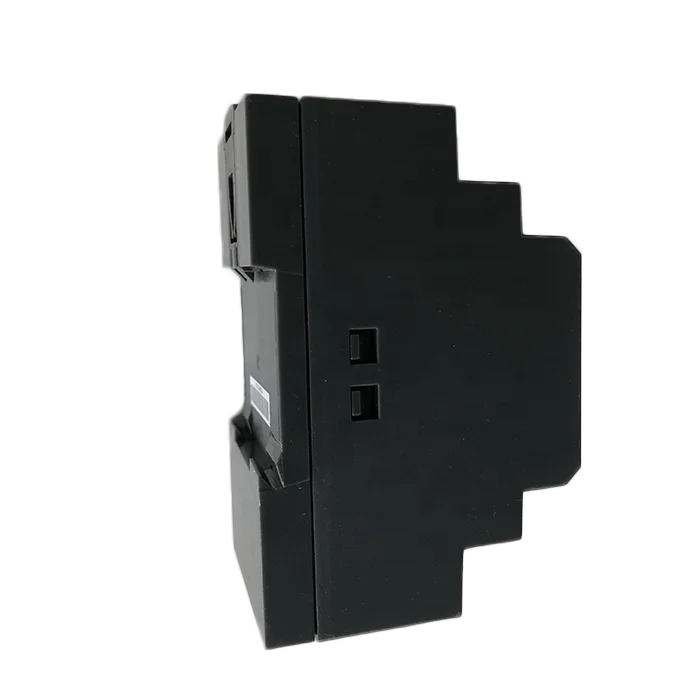

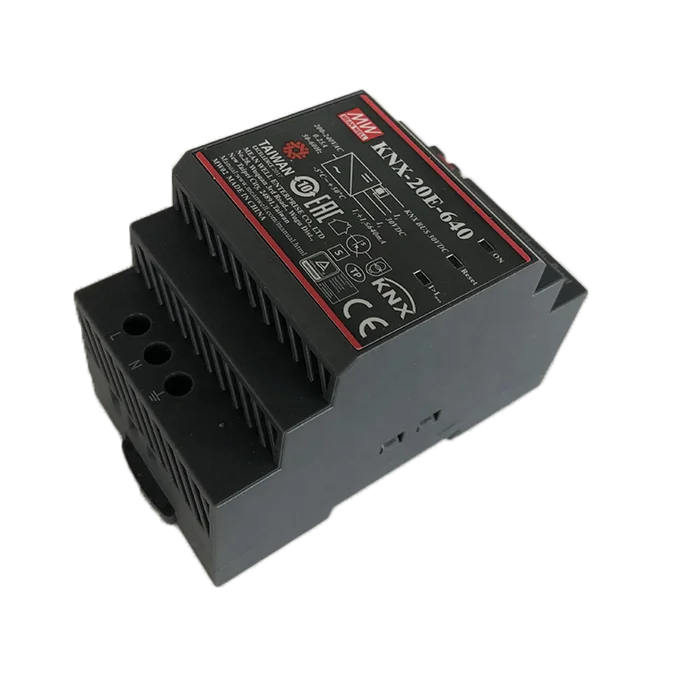

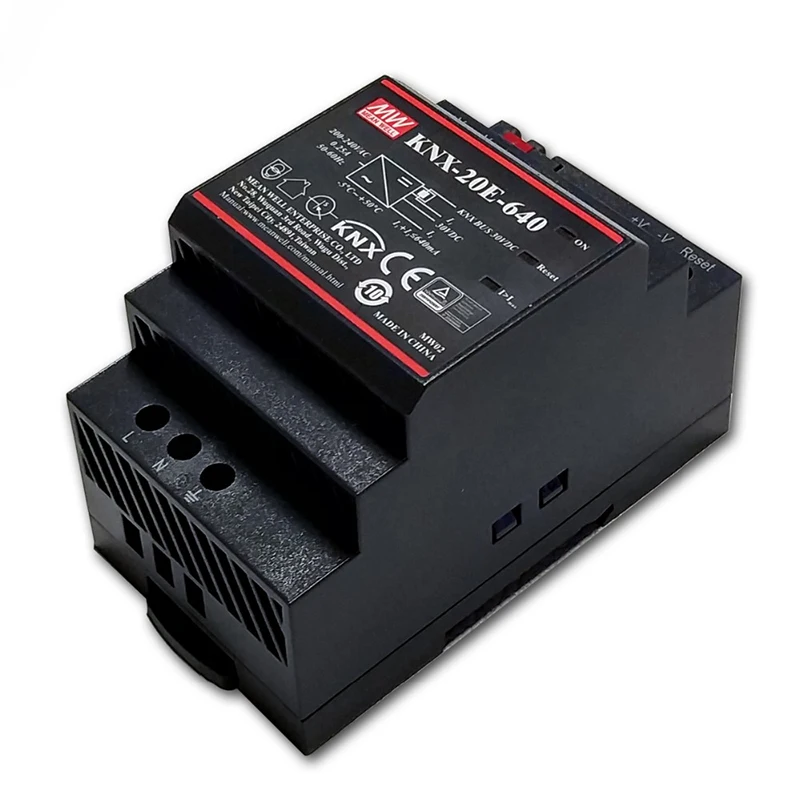

20W 19.2w Meanwell DIN RAIL SMPS KNX-20E-640 640mA 30V dian rail Power Supply
Features:
- Meanwell KNX Power Supply
- Compact size with 3SU (52.5mm) width
- Safety extra low voltage(SELV)
- 180~264VAC input
- No load power consumption <0.5W
- Protections: Short circuit / Overload(short-circuit-proof) / Over voltage
- Cooling by free air convection
- Isolation class I
- LED indicator for normal operation. bus reset and bus overload
- Can be installed on DIN rail TS-35 / 7.5 or 15
- 100% full load burn-in test
- 3 years warranty
Applications:
- Intelligent home control
- Modern building automation
- Lighting control
- HVAC system
- Security system
- Blinds and shutters
- Monitoring systems
- Energy management
- Alarm monitoring
| Model | KNX-20E-640 | |
| Output | BUS OUTPUT VOLTAGE WITH CHOKE | Bus,30V (KNX black/red terminal block) |
| DC OUTPUT VOLTAGE WITHOUT CHOKE | 30V | |
| RATED CURRENT | 640mA | |
| RATED POWER | 19.2W | |
| RIPPLE & NOISE | 100mVp-p | |
| SHORT CIRCUIT CURRENT | 1.4A | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC at full load | |
| AC MAINS FAILURE BACK-UP TIME | 200ms/230VAC at full load | |
| Input | VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY | 86% | |
| AC CURRENT | 0.22A/230VAC | |
| INRUSH CURRENT | COLD START 40A/230VAC | |
| LEAKAGE CURRENT | <1mA / 240VAC | |
| PROTECTION | OVERLOAD | 205 ~ 235% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 33 ~ 35V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C , 10 ~ 95% RH | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| TYPE OF PROTECTION | IP20 design | |
| SAFETY & EMC | SAFETY STANDARDS | EN61558-1,EN61558-2-16 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |
| EMC EMMISION | Compliance to EN50491-5-2,-5-3;EN50491-3;EN61000-3-2,-3-3 | |
| EMC IMMUNITY | Compliance to EN50491-5-2,-5-3;EN61000-4-2,3,4,5,6,8,11, heavy industry level, criteria A | |
| OTHERS | MTBF | 109K hrs min. MIL-HDBK-217F (25°C ) |

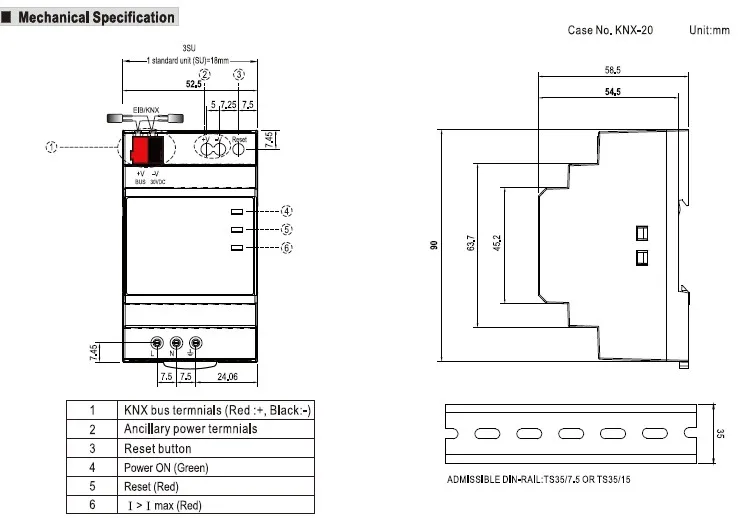

| DIMENSION | 52.5*90*54.5mm (W*H*D) | |
| MOUNTING | 0.215Kg ; 60pcs/13.9Kg | |
View detail information about the item,Please send quote request
FAQ
1. What is the warranty of the driver?
-- It's 3 years warranty
2 .What is MOQ of the led driver?
--1pcs
3.Can we get samples for testing?
-- Yes,sample order welcomed.
4.What is delivery of the sample and bulk order?
-- 7working days for samples, 15-25days for the bulk order after receiving payment.
5.What is the payment?
--Paypal,T/T in advance,LC,western Union,visa,credit card,MoneyGram,30% deposit,70% against documents.
USD, EURO are acceptable here.
6.How to delvery the samples and bulk order goods?
-- By DHL,UPS,FedEX,TNT,EMS for samples,
-- By air or by sea for bulk order
