4 Channel Optical Fiber CWDM MUX Demux , Passive CWDM Device For Line Monitoring
4 Channel Optical Fiber CWDM MUX Demux , Passive CWDM Device For Line Monitoring

4 Channel Optical Fiber CWDM MUX Demux , Passive CWDM Device For Line Monitoring

Share on (60794064404):


Price:$39.90

Quantity:


Product Overview

Description

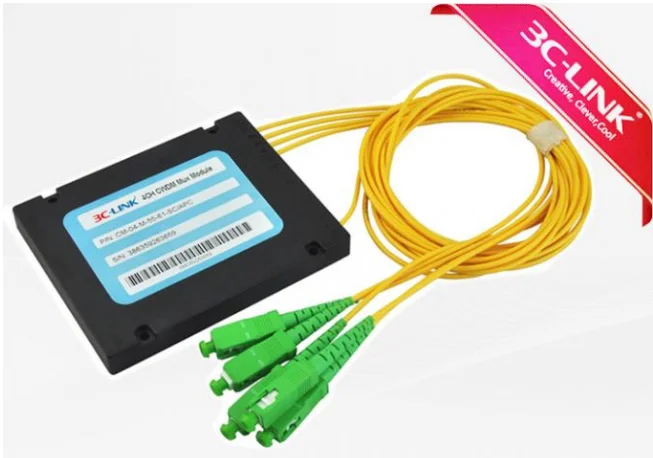

 4 Channel passive Optical Fiber CWDM MUx/Demux





        3c-Link's Coarse wavelength division multiplexer (CWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provide slow insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . 3c-Link's products are Telcordia qualification tested.





Features


*   Low Insertion Loss


*   Wide Pass Band


*   High Channel Isolation


*   High Stability and Reliability


*   Epoxy Free Optical Path

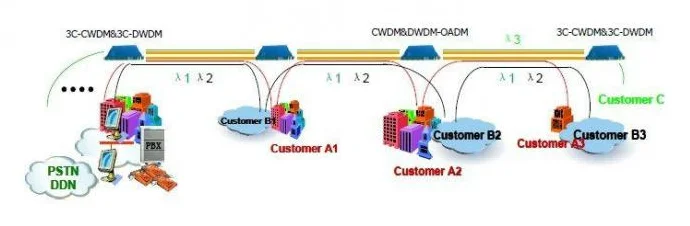

Application


 *   Line Monitoring


*   WDM Network


*   Telecommunication


*   Cellular Application


*   Fiber Optical Amplifier


*   Access Network



















































































ParameterMUXDEMUX
Operating Wavelength (nm)1470,1490,1510,1530,1550,1570,1590,1610
Center Wavelength Accuracy (nm)± 0.5
Channel Spacing (nm)20
Channel Passband (@-0.5dB bandwidth) (nm)>13
Insertion Loss Over Passband (Exculding Connectors) (dB)<3.5
Channel Uniformity (dB)< 1.0
Channel Ripple (dB)< 0.5
Isolation (dB)AdjacentN/A>30
Non-adjacentN/A>40
Polarization Dependent Loss (dB)< 0.10
Polarization Mode Dispersion (ps)< 0.1
Directivity (dB)>50
Return Loss (dB)>45
Power Handling (mW)300
Operating Temperature (°C)0 ~ +70
Storage Temperature (°C)-40 ~ +85














CWDM Adapter: LC,SC, FC,ST ( can be optional)

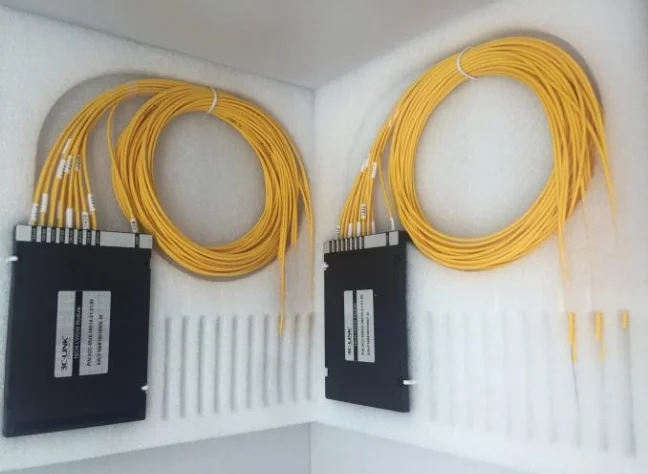

Passive CWDM Device for Line Monitoring
