High Performance Industrial Single Acting 100 Ton Hydraulic Jack
- Category: >>>
- Supplier: Pingyuan Jingke Hydraulic Co. Ltd.
Share on (60794103458):
Product Overview
Description

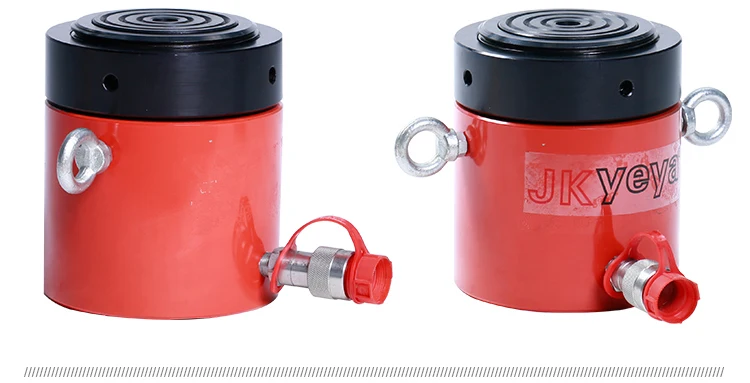

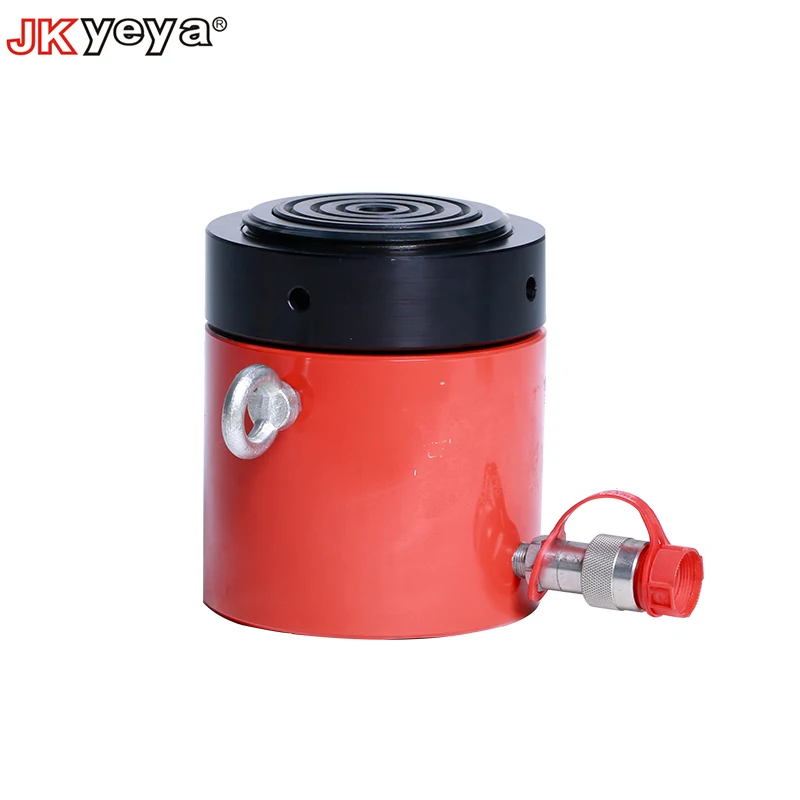

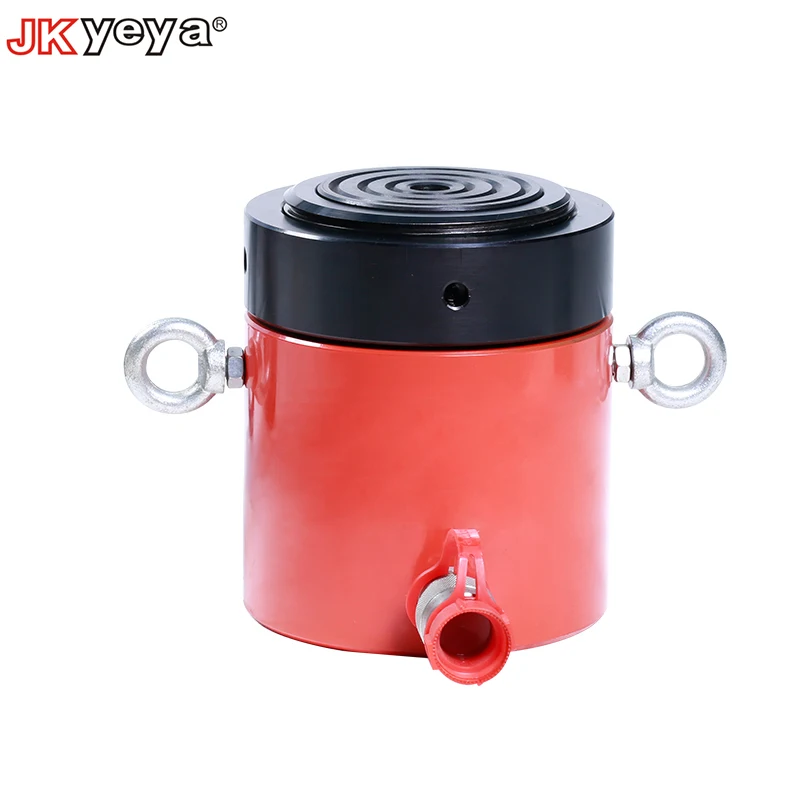

High Performance Industrial Single Acting 100 Ton Hydraulic Jack
Product Description

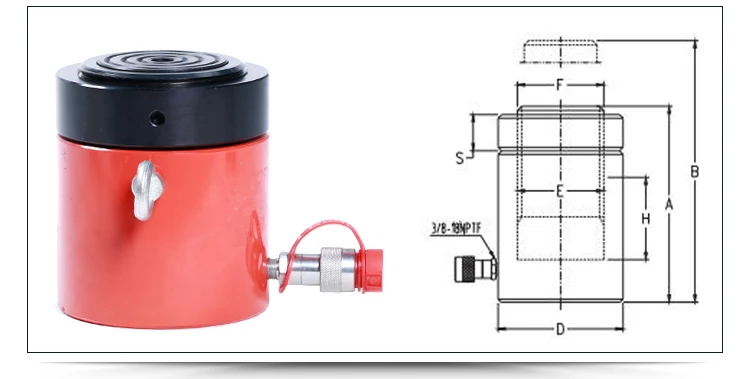

Cylinder Capacity ton | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
Stroke H(mm) | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
Model | CLL5 | CLL10 | CLL15 | CLL20 | CLL25 | CLL30 | CLL40 | CLL50 |
Effective Area cm² | 70.9 | 132.7 | 200.9 | 268.6 | 362.8 | 452.2 | 551.2 | 731.1 |
Oil Capacity cm³ | 2127 | 3981 | 6029 | 8060 | 10886 | 13565 | 16538 | 20930 |
Height A(mm) | 414 | 437 | 459 | 493 | 499 | 545 | 585 | 625 |
Extended Height B(mm) | 714 | 737 | 759 | 793 | 799 | 845 | 885 | 925 |
Outside Diameter D(mm) | 125 | 165 | 207 | 237 | 275 | 310 | 350 | 400 |
Cylinder Inside Diameter E(mm) | 95 | 130 | 160 | 185 | 215 | 240 | 265 | 305 |
Diane Reid Piston Plunger (bolt thread) F(mm) | Tr95x4 | Tr130x6 | Tr160x6 | Tr185x6 | Tr215x6 | Tr240x6 | Tr265x6 | Tr305x6 |
Height of Nut lock S(mm) | 38 | 45 | 47 | 52 | 58 | 65 | 75 | 85 |
Weight (kg) | 40 | 73 | 117 | 170 | 234 | 323 | 441 | 617 |
Product Feature
1.Single-action and loaded retraction
2.Nut lock provides safer loading.
3.Spill hole partly functions to limit the range of stroke.
4.The CLL-Series is able to absorb an eccentric load of 5% of the rated bearing capacity of the hydraulic cylinder.

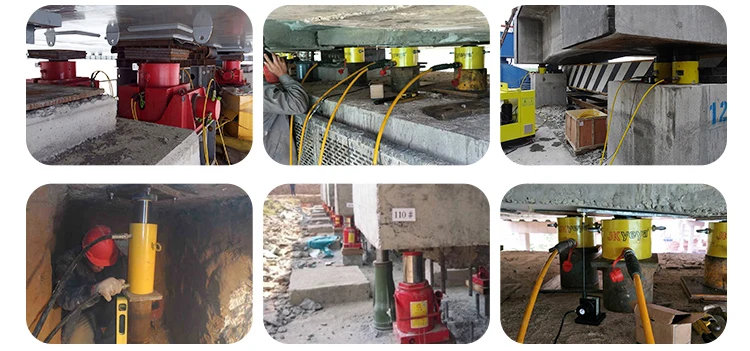

Product Application
Our Product
Company Information
PINGYUAN JINGKE HYDRAULIC CO., LTD. Was established in 2005, located in the northwest of shandong, close to beijing-shanghai high-speed railway. With 20 years experience research, design and manufacturing of Hydraulic wrench, Hydraulic pump, Hydraulic bolt tensioner, PLC synchronous lifting systerms, hydraulic cylinders, puller tool, Ect. Our enterprise philosophy "striving for excellence, casting quality, science and technology first, striving for industry pioneer". We have professional research and development team, advanced production testing equipment and high-quality technical staff. We continues to innovate research, scientific fine management, guaranteed continuous improvement of product quality.In order to ensure the reliability of precision and reduce the failure rate, we pass Control design - production experiment - transportation of each intermediate link and conduct a large number of experiments on newly developed products to verify the properties to ensure the quality. Quality wins the future, service creates value, continuous innovation of technology and strict scientific management are the basis of enterprise survival. Excellent quality and first-class service are our forever pursuit.
Packaging & Shipping
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or 15-20 days if no stock, depending on quantity.
Q3: What are your terms of payment ?
A3: Payment <=10000USD, 100% in advance. Payment >=10000USD, 50% T/T in advance ,balance before shipment.
Q4: How can I contact the sales?
A4: Please call at 0086 17629094893 for presales services or check homepage email
Q5: How can I buy JINGKE products in my country?
A5: Please send us an inquiry or email. We will reply to you if there are distributors in your country.
Q6: Can I have JINGKE products catalogs and price lists?
A6: Please visit our website(//www.jk-hydraulic.com) to download our Ecatalog, and send us an email for price lists.
