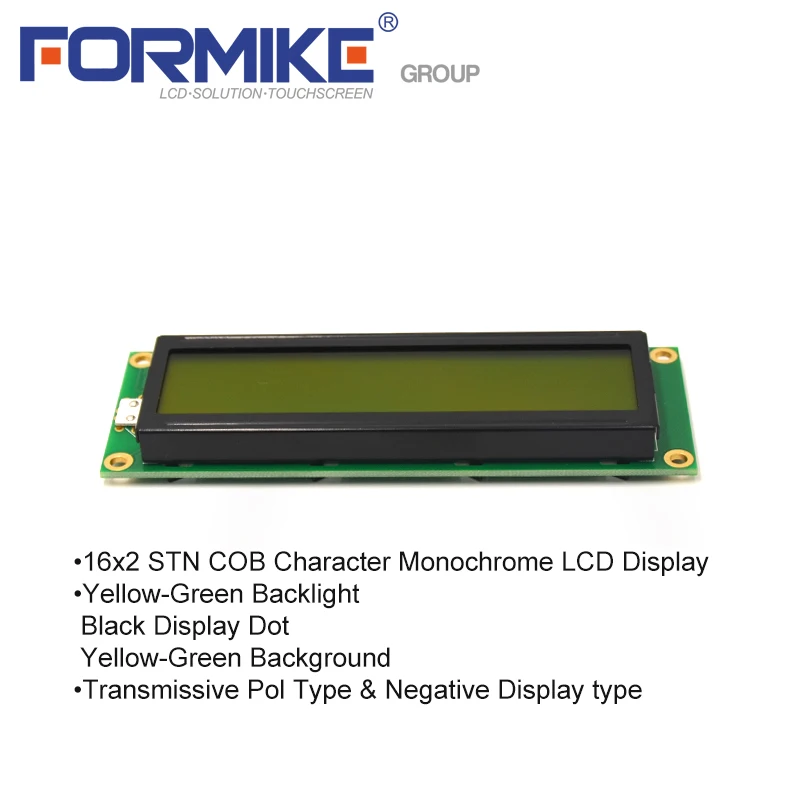

Monochrome LCD 1602 Front Character LCD Screen 16 x 2 LCD Display Module
- Category: Character Display >>>
- Supplier: Formike Electronic Co. Ltd. (Dongguan)
Share on (60794134594):
Product Overview
Description

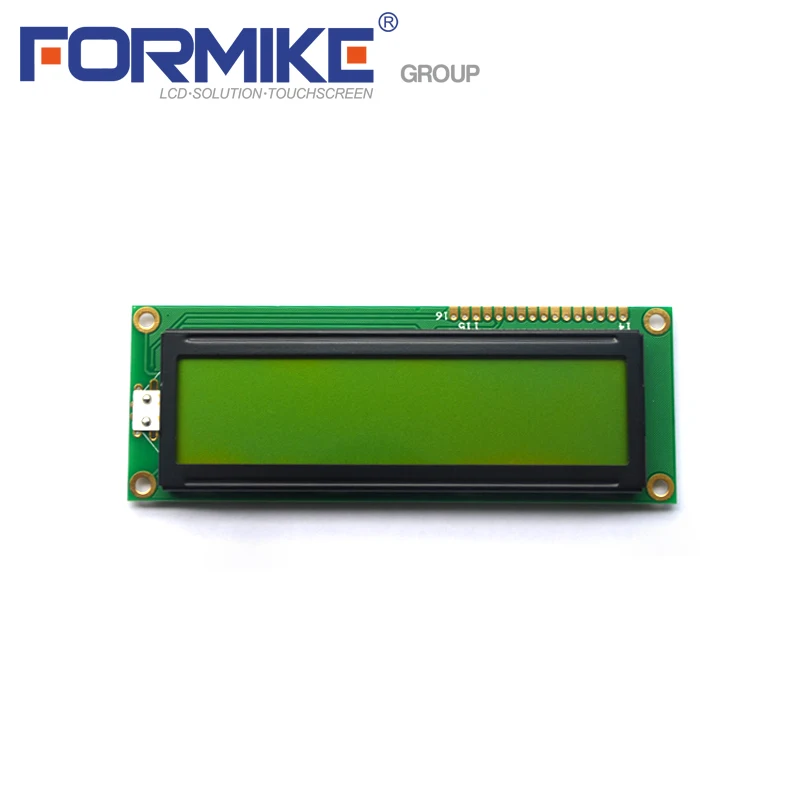

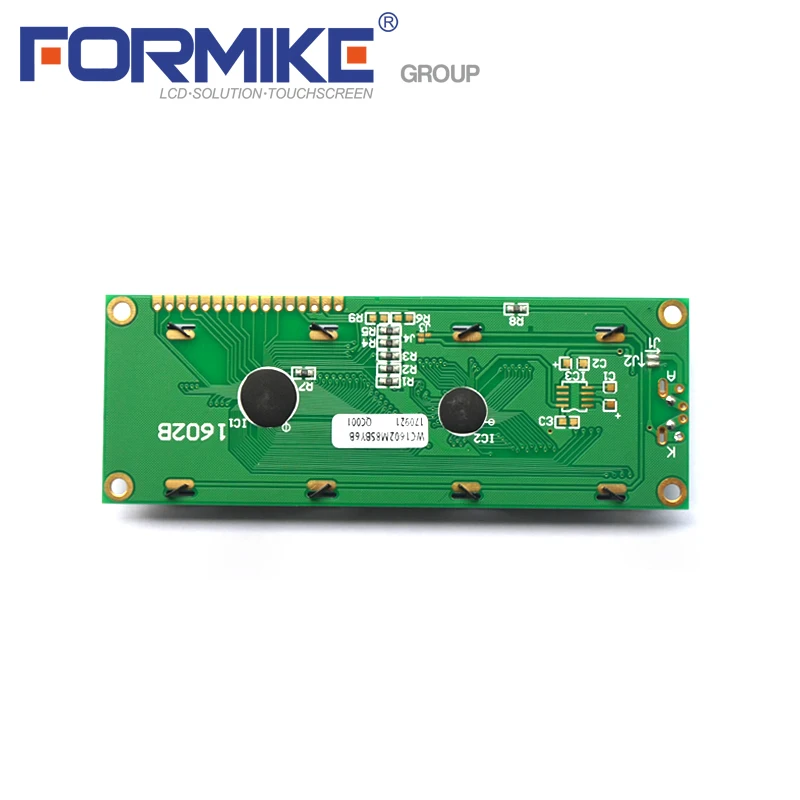

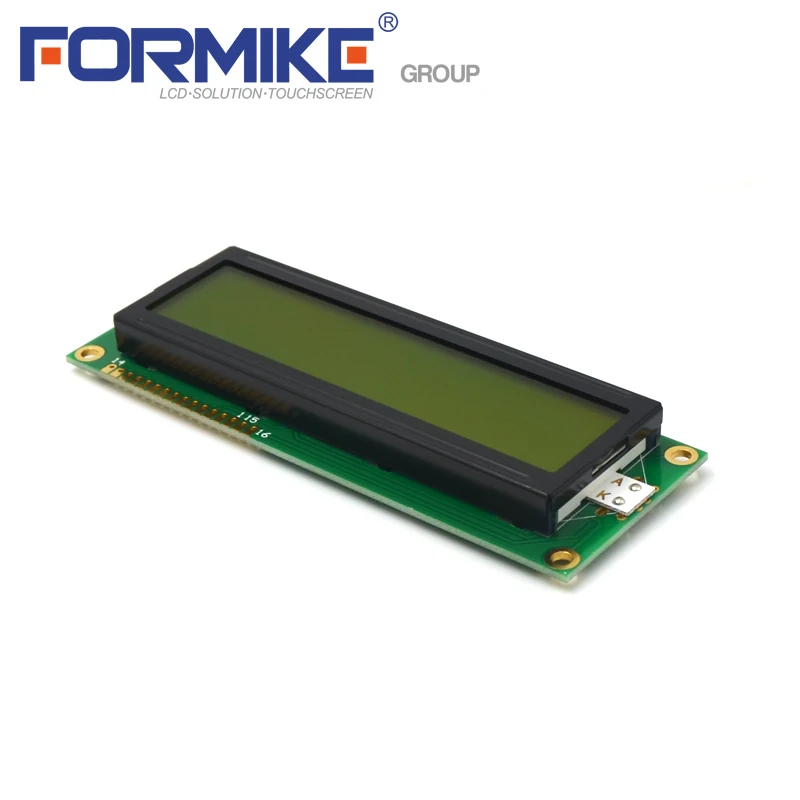

Monochrome LCD 1602 Front Character LCD Screen 16 x 2 LCD Display Module
| LCD Name | Monochrome LCD 1602 Front Character LCD Screen 16 x 2 LCD Display Module | ||
Display Format | 16character*2 line | Display Mode | STN, Transmissive, Negative |
LCD Color | Display dot : Black | Display Type | Character COB |

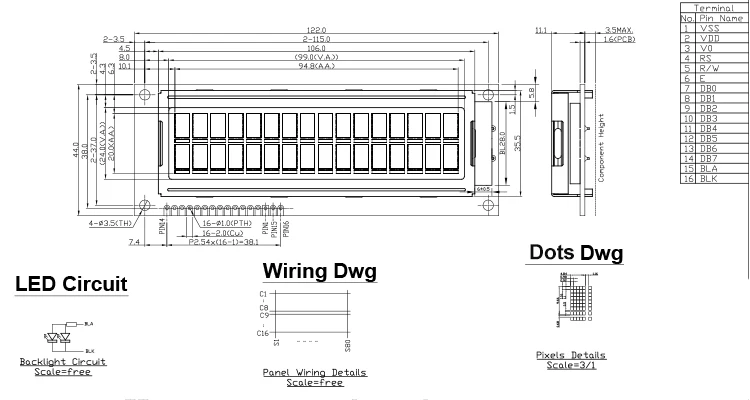

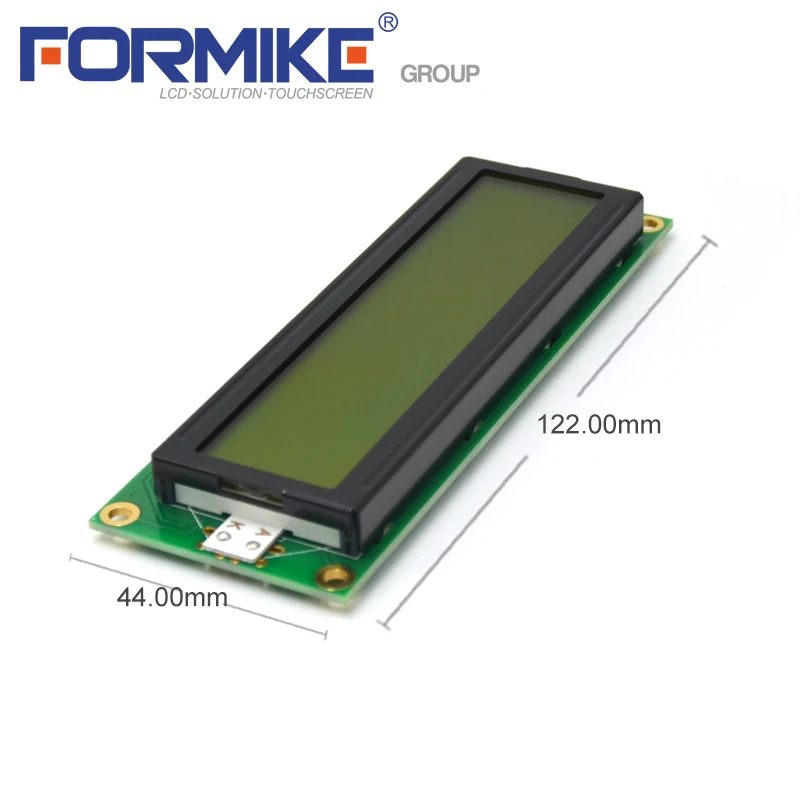

Outline Dimension | 122.0(W) x44.0(H) x 13.5(T) mm | Viewing Area | 99.0MIN(W) x24.0MIN(H)mm |
| Drive IC | ST7066U-0A | Pin No. | 16 Pin |
Viewing Direction | 6 O’clock | Interface Input Data | MPU |
Backlight | Yellow-Green | Driving Method | 1/16 Duty, 1/5 Bias |
Operating Temp. | 0℃~+50℃ | Storage Temp. | -20℃~+70℃ |
 |  |  |
Related Products

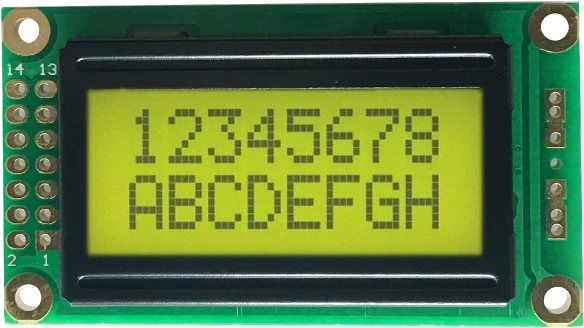

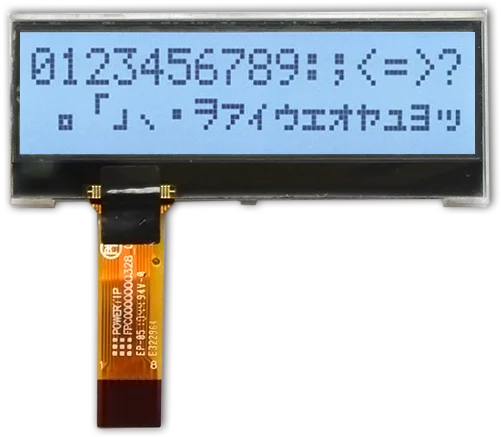

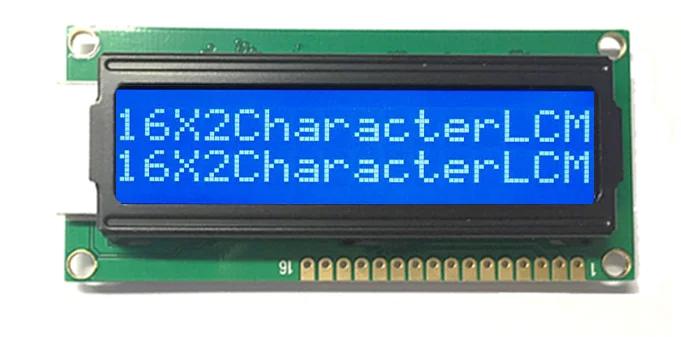

| Model | WC1602A1SGW6B-D | WC1602U8FSW7G | WC2004Y3SGW7B-T | WC0802Z3SAN1B |
| Picture |  |  |  |  |
| Display Mode | STN, Negative,Transmissive Character, COB | FSTN, Positive,Transflective Character, COG | STN, Negative,Transmissive Character, COB | STN, Positive,Reflective Character, COB |
| Display format | 16x2 | 16x2 | 20x4 | 8x2 |
| Viewing Direction | 6 O’clock | 12 O’clock | 12 O’clock | 6 O’clock |
| Color | Display dot :White Background:Blue Backlight:White | Display dot :Black Background:White Backlight:White | Display dot :White Background:Black Backlight:White | Display dot :Black Background:Yellow-Green Backlight:Without |
| Module Size(mm) | 80.0x36.0x12.5 | 66.0x26.5x5.2 | 146x62.5x14.0 | 58.00*32.00*8.9 |
| Viewing Area(mm) | 64.5(W) x16(H) | 62.0(W) x16.0(H) | 123(W) x43(H) | 38.0 (W)*16.0(H) |
| Dot Pitch(mm) | 0.6(W) X 0.7(H) | 0.60(W) X 0.65(H) | 0.93(W) X 1.1(H) | 0.56(W) X 0.66(H) |
| Interface | 4-bit or 8-bit MPU | I2C | 8 bit or 4 bit 6805 or Z80 | 4-bit |
Company Information
FORMIKE is an enterprise integrating R&D, production and sales. its has a team of more than 300 people, a production line and office space of more than 200 million square meters, rich R&D experience, advanced equipment, and exquisite workmanship. It provides OEM&OEM services for customers all over the world.
Contact us today for more coopearion.
Formike Group, the leading supplier of TFT LCD Display, Monochrome LCD, Segment LCD, OLED Display, Wifi Module, Cell Phone Parts, Smart Watch and Smart Bracelet industry.We engage in developing and manufacturing related products and solution over 22 years experience.Our products are widely used in smart homes, intelligent buildings , smart hotel, smart park, smart health, smart security, smart travel and other fields.Rich experience and friendly communication make sure that the best solution of customized or semi-custom can be done in short time.
Formike has strong technical strength , provide integrated software and hardware solutions. and More than 20% of the company's employees are experienced and experienced technical researchers. We have automatic SMT high-speed production line, wave soldering plug-in line, test line, aging room, shielding room, assembly line, packaging line, quality laboratory and other equipment and facilities.
Backed up by other full advanced production equipment and production technology, we provide support for various domestic and overseas famous clients from USA, Europe, and Asia, etc.
We are certified to the ISO9001 & ISO14001 successfully.The annual production capacity reaches 500,000,000 pieces.All of our products are RoHS, CE, FCC compliant.
We are committed to creating maximum values for clients. We support Customize LCD accroding to your demand.Whether selecting a current product from our catalog or seeking for engineering assistance, you are more than welcome to contact us.
| Package | Standard carton, corrugated paper+outer carton. |
Lead Time | In Stock: 3~8 working days. No Stock: LCD / LCM Products——5~8 weeks; Wifi Module Products——2~5 weeks; Mobile Phone Spare Parts Products——1~3 weeks; Smart Watch Products——2~5 weeks. |
| Payment | Cash; In advance; Net 30 days.
|
| Shipping Term | EXW / FOB |
| Shipping Way | By air/sea/courier |
| Please feel free to contact us now, thank you! | |
FAQ
1.Q: Order process
A:PO is placed by client → PI is issued by Formike → Payment by client → Lead time is
confirmed by Formike → Shipping Doc. is provided by Formike → Shipping instrction by Client → Delivery → Cargo tracking → Receipt of cargo
2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days
Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty since Delivery Day
5.Q:RMA Process
A:Claime issued by client with photos or videos → QA of Formike confirm the claim → RMA No. provided by Formike → Analysis report provided by Formike in 5~10 working days after defective is received → The two parties will discuss the report, if necessary → Proceed as per the final report.
