Cold shrinkable tubing EPDM cold shrink tube cable protective sleeve similar to 3M 8428 6 8428 12 8428 18 8428 24

Description.

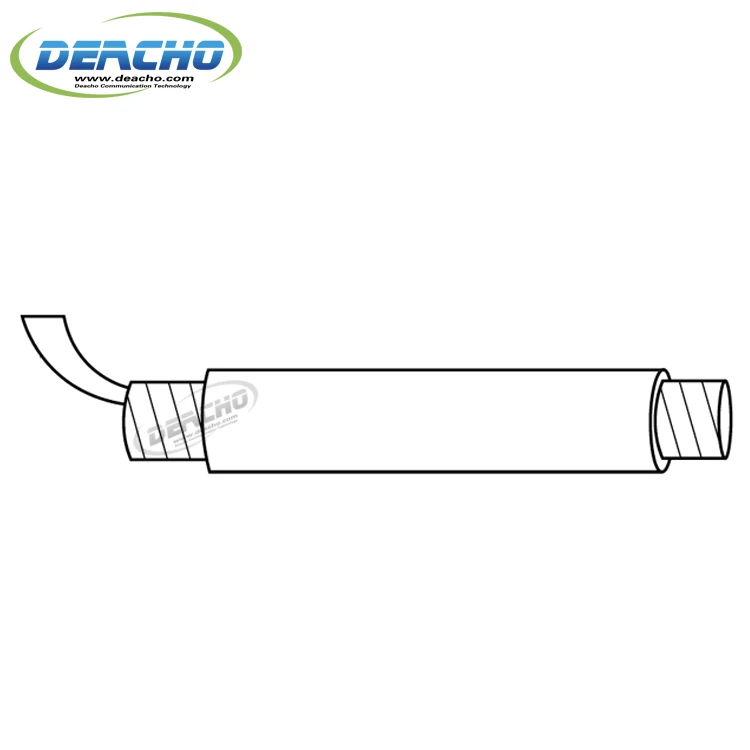

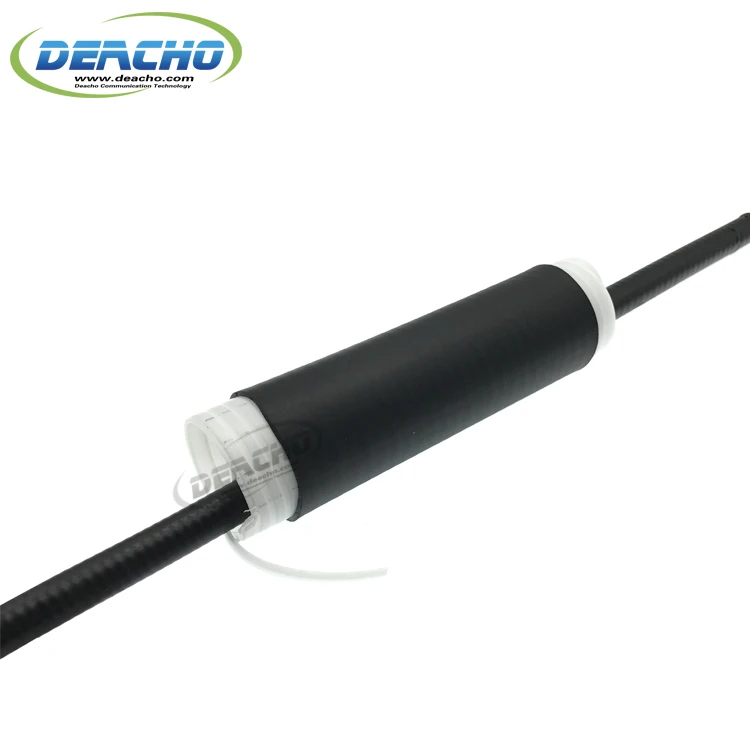

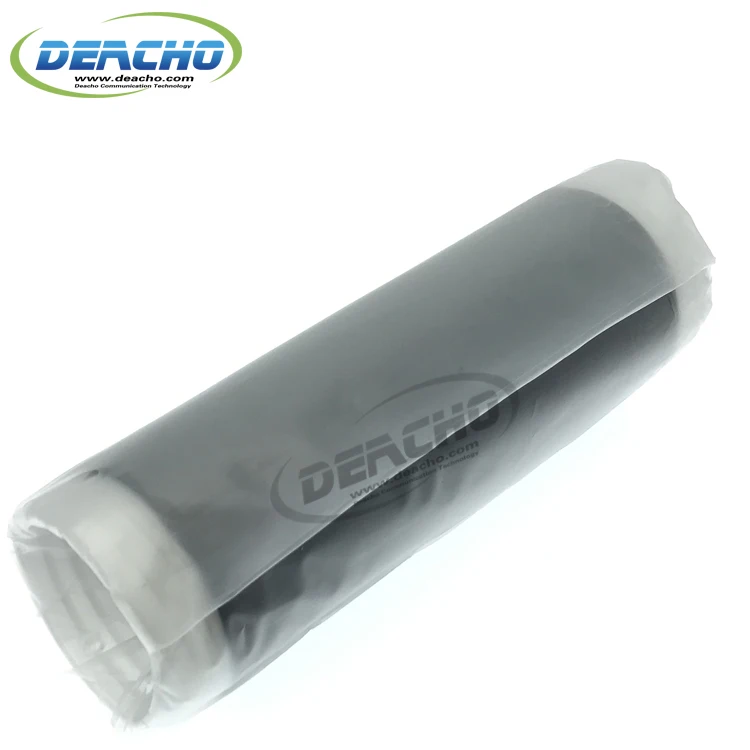

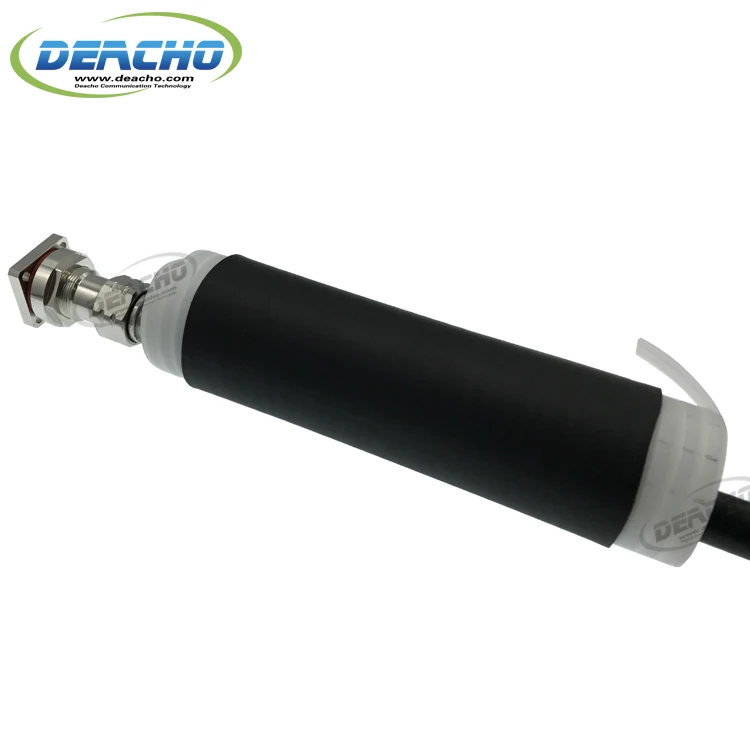

EPDM Cold Shrink Tubes are designed to provide a quick and easy method for protecting and sealing for an inline connection, terminal lug, etc., cold shrink tubing is an open-ended tubular rubber sleeve which is factory expanded and assembled onto a removable core.

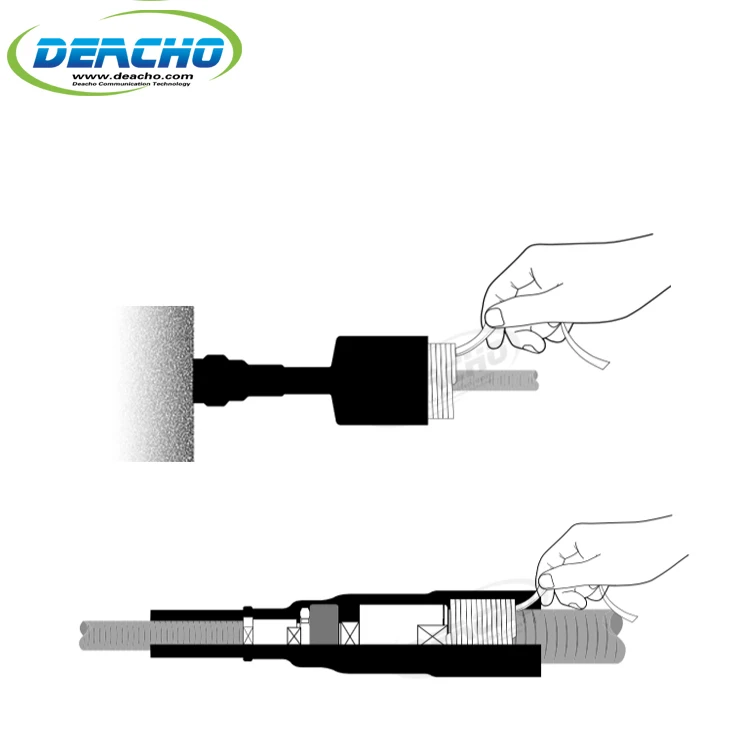

The core is removed after the tube has been positioned for installation, allowing the tube to shrink and form a water-resistant seal.
Cold shrink tube are made from EPDM rubber which does not contain chlorides or sulfur.

If the cable diameter is out of application range, a foam tape will been included is to increase the smallest cable diameter and assure the sealing of the clod shrink tube.

Feature & Advantages.

• Simple installation; requires no tools,No torches or heat required.

• Accommodates a wide range of cable sizes
• Good thermal stability
• Seals tight; retains its resiliency and pressure even after prolonged    years of aging and exposure
• Excellent wet electrical properties
• Tough rubber formulation withstands backfilling
• No mastic or tape required to seal
• Resists acids and alkalis; resists ozone

• Voltage classes: 1000V

Structure and Size.

Item No.: ECS58X152, ECS58X305,  ECS58X457, ECS58X610
Material: EPDM rubber
Include: tube x1

Inner diameter of plastic core as supplied-D2: 58 mm
Length after full shrink (nothing inside)-L: 152/305/457/610 mm
Length as supplied-L1: 140 / 280 / 430 / 585 ±10 mm
Application range: 24-49.3 mm

Application.

Sheath repairs

moisture sealing

Physical protection

Splicing of all 1000 volts or less inline power cables

Primary electrical insulation for wire and cable rated to 1KV

Technical Datas.
