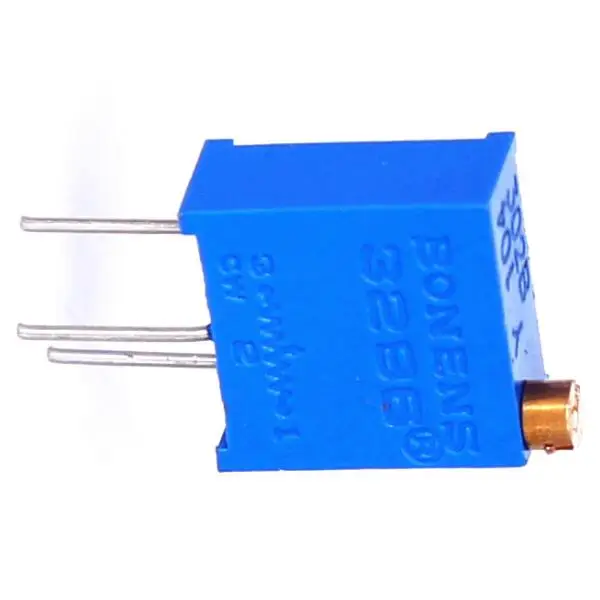

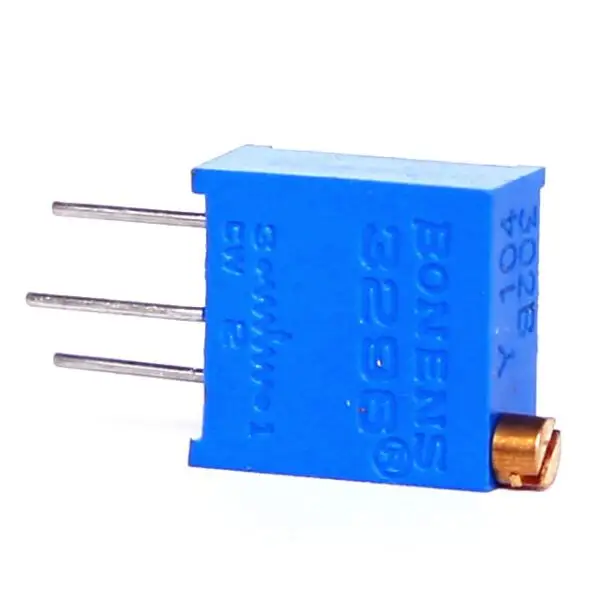

3296Y 1 254LF Trimmer Potentiometer 250k

Product Overview

Description

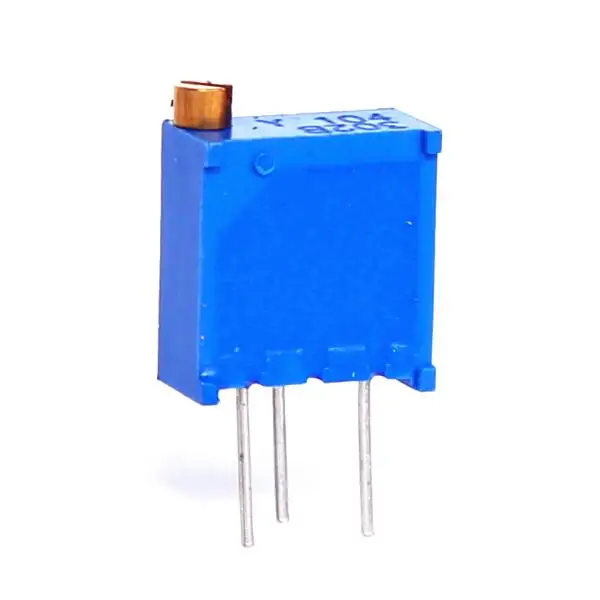

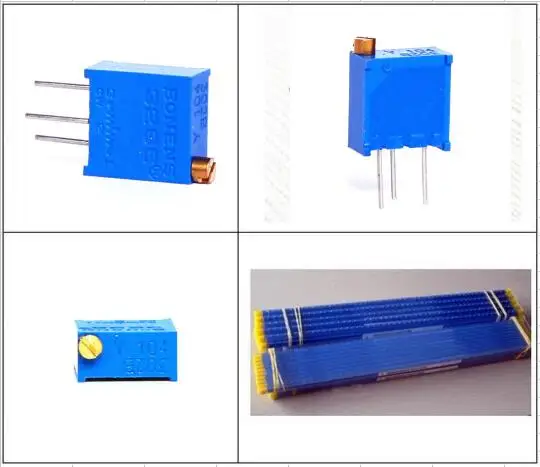

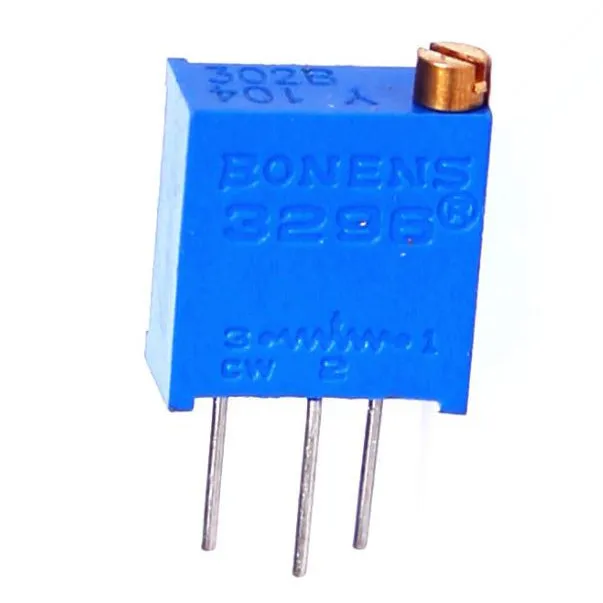

3296Y-1-254LF Trimmer Potentiometer 250k

Electrical  Characteristics			Range of nominal resistance			10Ω~5MΩ
			Resistance tolerance			±10%
			Terminal resistance			≤±1%R or 2Ω
			Contact resistance variation (CRV)			≤±1%R or 3Ω
			Insulation resistance			≥ 1GΩ (100V AC)
			Withstand voltage			640V (DC or AC peak value)
			Effective electrical travel			≥70% of  mechanical travel
Environment  Characteristics			Rated power			0.5W ( 70°C)
			Temperature range			-55°C~+125°C
			TCR			±250×10-6/°C
			Collision (390m/S2, 4000 times)			ΔR≤±1%R
			Vibration (10-500HZ, 0.75mm, 6h)			ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
			Temperature variation (-55°C/30min,  +125°C/30min, 5 cycles)			ΔR≤±2%R,  ΔUab/Uac≤±2%R
			Climate category (IEC68-2-2)			ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
			Electrical endurance (0.5W, 1000h)			ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
			Mechanical endurance (200 cycles)			ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
			Steady damp heat (IEC68-2-3, Ca, 96h)			ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ
Physical  Characteristics			Total mechanical travel			28±2 lap
			Starting torque			≤35mN.m
			Standard package			50 pcs /tube(3296W,3296Y)
						40 pcs /tube(3296X,3296Z,3296P)

Related Models:



About BONENS:

Sichuan Qixing Elctronics Co., Ltd is a specialized enterprise engaging in trimming potentiometers, wire-wound potentiometer series, wire-wound resistor series, and RIG High power resistors. It is a high-tech enterprise appraised by state.



Our products under the "BONENS" brand that have been widely applied in the fields of instruments, meters and apparatuses, post and telecommunications, electricity power, railway signals, aviation and aerospace.

We have attained ISO9001 certificate, and passed the TUV and RoHS, which adheres to the environmental standards of the EU. With excellent product quality, advanced facility, abundant technology, strict management and good service, win customers’ high praise and faith!

Besides our own main products, we are also pleased to offer customers other extra products and service as their requirement, such as any other consumer electronics and quality supervision commissioner in China.
