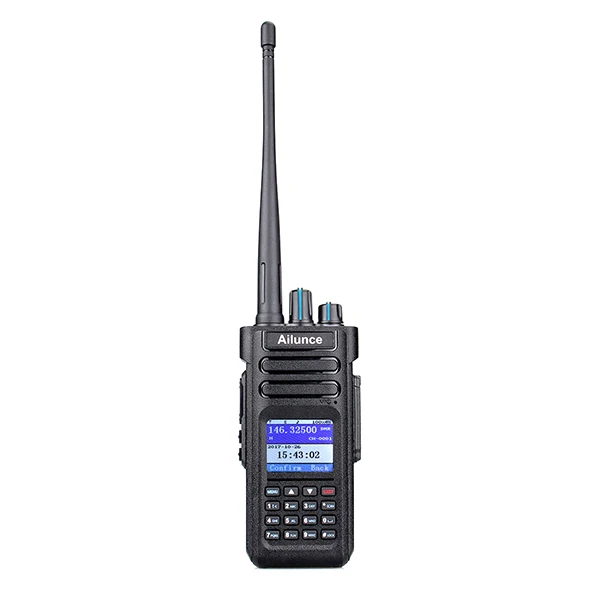

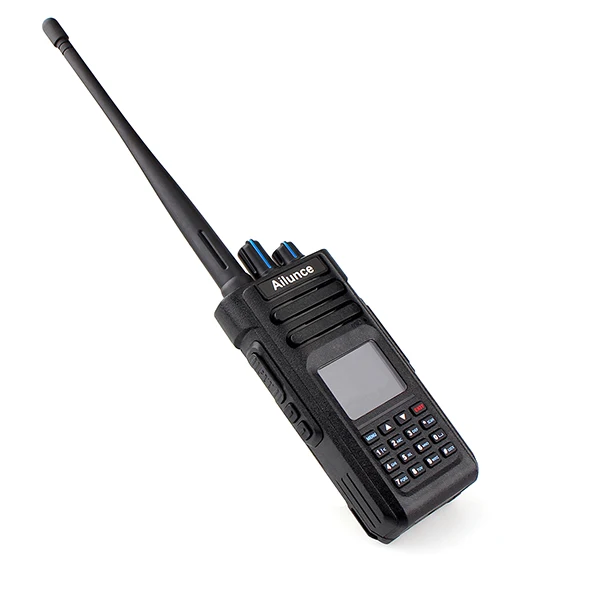

Ailunce HD1 High Power 10W IP67 Waterproof dual Band DMR Ham Radio Transceiver

Product Overview

Description













HD1 dual band digital radio uses Digital Mobile Radio (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTO TRBO series Tier I and II using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF and VHF frequencies for easy migration to digital technology. And almost all the operations can be done via radio keypad.



Main Feature

Dual Band DMR Radio

Analog and Digital Combined

Compatible with Motorola Tier I & II

Comply with Digital Protocol ETSI TS 102 361-1,-2,-3

Use Time-Division Multiple-Access(TDMA) Digital Function

Frequency Band: 136-174 & 400-480MHz & 76-107.95MHz(Receive only )

100000 Contacts + 1000 Priority Contacts

Up to 3000 channels

Dual Time Slot for Repeater

Dual Time Slot for Point to Point

Firmware Upgradeable

IP67 Waterproof

High/Medium/Low Power:10/5/1w

Scan:Time/Search/Carrier

Encryption Function

Lone Worker

Single/Group/All call

Remote kill/stun/activate

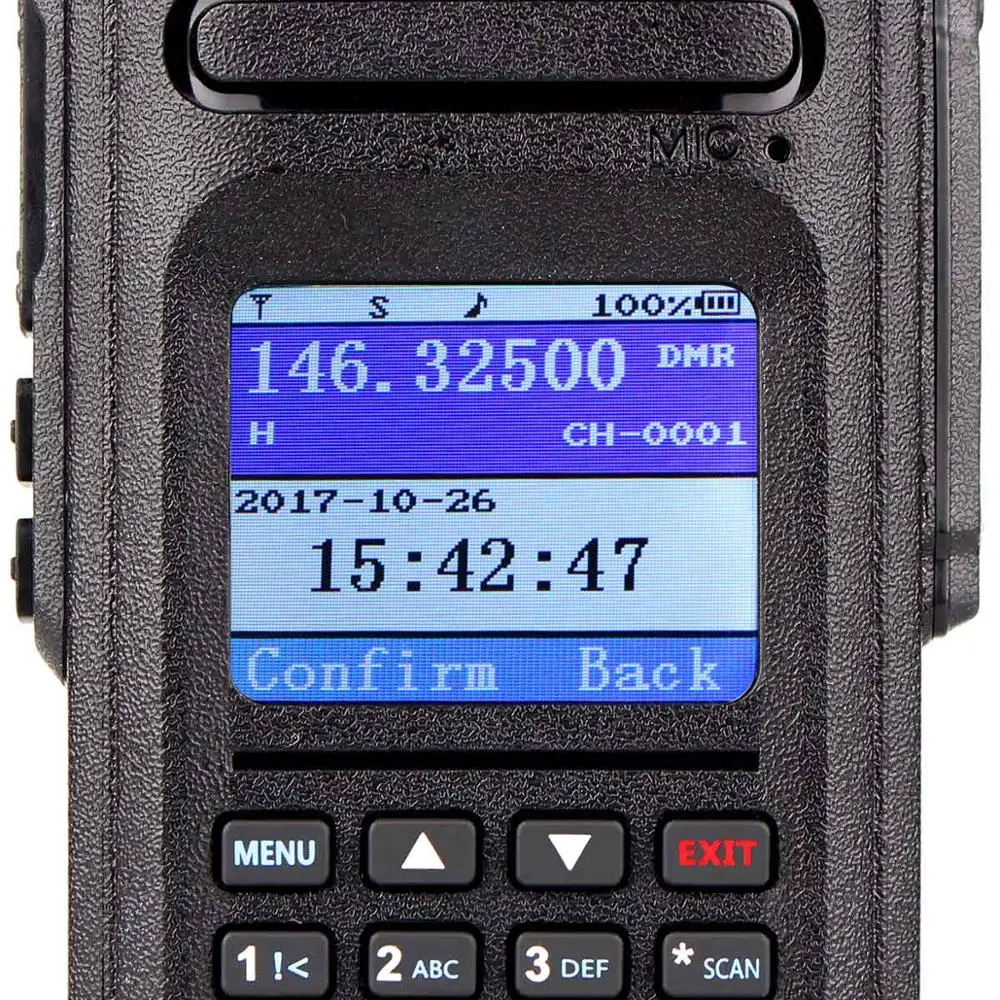

Color LCD Display

Transmit/Transceive interruption

Promiscuous Function

CTCSS/DCS

Analog Monitor

VOX

TOT

Talkaround

Squelch

Keypad Lock

LED Indicator

Password Lock

Battery Save

Voice Annunciation

1000/1450/1750/2100Hz Single tone

ID Setting

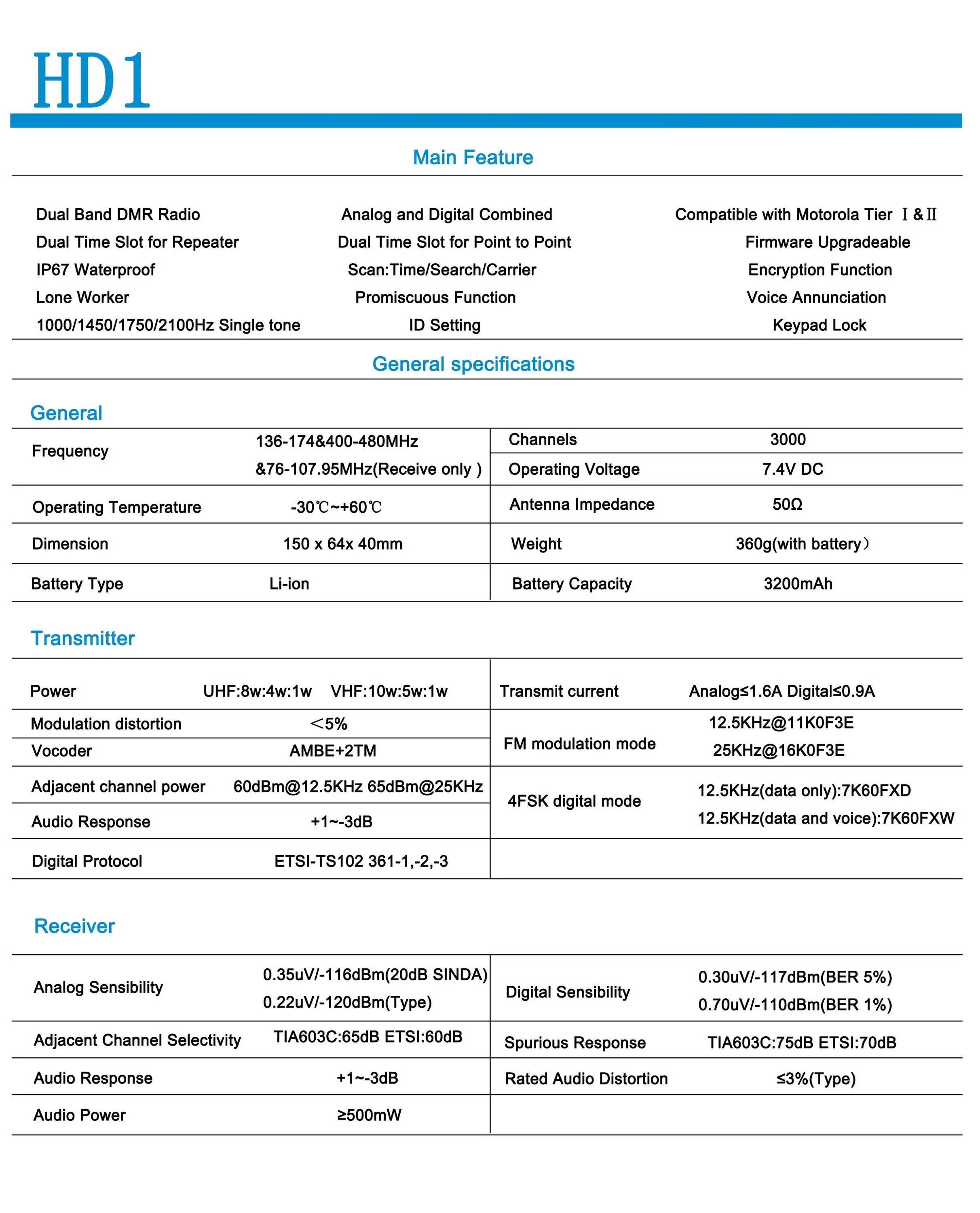

General specifications
Frequency	136-174&400-480MHz &76-107.95MHz(Receive only )
Channels	3000
Operating Temperature	-30℃~+60℃
Operating Voltage	7.4V DC
Dimension	150 x 64x 40mm
Weight	360g (with battery)

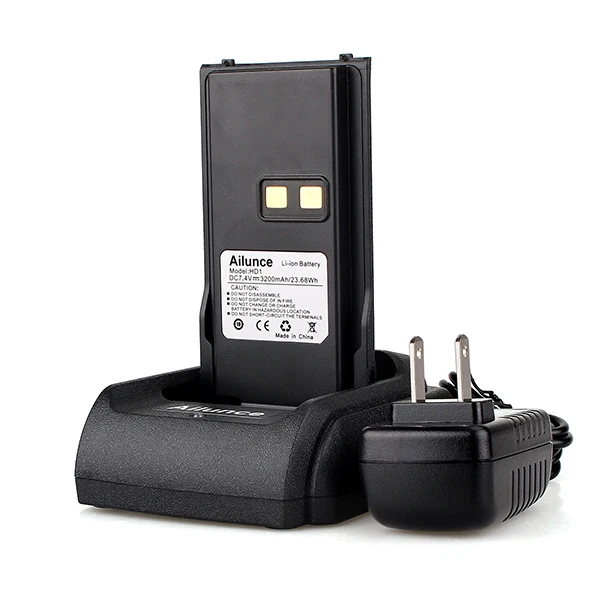

Battery Type	Li-ion
Battery Capacity	3200mAh
Antenna Impedance	50Ω
Transmitter
Power	UHF:8w:4w:1w VHF:10w:5w:1w
Transmit current	Analog≤1.6A Digital≤0.9A
Frequency Stability	±1.0ppm
FM modulation mode	12.5KHz#11K0F3E 25KHz#16K0F3E
4FSK digital mode	12.5KHz(data only):7K60FXD 12.5KHz(data and voice):7K60FXW
Modulation distortion	<5%
Vocoder	AMBE+2TM
Adjacent channel power	60dBm#12.5KHz 65dBm#25KHz
Audio Response	+1~-3dB
Digital Protocol	ETSI-TS102 361-1,-2,-3
Receiver
Analog Sensibility	0.35uV/-116dBm(20dB SINDA) 0.22uV/-120dBm(Type)
Digital Sensibility	0.30uV/-117dBm(BER 5%) 0.70uV/-110dBm(BER 1%)
Adjacent Channel Selectivity	TIA603C:65dB ETSI:60dB
Spurious Response	TIA603C:75dB ETSI:70dB
Audio Response	+1~-3dB
Rated Audio Distortion	≤3%(Type)
Audio Power	≥500mW

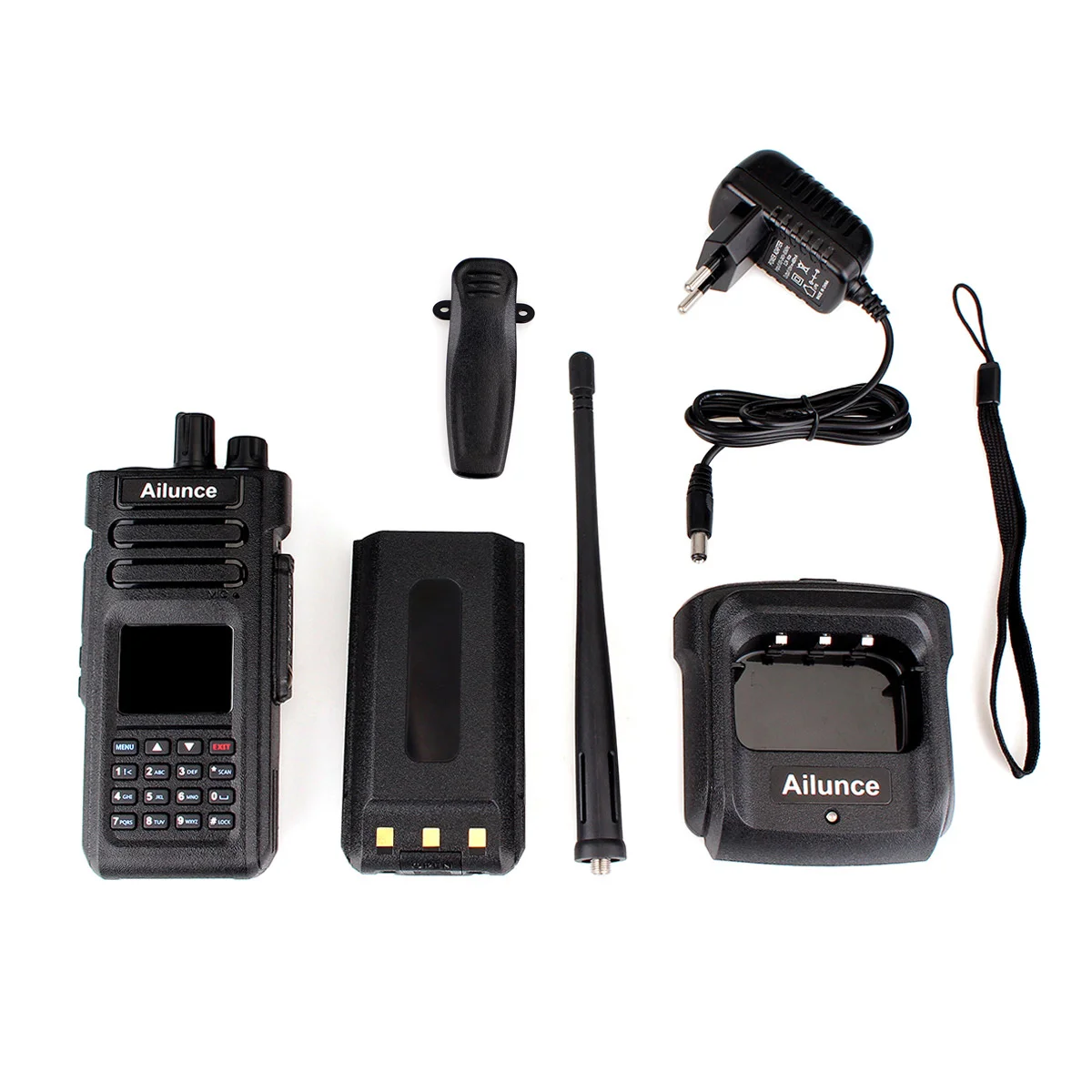

l 1 x HD1 two way radio

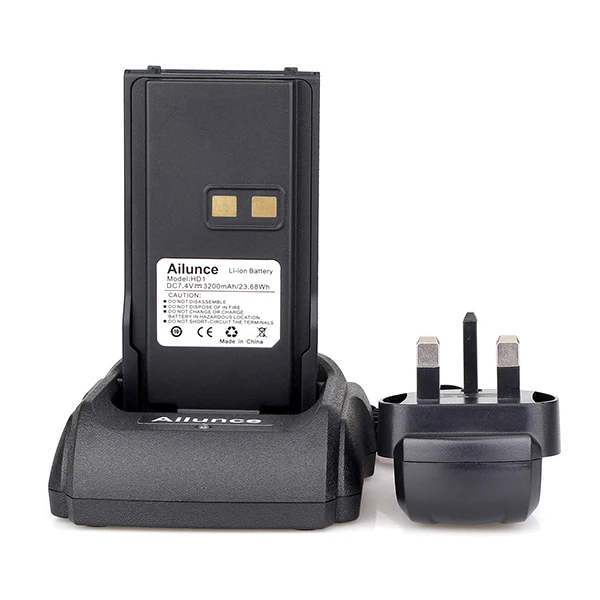

l 1 x Battery

l 1 x Antenna

l 1 x Adapter

l 1 x Charger

l 1 x User’s manual

l 1 x Belt clip

l 1 x Sling
