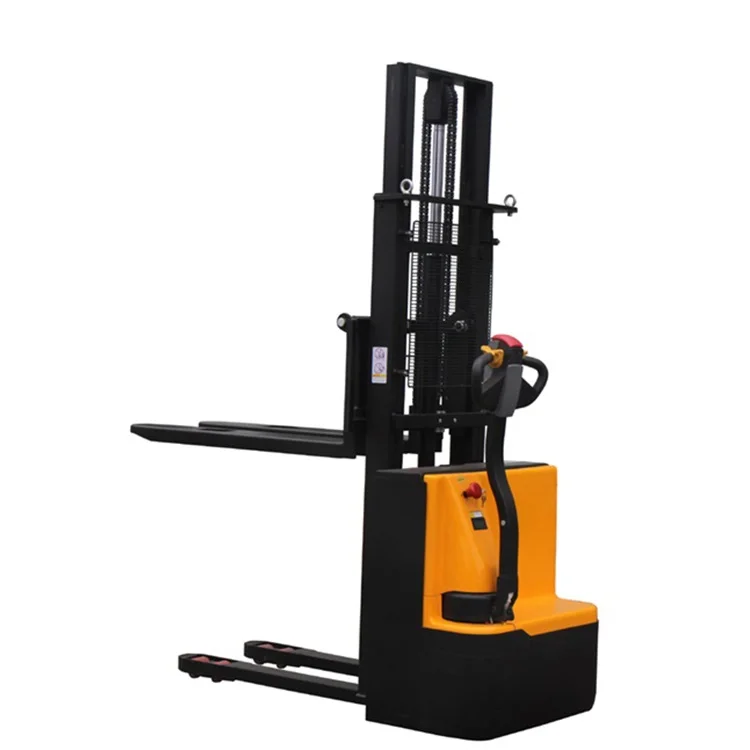

Sinolift 1t/1.2t Economic CDD ES Series Electric Walkie Lifter
- Category: >>>
- Supplier: Shanghai Sinolift Mechanical And Electrical Equipment Co. Ltd.
Share on (60794208302):
Product Overview
Description

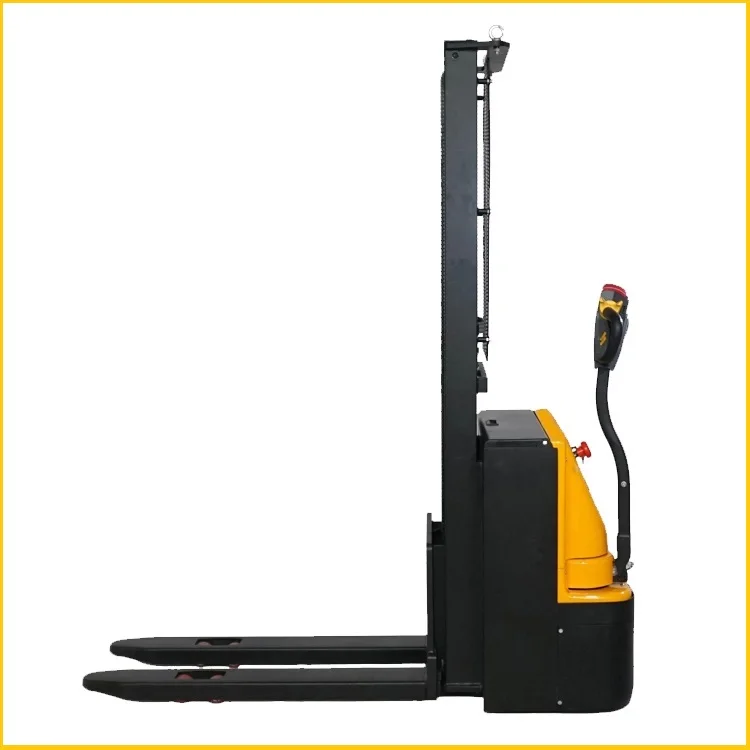

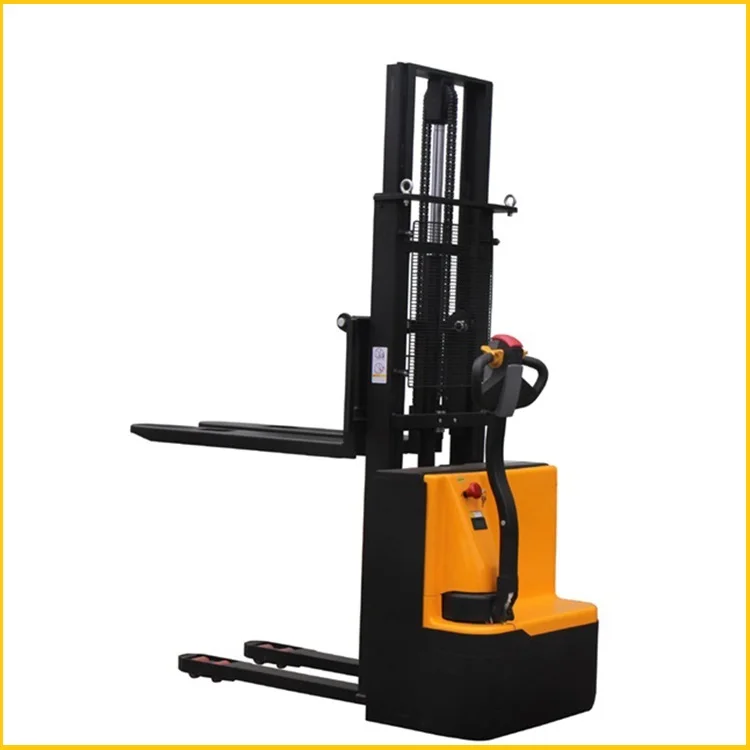

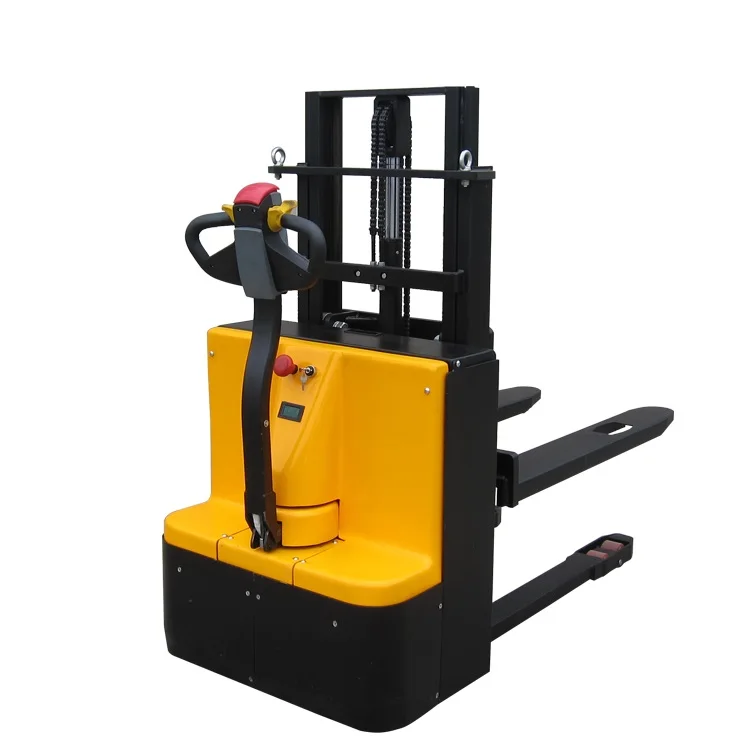

Sinolift 1t/1.2t Economic CDD-ES Series Electric Walkie Lifter
Product features
Simple structure, easy to maintain and repair. |

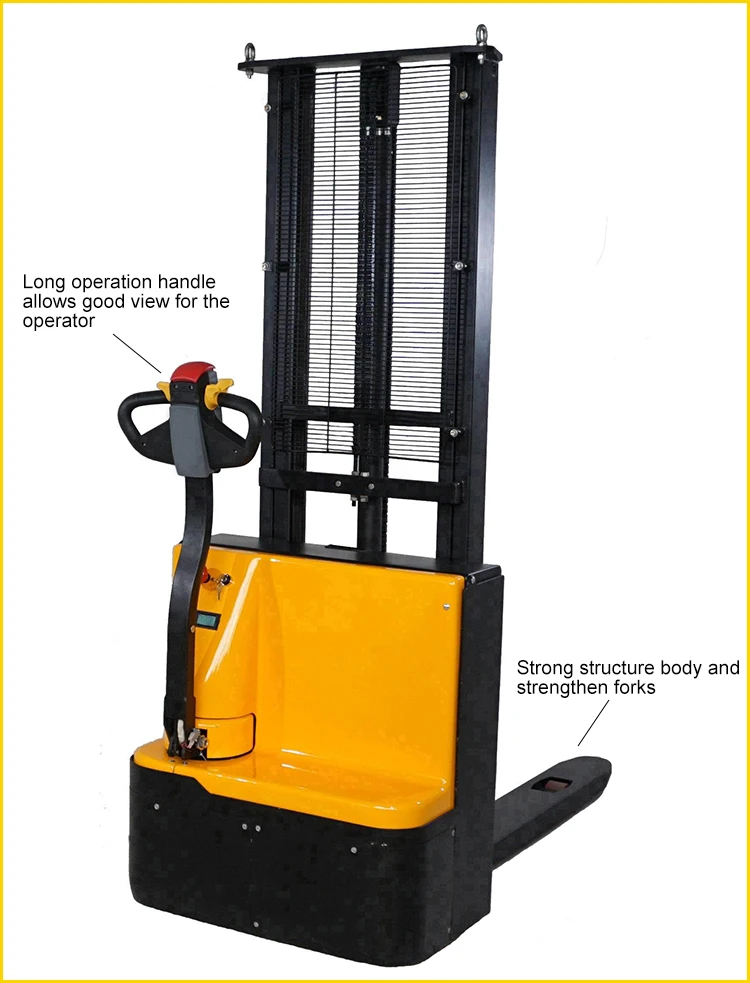

Long operation handle allows more light steering and ensures safe distance for driver. |

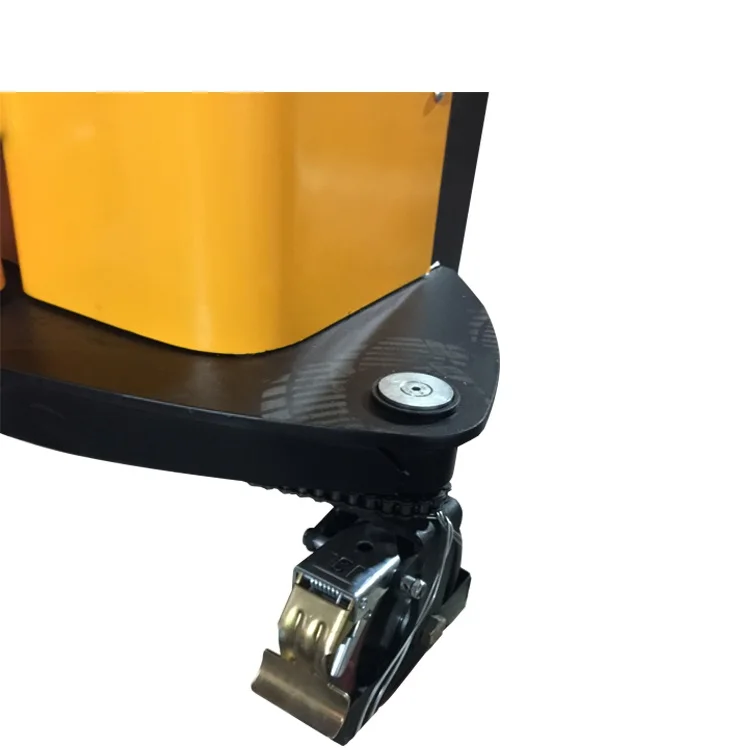

Horizontal driving wheel, electromagnetic brake. |

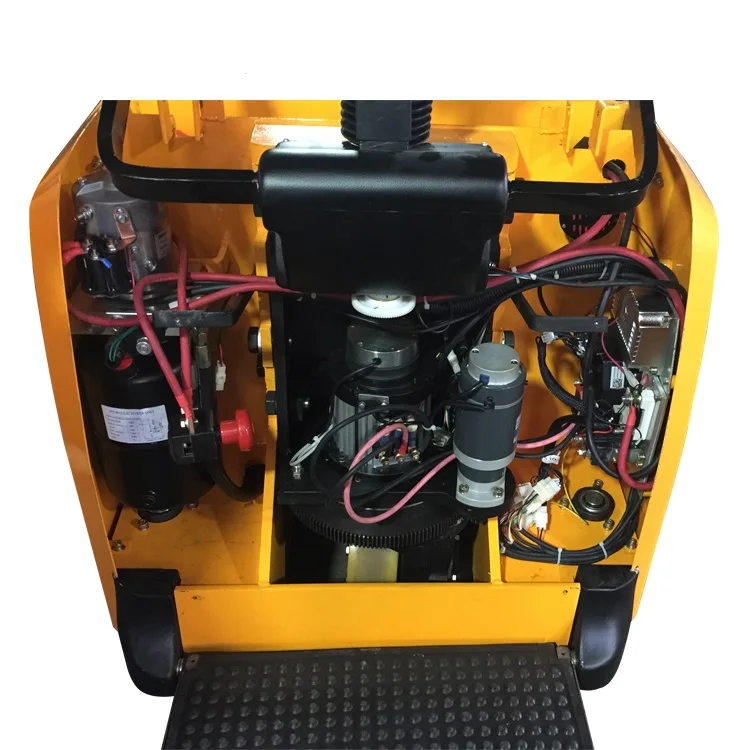

Curtis electric control, with safety protections. |
German brand hydraulic motor, traction battery. |
Safety features include a horn,an electromagnetic brake and belly reverse button. |

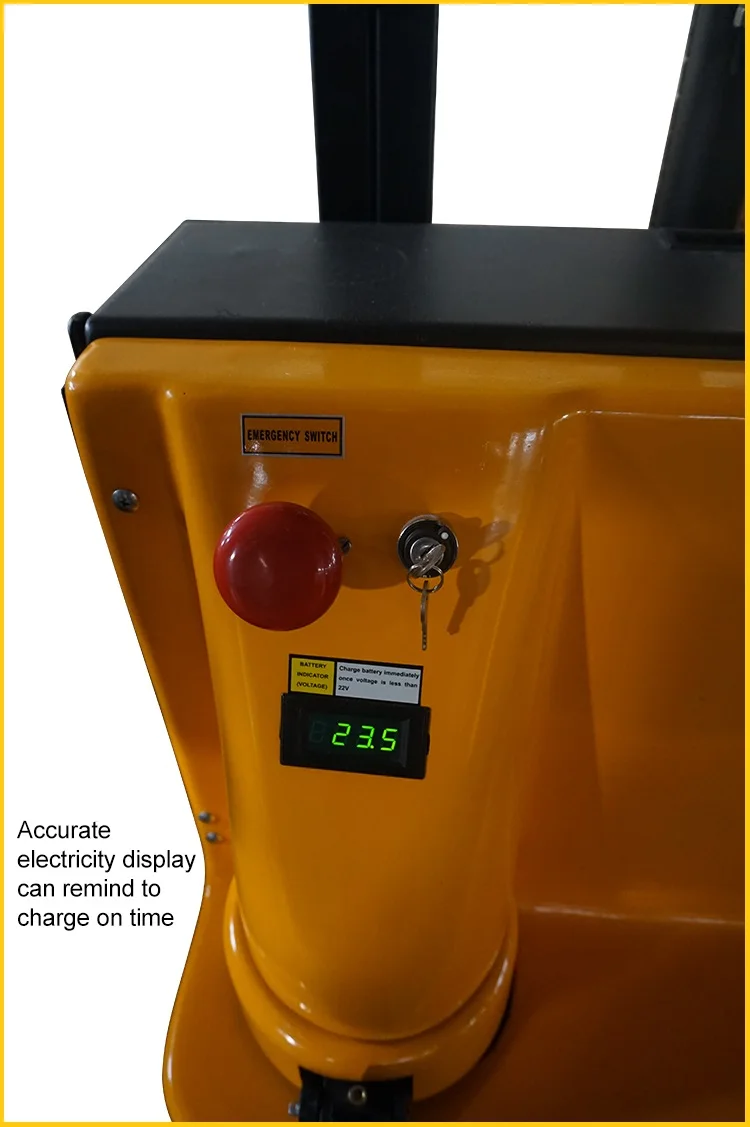

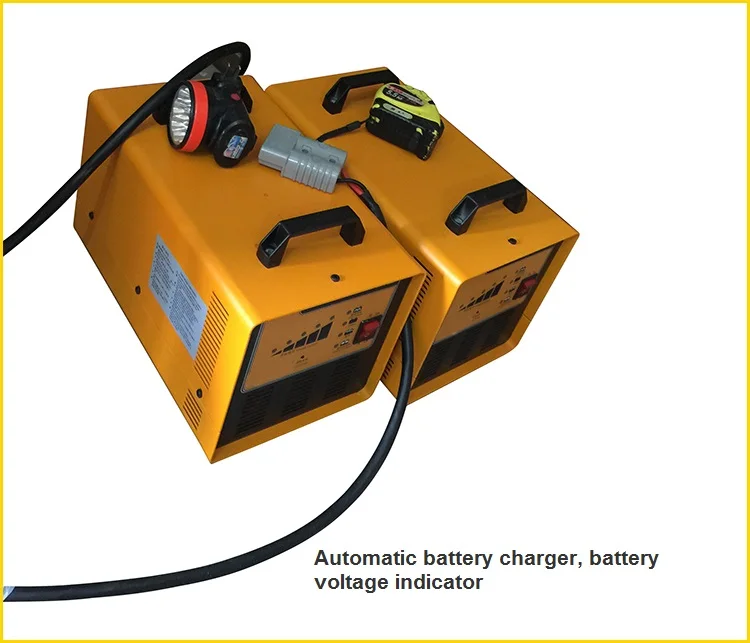

Automatic battery charger, battery voltage indicator. |
Integral strong chassis with alloy steel legs. |

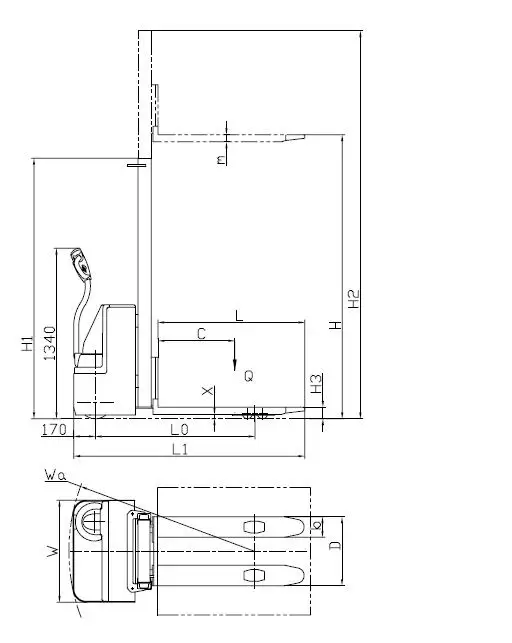

Product speification
| Model | CDD1016-ES | CDD1025-ES | CDD1029-ES | CDD1031-ES | CDD1033-ES | |||
| CDD1216-ES | CDD1225-ES | CDD1229-ES | CDD1231-ES | CDD1233-ES | ||||
| Power type | Battery powered | |||||||
| Driving style | Pedestrian | |||||||
| Load capacity | Q | kg | 1000/1200 | |||||
| Load center | C | mm | 600 | |||||
| Overall length | L1 | mm | 1815 | |||||
| Overall width | W | mm | 800 | |||||
| Min. overall height | H1 | mm | 2125 | 1800 | 2025 | 2125 | 2225 | |
| Fork dimension L×b×m | mm | 1150×160×56 | ||||||
| Outside width of forks | D | mm | 540 | |||||
| Ground clearance | x | mm | 29 | |||||
| Base distance | L0 | mm | 1250 | |||||
| Wheel material | PU | |||||||
| Driving wheel size | mm | φ250×80 | ||||||
| Front wheel size | mm | φ78×70 | ||||||
| Balance wheel size | mm | φ125×75 | ||||||
| Min. steering radius | Wa | mm | 1460 | |||||
| Min. width of aisle | mm | ≥2150 | ||||||
| Max. lift height | H | mm | 1600 | 2450 | 2900 | 3100 | 3300 | |
| Max. overall height | H2 | mm | 2172 | 3022 | 3472 | 3672 | 3872 | |
| Min. fork height | H3 | mm | 90 | |||||
| Travel speed(laden/unladen) | Km/h | 4.0/5.5 | ||||||
| Lift speed(laden/unladen) | mm/s | 90/130 | ||||||
| Lowering speed(laden/unladen) | mm/s | 95/120 | ||||||
| Brake type | Electromagnetic | |||||||
| Power of driving motor | Kw | 0.7 | ||||||
| Power of lift motor | Kw | 2.2 | ||||||
| Battery capacity/voltage | Ah/V | 95/24 | ||||||
| Weight of battery | kg | 50 | ||||||
| Net weight(without battery) | kg | 545 | 585 | 605 | 635 | 645 | ||
Photos
Exhibition

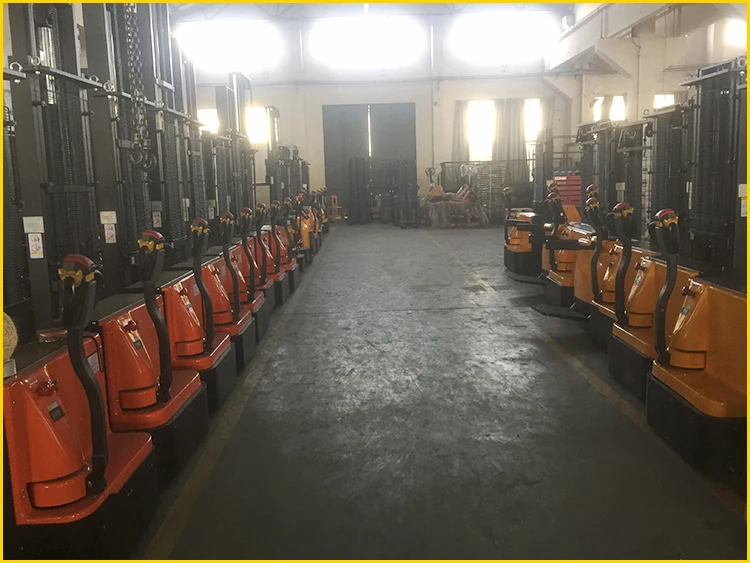

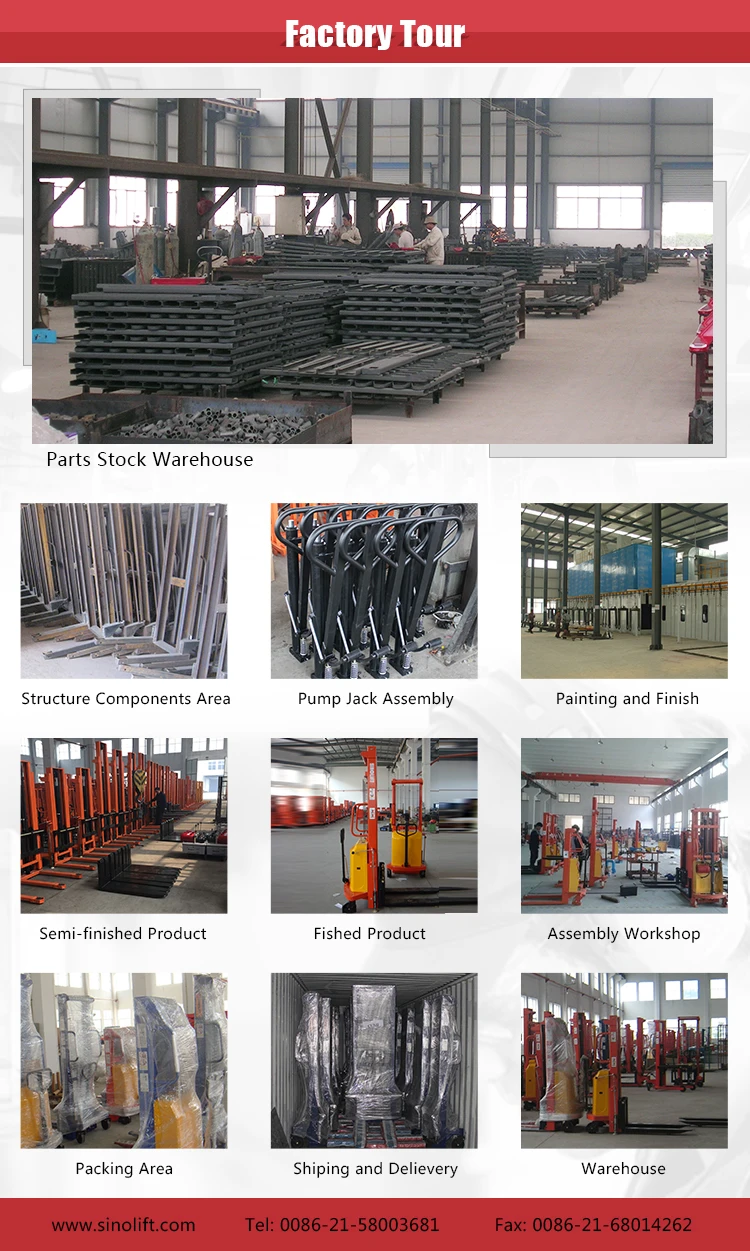

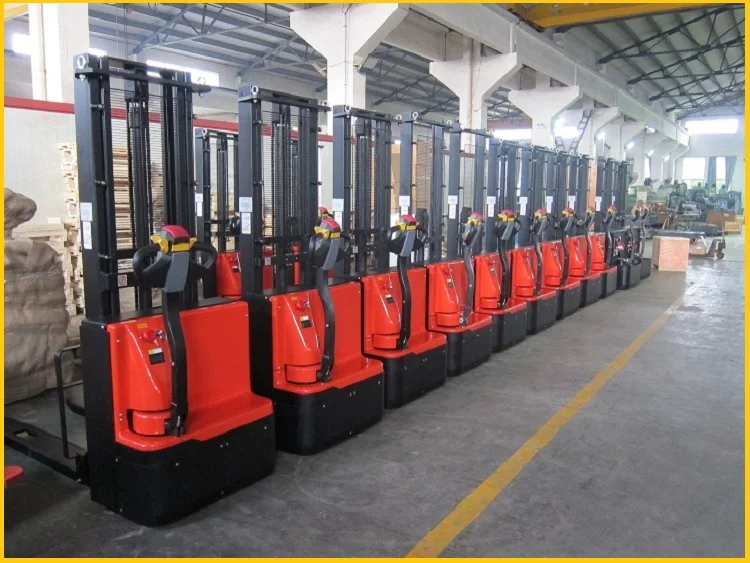

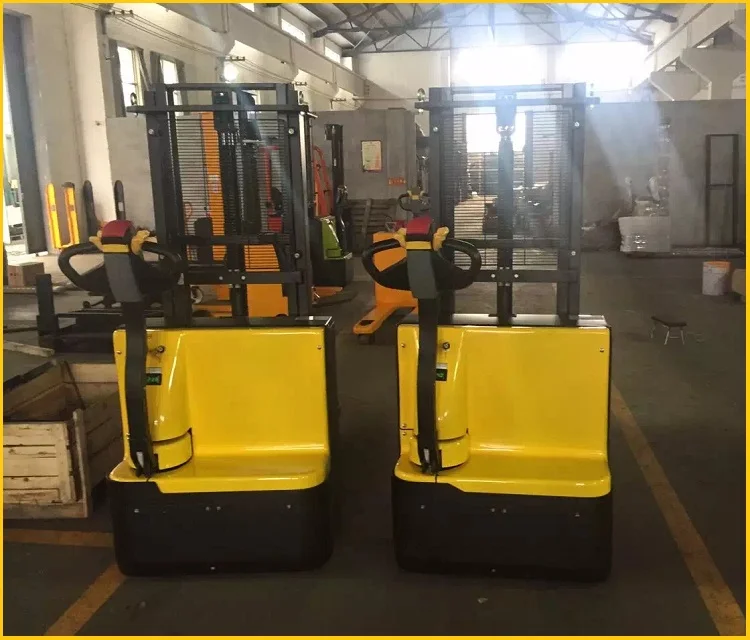

Workshop
