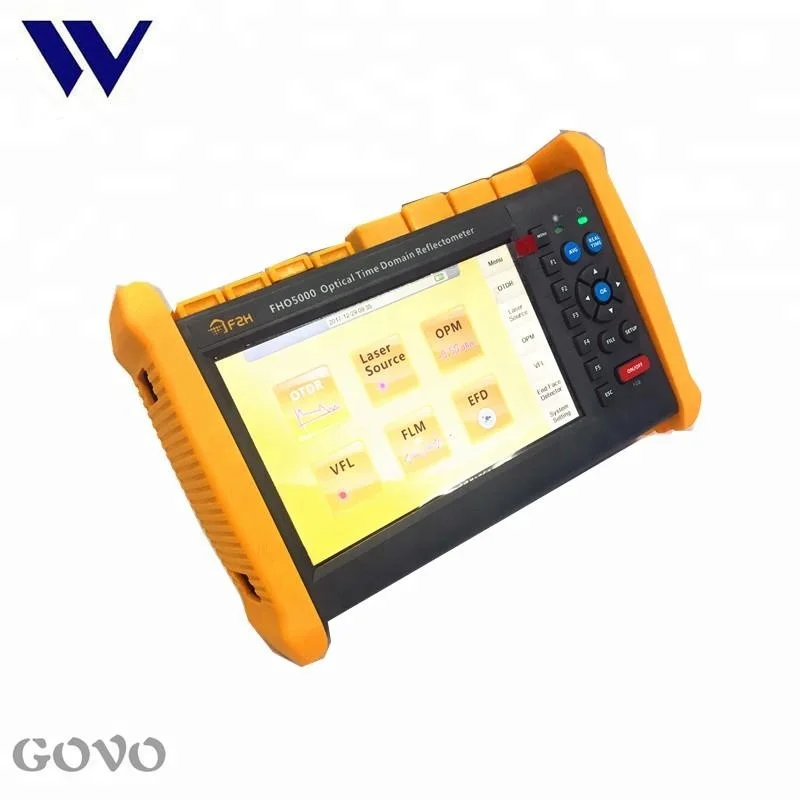

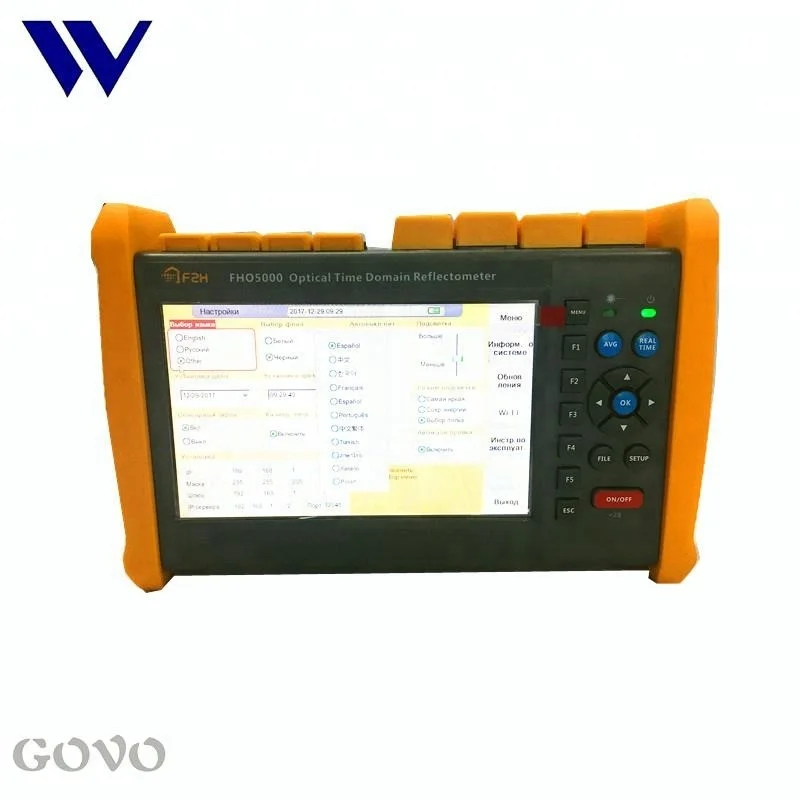

Grandway FHO5000-M21 7inch touchscreen MM OTDR 850/1300nm 19/21dB optical time domain reflectometer






Product Description

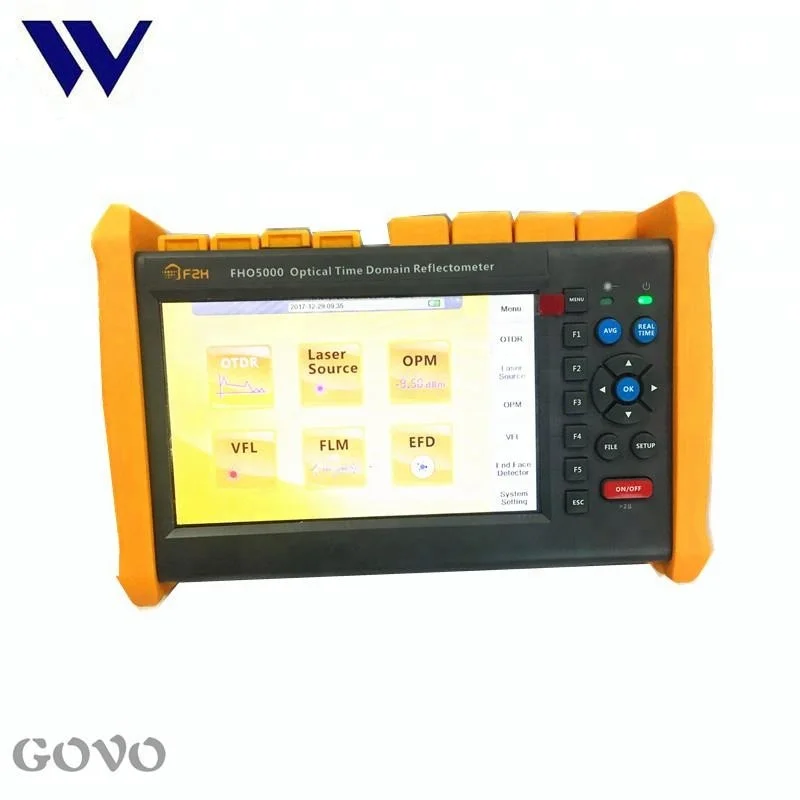

   FHO5000 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; FHO5000 is specially designed for that kind of application. It’s economic, having outstanding performance.


FHO5000 is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes FHO5000 more smart and compact and multi-purpose.


Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, FHO5000 can be your best assistant.

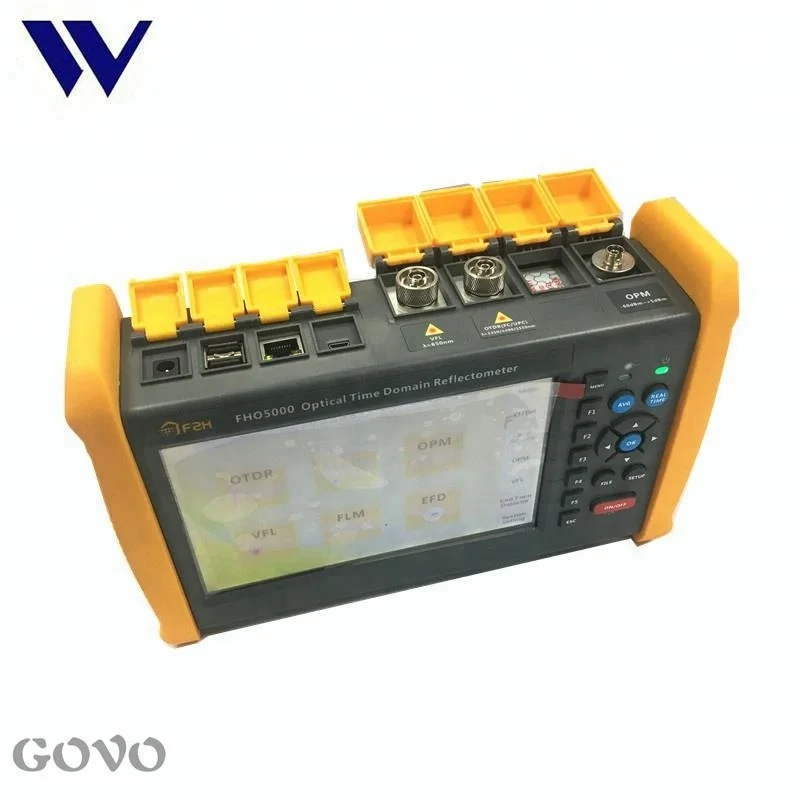

Grandway FHO5000 2





Features





FEATURES


u Integrated design, smart and rugged


u IP65 protection level, outdoor enhanced


u 7-inch anti-reflection LCD screen


u PON online test module (1625nm) is optional


u MMF test module (850/1300nm) is optional


u Support multi-language display and input





APPLICATIONS


u FTTX test with PON networks


u CATV network testing


u Access network testing


u LAN network testing


u Metro network testing


u Lab and Factory testing


u Live fiber troubleshooting


Grandway FHO5000








Specification

















































Dimension



253×168×73.6mm


1.5kg (battery included)



Display



7 inch TFT-LCD with LED backlight (touch screen function is optional)



Interface

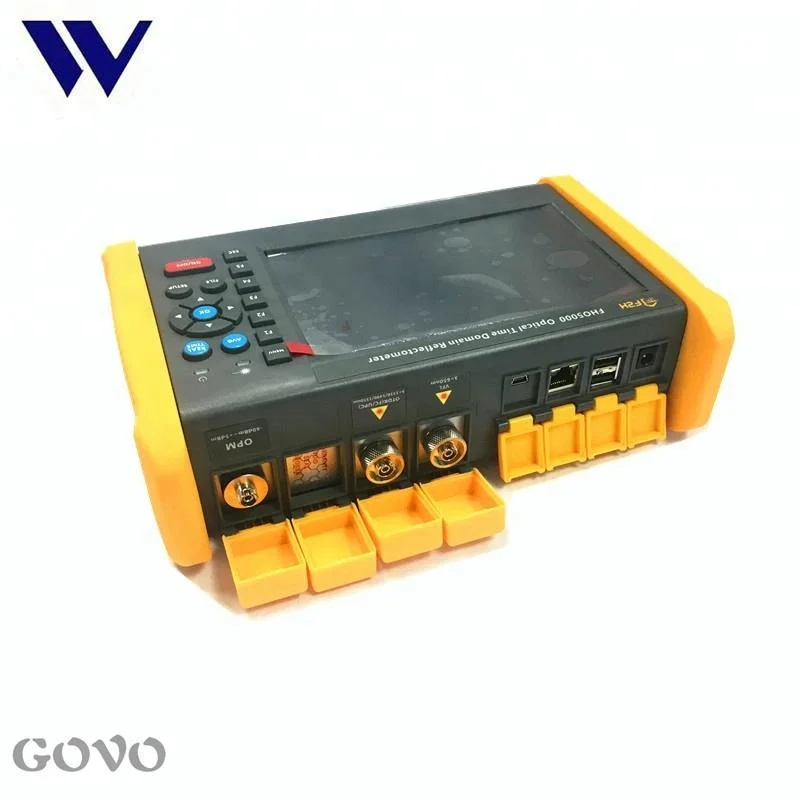

1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1)



Power Supply



10V(dc), 100V(ac) to 240V(ac), 50~60Hz



Battery



7.4V(dc)/4.4Ah lithium battery (with air traffic certification)


Operating time: 12 hours, Telcordia GR-196-CORE


Charging time: <4 hours (power off)



Power Saving



Backlight off: Disable/1 to 99 minutes


Auto shutdown: Disable/1 to 99 minutes



Data Storage



Internal memory: 4GB (about 40,000 groups of curves)



Language



User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for availability of others)



Environmental Conditions



Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation)


Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)


Proof: IP65 (IEC60529)



Accessories



Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case


Optional: SC/ST/LC adapter, Bare fiber adapter






Grandway FHO5000 4








Our Services



































































































Type



Testing Wavelength


(MM: ±20nm, SM: ±10nm)



Dynamic Range (dB)



Event/Attenuation Dead-zone (m)



FHO5000-M21



850/1300



19/21



0.8/4



FHO5000-MD21



850/1300


1310/1550



19/21


35/33



0.8/4


1/4



FHO5000-MD22



850/1300


1310/1550



19/21


40/38



0.8/4


1/4



FHO5000-D26



1310/1550



26/24



0.8/4



FHO5000-D32



1310/1550



32/30



0.8/4



FHO5000-D35



1310/1550



35/33



0.8/4



FHO5000-D40



1310/1550



40/38



1/4



FHO5000-D43



1310/1550



43/41



1/5



FHO5000-D45



1310/1550



45/43



1/5



FHO5000-T40F



1310/1550/1625



40/38/38



1/4



FHO5000-T43F



1310/1550/1625



43/41/41



1/5



FHO5000-T45F



1310/1550/1625



45/43/43



1/5



FHO5000-TC35F



1310/1550/1650



35/33/31



0.8/4



FHO5000-TP35



1310/1490/1550



35/33/33



0.8/4






Grandway FHO5000 6





Packaging & Shipping

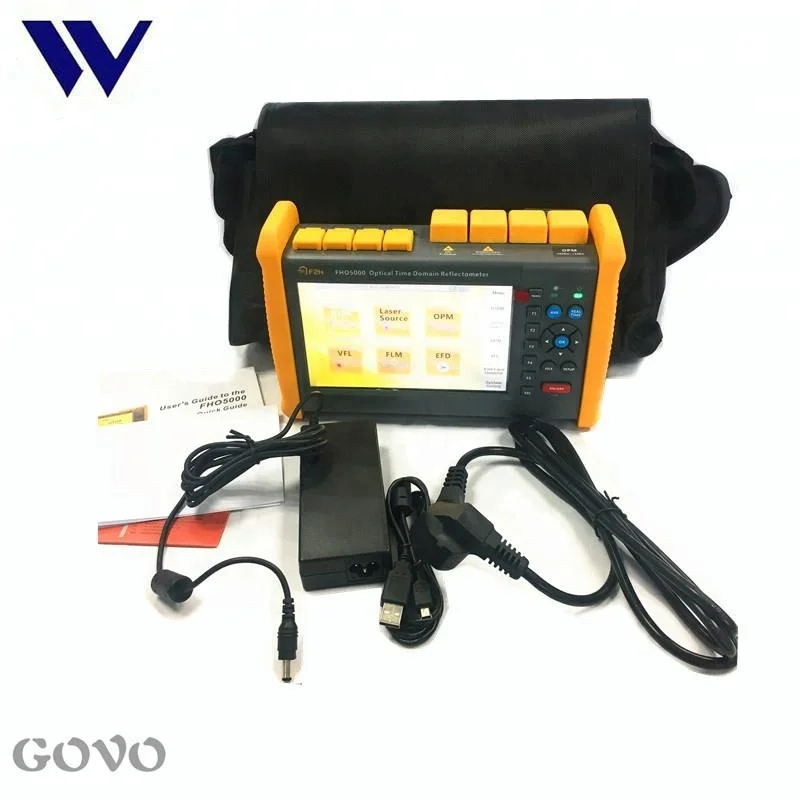

Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk,                                    carrying case


Optional: SC/ST/LC adapter, Bare fiber adapter
