High Quality Plastic jar bottles making machine From OUGE Machine

Product Overview

Description

OGO series, two-step blow moulding machine is a new style machine between semi-automatic and fully automatic machines. Only need worker to feed preform, the machine action of blowing and bottle dropping are fully automatic,OGO-1-5000 is special for large volume with large mouth bottles. Particular pre-heater design makes prefrom close while heating. Change space, shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.OGO-2-1500 is special for PET oil bottles, mineral water bottles, juice bottles, pharmaceutical bottles, space cups,lamp covers,candy bottles containers etc. The machine is easy for operating, and with simple repair, high efficiency, good quality, low investment which is specially designed for small and medium enterprises.



Features:



1.The machine adopts human-computer interface to control the whole working procedures, auto-loading, auto blowing, auto dropping. Action cylinders are all assembled with magnetic induction switches.Connect with PLC to control every step and test every cylinder. Next action will continue after the former step done, If former step is not finished, alarm automatically and do not work. PLC displays problem position.



2.Fast speed, accurate position, smooth action.



3.According to special demand, adopt cross double crank pressed clamping, with strong clamping force. Mould open stroke can be adjustable according to the bottle size to save the time.



4.Far infrared heater lamps have strong penetrations , preforms are heated uniformly while rotating, PLC or electronic pressure adjustor controls each group of temperature separately.



5.The air supply system consists of slight blow, high pressure blow, low pressure actions, to supply enough air for different products.



6.Operation consists of manual and automatic precedure, manual operation for assembly and test, automatic operation for production.

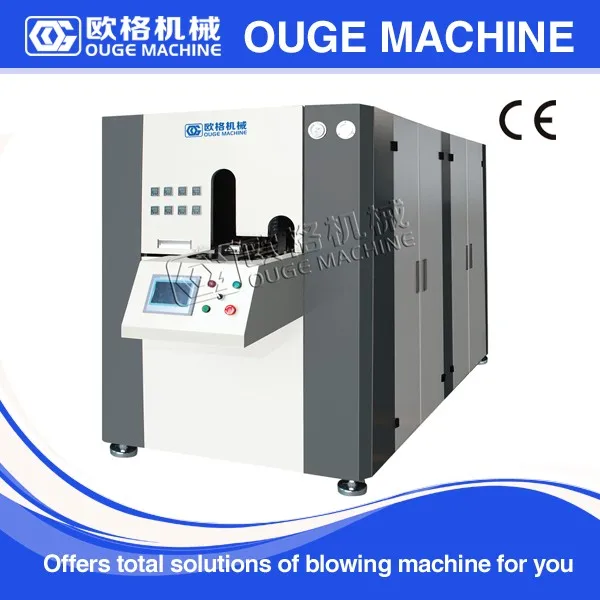

Machine parameter	Unit	OGO600	OGO1000	OGO1500	OGO2500
Number of cavities	cavity	1	1	1	1
Clamping stroke	mm	100	100	120	160
Output	pcs/hr	1500	1500	1100	900
Total power	kw	22	25	30	26
Power consumption	kw	≤8	≤9	≤12	≤13
Pressure for working	kg	10	10	10	10
Pressure for blowing	kg	30	30	30	30
Flow rate for working	m3	0.6	1	1.2	1.5
Flow rate for blowing	m3	30	30	30	30
Neck diameter	mm	12-100	12-100	12-100	12-100
Max diameter&height	mm	90*235	90*255	90*320	145*320
Machine size L*W*H	m	2*1.5*2	2.2*1.5*2	2.2*1.7*1.9	2.45*1.85*1.95
Machine weight	kg	980	1450	1600	1800



---The above technical parameters are subject to continual update, please take the real product as the base. Machines can be customized for special products.











Package: wooden cases

Shipping: By sea
