This machine belongs to our company G-EH series small electric hydraulic clamshell grab.
Main technical features:
The hydraulic interlock function ensures accidental power failure, pipeline damage, etc., the grab will not open automatically, fully ensuring safety; When the grab is fully loaded, the hydraulic system maintains the rated working pressure, while the oil pump has low pressure and low flow unloading to minimize system heating. When the system pressure is reduced, the oil pump will increase the pressure to keep the system pressure stable at the rated working pressure, preventing the closing force and causing the material to fall. When the grab is opened, the oil in the rod chamber flows to the rodless chamber to realize differential control, speed up the opening speed of the grab and improve efficiency; Modular design for each control part of the grab, with strong versatility & easy replacement Self-lubricating bearings ensure the lowest maintenance work at the joint.
1.12m3 Motor Electro Hydraulic Clamshell Grab Bucket is in High Handling effect, especially for high viscosity materials such as nickel mine; 2. 12m3 Motor Electro Hydraulic Clamshell Grab Bucket is in High efficiency, equal work time can handle 20% material more than remote control grab; 3. 12m3 Motor Electro Hydraulic Clamshell Grab Bucket is in High safety performance, falls on any point of the materials, won't effect effects the equipment; 4. The wire drum protects 12m3 Motor Electro Hydraulic Clamshell Grab Bucket is in from side to side when working, especially when cleaning the vessel;
Applications: Bulk carriers:38,000 to 42,000 dwt, 50,000 to 54,000 dwt, port
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
Competitive Advantages: 1.High Handling effect 2.High safety performance 3.Enhanced ease and convenience of operation. 4.Shockless,noiseless and smooth operation. 5.BV,CCS certificate supply 6.Import key parts 7.Stable power supply
Product Details
Technical Parameters
Model
Max. Lifting
Capacity
Volume
Dead Weight
Motor Output
Close/Open Time
Max.
Working
Pressure
380V50Hz
440V60Hz
380V50Hz
440V60Hz
G-EH6000
10t
3-6m³
3.8t
18.5KW
22KW
13/9S
11/8S
180Bar
G-EH8000
16t
5-8m³
5.6t
22KW
26KW
14/10S
12/9S
180Bar
G-EH10000
20t
6-10m³
7.2t
30KW
35KW
14/10S
12/9S
200Bar
G-EH12000
25t
6-12m³
8.5t
37KW
44KW
17/12S
13/10S
200Bar
G-EH15000
30t
8-15m³
10.6t
45KW
54KW
19/14S
14/11S
220Bar
G-EH20000
35t
8-20m³
13.5t
45KW
54KW
21/15S
16/12S
230Bar
G-EH25000
40t
10-25m³
14.6t
55KW
65KW
23/16S
18/13S
230Bar
Machine Parts

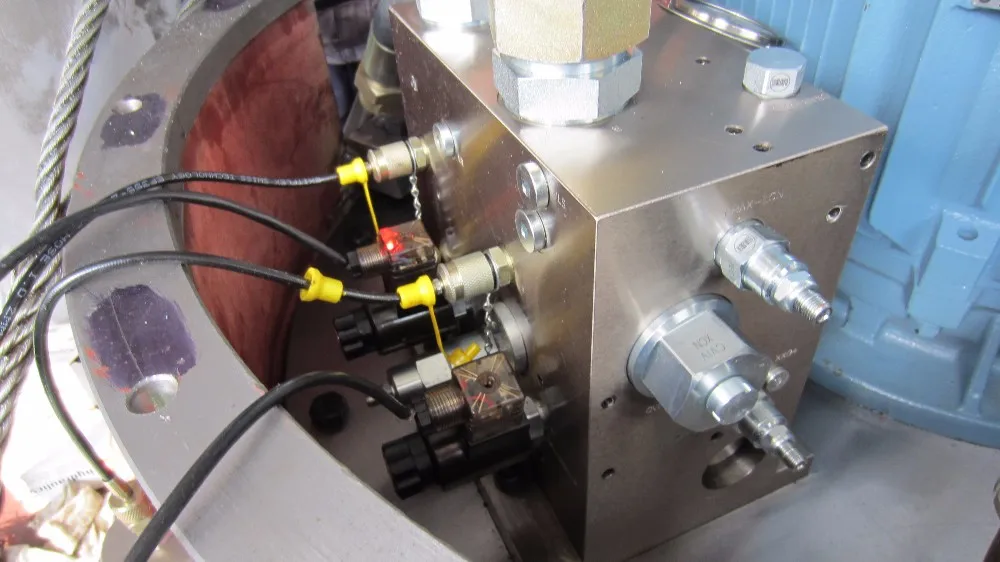

Name:Hydraulic Block
.
Main parts

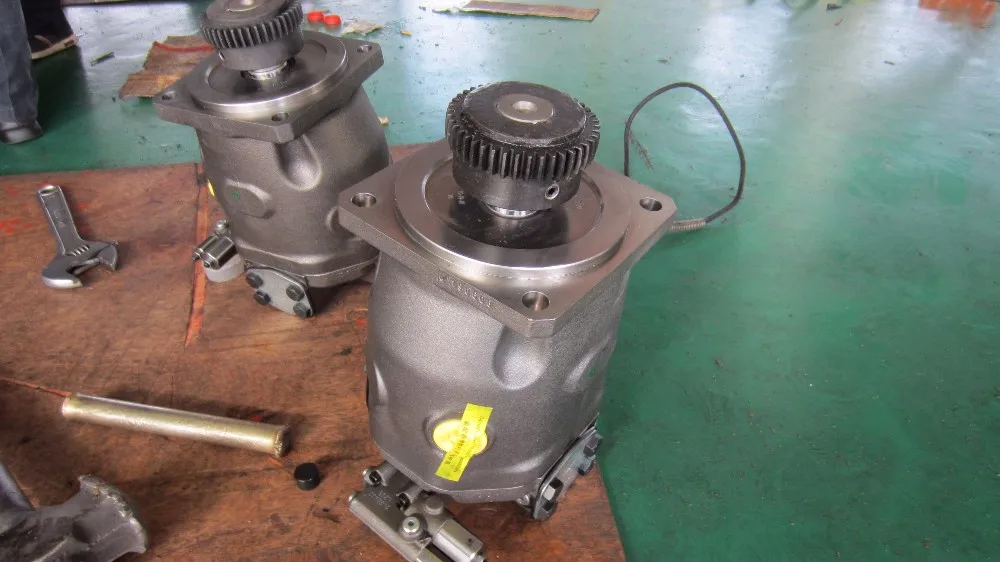

Name: Hydraulic Pump Brand: Parker
Machine Parts

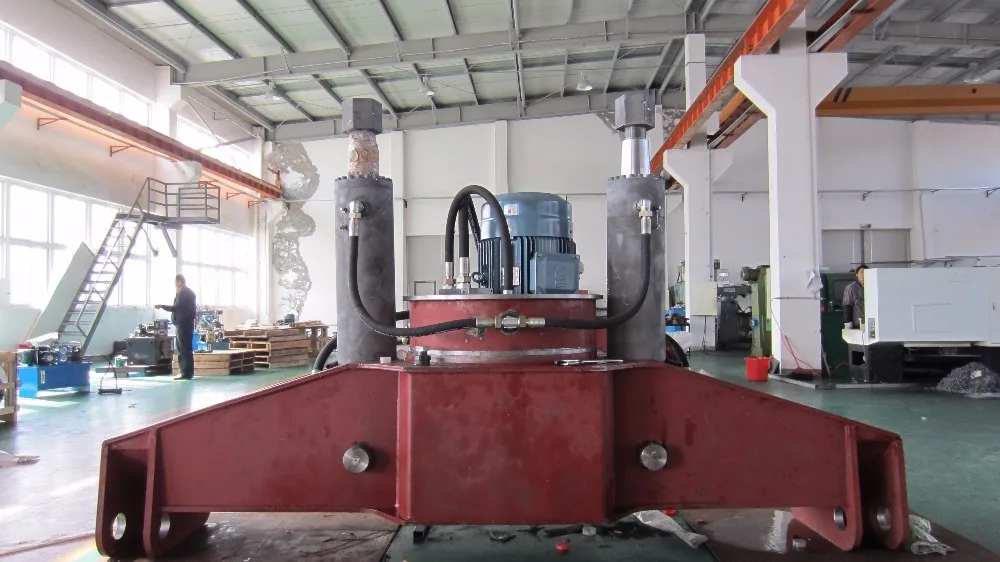

Name: Installed Hydraulic System
Main Features

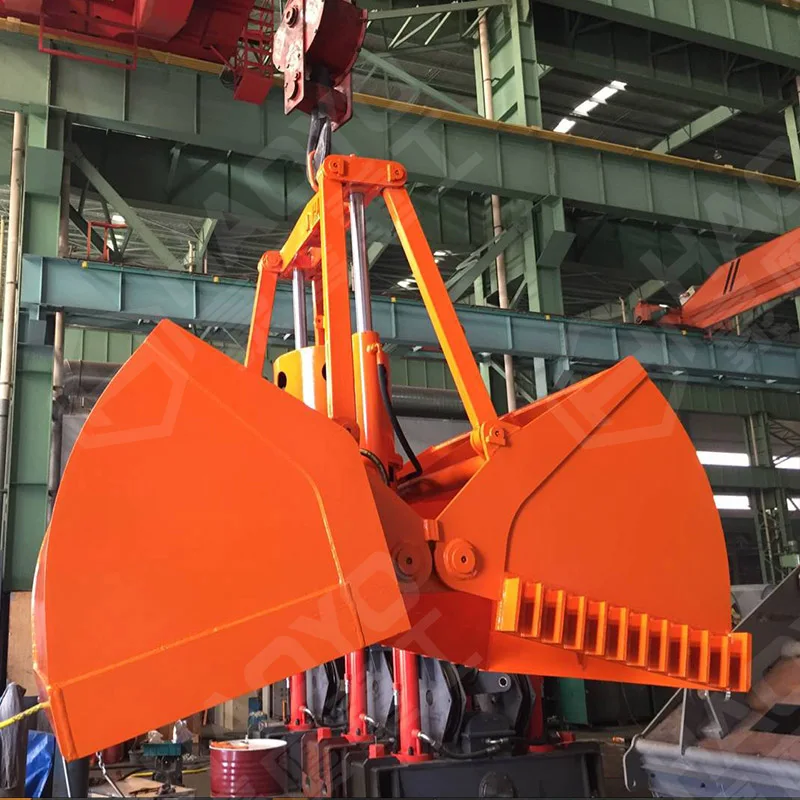

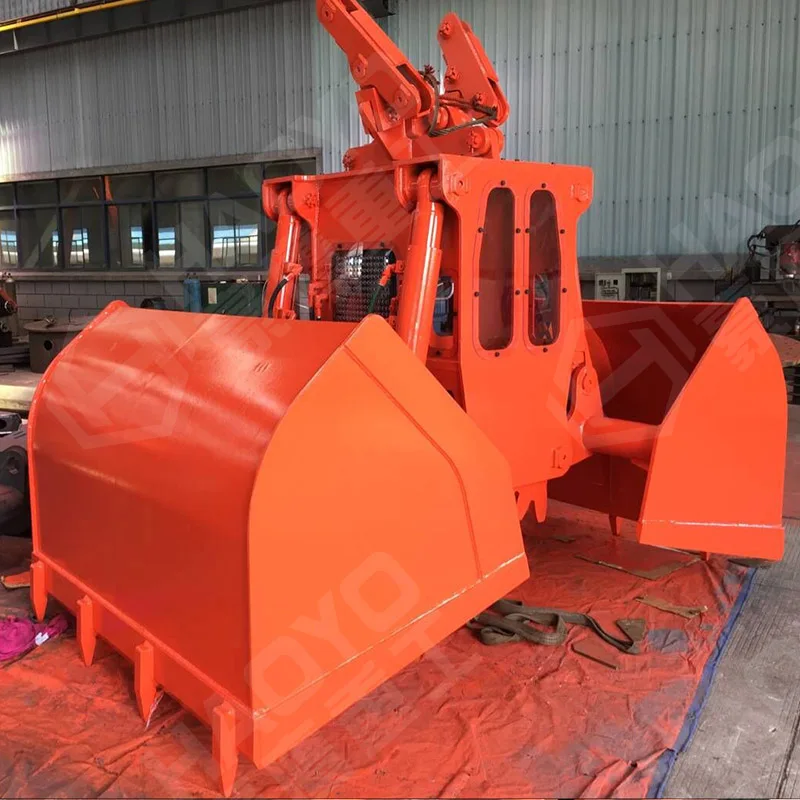

Name: Grab Assembly

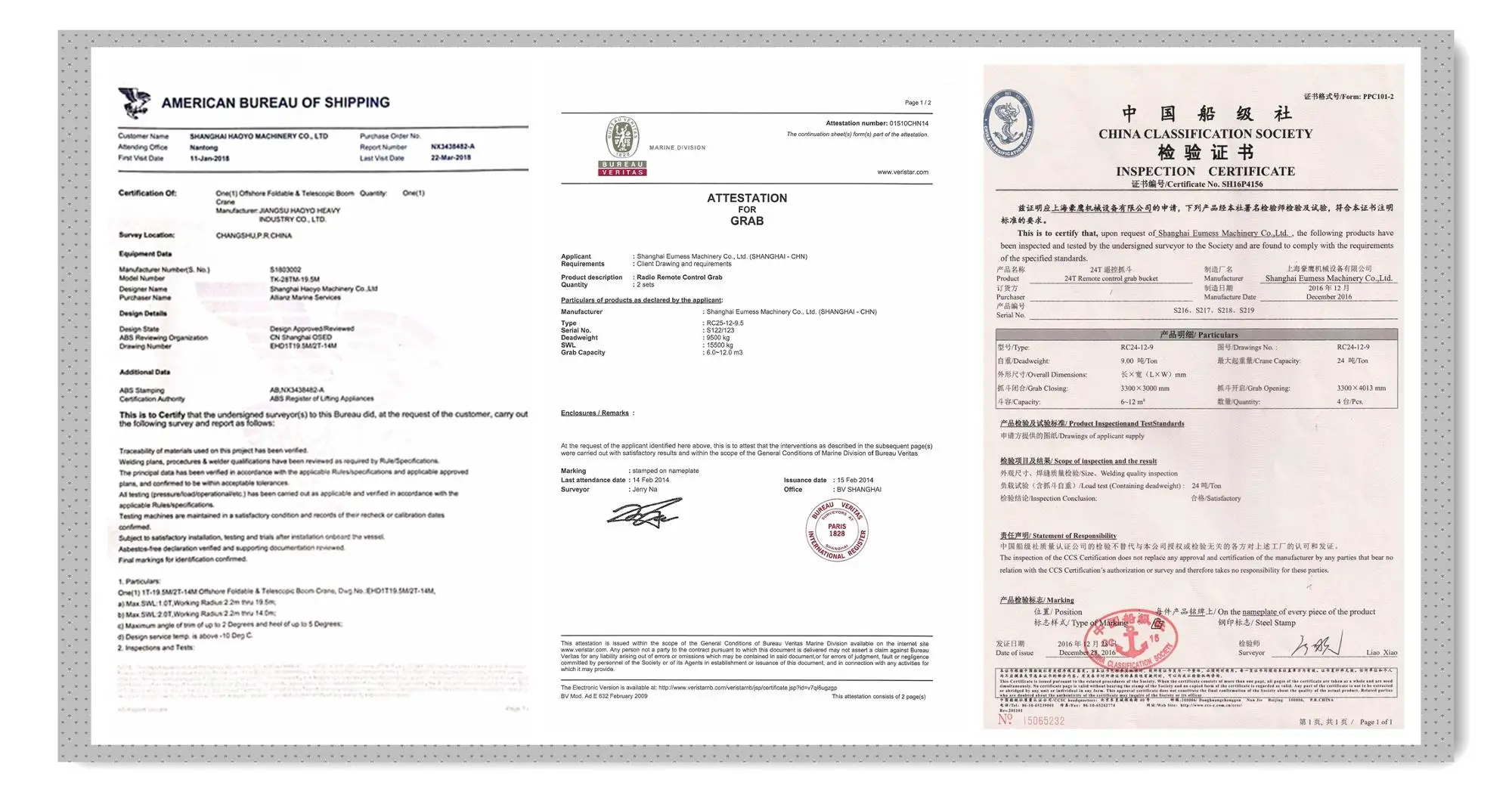

Certifications

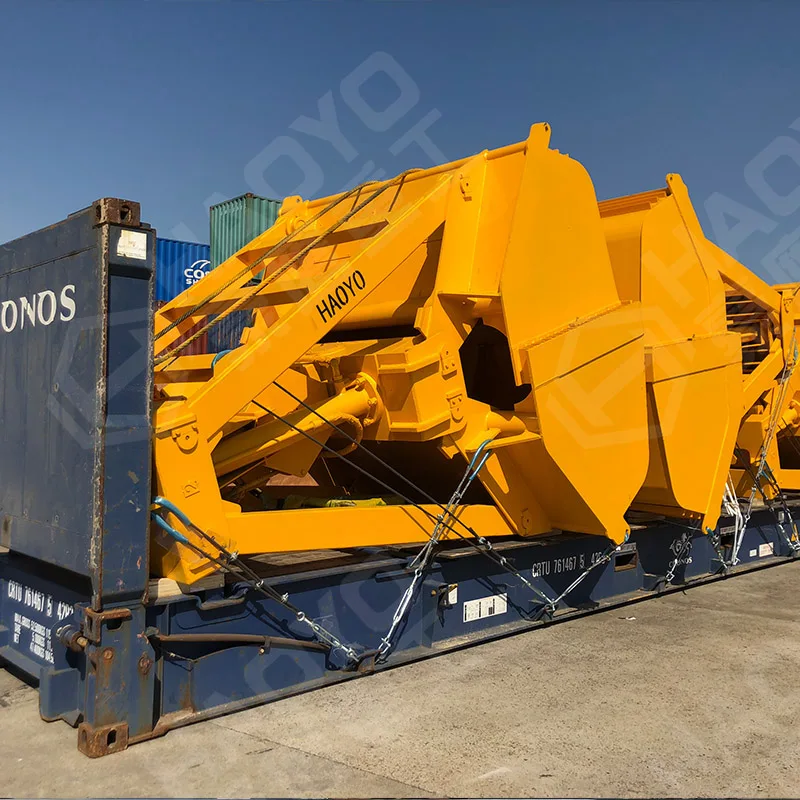

Packing & Delivery
Our Company
Related Products
FAQ
Please provide following necessary information, so we can quote right Model.
1.What's the material will handle? Coal, sand, grain, chemical fertilizer .....
2.What's the capacity of the grab?
3.What's the maximum lifting weight of the crane?crane SWL
4.What's the working environment?on ship or on port
We will offer you the best suitable grab with best price and quality. These specifications above can make it clear about your requirements.
