Price:RUB 8.15 - RUB 73.27
Price in USD:Details

Quantity:


Product Overview

Description

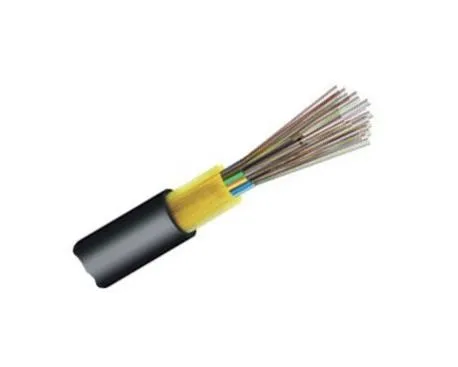

ADSS fiber optic cable,aerial optical cable,dielectric optical fiber cable adss

ADSS(3) - ADSS(1) - ADSSADSS(4) - ADSS Fiber Optical

Product Description

ADSS Cable Description:

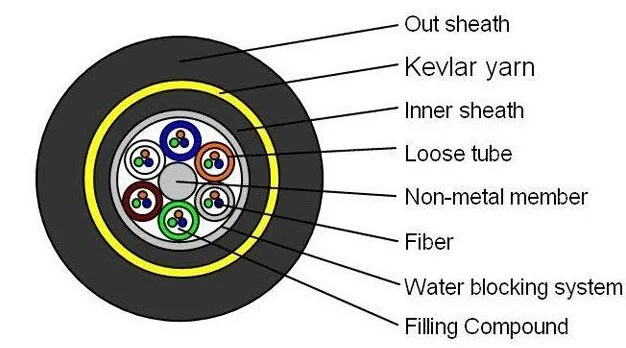

ADSS Cable is loose tube stranded. Fibers 250μm are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP(Fiber Reinforced Plastic) as non-metallic central strength member into a compact and circular cable core. After the cable core is filled with compound. It is covered with thin PE(Polyethylence) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT(Anti-tranking) outer sheath.

ADSS Cable Characteristic

1.Cable be installed without shutting off the power;

2.Excellent AT performance.Maximum inductive at the operating point of AT sheath can reach 25KV;

3.Light weight and small diameter reducing the load caused by ice,wind,load on towers and backprops;

4.Large span lengths(Largest span is over 1000m)

5.Good performance of tensile strength and temperature;

6.Design life span is 30 years.

ADSS Cable Standards

ADSS cable complies with Standard IEE P 1222&IEC60794-1

ADSS Cable Applications

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110KV,PE outer sheath is applied. For power lines equal to or over 110KV,AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

ADSS Cable Optical Characteristics

    G.652 G.655 50/125μm 62.5/125μm
Attenuation(±20℃) @850nm     ≤3.0dB/km ≤3.0dB/km
@1300nm     ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km ≤0.4dB/km
@1550nm ≤0.2dB/km ≤0.23dB/km
Bandwidth(Class A) @850nm     ≥500Mhz.km ≥200Mhz.km
@1300nm     ≥1000Mhz.km ≥600Mhz.km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

ADSS Cable Technical Parameters

Ref. Outer Diameter(mm) Ref. Weight kg/km Ref. Daily Max Working Tension KN Max Allowable Working Tension KN Break Strength KN Strength Member CSA mm2 Modulus Of Elasticity KN/ mm2 Heat Expansion Coefficient ×10-6/k Suitable Span(NESC Standard,m)
PE Sheath AT Sheath A B C D
12.5 125 136 1.5 4 10 4.6 7.6 1.8 160 100 140 100
13.0 132 142 2.25 6 15 7.6 8.3 1.5 230 150 200 150
13.3 137 148 3.0 8 20 10.35 9.45 1.3 300 200 290 200
13.6 145 156 3.6 10 24 13.8 10.8 1.2 370 250 350 250
13.8 147 159 4.5 12 30 14.3 11.8 1.0 420 280 400 280
14.5 164 177 5.4 15 36 18.4 13.6 0.9 480 320 160 320
14.9 171 185 6.75 18 45 22.0 16.4 0.6 570 380 550 380
15.1 179 193 7.95 22 53 26.4 18.0 0.3 670 460 650 460
15.5 190 204 9.0 26 60 32.2 19.1 0.1 750 530 750 510
15.6 194 208 10.5 28 70 33.0 19.6 0.1 800 560 800 560
16.3 211 226 12.75 34 85 40.0 20.1 0.1 880 650 880 650
16.8 226 242 15.45 41 103 48.0 24.0 -0.4 1000 750 1000 760
17.2 236 253 16.2 45 108 51.0 25.1 -0.5 1100 800 1100 830
17.9 249 266 18.0 50 120 58.8 26.1 -0.8 1180 880 1180 900

ADSS Cable Comparison Chart
