Product Overview
Description

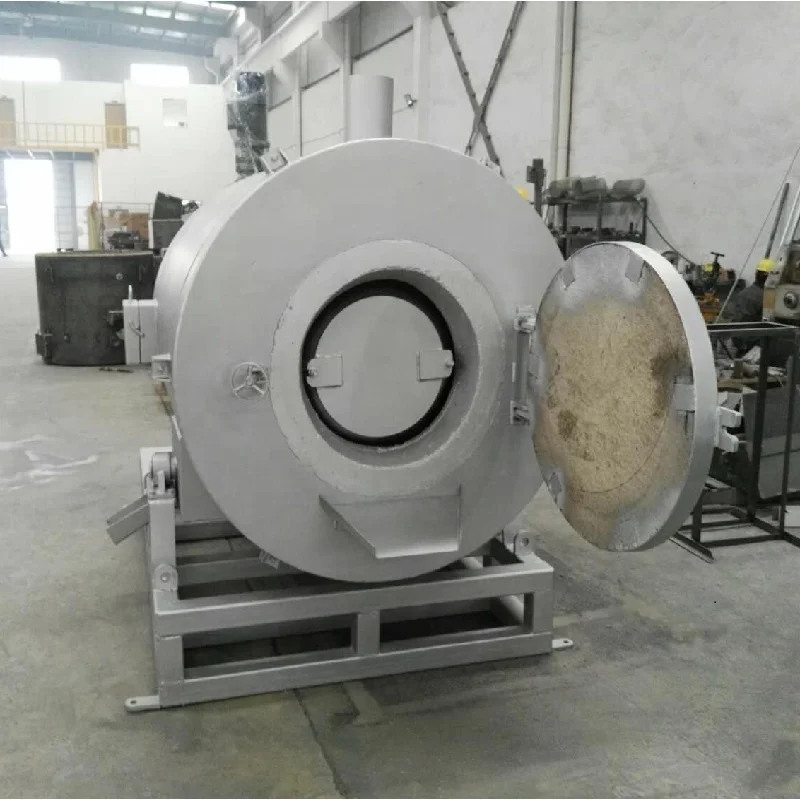

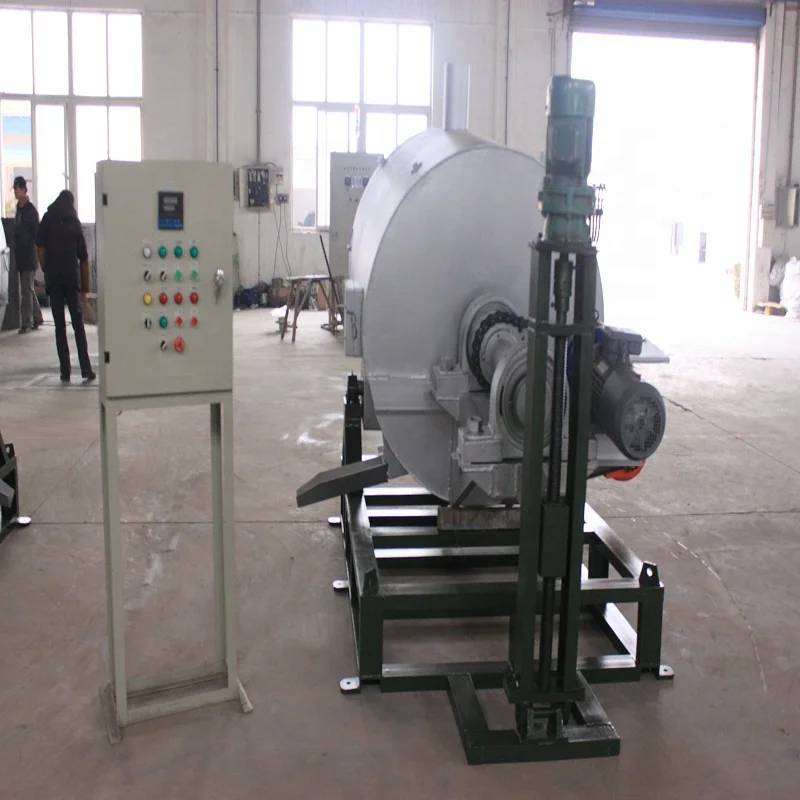

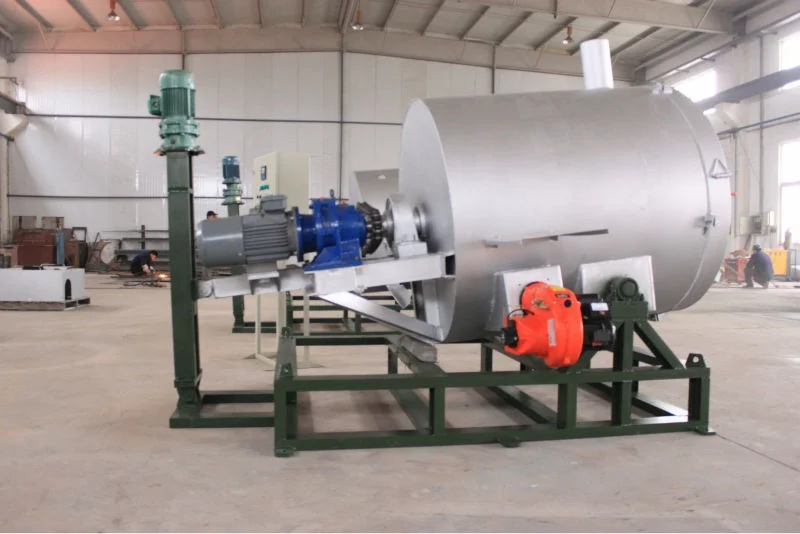

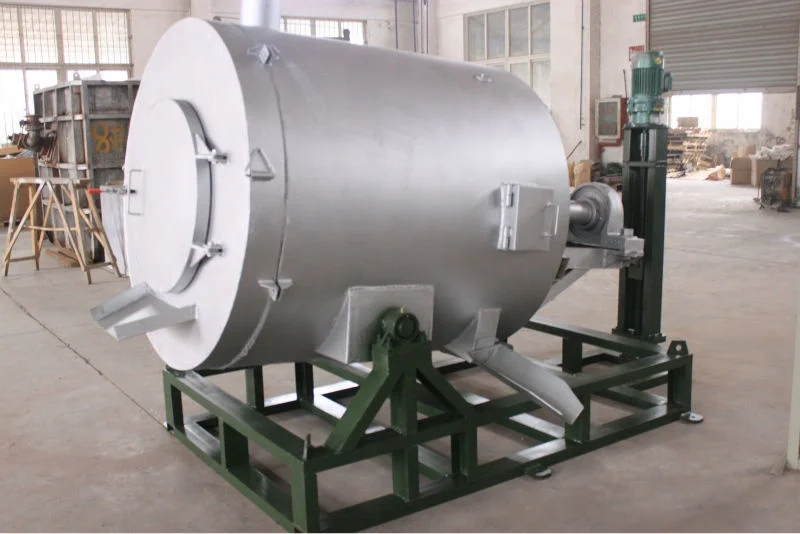

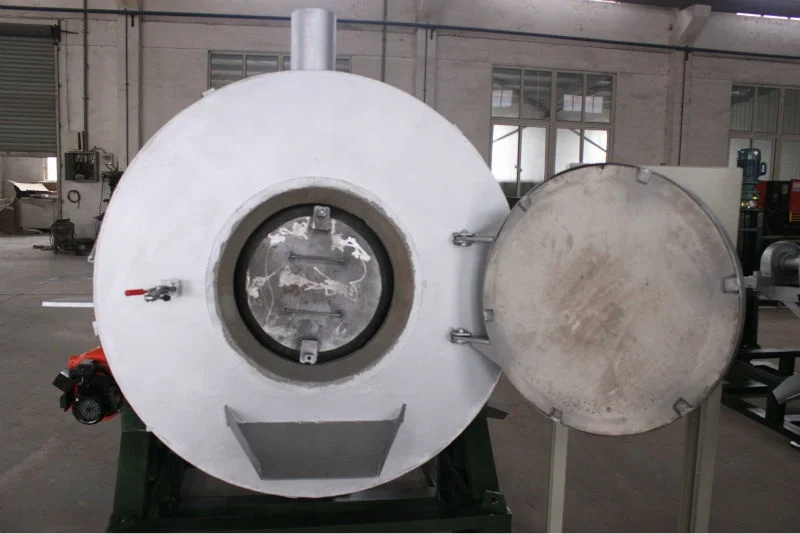

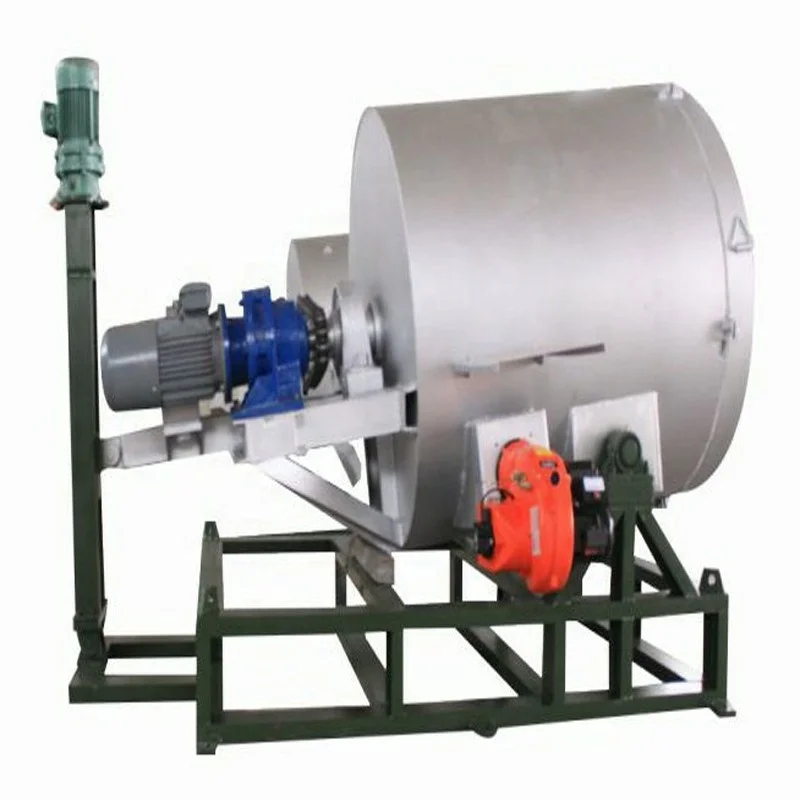

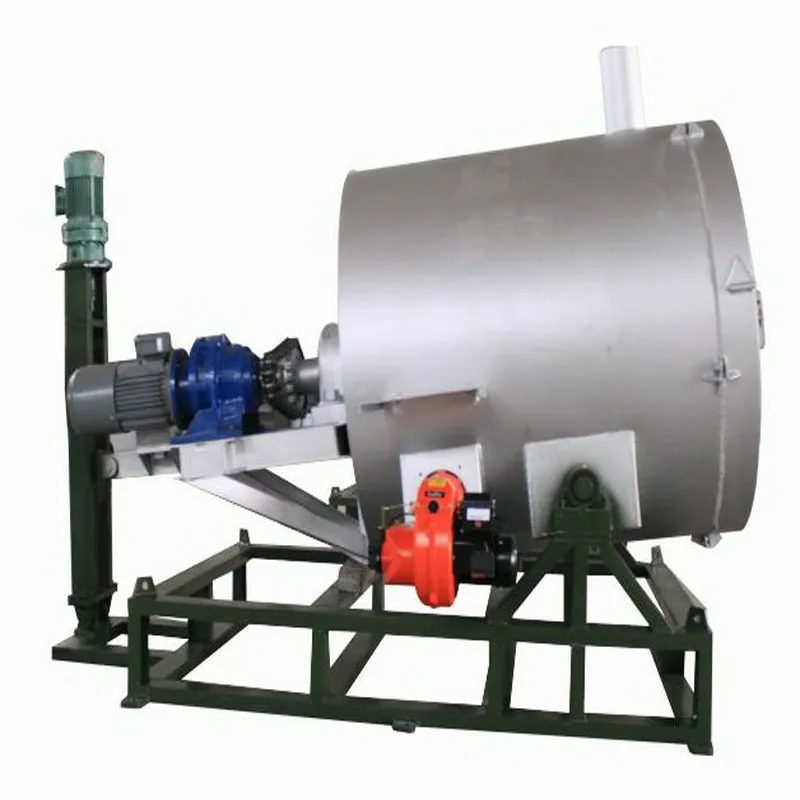

600kg Capacity Oil Fired Zinc Powder Rotary Melting Furnace
PRODUCTS DESCRIPTION
Product Application
Oil Fired Power Zinc Powder Rotary Melting Furnace is used to melt the Zinc powder.
The furnace body is of an oval shape. The two sides of the hearth are built with once-forming refractory material with a high strength. The furnace lining is comprised of refractory layer, heat preservation layer, and heat insulation layer. The hearth is built with high strength once-forming casting material. The hearth is equipped with one fire blocking ring which could prolong the flame stay period, increase melting speed and reduce energy consumption. The furnace has the features of high performance, air tightness, high strength, and long service life. The heat preservation layer and insulation layer are both of ceramic fiber material. The furnace has a fast temperature rising speed, a good heat preservation, and a low energy consumption.
The burning system is comprised of the fan, the solenoid valve, the igniter, and the flame monitor. Connect the burner with power, and the burner will work.
SPECIFICATIONS FOR Oil Fired Power Zinc Powder Rotary Melting Furnace | ||||||
Burning System | Burner type | Oil burner | 1set | |||
Max consumption | kg/hour | 20 | ||||
Max air consumption | m³/hour | 60 | ||||
Temperature control system | Temperature zone | zone | 1 | |||
Max furnace temperature | °C | 1000 | ||||
Temperature rising speed | °C/hour | approx 300 | ||||
Temperature uniformity | °C | ±10 | ||||
Furnace body | Capacity | kgs | 600 | |||
Overall size | mm | 3310*2258*1564 | ||||
Rotary speed | m/min | 10~12 | ||||
Main Features
Name: Zinc Powder Rotary Melting Furnace
Brand: WONDERY
Original: China
The furnace hearth is built with once-forming casting material with a high strength. The life service is more than 5 years.
RELATED PRODUCTS
COMPANY PROFILE
WUXI WONDERY TRADING CO., LTD. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
CUSTOMER PRAISE
CERTIFICATION
PRODUCT PACKAGING
FAQ
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
