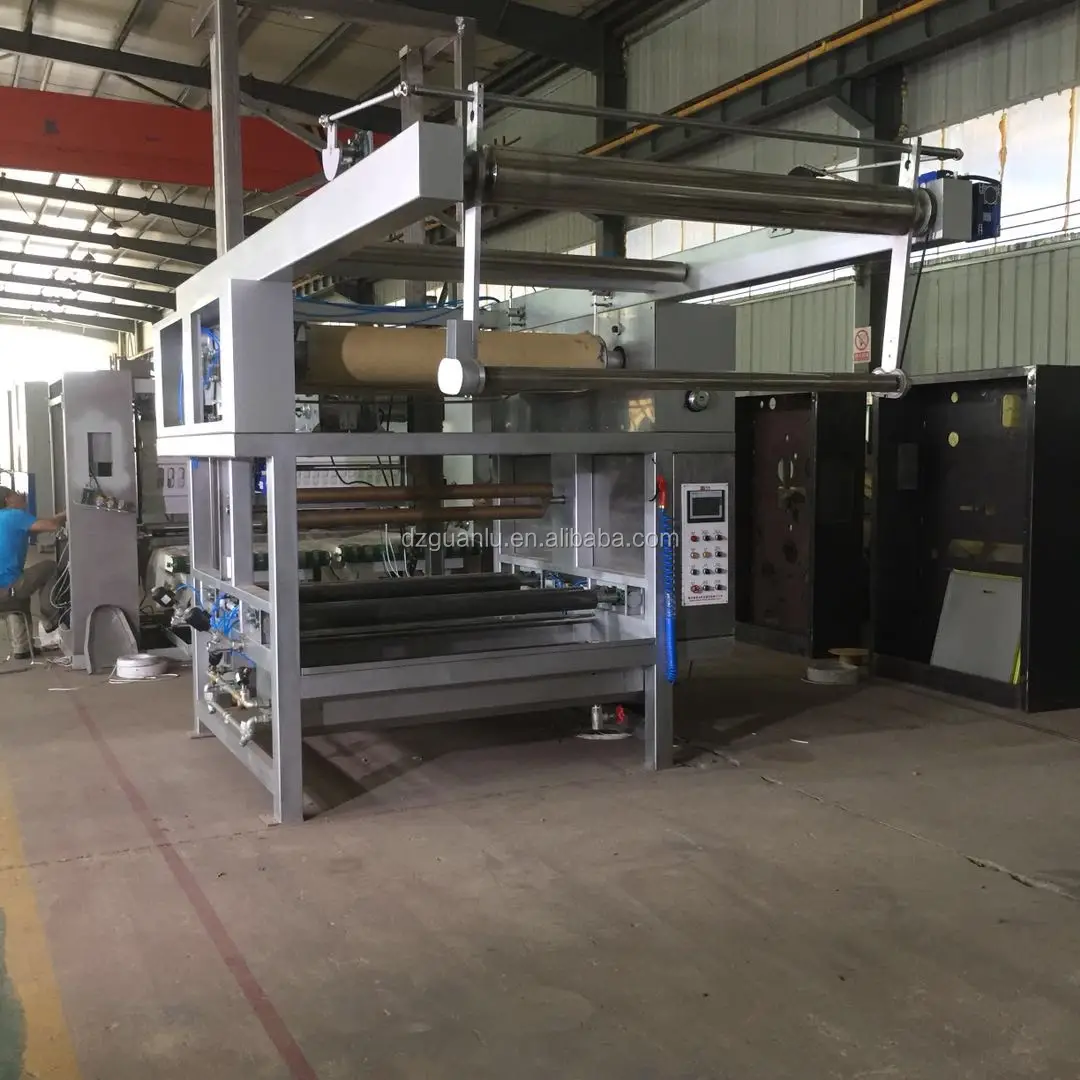

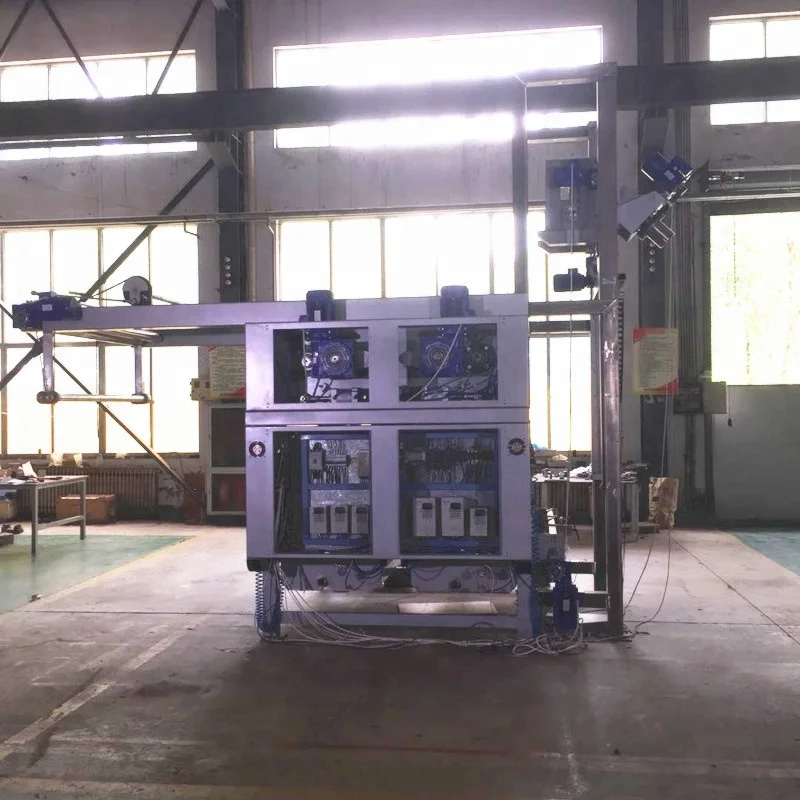

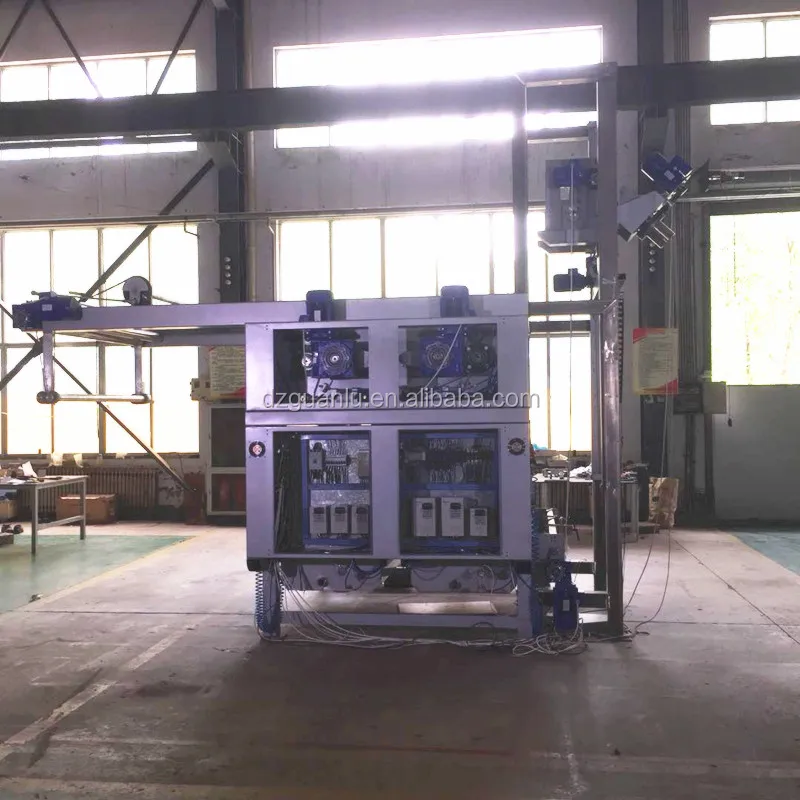

double dips balloon padding squeezing machine for tubular knitting fabric

Product Overview

Description

Proposal for Balloon padder









RE:Double Balloon padder with detwister

Brand: Taipingyang

Model number:GHRZ1400-2

HS code:84518000

Usage of te machine:

GHRZ1400-2 series machine is used for impregnating soften agent and hydro-extractor process of the tubular fabrics, it can be substitute for centrifugal machine and wet expander. It is high efficient and easy to operate.

Technical parameters

l Working width: 1400mm

l Machine speed: 3-45m/min(Inverter control the motor, speed is adjustable)

l Motor power: 11.45kw

l Applicable compressed air pressure: 0.4-0.6Mpa

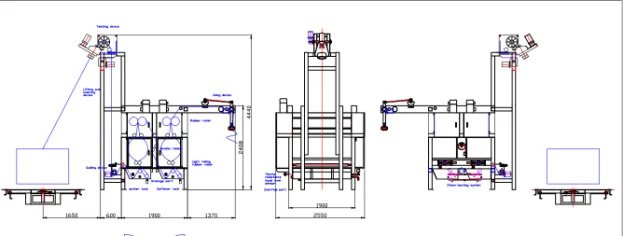

l Machine dimension(L×W×H):7100mm×2750mm×6000mm

l Machine weight: 4.5T

l Machine capacity:minimum 4.5 ton & Maximum 5.5 ton (Depending on Fabric GSM: 160, Fabric Width: 20”inch)

l  Machine with a power of 600V, 60HZ, 3 Phase.

l

Standard equips

l Turn table

   Turn table is driven by motor, it can turn clockwise or anticlockwise according to untwist needing.

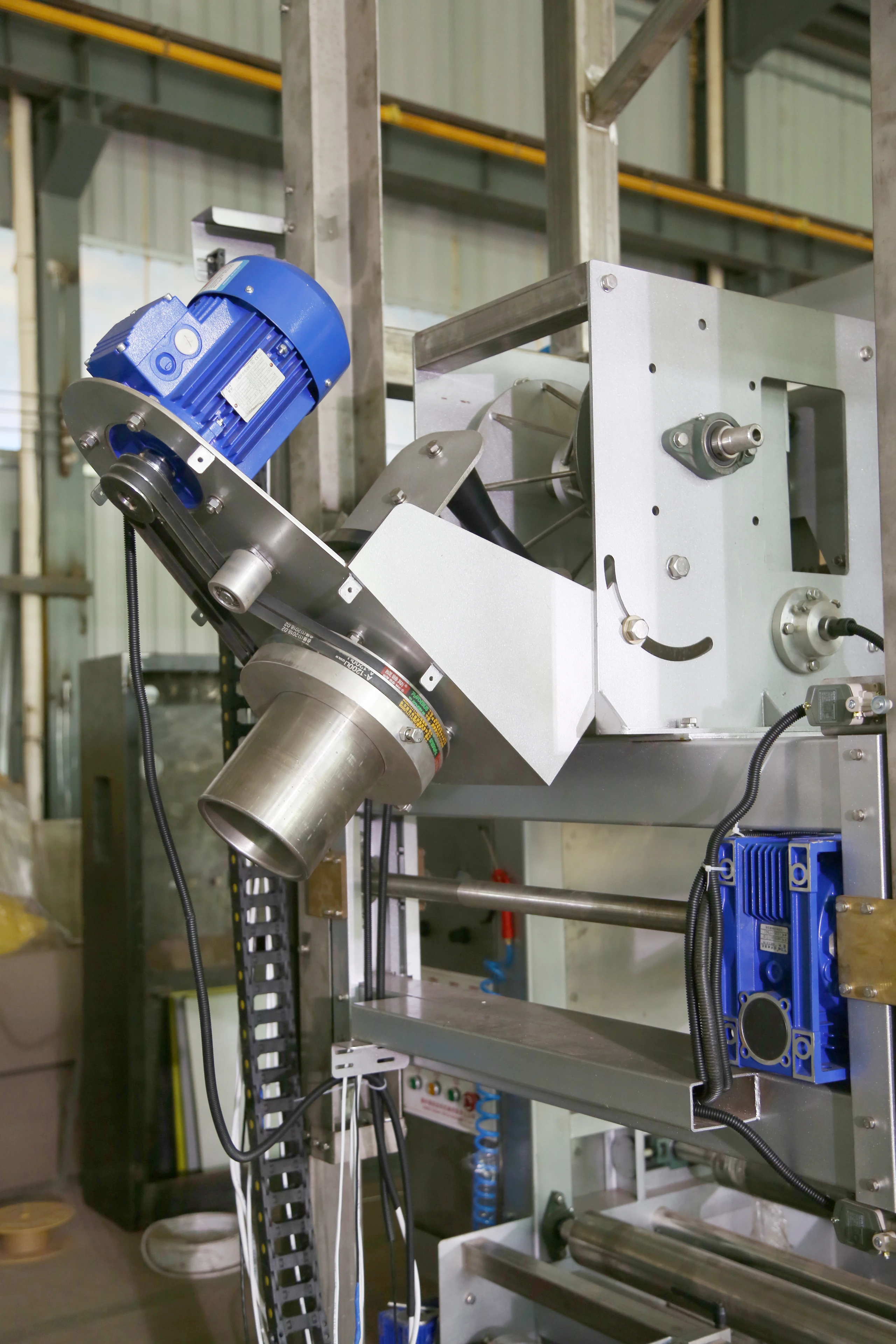

l Detwister

According to the torsion direction of the fabrics, send signal automatically, control the detwister head and turntable direction, X type delivery belt wheel driven by motor, decrease tension of the fabrics.

l Humidify system

  This system consists of pump, humidify head, pipe, liquid tank. The softener will mix with the fabrics in showering mode,The liquid tank equips steam heating pipe,so the liquid can keep consistant temperature

l Air ballooning device

  This part includes hand operation air spray and automatic ballooning, the air spray is the main ballooing device. The automatic ballooning device is controlled by two pieces single reverse valve. It is the assistant device.

l Water squeezing device and liquid squeezing device

Each device consists of 2 sets(four pieces) rubber roller made of special material and 2 sets air cylinder ,each air cylinder is controlled by single reverse valve.

l Tension adjust device

Set with a regulation-resistance to adjust tension between liquid squeezing roller and delivery device.

l Fabrics exit device

This device is driven by inverter controlled motor ensure synchronous running.

l Heating device

The heating device consists of heating pipe, thermo-couple, filter, reverse valve, pneumatic driven stop valve and steam trap, it can keep liquid temperature constant automatically

l Blending jar

It consists of blender,heating pipe,water injection pipe; its function is blend softener and water fully.

l  Driving device

The whole machine has 6 sets driving motors, among them in-feed motor,water squeezing motor, softener expression motor and plaiting motor are droved by  inverters, the inverter is controlled by synchronous controller.

l Electric components:

The inverter is Delta brand of Taiwan. Low voltage appliance is Schneider of France.





 Main parts of the machine

Inverter:Delta 4sets

PLC:Delta brand

Touch screeen: Delta brand

Water squeezing roller: acid base resistant rubber roller  two sets

Softener expression roller: acid base resistant rubber roller  two sets

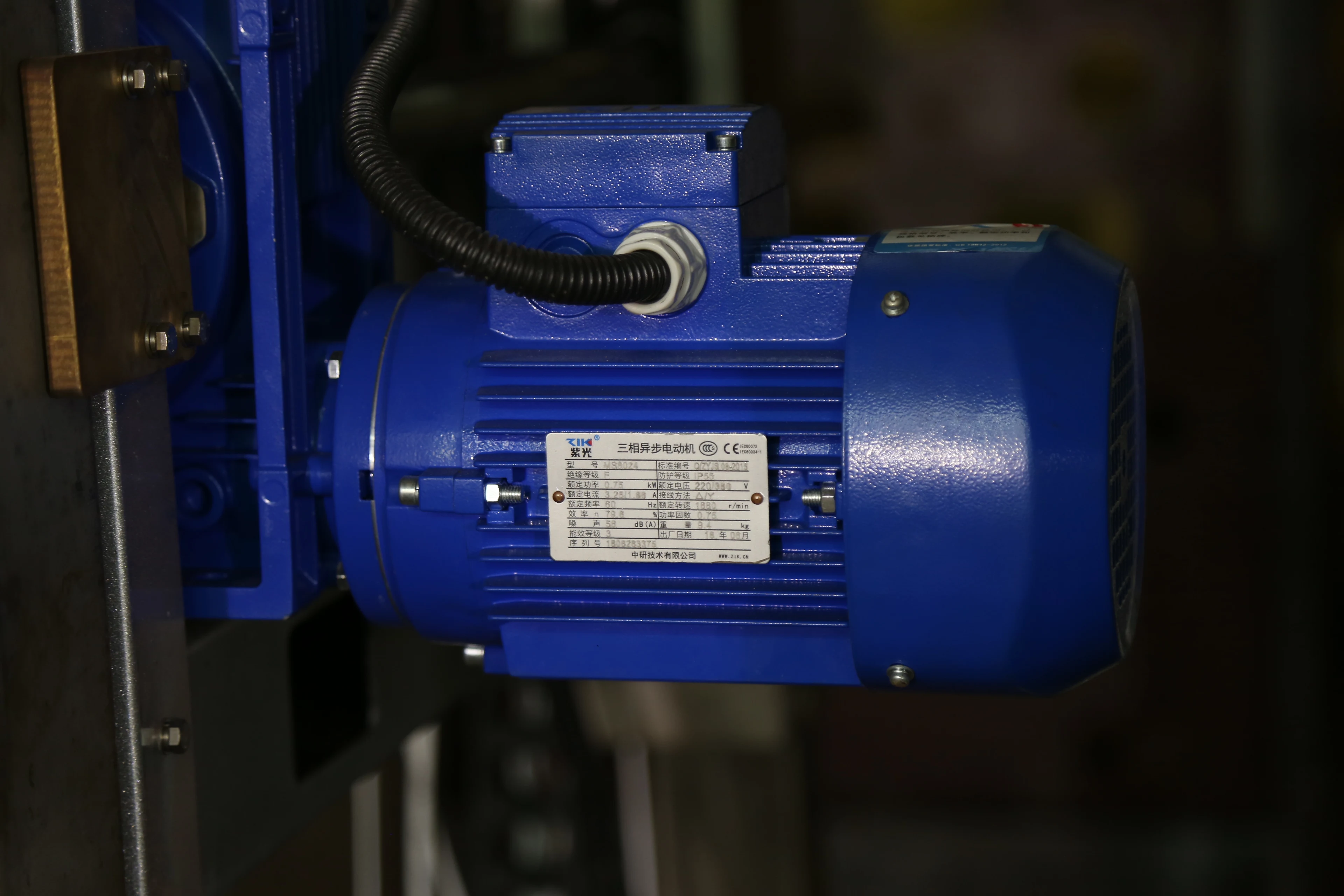

Gear box motor: 3kw 2sets

Gear box motor :0.75kw  4sets

Gear box motor:1.5kw  2sets

Infeed web belt: 3175mmx1640mm  Du pont of USA 2pcs(material is imported from Du pont and made in China)

Rough belt:40x2mm

Low voltage electric sets(like switch,indicator,relay): Schneider of France

  All electrical and electronic parts are CAS or UL certified.
