The last High quality Remote Controller RadioLink AT10 II 2.4G 12CH RC Transmitter With R12DS Receiver
- Category: Mother, Kids & Toys >>>
- Supplier: Shenzhen Kimura Technology Co. Ltd.
Share on (60794316027):
Product Overview
Description
Product Description

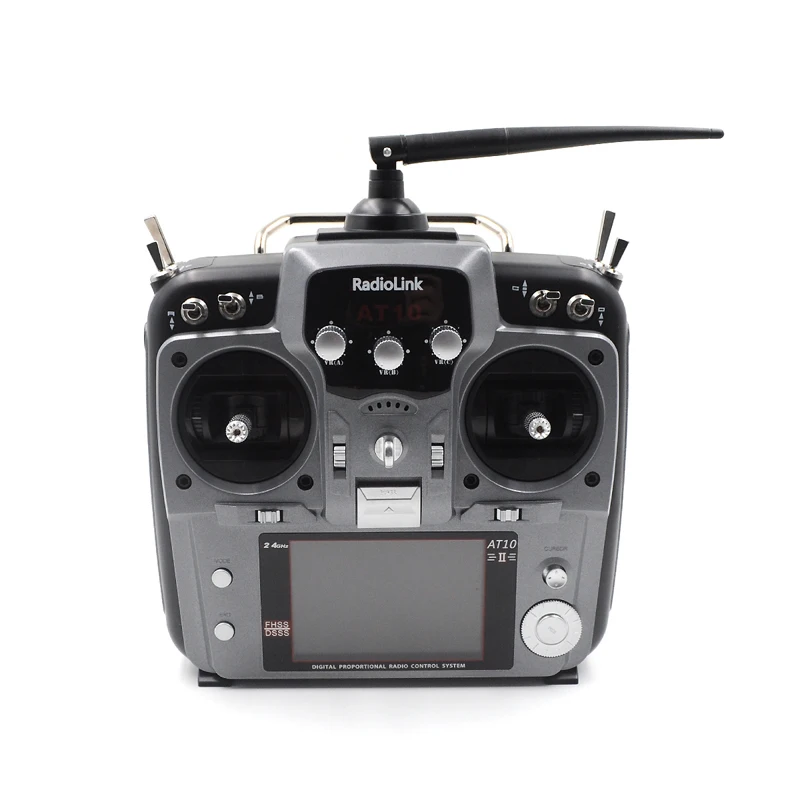

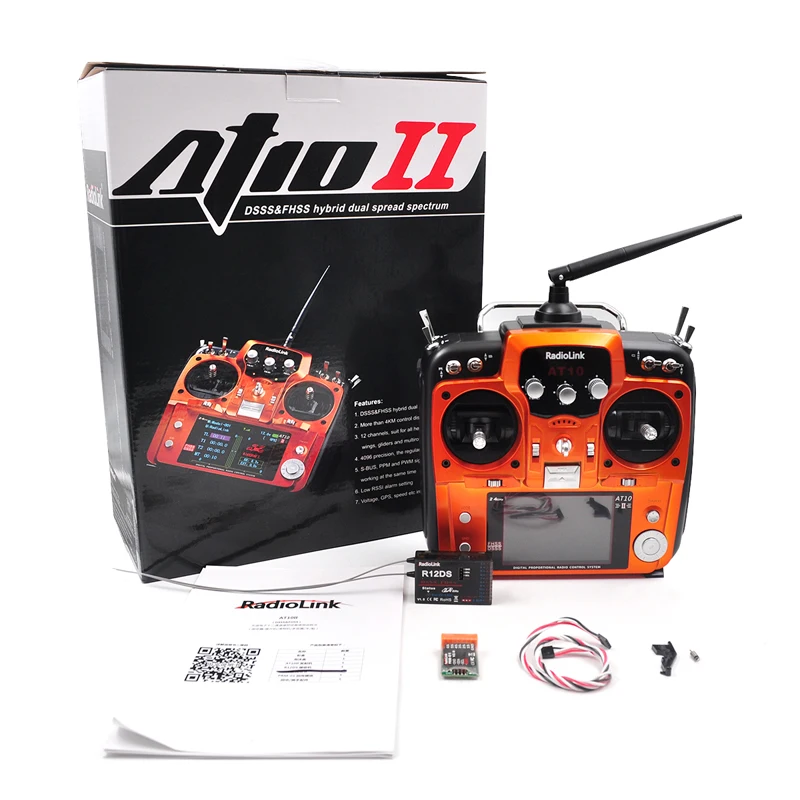

High quality Remote Controller RadioLink AT10 II 2.4G 12CH RC Transmitter With R12DS Receiver
Features
User name and model setup can be saved (up to 15 aircraft)
RSSI and Telemetry
Adjustable display brightness and contrast
Multiple alarms
Fail Safe system: engages when a clean signal is lost or if the receiver battery is low
Servo reversing and end-point adjustment
Adjustable servo travel limit (prevents pushrod jamming)
Servo Cycle function helps locate servo problems
Dual, Triple and Exponential rates
Digitally controlled Trim switches
Sub-Trim program changes the servo neutral position
Adjustable gimbal-stick length and tension
User name and model setup can be saved (up to 15 aircraft)
RSSI and Telemetry
Adjustable display brightness and contrast
Multiple alarms
Fail Safe system: engages when a clean signal is lost or if the receiver battery is low
Servo reversing and end-point adjustment
Adjustable servo travel limit (prevents pushrod jamming)
Servo Cycle function helps locate servo problems
Dual, Triple and Exponential rates
Digitally controlled Trim switches
Sub-Trim program changes the servo neutral position
Adjustable gimbal-stick length and tension
Technical Parameter:
1.Frequency: 2.4GHz ISM band (2400MHz~2485MHz);
2.Modulation mode: QSPK
3.Channel bandwidth: 5.0MHz
4.Spread spectrum: DSSS & FHSS
5.Adjacent channel rejection: >38dBM
6.Transmitter power: <100mW(PCB testing);<20dBm(3 meter air testing)
7.Operating Voltage: 7.4~15.0V
8.Operating Current: <105mA
9.Control distance: Up to 4km, the actual control distance depends on the flying environment
10.Channel: 12 Channel,5~12 channel are customizable
11.Compatible model: include all 120 degree and 90 degree swash-plate helicopter,all fix wings, glider and multiritor
12. Simulator Mode: under the simulator mode the transmitter action turn off, change to power saving mode
13. Screen: 3.5 inches, 16 colorful screen, 320*480 pixels

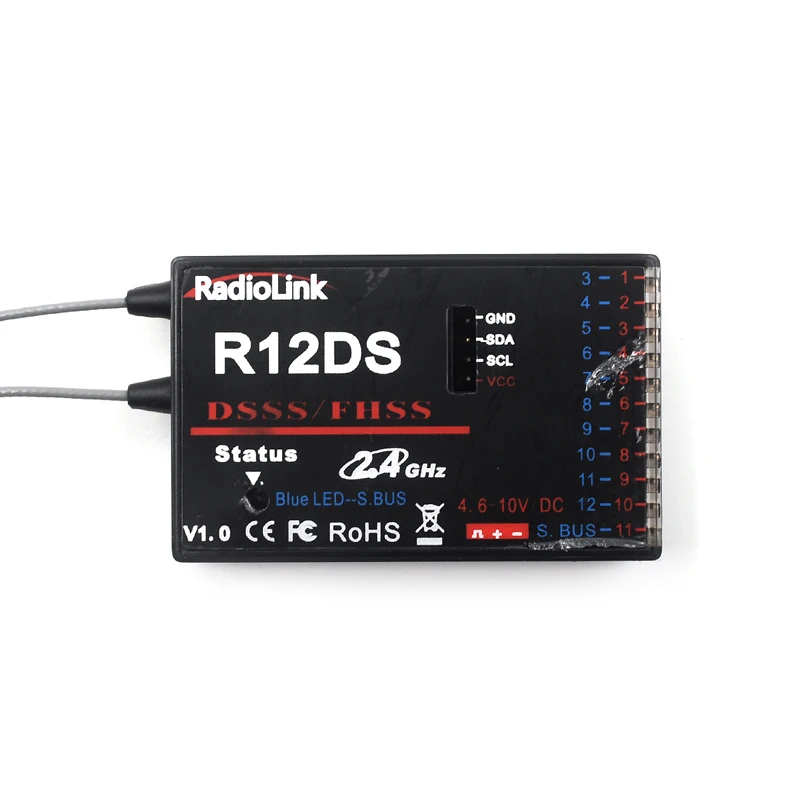

14. Support receivers: sell with R12DS (SBus & PWM)
compatible with R9DS, R12DSM, R6DS, R6DSM
1.Frequency: 2.4GHz ISM band (2400MHz~2485MHz);
2.Modulation mode: QSPK
3.Channel bandwidth: 5.0MHz
4.Spread spectrum: DSSS & FHSS
5.Adjacent channel rejection: >38dBM
6.Transmitter power: <100mW(PCB testing);<20dBm(3 meter air testing)
7.Operating Voltage: 7.4~15.0V
8.Operating Current: <105mA
9.Control distance: Up to 4km, the actual control distance depends on the flying environment
10.Channel: 12 Channel,5~12 channel are customizable
11.Compatible model: include all 120 degree and 90 degree swash-plate helicopter,all fix wings, glider and multiritor
12. Simulator Mode: under the simulator mode the transmitter action turn off, change to power saving mode
13. Screen: 3.5 inches, 16 colorful screen, 320*480 pixels
14. Support receivers: sell with R12DS (SBus & PWM)
compatible with R9DS, R12DSM, R6DS, R6DSM
Company Profile
Our Company
Shenzhen Kimura Technology Co., Ltd. has begun its business of remote control models since 2008, a famous international e-commerce wholesale company of remote control parts, also an outstanding distributor of several famous rc (remote control) Model brand, like, DJI, FIMI, RadioLink and Flysky, ect.
Kimura, takes a leading power in the peer for designing, manufacturing and sourcing rc model airplanes and bags as well as their accessories. Specialized selling products are different rc airplane aluminum cases and bags, and rc accessories from DJI, Flysky, Parrot , FIMI and so on . For example, Aluminum cases and bags, rc model helicopters, model planes, model aircrafts, professional chargers of DJI, ect. Up to now,
Kimura has developed well and occupied the superior position among the third-party international e-commerce platform, such as Amazon, ebay, Alibaba and others. We always keep renewing our products constantly according to the trend of market development to duly meet our customers' demand.
Kimura pays a more influential role among international consumers and is quite professional in making andproviding higher-standard products with more suitable price and brings you best service.
Kimura, takes a leading power in the peer for designing, manufacturing and sourcing rc model airplanes and bags as well as their accessories. Specialized selling products are different rc airplane aluminum cases and bags, and rc accessories from DJI, Flysky, Parrot , FIMI and so on . For example, Aluminum cases and bags, rc model helicopters, model planes, model aircrafts, professional chargers of DJI, ect. Up to now,
Kimura has developed well and occupied the superior position among the third-party international e-commerce platform, such as Amazon, ebay, Alibaba and others. We always keep renewing our products constantly according to the trend of market development to duly meet our customers' demand.
Kimura pays a more influential role among international consumers and is quite professional in making andproviding higher-standard products with more suitable price and brings you best service.
Our Service
Sales Manager | Alina Lee |
Email : | Info@kimurarc.com |
Tel.: | +86-0755-36890679 |
Website: | www.kimurarc.com |
Website in Alibaba: | kimura.en.alibaba.com |
FAQ
1.Why can you choose us?
We are professional RC hobby team and we have been in this field for more than 10 years. There are good skilledpilots, technicians and after sale support.
2. Do you accept the paypal?
For payment, We accept payment by T/T, Western Union, Paypal and Escrow (Secure Payment) or others. If you want any payment terms please let us know before when you order.
3. What’s your MOQ and delivery time?
A. About MOQ, for different products, there will be different MOQ, It is depending on your choice of products.
B. For delivery time, if you need one sample, our delivery time is 3-5 days. If customized , delivery time pls contact sales.
B. For delivery time, if you need one sample, our delivery time is 3-5 days. If customized , delivery time pls contact sales.
4. What’s your warranty details?
All the goods are inspected before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you must contact us within 24 hours of the receipt of your order.The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping. All return items must be in its original conditions, including box and accessories. Men made defects are not guaranteed, such as broken, scratched and so on.
5. About our faekbook?
A:Buyer's early confirmation will be highly appreciated after receiving the items.
B: Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. It'll just take you 1 minute,but this 1 minute has the extremely vital significance to us.
C:Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems. Thank you for your understanding!
6. Which shipping ways is better?
There is many shipping ways that you can choose. For exmple, By Air / Sea / Railway , China post, EMS. DHL ,Fedex, Ups, and TNT ect.Different shipping ways have differet delivery time. It is that according to what shipping ways you want. Any question please contact us!
7.About customs tax:
The buyer is responsible for any insurance, problems and damage which caused by shipping service such accidents, delays or other issues. Besides the buyer should be responsible for any tax and/or duty charged by their country. And the goods will be Marked as "gift" or "sample" for your easy customs clearance and less charge. (if you want to declare the goods as other item name, or specify an value for custom, please inform us when making the order)
