5kw Generator Motor Three Phase Alternator
- Category: >>>
- Supplier: Shanghai Laisa New Energy Technology Co. Ltd.
Share on (60794358294):
Product Overview
Description
Product Description

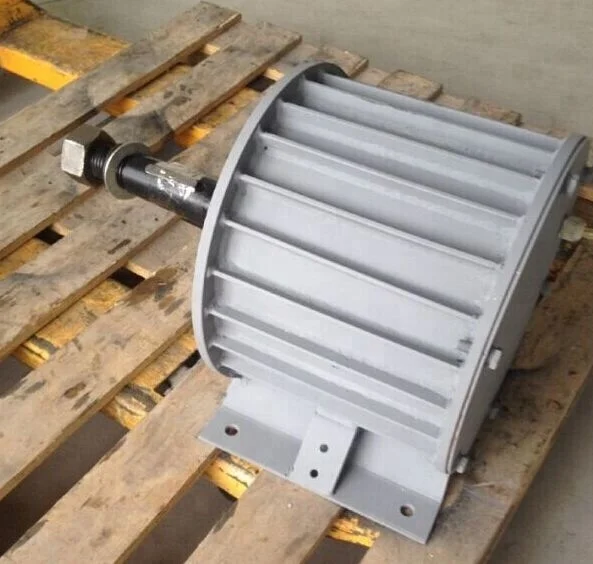

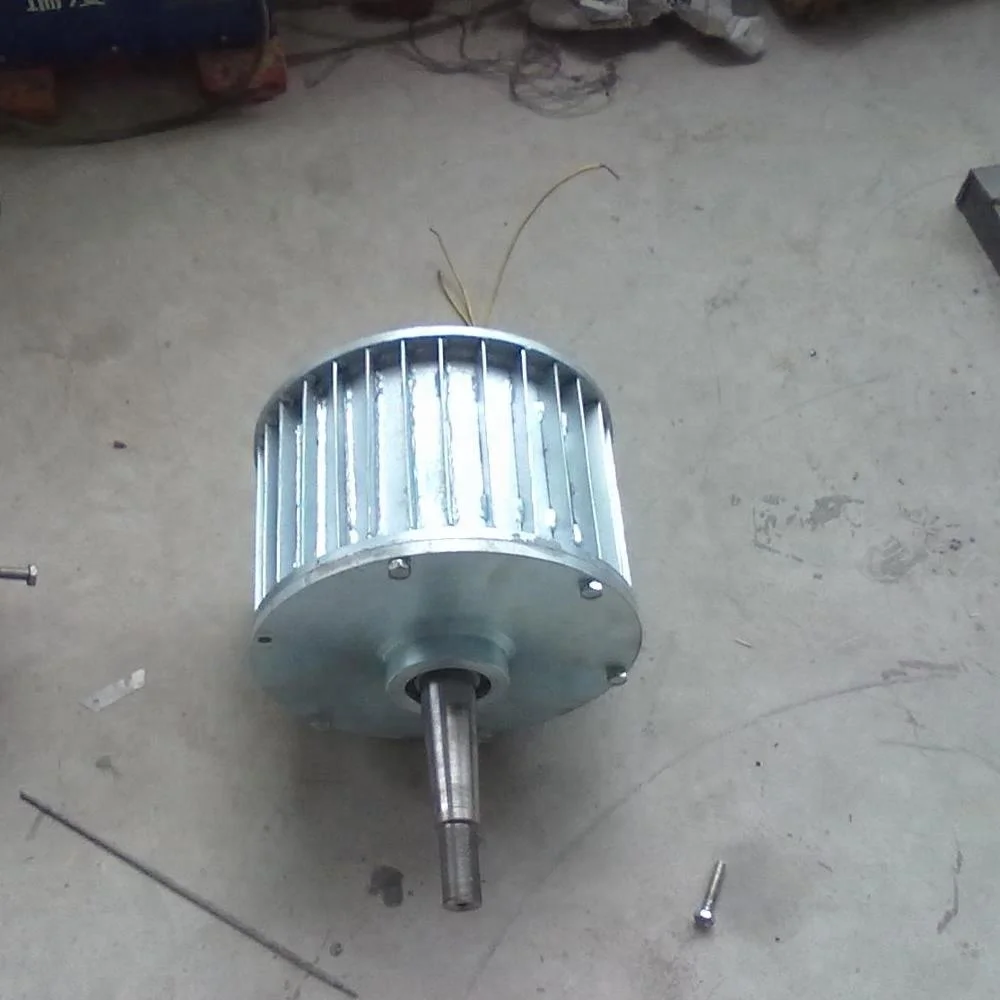

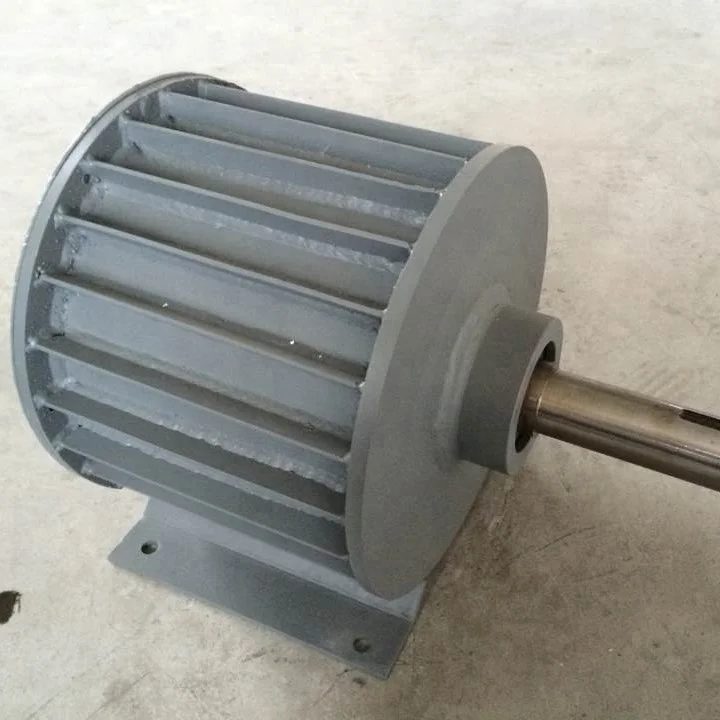

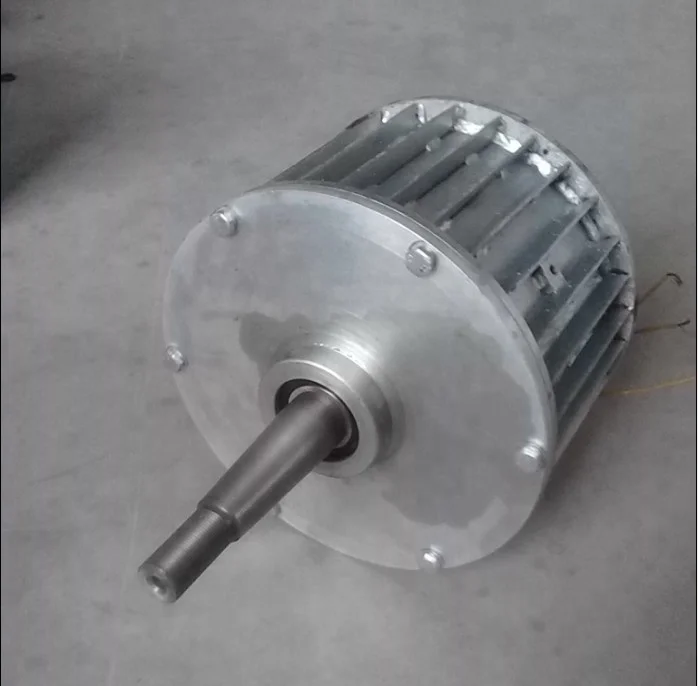

5kw Generator Motor Three Phase Alternator
Low start up speed
Low cogging torque
Suitable for both Horizontal and Vertical Turbines
Gearless, direct drive, low RPM generator
Alternator generator Type permanent magnet generator
For use in all environments
Excellent heat dissipation
Designed for 20-year operation life
Product Parameters
| Model | LS-5000LM | ||
| Rated Power(w) | 5000w | ||
| Max Power(w) | 7000w | ||
| Rated Voltage(v) | 96v/120v/220v | ||
| Rated rotated speed(r/m) | 300r/m | ||
| Top net weight(kg) | 80kg | ||
| Output Current | AC | ||
| Start Torque(N*M): | 1.1Nm | ||
| Rated Torque(N*M): | 159.2Nm | ||
| generator | 3 phase permanent magnet synchronous generator | ||
| Insulation Class: | F | ||
| Service Life: | More Than 20 years | ||
| Bearing | HRB or for your order | ||
| Shaft Material | Iron | ||
| Shell Material | Aluminum alloy | ||
| Permanent Magnet Material | Rare Earth NdFeB | ||
| Protection Grade | IP54 | ||
| Lubrication | Lubrication Grease | ||
| Working temperature | -40℃ - 80 ℃ |
Product Packing
Our company
Shanghai Laisa New Energy Technology Co., LTD is locating in NO.3568 Caoying Road, Qingpu District, Shanghai city, China. Our company is mainly devoted to 100w-100kw small wind turbine, solar system and some new energy products' research, design, integration, sales, project construction and services. At present, our products have been sold to the Europe and America, Italy, Saudi, Brazil and other 63 countries. Our products are applied in the wind and solar hybrid street light, yachting, remote villas, farms schools, portable mobile tents and supporting stands and so on. Our products have won a high admiration at home and abroad. What's more, all products have certificated with ISO and CE.
FAQ
1) What are the major components of a standalone wind energy system?
Ans.: A standalone wind energy system usually consists of a small wind turbine and its supporting structure (e.g. pole fixed in position by guywires), a charge controller and a battery bank If the loads demand AC supply, an inverter for converting DC to AC will be necessary
2) Are small wind turbines noisy?
Ans.: Small wind turbines usually have DC generators, and they need to rotate rather fast in order to produce sufficient output This causes a bit of noise when the wind is strong. Depending on the our special design, our turbines are quieter than the others
3)How can I connect small wind turbine to the AC distribution system of a building or a site?
Ans.: A grid-tie inverter with specifications meeting the guidelines given in the technical guidelines on grid connection of small scale renewable energy power systems and the requirements of the power company, is needed for converting DC output of the small wind turbine into AC for grid connection
4)Do I have to lower a small wind turbine when typhoon is approaching?
Ans.: If small wind turbine has a low survival wind speed, you may have to lower it when a typhoon is approaching On other hand, if survival wind speed is high and if the manufacturer suggests that there is no need to lower the turbine, then such kind of procedure will not be necessary
Why Choose Us
CE
ISO:14001
ISO:9001
Our Service
1. Provide professional wind turbine technical support
2. Provide on/off grid system design, wind solar hybrid system design service
3. Complete system provider and designer
4. Wind turbine type, model, capacity selection professional support
5. Provide OEM service, customized service
Main Products

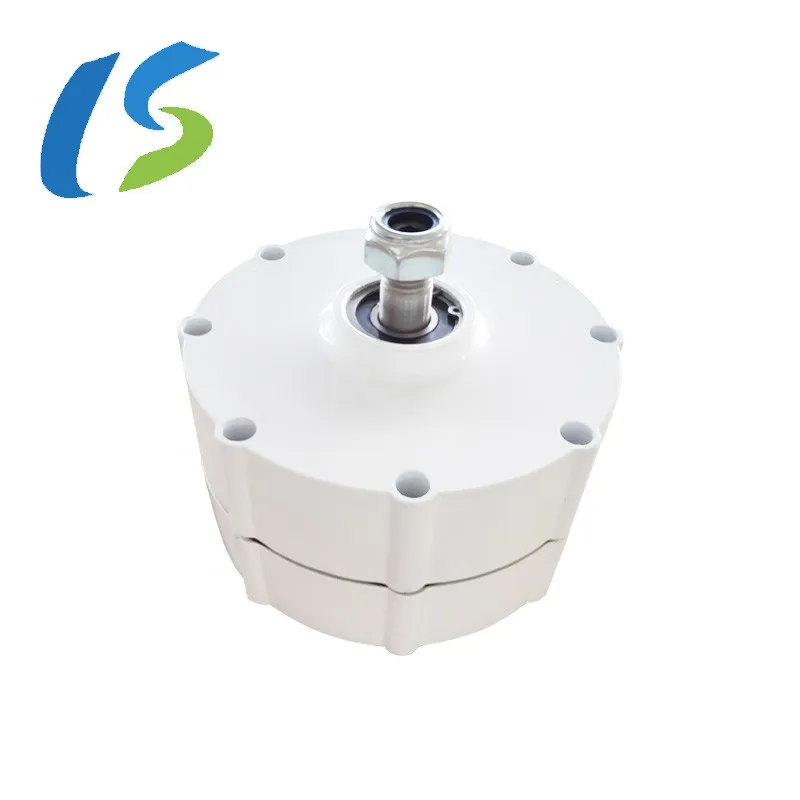

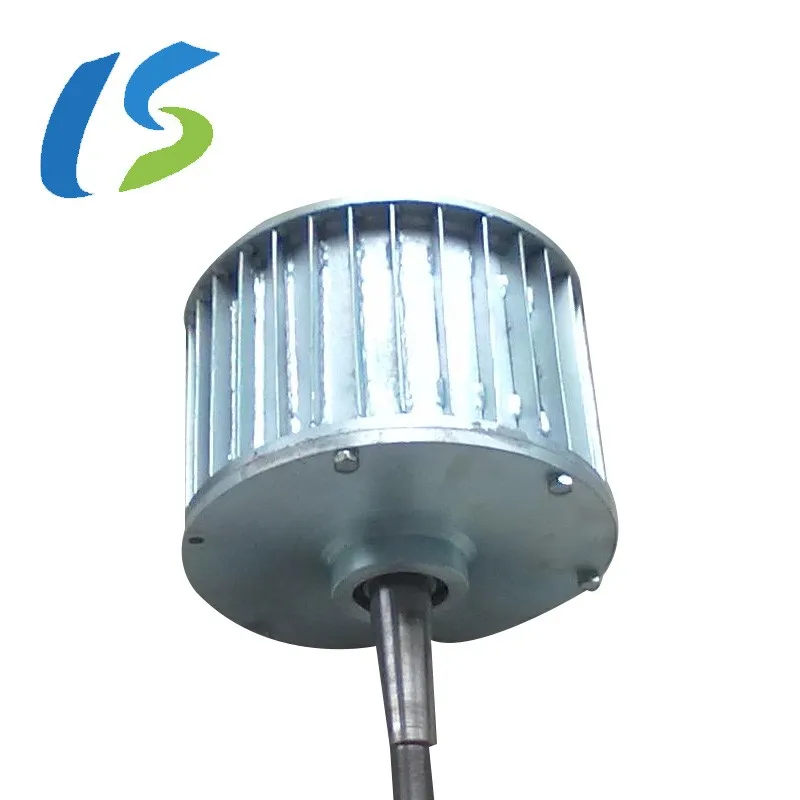

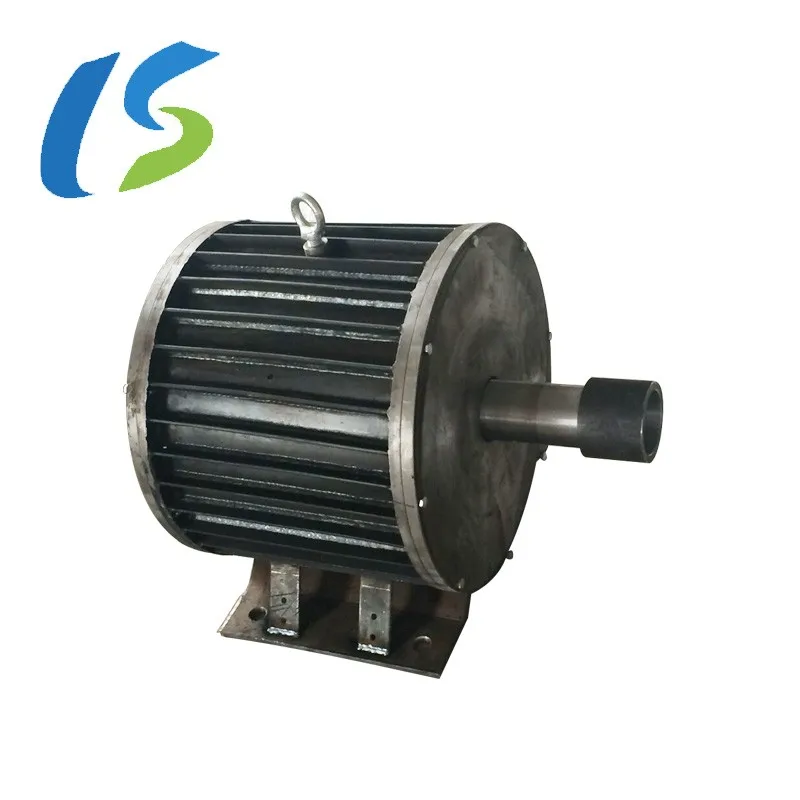

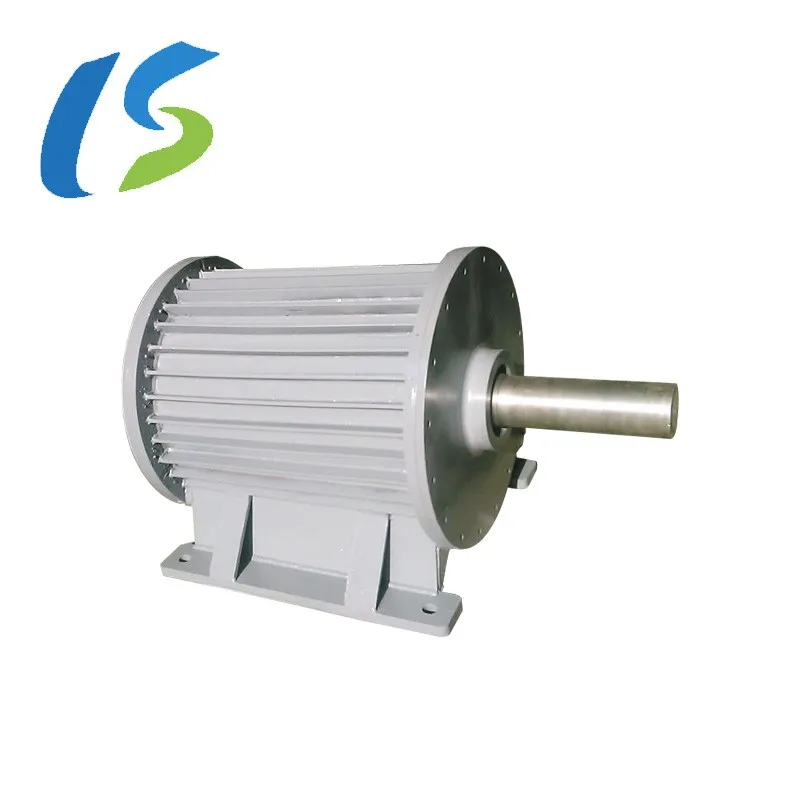

500w permanent magnet generator
3kw low rpm permanent magnet generator
5kw low rpm permanent magnet generator
10kw low rpm permanent magnet generator
25kw low rpm permanent magnet generator
50kw low rpm permanent magnet generator
