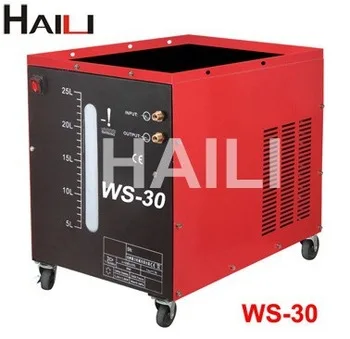

2024 year super quality low price made in china 30L water cooler for tig welding torch welding machine

Product Overview

Description

High Quality Water Cooler for Welding Cutting Machine

1,Products features:

1).Economic and practical water tank, light weight, small volume, easy to move;
2).Water storage tank with high temperature resistant materials, integral forming, no leakage;
3).Using brass body for vortex pump with fan cooling function, avoid incrustation after long time using,

Pressure is 3KG; flow rate more than 20/min.
4).Transparent water inspection windows, timely control of water level;
5).Forward filling port, more convenient to water injection;
6).Unique wind tunnel type cooling design, cooling rate rising 30% than normal products.



Parameters:

Model	WS-8L	WS-10L	WS-12L	WS-25L	WS-30L
Input Voltage	Single Phase 230V±10%
Frequency	50Hz
Cooling Power	1.5KW(1L/Min)	1.5KW(1L/Min)	1.7KW(1L/Min)	2.5KW(1L/Min)	2.8KW(1L/Min)
Pump Power	370W
Max Pressure	0.3Mpa	0.3Mpa	0.3Mpa	0.35Mpa	0.35Mpa
Water Volume	8L	10L	12L	25L	30L
operating temperature	-20°C---60°C
Weight	15Kgs	16Kgs	17Kgs	25Kgs	28Kgs
Measure	485*250*350mm	495*250*350mm	530*250*350mm	550*380*460mm	570*380*460mm

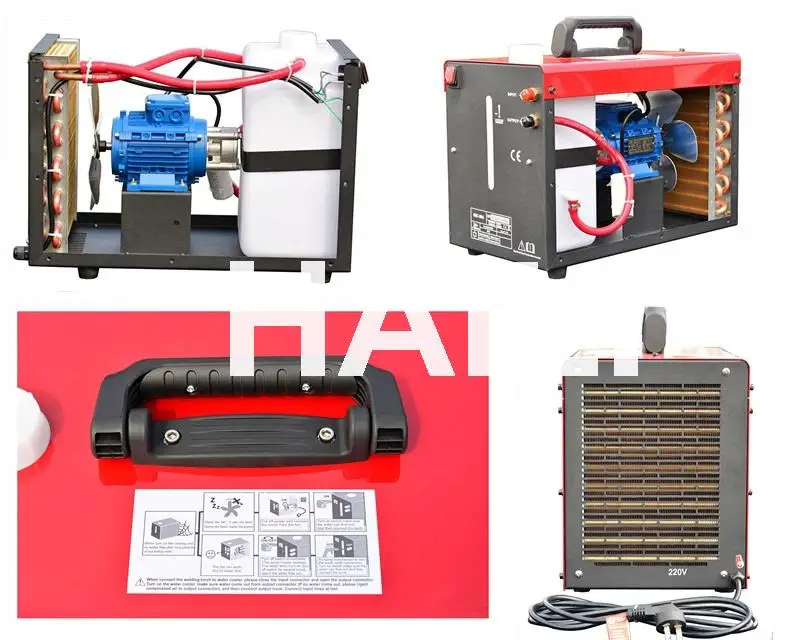

2,Product Inner Structure:

3,Product packing way

4,Workshop

5,Product Application

6,Certificate
