PH наружный шестигранный мужской резьбовой L тип локоть Вращающийся Поворотный воздушный фитинг пневматический

RPH4-M5

RPH10-01

For example: RPH 4- 01 (G) (1) (2) (3) (4)

RPH4-01

RPH10-02

(1)Model: RPH outer hexagon thread fitting

RPH4-02

RPH10-03

(2) Tube OD

RPH6-M5

RPH10-04

Metric: 4-6-8-10-12mm(Default)

RPH6-01

RPH12-02

English: 1/8'' 5/32'' 3/16'' 1/4'' 5/16'' 3/8'' 1/2''

RPH6-02

RPH12-03

(3)Thread Size

RPH6-03

RPH12-04

Metric: M5/M6/M8/M10/M12/M14/M16/M22

RPH6-04

English: 01:1/8'' 02:1/4'' 03:3/8'' 04:1/2''(Default)

RPH8-01

(4)Inch thread form:

RPH8-02

Default: G(PF,BSPP)

RPH8-03

(PT):BSPT(R)

RPH8-04

(N):NPT(Z)

Type

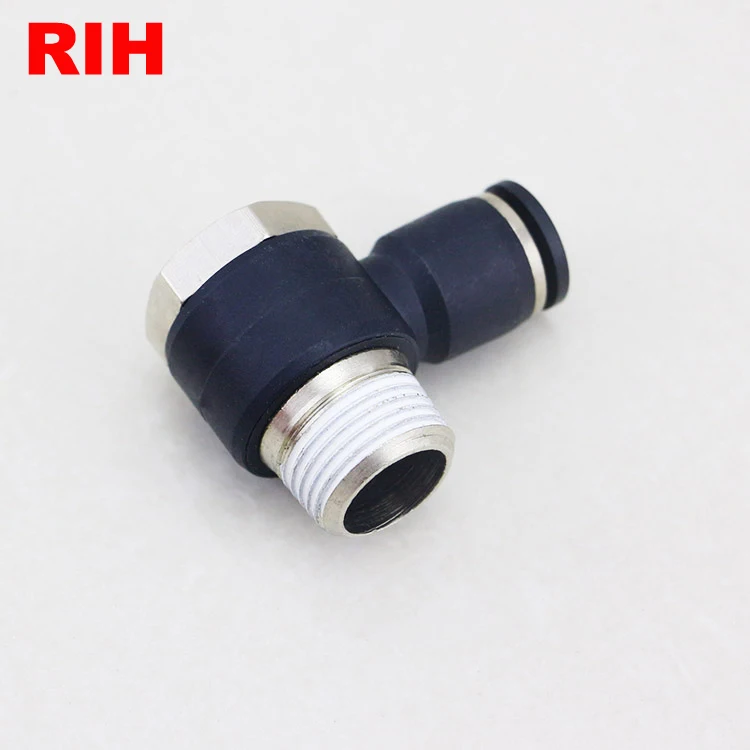

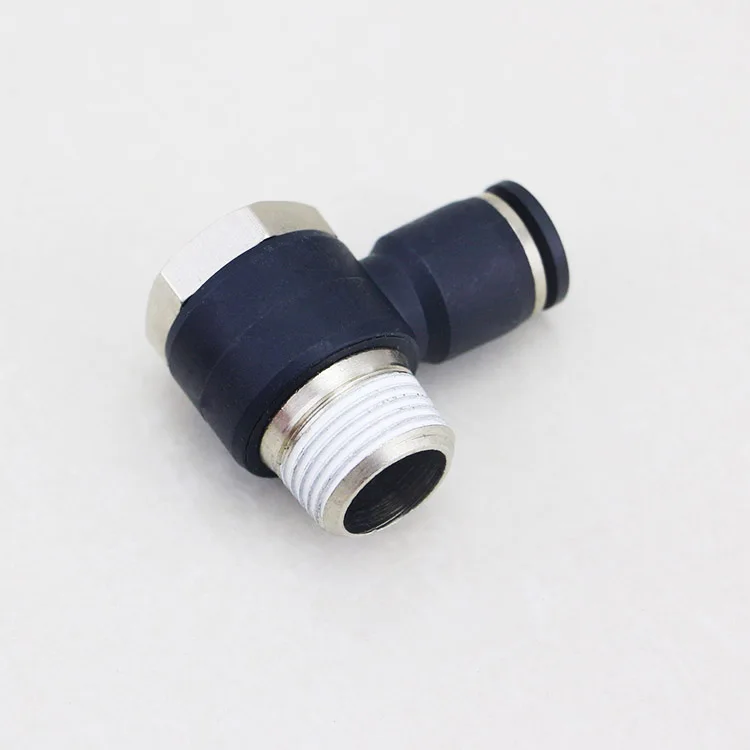

PH Outer Hexagon Male Threaded L Type Elbow Rotating Swivel Air Fitting Pneumatic

Operating Pressure

 0-1.0MPa | 0-150psi

Operating Temperature

 0 - 60 °C

Male Thread Size

1/8" BSP thread---------Thread Outside Diameter: 9.728mm
1/4" BSP thread---------Thread Outside Diameter: 13.157mm
3/8" BSP thread---------Thread Outside Diameter: 16.662mm
1/2" BSP thread---------Thread Outside Diameter: 20.955mm
3/4" BSP thread---------Thread Outside Diameter: 26.441mm

Apply For

4/6/8/10/12mm tube/hose

Applicable Tube

PU / PA / PE / PVC

Features

1. Designed for Polyurethane or Nylon tubing.
2. Simple installation pneumatic push in connector.
3. After installation, the direction of the tube can be changed freely.
4. Elliptical release ring help to connect tube easily by manual, no special tools required.
5. Outside (and Inside where applicable) hexagonal wrench tightening.
6. This Quick fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment.
