ODOELEC Electric forklift/stacker use, 125A mushroom push button lockout emergency stop switch
- Category: >>>
- Supplier: Yueqing Wodu Electric Co. Ltd.
Share on (60794409804):
Product Overview
Description
Application
Electric forklift/stacker use, 125A mushroom push button lockout emergency stop switch
Emergency switch is applicable in various electric motor and other supporting equipment. It is very safe and convenient.
Detailed Images
Model | ODO125A |
Rated voltage | ≯80V |
Contact circuit rated load current | 125A |
Typical voltage drop across contacts per 100A | ≯80mV |
Insulation resistance | ≥50MΩ |
Electric strength to resist | 50/60Hz 1000VAC/1 min |
Contact form | 1NO |
Performance
Closing force | 20N≤F1≤40N | ||||
Disconnectiong force (Ft) | 20N≤F1≤40N | ||||
Body size | 55.7mm*43.5mm*110mm (max) | ||||
weight | ≤320g | ||||
Technical parameter
Overload current | ≤7le, ≯1s | ||||
Electric life | ≥10000 times | ||||
Mechanical life | 50 thousand times | ||||
Work specification | Continuous | ||||
Contact material | AgCdO/ AgCuO | ||||
Technical Specification | GB14048.3-2010 | ||||

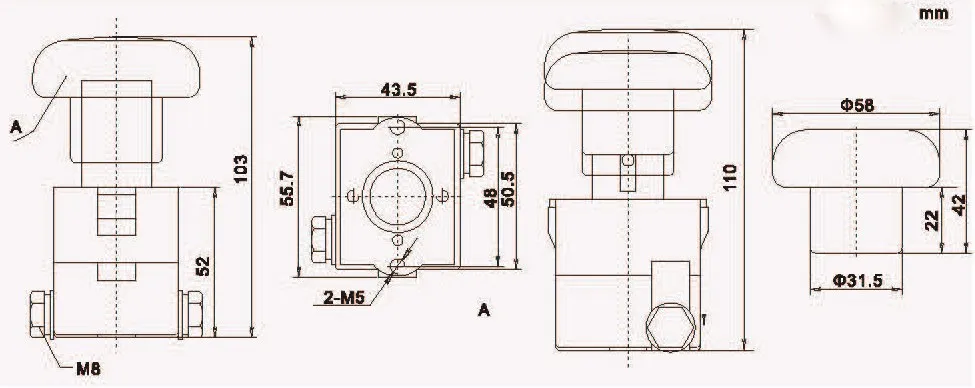

Installation Diagram
