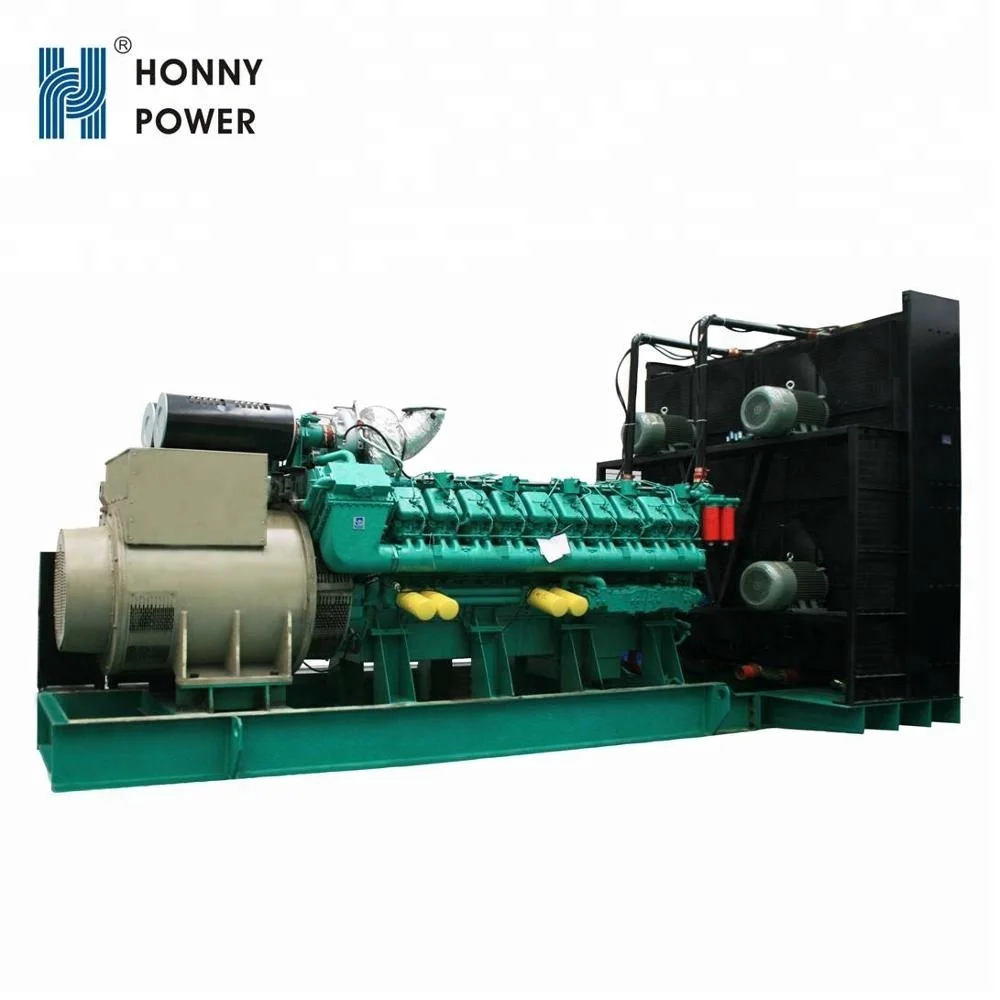

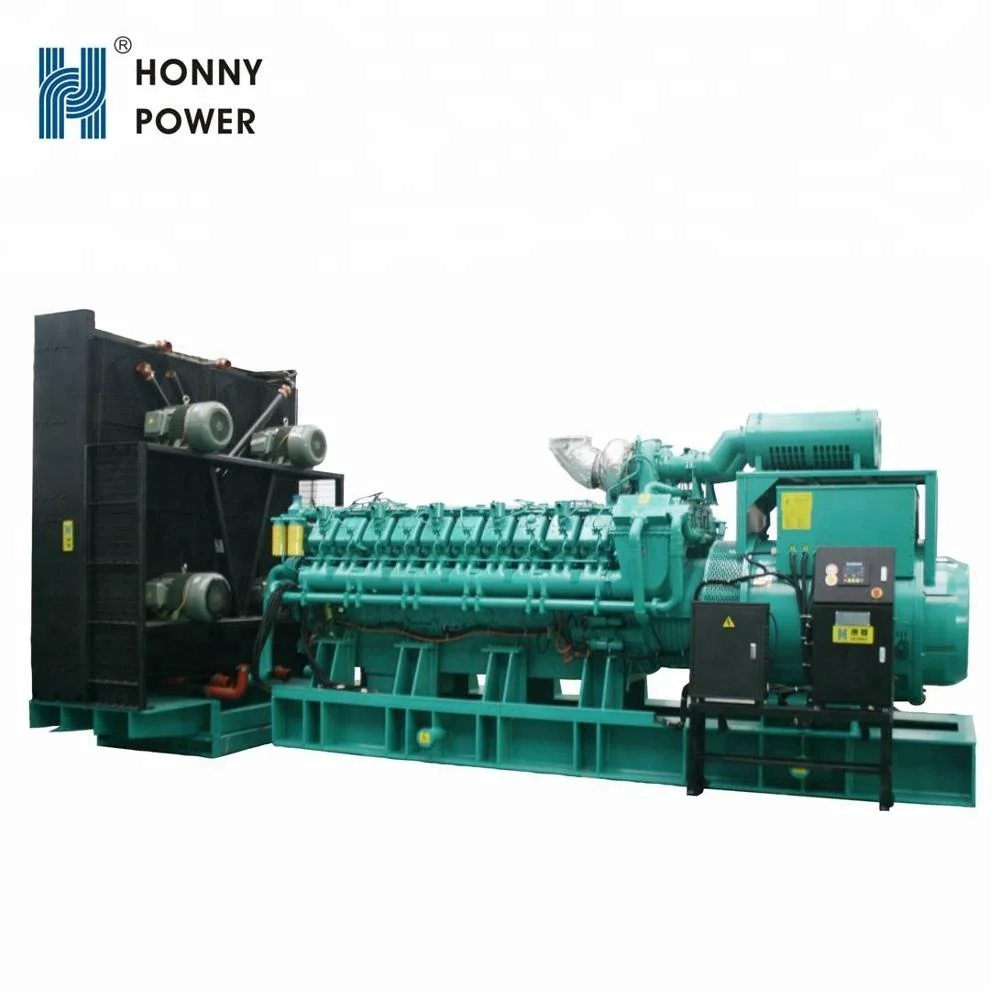

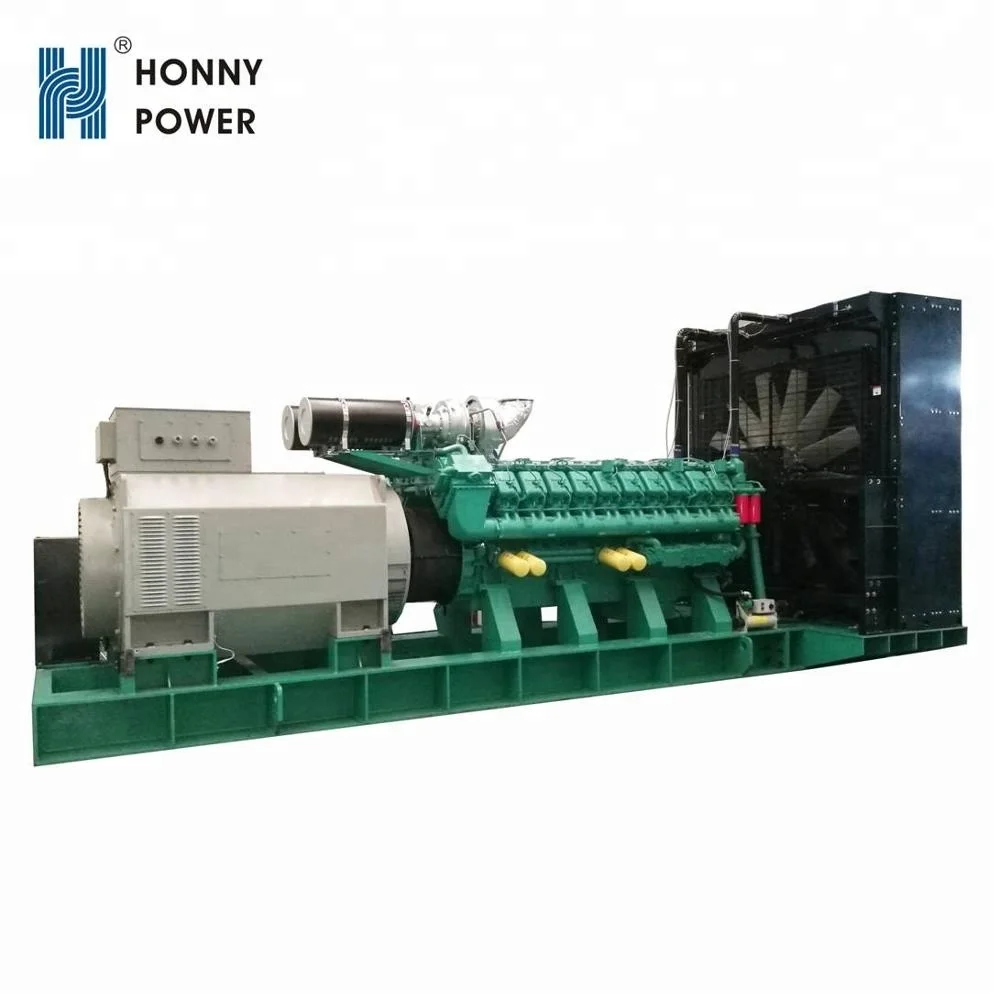

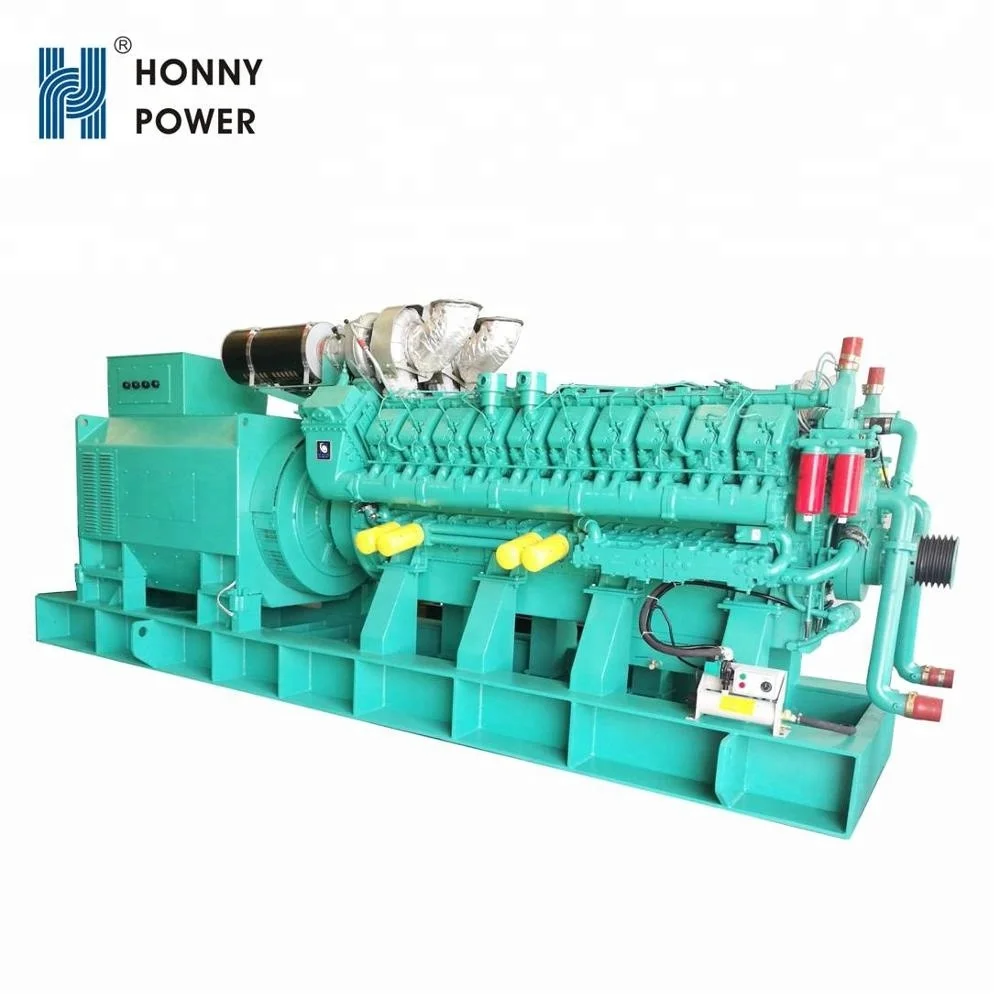

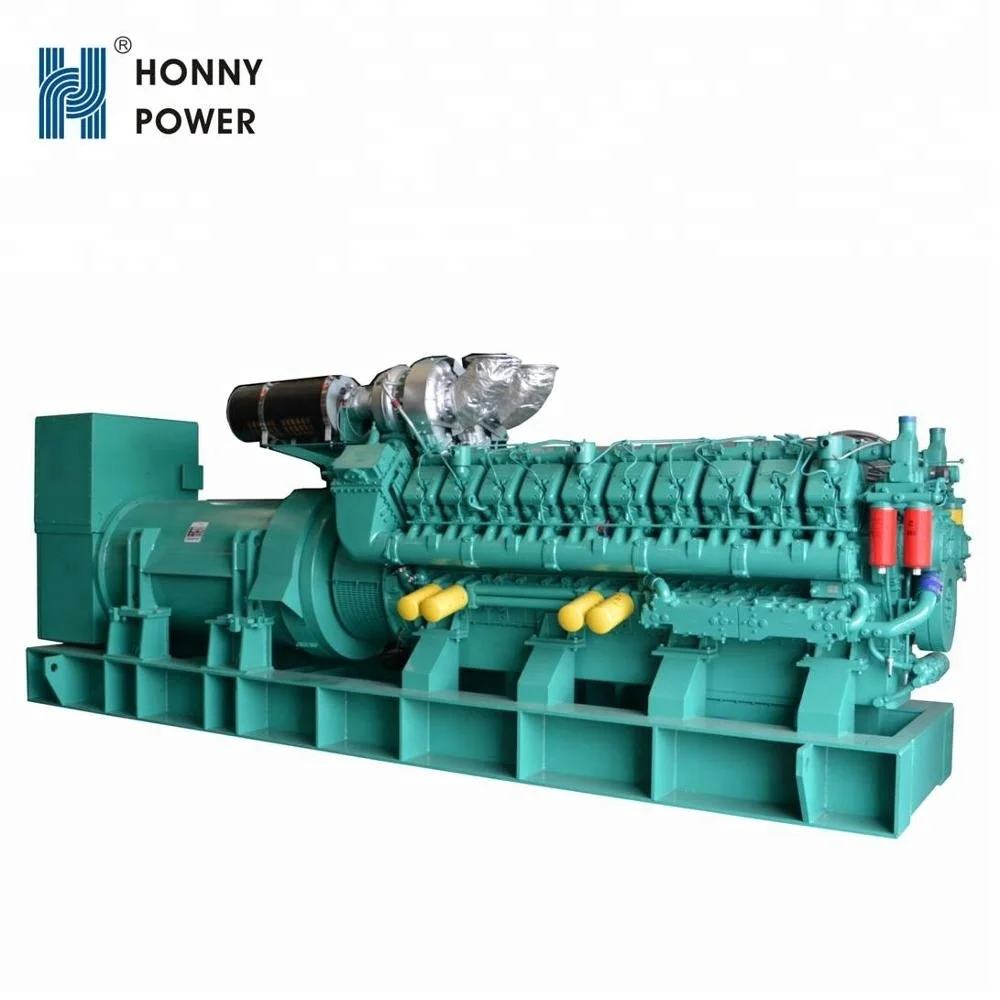

Honny Power Generator 5000kVA Genset Unit

Product Overview

Description

Genset Model		HGM2752
Genset Prime Output	kW/kVA	2000/2500
Genset Standby Output	kW/kVA	2202/2752.5
Rating Power Factor		0.8
Rating Speed	rpm	1500
Rating Frequency	Hz	50
Rating Voltage	V	400
Engine Model		QTA5400-G1
Displacement	l	88.5
Configuration		20V
Genset Size-Open Type (LxWxH)	mm	8000x2900x3500
Genset Weight	kg	20000
Engine Model		QTA5400-G1
Engine Standby Output (LTP)	kW	2442
Engine Prime Output (PRP)	kW	2225
Engine Continuous Power (COP)	kW	1980
Typical  Alternator Efficiency		95.8%
Speed droop (static) elect. Gov.		0-5%
Governing standards to ISO 8528		G3
Max. step load acceptance, 1st step(% PRP)		45%
Engine Data in General
Aspiration Type		Turbocharger, air-water         aftercooler
Injection Type		Direct Injection
Configuration		Vee
No. of Cylinders		20
Displacement	l	88.5
Bore	mm	170
Stroke	mm	195
Compression Ratio		13.5:1
Piston Speed	m/s	9.75
Rotation Direction (from flywheel)		Counter Clockwise
Number of Flywheel Teeth		218
Flywheel House Size		SAE00-21
Lubrication System
Lube Oil Specification		AFI-CG4
Oil Capacity	l	300
Max. Permissible Oil Temperature	°C	110
Oil Pressure Warning	kPa	300
Oil Pressure Shutdown	kPa	200
Oil Consumption (as % of fuel consumption )	%	≤0.5
Cooling System
Coolant Capacity for Engine	l	200
Max. Permissible Temperature	°C	90
Max. Coolant Warning Temperature	°C	95
Max. Coolant Shutdown Temperature	°C	98
Thermostat Open Temperature	°C	71
Radiator Cooling Flow	m³/min	3600
Flow of Cylinder liner Coolant pump	m³/h	75
Flow of aftercooler Coolant pump	m³/h	90
Heat dissipation (engine radiator)	kW	833
Heat dissipation (CAC)	kW	500
Heat dissipation (convection)	kW	133
Fuel System
Governor Type		Electrical
Fuel Consumption at 25% of genset prime output	l/h	166
Fuel Consumption at 50% of genset prime output	l/h	276
Fuel Consumption at 75% of genset prime output	l/h	395
Fuel Consumption at 100% of genset prime output	l/h	521
Lowest Fuel Consumption Ratio	g/kW.hr	195
Intake & Exhaust System (On Standby Output)
Combustion Air Consumption	m³/min	250
Max. Intake Restriction	KPa	5
Exhaust Temperature (Before Turbo)	°C	630
Exhaust Temperature (After Turbo)	°C	510
Max. Exhaust Back Pressure	Kpa	5
Exhaust Gas Flow	m³/min	625
Turbo Bellows Diameter	mm	DN250
Exhaust Flange Diameter	mm	DN250
Electrical System
Charging Alternator Voltage	V	28
Charging Alternator Capacity	A	55
Starting Voltage	V	24
Starting Motor Capacity	kW	2*13
Minimum Battery Capacity	Ah	4*200
Generator-Googol Power
Generator Model		GP2500-4P
Capacity @ 0.8PF, H Rise Class	kW	2000
Efficiency @ 0.8PF	%	95.8
Duty		S1
Bearing		Double
Insulation		H
Rise Temperature		H
Enclosure		IP23
Over speed	rpm	2250
Excitation System		AVR
AVR Model		MX321
Poles		4
